Olympus Lock

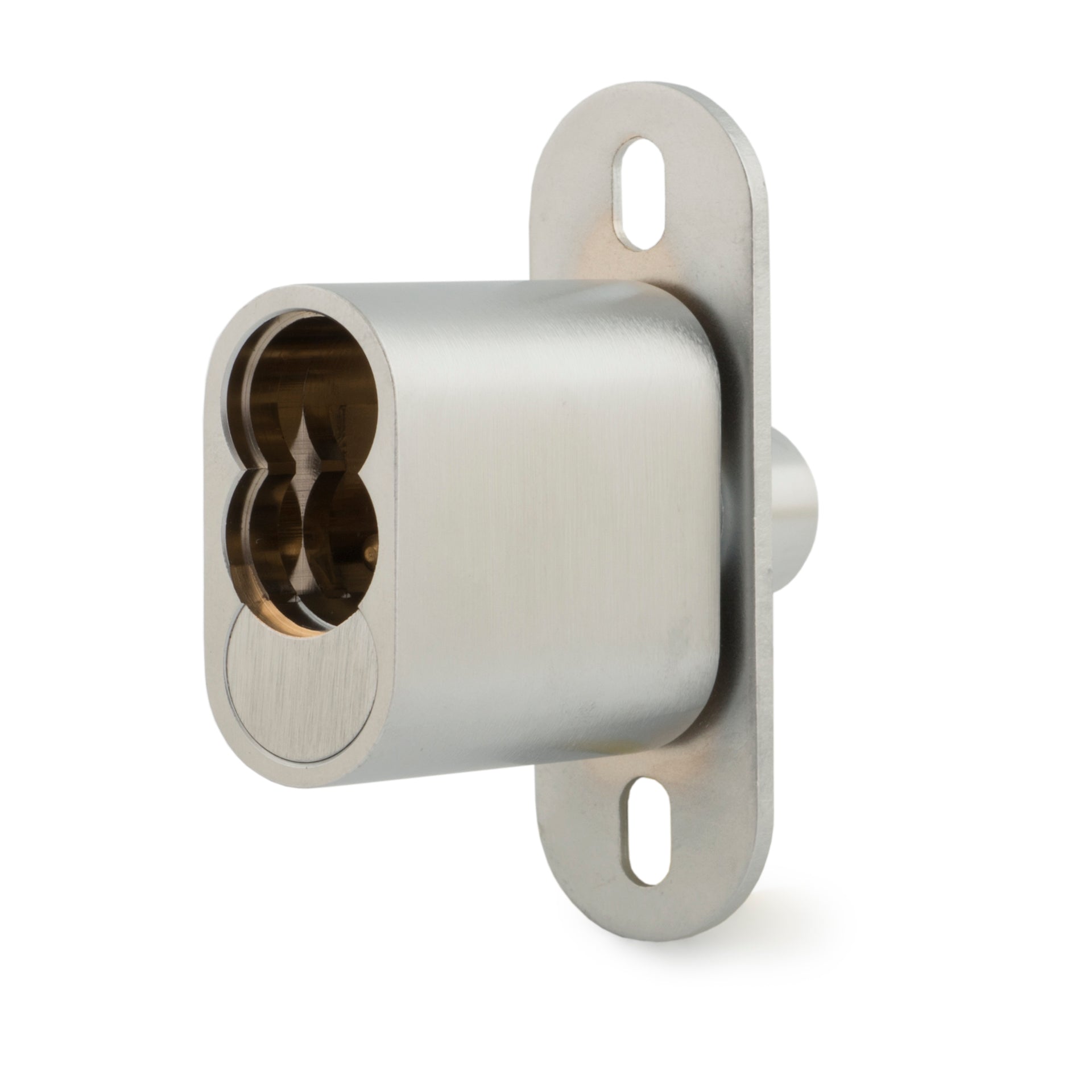

Olympus - 722S Sliding Door Push Lock

SKU: 722S 3/4" - 1-1/2" 26D
$64.79
General Features
  • Plunger Lock - SFIC
  • Retrofits BEST: 2S, 2S-TBM
  • Barrel length: 1-3/4"
  • Bolt throw: 1/2"
  • Solid brass body
  • Accepts Best, Arrow, Falcon or equivalent IC cores
  • Fits 6 or 7 pin cores
Available Configurations
  • 722S - non-key retaining (key removable in locked and unlocked positions)
  • 722S-KR - key-retaining (key removable in locked position only)
  • 722S-TBM - through-bolt mount (key removable in locked and unlocked position)
  • 722S-TBM-KR - through-bolt mount, key-retaining (key removable in locked position only)
Documents

Olympus Catalog Page
Architectural Specifications
Product Data Sheet
Conversion Chart
722 Installation Instructions
722-TBM Installation Instructions
Cylinder Installation Instructions

Dimension Illustrations
Dimensions

Cores for Locks
  • All locks sold less core
  • Accepts Best, Arrow, Falcon, or equivalent IC cores
  • See our available cores IC core section
Includes
  • Maximum door thickness: 1-7/8"
  • Maximum door thickness: 1-5/8"

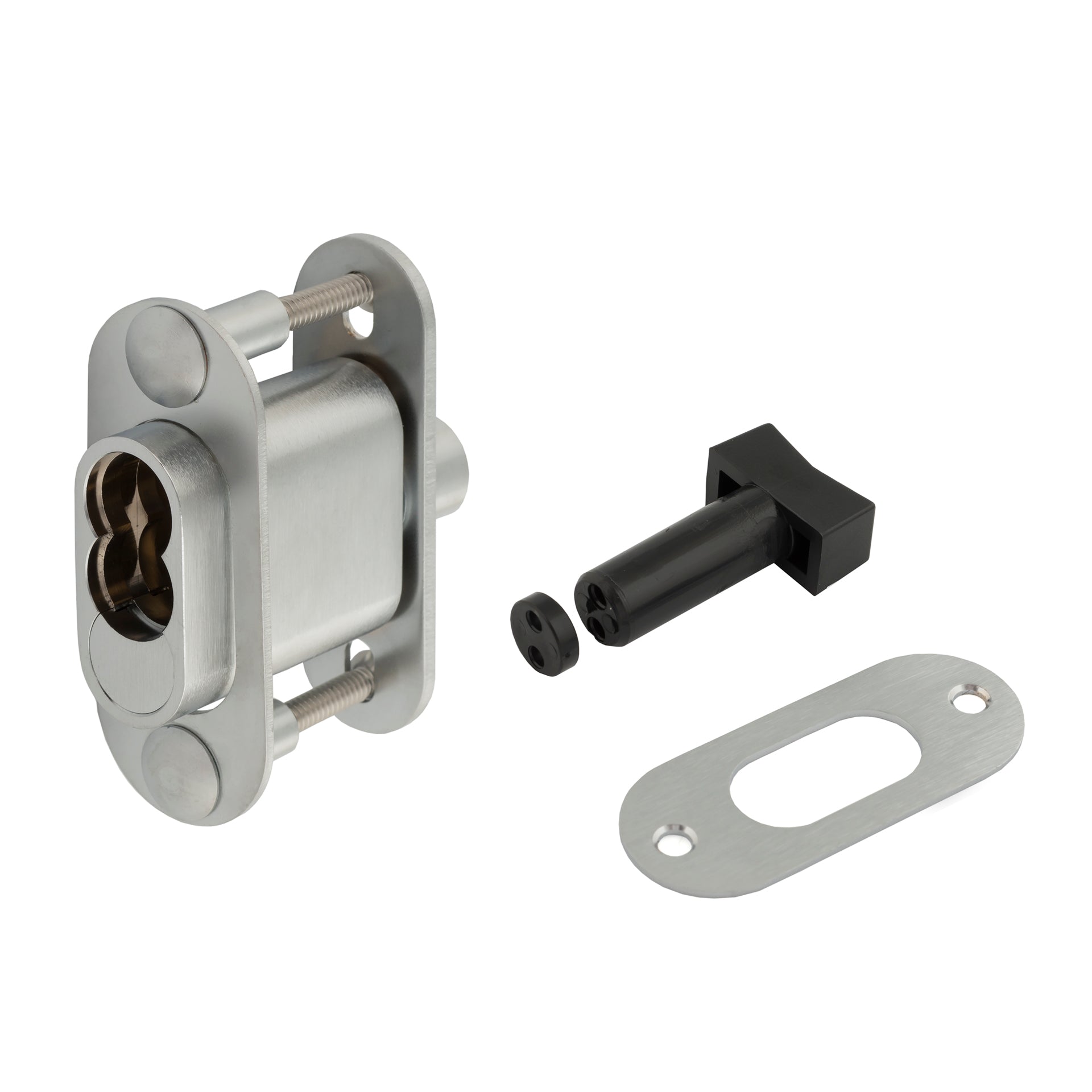

  • Includes through-bolt mounting accessories
  • Matching strike plate
  • plastic actuator to functionally test the lock without the core 725-PA
  • plastic actuator to functionally test lock without the core 725-PA
