General Features
- Cabinet lock - deadbolt drawer lock
- Easily rekeyable via cylinder release mechanism
- Will accept other manufacturer's Schlage compatible deadbolt cylinders
- (Grade 1) ANSI/BHMA No. E07041
- Standard function: locks are non-handed with key removable in the locked and unlocked position.
- Optional key-retaining* function. Specify 800KV for vertical-hand or 800KI for inverted-hand. NOTE: Specify vertical-hand or inverted-hand for key-retaining function only. See key-retaining chart.
- Barrel lengths: 1-1/8" or 1-3/8" (specify barrel length when ordering)
- Barrel diameter: 1-1/8"
- Bolt projection: 7/8"

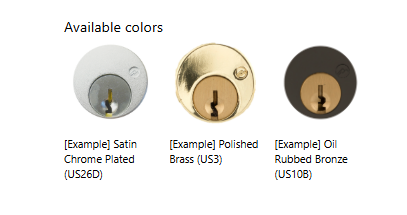

- 26D, US3 or 10B finish
- 10B finish locks ship standard with US4 satin brass cylinder.
- Packed 10 per box
- US Patent Nos: 4,899,563; 4,920,774
- *Key-retaining = key removable in locked position only.
- WARNING (California Proposition 65)
Available Separately
- Plastic spacers 10-348, 10-349, 10-350
- Angle strikes 12-1, 12-2, 12-3
- Bar strikes 56-1, 10-054, 10-055, 10-057, 10-058
- Slotted strikes 10-052, 12-5
- Frameless drawer strike 12-4
- Trim ring TR78
- Through-bolt trim plate 1/8" thickness ETS1-125
- Through-bolt trim plate 1/4" thickness ETS1-250
- Through-bolt trim pull ETS1-PL
- Through-bolt trim spacer template ETST1
- Conversion kit for KABA-Peaks cylinders 78-KABA-CONV
- 3/8" plastic bar strike 10-058
Includes
- 2 ea. plastic spacers (included with 1-1/8" barrel length locks only) 10-350
- 1 ea. 1/4" plastic bar strike (included with 1-1/8" and 1-3/8" barrel length locks) 10-054
- 1 ea. 1/2" plastic bar strike (included with 1-1/8" barrel length locks only) 10-055
- 1 ea. 1/4" plastic bar strike 10-054
Keying
- Schlage C keyway
- 6 pin solid brass cylinder
- Cylinder body chambers Lori replacement plugs
- 5 pin keyed alike or keyed different
- Stock KA# 101, 102
- Custom master keying - 6 pin standard
Testing
(E07041) ANSI/BHMA A156.11 Grade 1
Dimension Illustrations
Documents
Requires additional part (see also video) for instructions on Key-Retaining Conversion
