General Features
- Min. material thickness: 0.08"

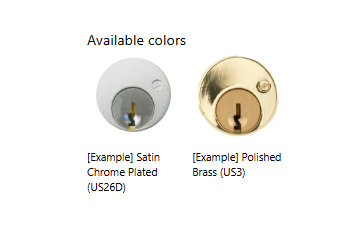

- 26D or US3
- Packed 10 per box
- US Patent No. 7,716,958 B2
- Includes all parts for key-retaining or non-key-retaining function
- See all alternate cams and accessories
- WARNING (California Proposition 65)
Available Separately
- long inverted cam 720-3-3
- extra long 3" vertical cam 720-3-4
- long inverted cam with shallow offset 720-3-5
- for extending the face of the lockout from casework material Trim collars

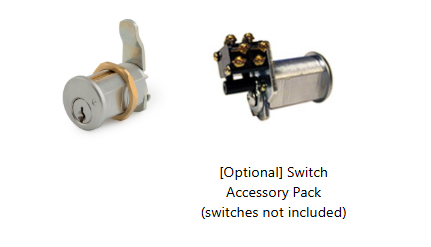

- turns your cam lock into an electronic switch lock (see our website for more information) SW-1 switch accessory pack
- Double D Metal Punch (punches a 7/8" x 1-1/8" cutout in sheet metal for cam lock installation) CL-MP-118

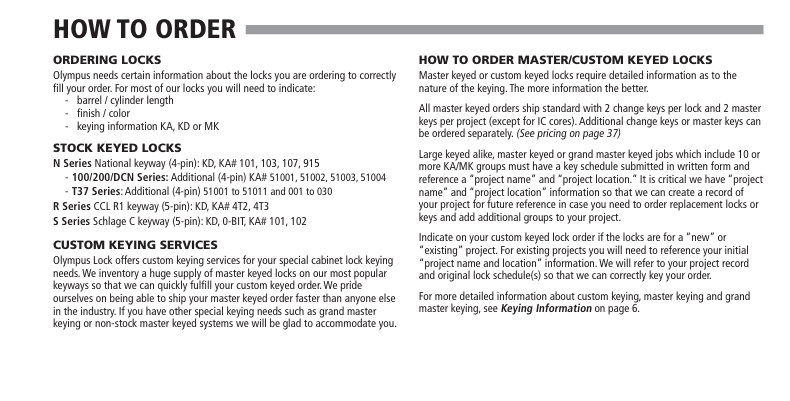

Keying
- Schlage C keyway
- 6 pin solid brass cylinder
- Cylinder body chambers Lori replacement plugs
- 5 pin keyed alike or keyed different
- Stock KA# 101, 102
- Custom master keying - 6 pin standard
Definitions
- Standard function = key removable in the locked and unlocked positions
- Key-retaining function = key removable in the locked position only
Includes
Testing
- Passed ANSI/BHMA A156.11 Grade 1 performance requirements.
