General Features
- Cabinet lock - deadbolt drawer lock
- Accepts Medeco/Yale IC core
- Standard function: locks are non-handed with key removable in locked and unlocked position
- Optional key-retaining* function: for part-numbers and handing see key retaining chart
- Barrel diameter: 1-1/8"
- Barrel length 1-3/8"

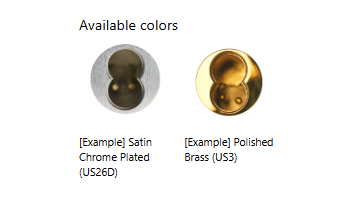

- 26D or US3 finish (see finish chart)
- Packed 10 per box
- *Key-retaining = key removable in the locked position only
- WARNING (California Proposition 65)
Available Separately
- Plastic spacers 10-348, 10-349, 10-350
- Angle strikes 12-1, 12-2, 12-3
- Bar strikes 56-1, 10-054, 10-055, 10-057, 10-058
- Slotted strike 10-052, 12-5
- Frameless drawer strike 12-4
- Trim ring TR78
- Through-bolt trim plate 1/8" thickness ETS1-125
- Through-bolt trim plate 1/4" thickness ETS1-250
- Through-bolt trim pull ETS1-PL
- Through-bolt trim spacer template ETST1
Cores for Locks
- 3 ea. plastic spacers 10-350
- All locks sold less core
- Medeco 6-pin IC core cylinder #32-0201. Requires Medeco #94-0009 cylinder spacer. For more information see. www.medeco.com
- 1 ea. 1/4" plastic bar strike 10-054
- 1 ea. 1/2" plastic bar strike 10-055
- Yale 1210 Series 6-pin IC core cylinder. For more information see. www.yalelock.com
- ASSA's Yale 6 pin compatible large format IC core. For more information see. www.assalock.com
Testing
Passed ANSI/BHMA A156.11 Grade 1 performance requirements.
Documents
Dimension Illustrations
