Olympus - CR1125RD Rim (Surface) Mount Deadbolt Locks Format

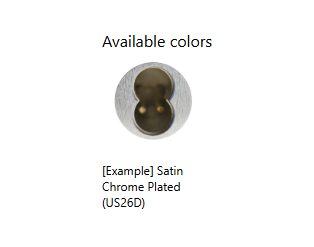

SKU: CR1125RD RH US26D
$58.31
General Features
  • Cabinet lock - door or drawer deadbolt
  • Rim - surface mount
  • Deadbolt locking mechanism
  • Accepts Corbin/Russwin 6 or 7 pin IC cores
  • Barrel diameter: 1-5/32"

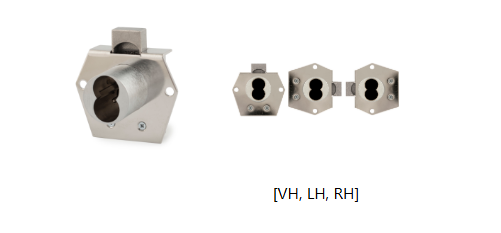

Available Configurations
  • CR1125RDLH - Door, left-hand
  • CR1125RDRH - Door, right-hand
  • CR1125RDVH - Drawer lock
Cores for Locks

All locks sold less core
For more information on cores, see: www.corbinrusswin.com
Includes
  • 1 ea. 725-1 spacer for 6 pin cores
  • 1 ea. 725-PA plastic actuator to functionally test lock without core
  • 1 ea. solid rectangular strike 725-SP-RD
Dimension Illustrations

Front
Side
Available Separately
See our Corbin/Russwin padlocks CRB200

Documents

Olympus Catalog Page
Architectural Specifications
Product Data Sheet
Installation Instructions
Testing

Passed ANSI/BHMA A156.11 Grade 1 performance requirements.
