Olympus - Enclosure Lock, Spring Latchbolt R Series - CCL Specialty

SKU: E5L-RH CR KA US3
$36.06
General Features

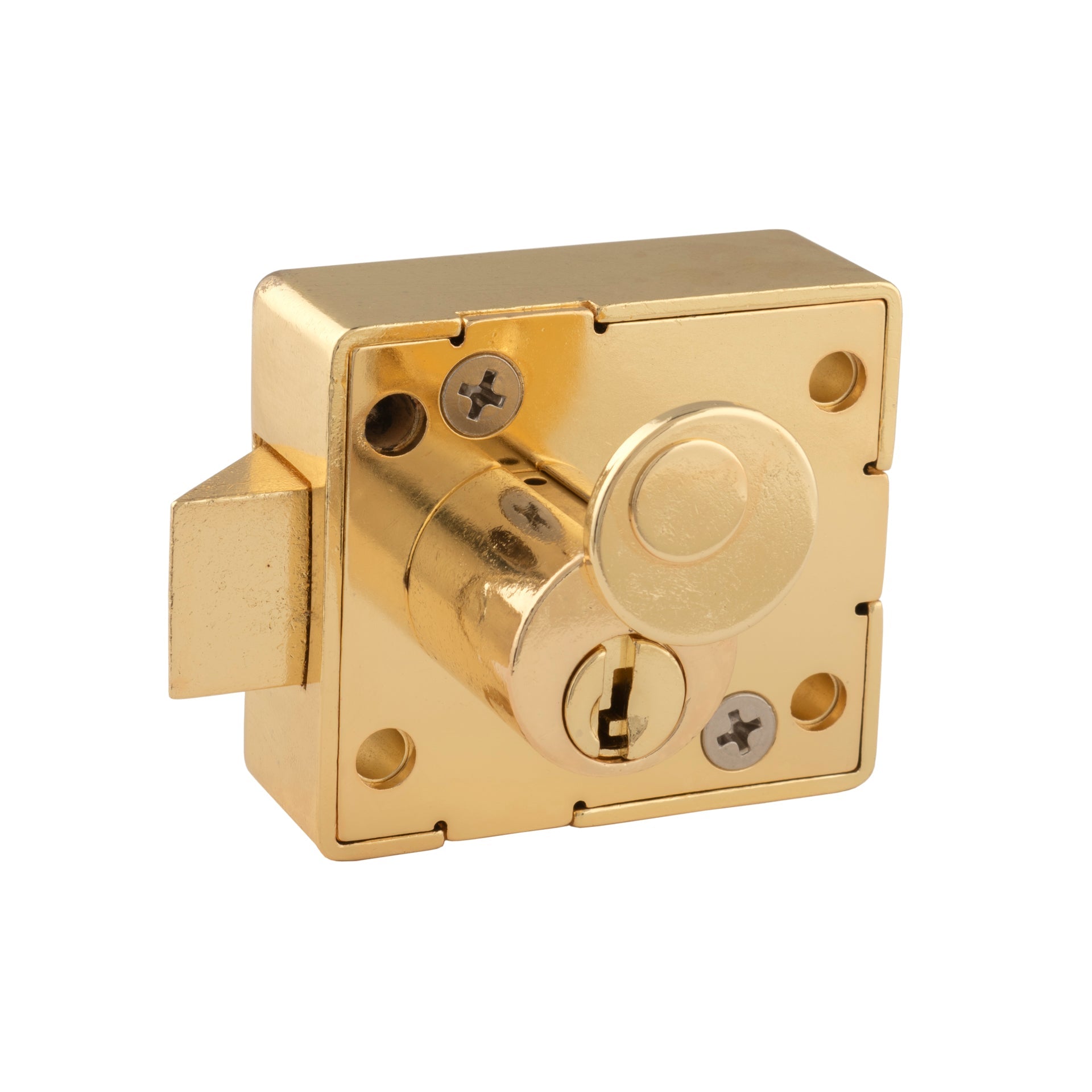

  • Cabinet/enclosure lock, spring latchbolt
  • This is a spring latch lock typically used for metal NEMA-style traffic enclosures
  • For spring deadbolt [square latch] function, see E5D
  • Available in CCL "CR" or "GR" keyways
  • Retrofits CCL 15481RS / 55481RS
  • Zinc die-cast cylinder, body and bolt. Includes integrated dust cap.
  • Right-hand orientation is standard. For the left-hand, lock can be rotated 180 degrees.
  • Barrel diameter 7/8"
  • Barrel length 7/8"
  • US3 polished brass finish
  • CR keyway: Keyed alike to key #2
  • GR keyway: Keyed alike to key #401
  • We can match your custom key codes
  • Includes 2 keys per lock
  • Packed 10 per box
  • WARNING (California Proposition 65)
Available Configurations

For use on NEMA traffic control enclosures
CR Keyway, keyed alike #2: Order item no. E5L-RH-US3-KA2 spring deadbolt, right-hand, US3
GR Keyway, keyed alike #401: Order item no. E5LG-RH-US3-KA401 spring deadbolt, right-hand, US3
Documents
Sales Brochure
Product Data Sheet
Olympus Catalog Page
Keying
  • CCL "CR" or "GR" Keyways
  • CR Keyway: Stock keyed alike to key #2
  • Custom keying to other numbers available for an upcharge
Available Separately
  • CR Keyway: KBCR-KA2-NP - #2 cut key
  • CR Keyway: KBCR-5-CUST - Custom cut keys
  • CR Keyway: KBCR-5-NP - CR key blank for E5 series locks
  • GR Keyway: KBGR-KA401-NP - #401 cut key
  • GR Keyway: KBGR-5-CUST - Custom cut keys
  • GR Keyway: KBGR-5-NP - GR key blank for E5 series locks
Includes
  • Includes 2 keys per lock
  • Integrated dust cap
Dimension Illustrations
Spring Latchbolt
