Home » Olympus - L20V 4-Pin N Series National Latch
Olympus Lock

Olympus - L20V 4-Pin N Series National Latch

SKU: L20V 7/8" 4-Pin US26D KD
$49.70
General Features
  • Cabinet lock - drawer latch lock
  • Drawer vertical
  • Easily rekeyable via set screw cylinder release mechanism
  • Pin tumbler cylinder drilled for 5 pins
  • Barrel lengths: 15/16" or 1-3/8" (specify barrel length when ordering)
  • Barrel diameter: 7/8"
  • For the door application, place the lock on the side
  • 26D finish
  • Includes matching strike (stamped brass) with alignment mark for easy installation 999-STRIKE
  • Packed 10 per box
  • US Patent: 4,899,563
  • WARNING (California Proposition 65)
Available Configurations
  • Drawer, vertical hand
  • NOTE: For door applications, turn the lock 90 degrees

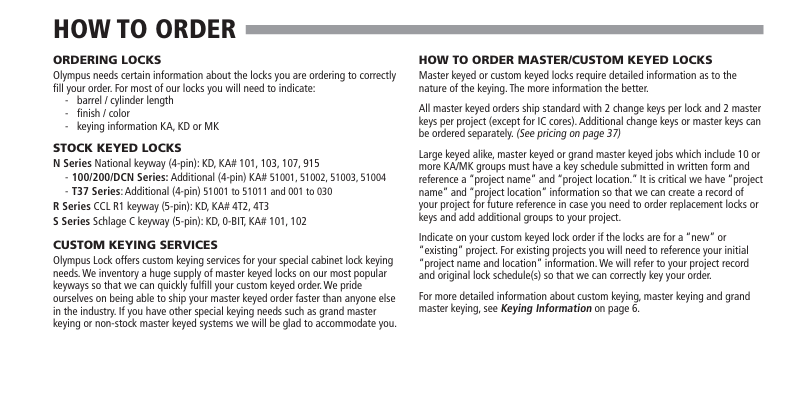

Available Separately
Keying
  • National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
  • KD/KA - 4 pin standard
  • KA# 101, 103, 107, 915
  • Master keyed - 5-pin standard
  • Use for rekeying N1 Pin Kit
  • 4-pin keyblank = (equivalent to NA14, 1069L) KBN-4-NP
  • 5-pin keyblank = (equivalent to NA12, 1069LA) KBN-5-NP
Documents

Olympus Catalog Page
Architectural Specifications
Product Data Sheet
Rekeying Instructions
Conversion Chart
Installation Instructions

Dimension Illustrations

Front
Side
