Olympus - L78 6-Pin Schlage C Drawer Latch Lock

SKU: L78V 6-Pin 1-1/8" KD US26D
$84.02
General Features
  • Cabinet lock - door/drawer latch lock
  • Field reversible into all 4 handings. Handings can be easily changed in the field.
  • Easily rekeyable via cylinder release mechanism
  • Will accept other manufacturer's Schlage compatible deadbolt cylinders
  • Locks are handed at factory: For door locks, specify left-hand (L78L) or right-hand (L78R) when ordering. Can be changed in the field. See handing chart.
  • Locks are handed at factory: For drawer locks, specify vertical-hand (L78V) or inverted-hand (L78I) when ordering. Can be changed in the field. See handing chart.
  • Barrel diameter: 1-1/8"
  • Barrel lengths: 1-1/8" or 1-3/8" (specify barrel length when ordering)

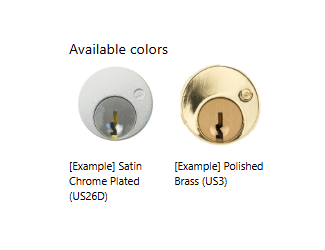

  • 26D or US3 finish
  • Includes matching strike (stamped brass) with alignment markfor easy installation L78ST
  • Packed 10 per box
  • US Patent Nos: 4,899,563; 7,874,189 B2
  • WARNING (Proposition 65)
Available Configurations
  • Door, left-hand = L78L
  • Door, right-hand = L78R
  • Drawer, vertical-hand = L78V
  • Drawer, inverted-hand = L78I
NOTE: This lock is field reversible. Handings can easily be changed via set screw. One lock can be changed to any of four handings: Door RH, Door LH, Drawer VH or Drawer, IH.

Available Separately
  • Plastic spacers 10-351
  • Strikes lipped style
  • Trim ring TR78

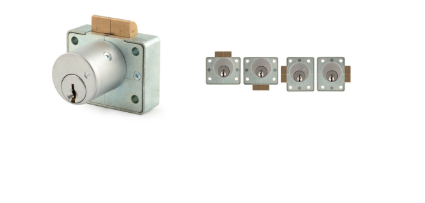

  • L78-KNOB optional thumb-turn for inside release. See picture at top right. Typically used in changing rooms.

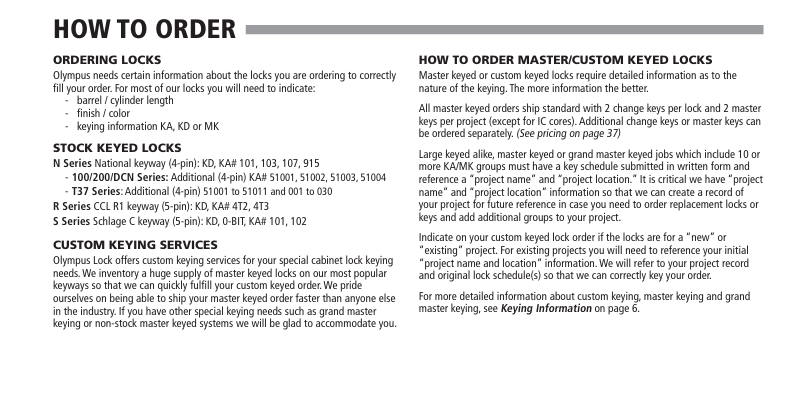

Keying
  • Schlage C keyway
  • 6 pin solid brass cylinder
  • Cylinder body chambers Lori replacement plugs
  • 5 pin keyed alike or keyed different
  • Stocked KD, KA# 101 or KA# 102
  • Custom master keying - 6 pin standard
Includes
**
  • L78 (1-1/8" barrel length) lock includes 2 each plastic spacers 10-351
  • L78 (1-1/8" barrel length) lock includes matching lip strike (stamped brass) L78ST-1
  • L78 (1-3/8" barrel length) lock includes matching lip strike (stamped brass) L78ST-2
