Olympus - N078 5-Pin N Series Diamond Back Door Lock

SKU: N078R 5-Pin 1-1/8" KD US26D
$30.26
General Features
  • N078 - furniture drawer lock
  • N078L - cabinet door lock (Left-Hand)
  • N078R - cabinet door lock (Right-Hand)
  • N078R / N078L - available in US26D finish only
  • Easily rekeyable set screw cylinder release mechanism
  • Solid brass pin tumbler cylinder drilled for 5 pins
  • Barrel lengths: 1-1/8" or 1-3/8" (Specify barrel length when ordering)
  • Barrel diameter: 7/8"
  • 26D or US4 finish
  • Packed 10 per box
  • US Patent Nos: 4,899,563; 4,920,774
  • WARNING (California Proposition 65)
Available Separately

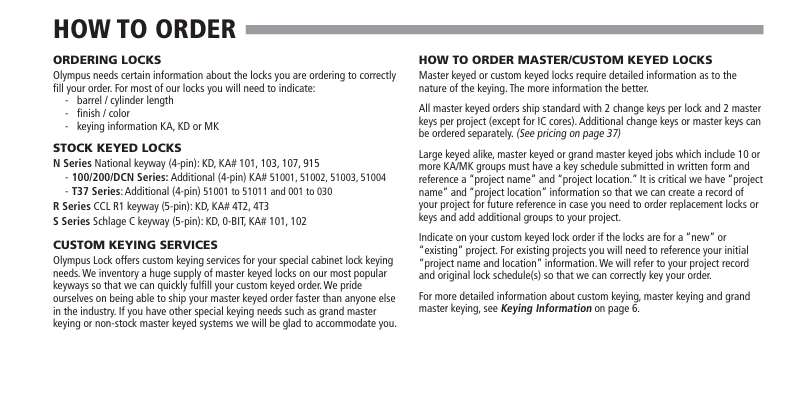

Keying
  • National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
  • KD/KA - 4 pin standard
  • KA# 101, 103, 107, 915
  • Master keyed - 5-pin standard
  • Use for rekeying N1 Pin Kit
  • 4-pin keyblank (equivalent to NA14, 1069L): KBN-4-NP
  • 5-pin keyblank (equivalent to NA12, 1069LA): KBN-5-NP
Dimension Illustrations

Drawer Front
Drawer Side (1-1/8")
Drawer Side (1-3/8")
Drawer Offset Long Bolt
Door Front (left-hand)
Door Front Long Bolt (left-hand)
Door Side (left-hand)
Door Front (right-hand)
Door Front Long bolt (right-hand)
Door Side (right-side)

Documents

Olympus Catalog Page
Architectural Specifications
Product Data Sheet
Rekeying Instructions
Conversion Chart
Installation Instructions (Door)
Installation Instructions (Drawer)
