Home » Olympus - T37 N Series National Specialty
Olympus Lock

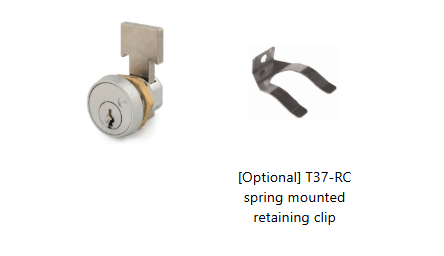

Olympus - T37 N Series National Specialty

SKU: T37 US26D KD
$31.80
General Features
  • Easily rekeyable via working top slide and retainer staple cylinder release mechanism
  • Directly replaces National C8137 T-bolt lock
  • Pin tumbler, 4-pin cylinder
  • ANSI/BHMA No. E07051
  • For 1/4" thick metal drawers
  • Barrel diameter: 3/4"
  • Includes: insertable t-bolt and brass mounting nut
Available Separately
  • Spring-mounted retaining clip for 0" to 11/64" material thickness T37-RC
  • Long bolt, can be cut to fit a variety of applications T37-2
  • Short "Chicago-style" bolt for 25/32" backset T37-3
  • Number kit for T37 locks includes number ring and trim collar T37-NKIT
  • Replacement number rings T37DC-NP

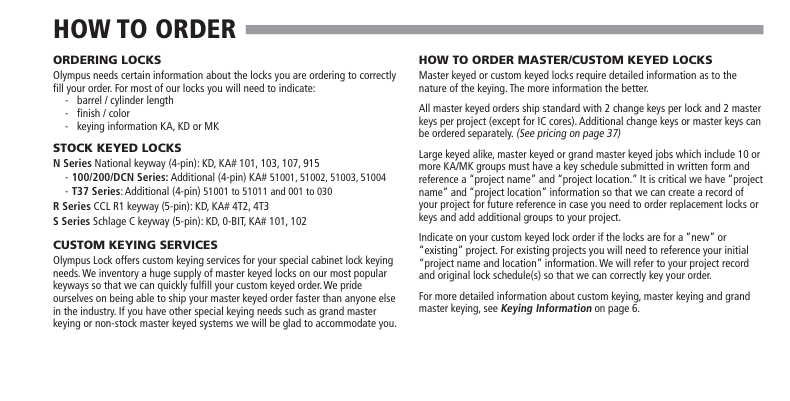

Keying
  • National Cabinet Lock D4291(4-pin) keyway
  • KA/KD/MK - 4 pin standard
  • KA# 101, 103, 107, 915, and 001 through 030
  • NEW! KA# 51001, 51002, 51003, 51004, 51005, 51006, 51007, 51008, 51009, 51010
  • Use for rekeying N1 Pin Kit
  • 4-pin keyblank = (equivalent to NA14, 1069L) KBN-4-NP
Dimension Illustrations

T37 lock dimensions
Mounting hole detail
Long bolt T37-2
Short bolt T37-3

Documents

Olympus Catalog Page
Product Data Sheet
Rekeying Instructions
Conversion Chart
Installation Instructions
Press Release
Bank Lock Products
