Home » PBB Alrex With Hold Open Hydrolic Door Closer Hinge
PBB

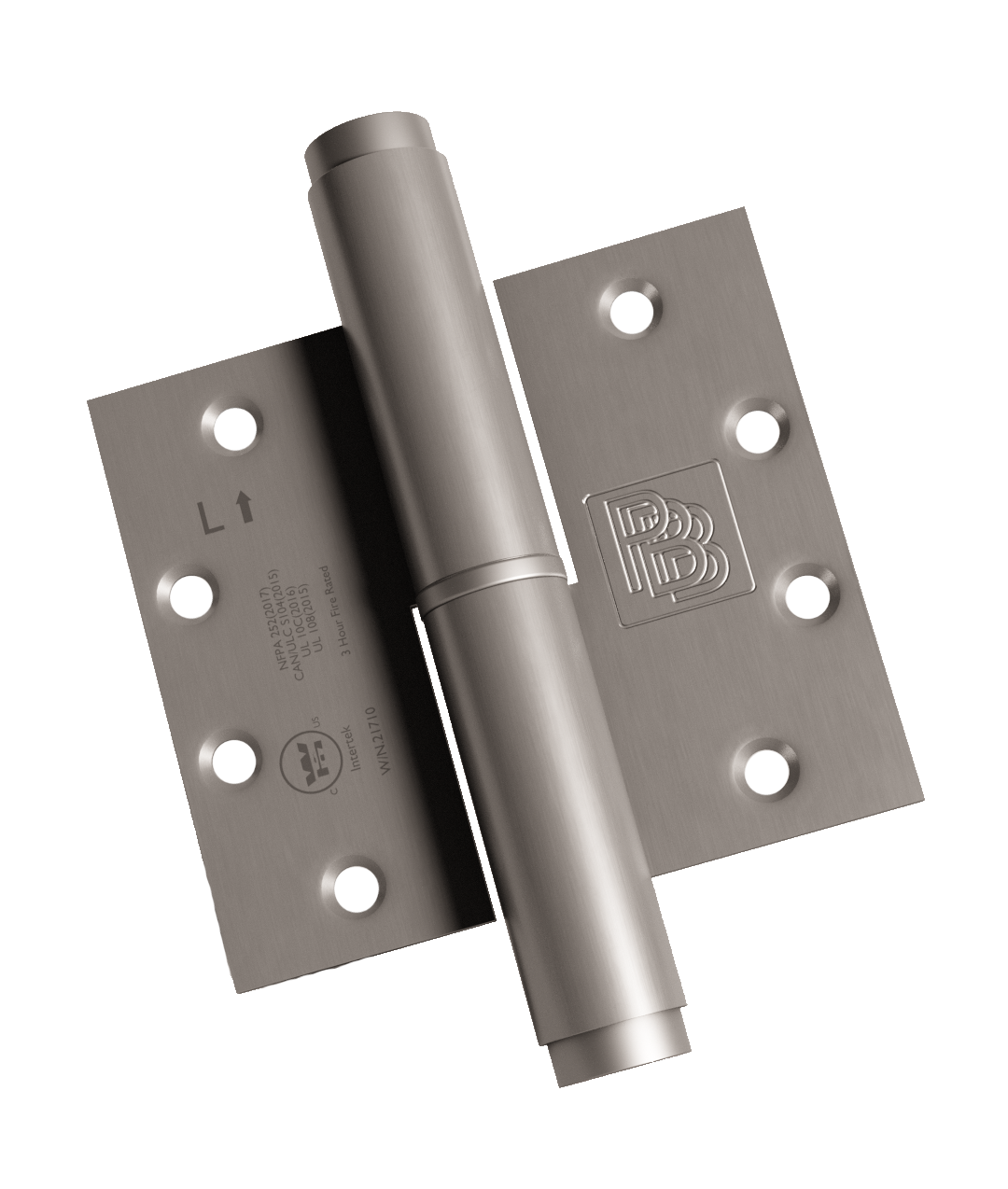

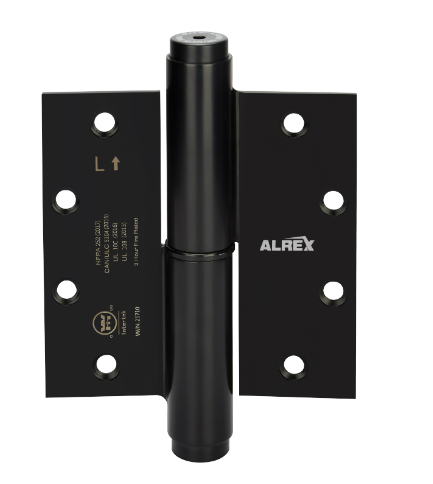

PBB Alrex With Hold Open Hydrolic Door Closer Hinge

SKU: AX-L-21-H-45-630
$290.00

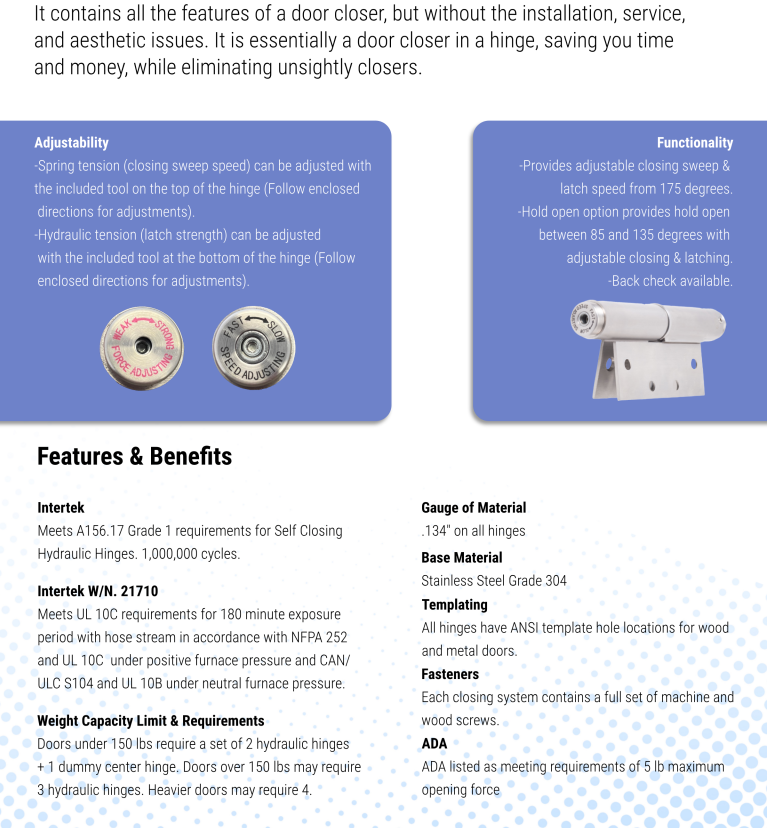

  • Meets A156.17 Grade 1 requirements for self closing hydrolic hinges, 1,000,000 cycles
  • Meets UL 10C requirements for 180 minute exposure period with hose stream in accordance with NFPA 252 & UL 10C under positive furnace pressure & CAN/ULC S104 & UL 10B under neutral furnace pressure
  • Doors under 100lbs require a set of 2 hydrolic hinges + 1 dummy center hinge, Doors 100 lbs up to 150 lbs may require 3 hydrolic hinges. Heavier doors may require 4.
  • Gauge of material
  • .134"
  • Stainless steel grade 304
  • Each closing system contains a full set of machine and wood screws
  • ADA listed as meeting requirements of 5 lb maximum opening force

Templates:

AX40 Template

AX45 Template

AX50 Template

Alrex Brochure
