Product Description
Discover the superior SF Series Grade 2 Cylindrical Lock, crafted to meet ANSI/BHMA Grade 2 standards, ensuring robust performance at an exceptional value. This SF cylindrical lockset combines affordability with durability, ideal for commercial and government applications alike.
Choose from a range of lever designs, finishes, and rose styles to complement any decor, allowing seamless integration with existing hardware for a cohesive appearance. The SF Series offers versatility and style without compromise.
Backed by a generous 3-year warranty, you can trust in the reliability and longevity of this ANSI/BHMA Grade 2 certified lock. Upgrade your security and aesthetic with the SF Series, a smart choice for those seeking quality and affordability in one package.
Elevate your space with the SF Series Grade 2 Cylindrical Lock – the benchmark in value and performance. Connect with a sales rep to unlock the potential of your doors with this versatile and durable solution, designed to exceed expectations.
Experience the superior performance of the SF Series Grade 2 Cylindrical Lockset
- Features a heavy gauge cold rolled steel chassis with dichromate finish for corrosion resistance
- Choose from 5 distinctive lever styles: Philadelphia, Boston, Miami, Memphis, Orlando

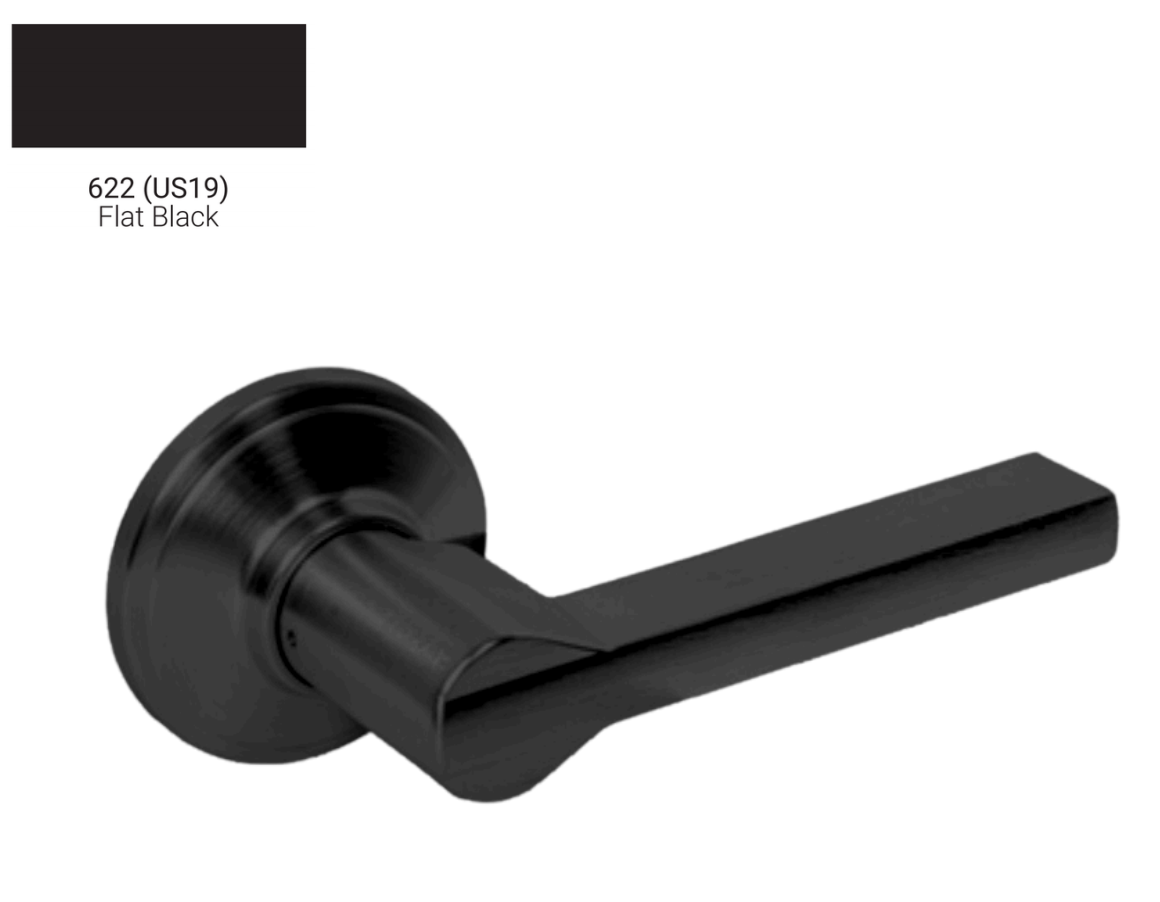

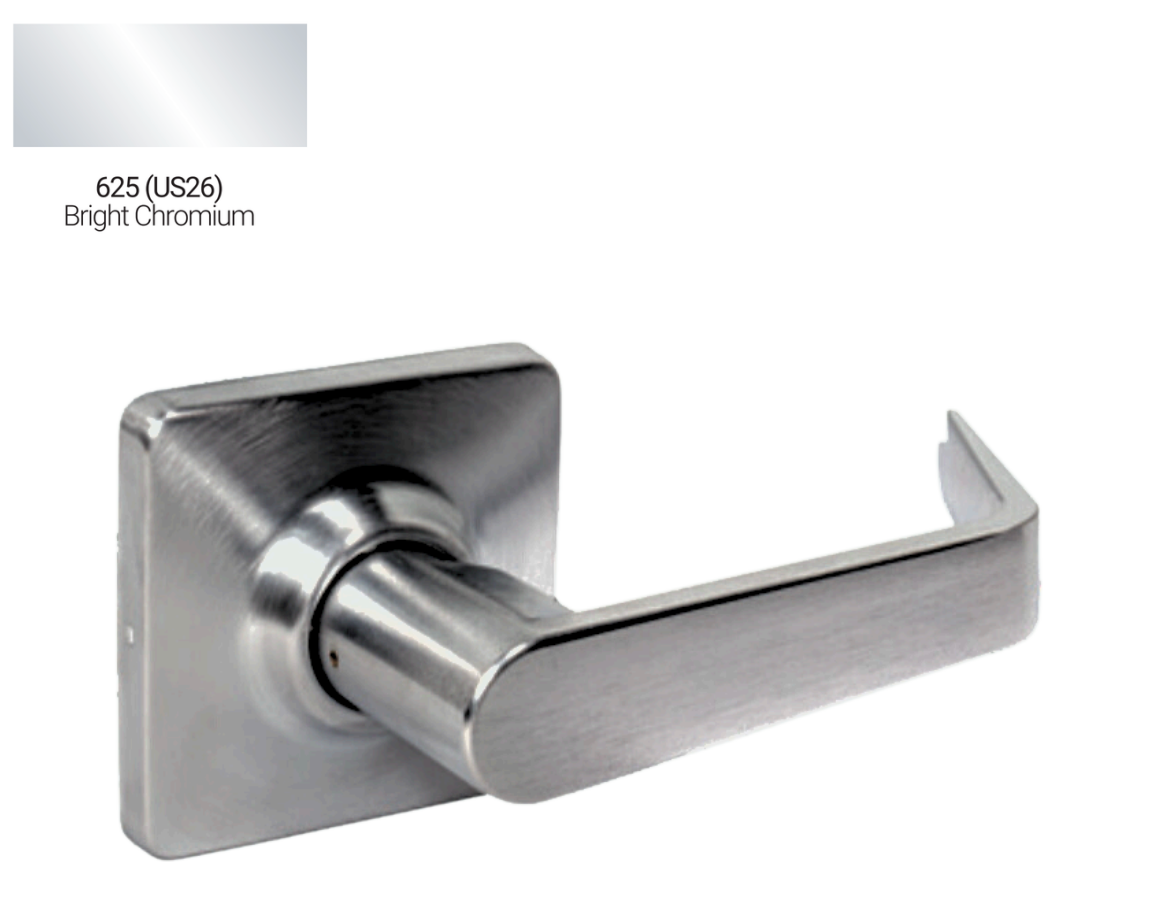

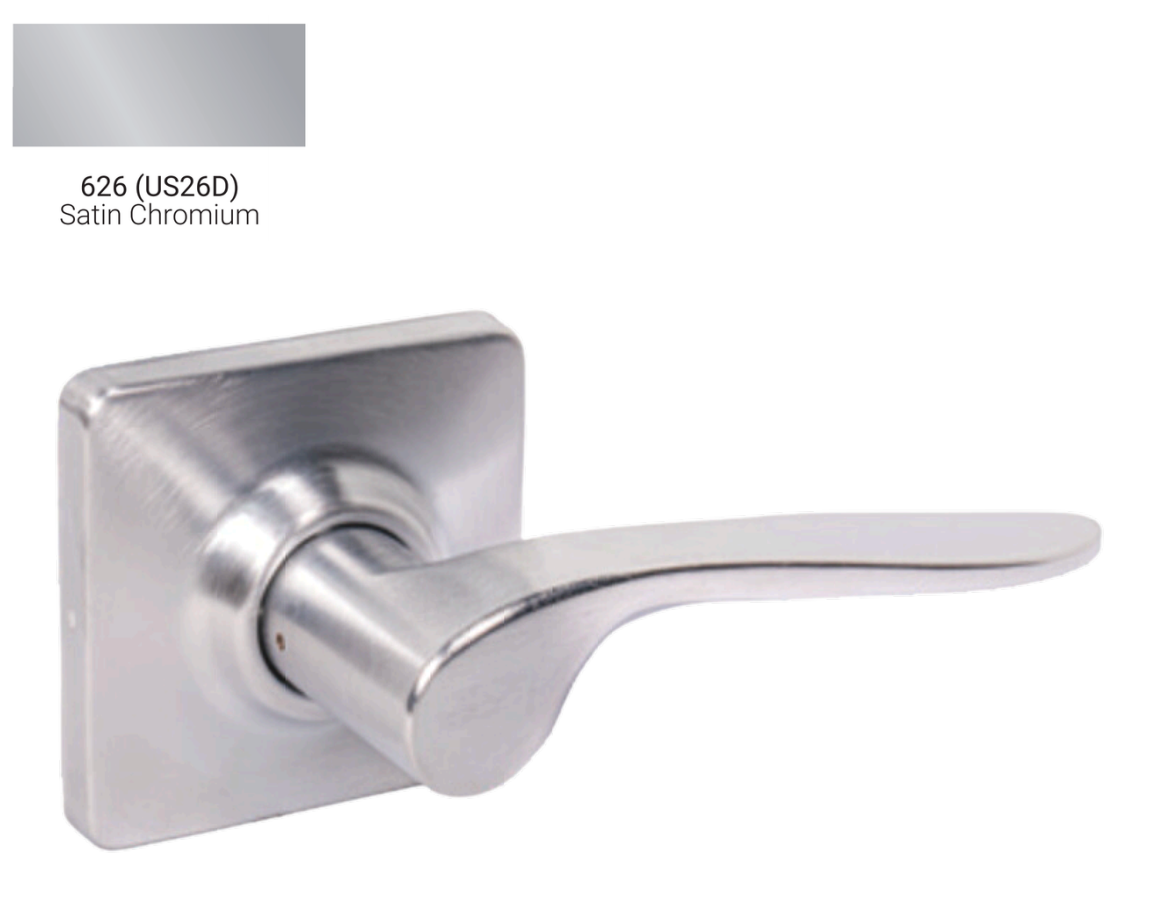

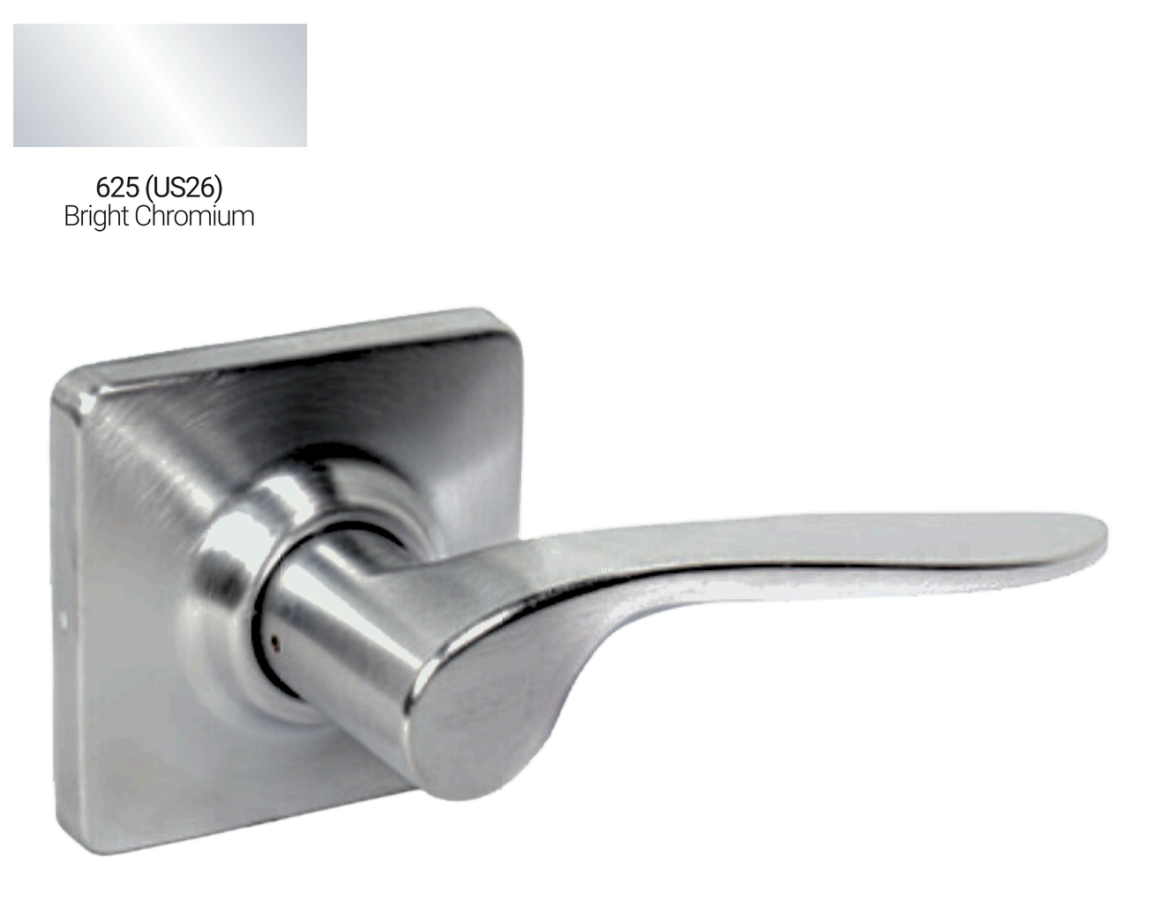

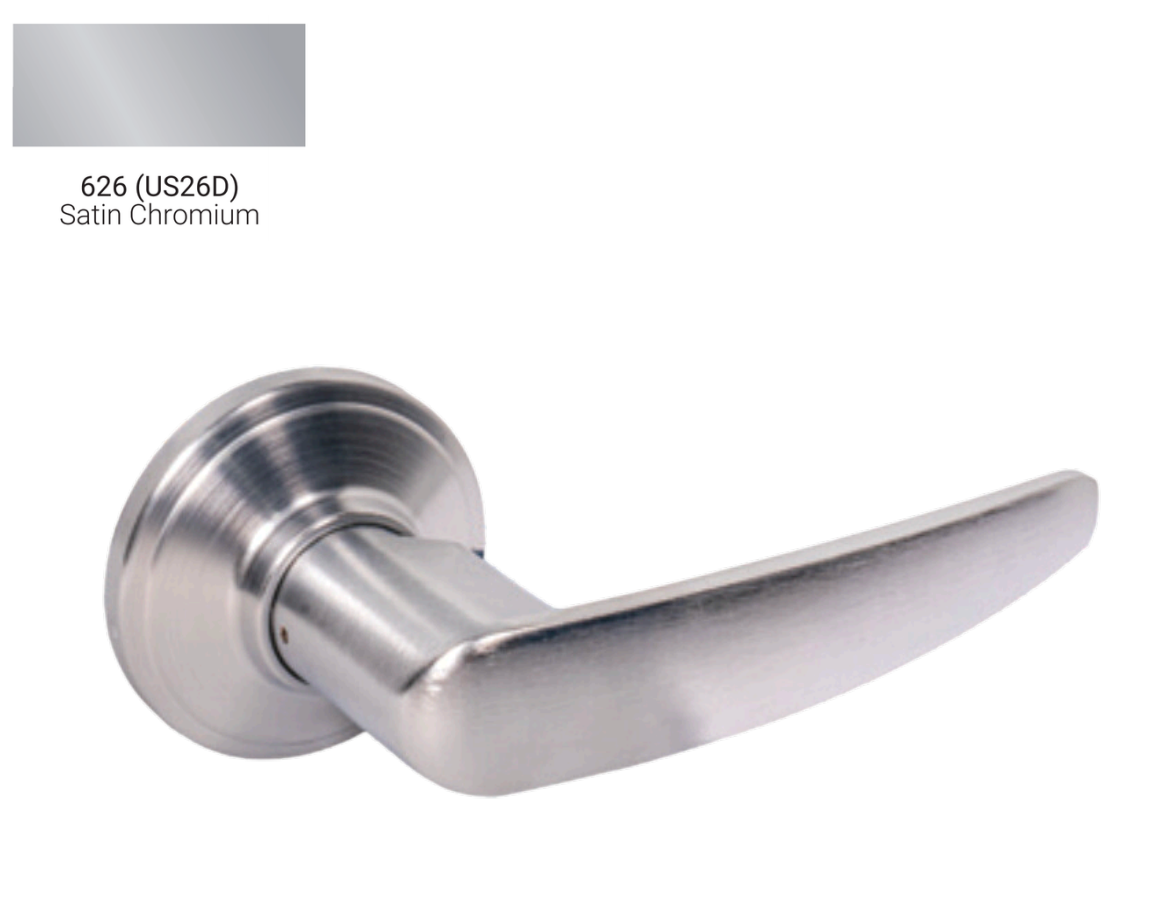

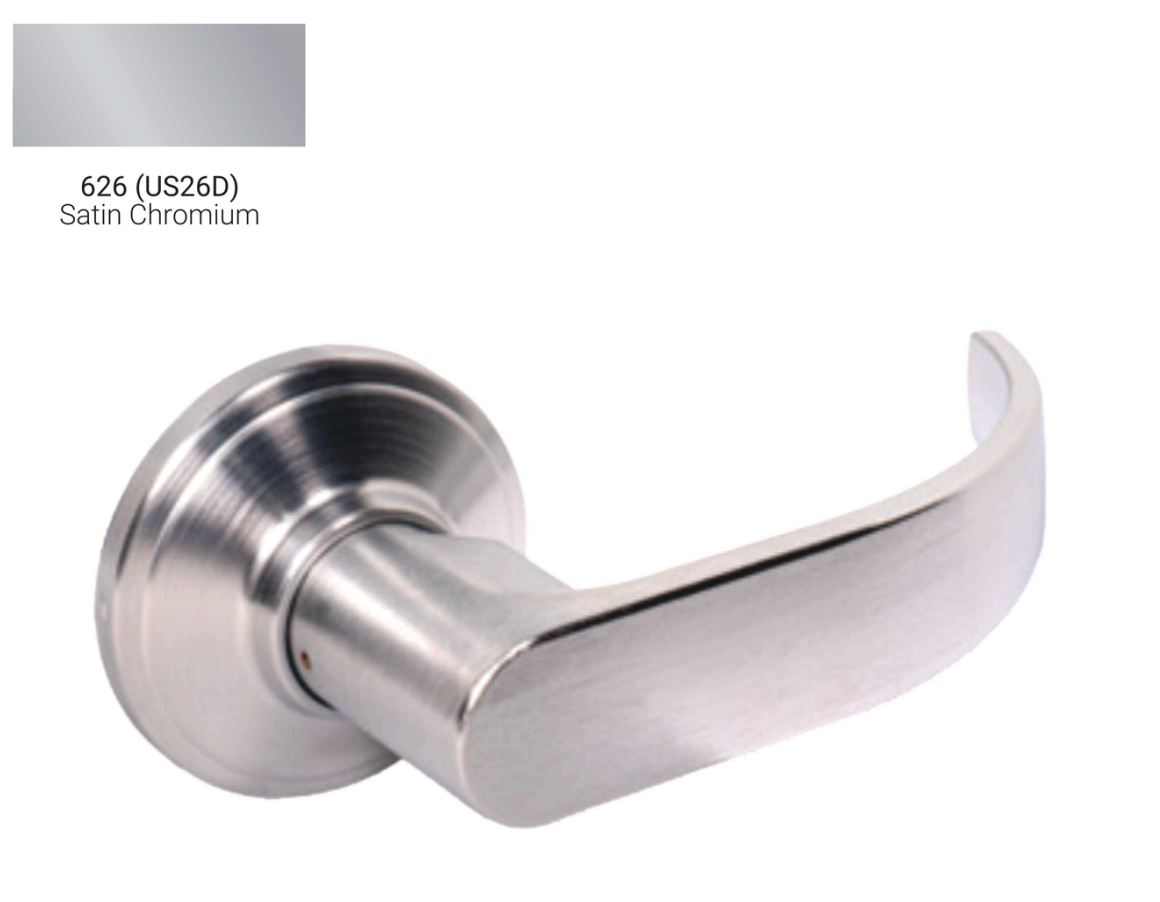

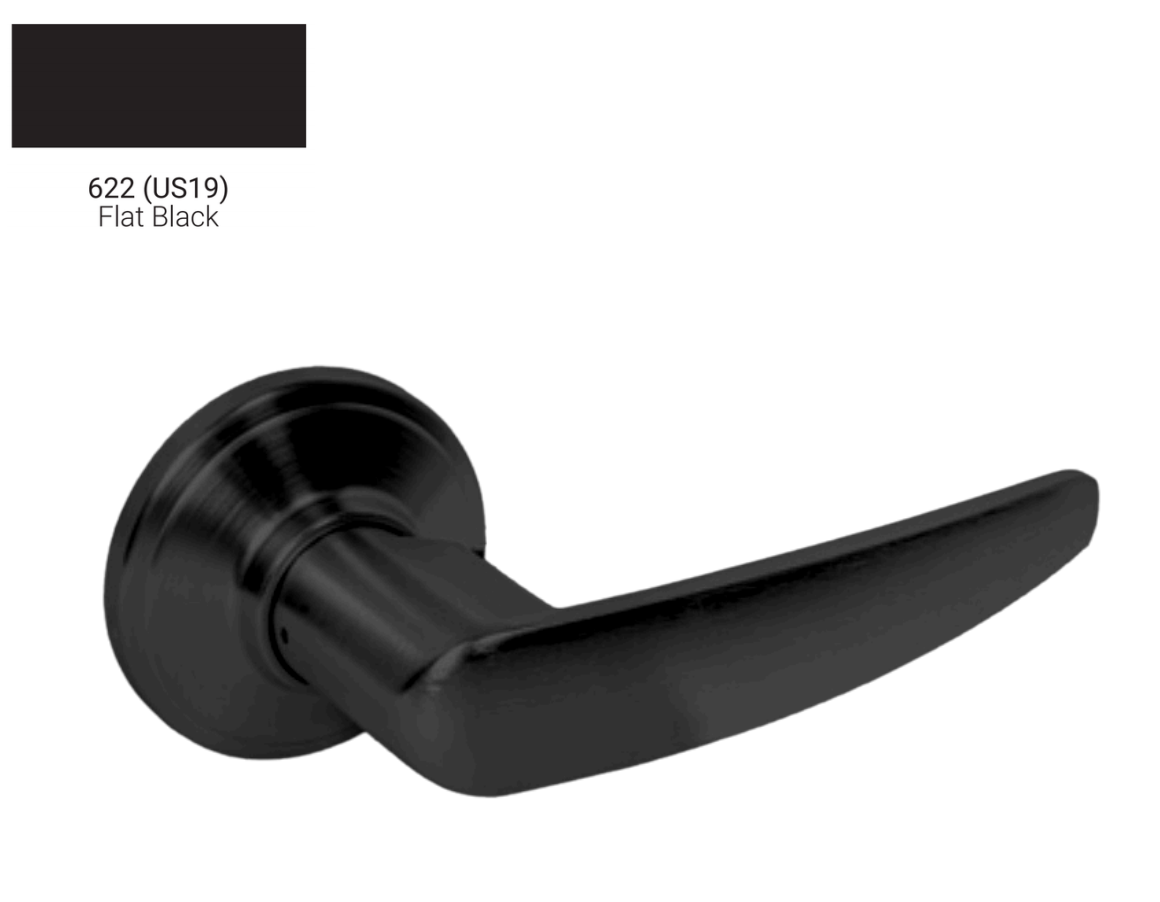

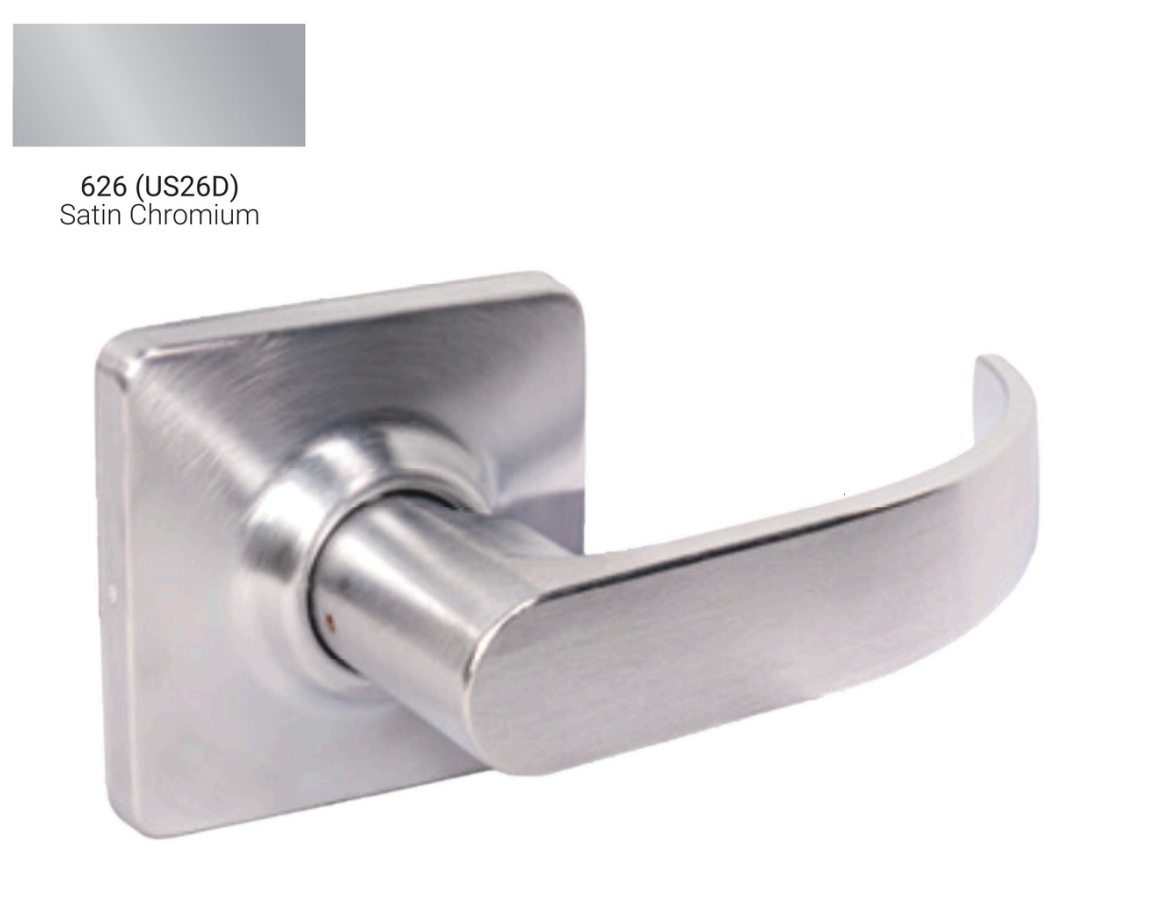

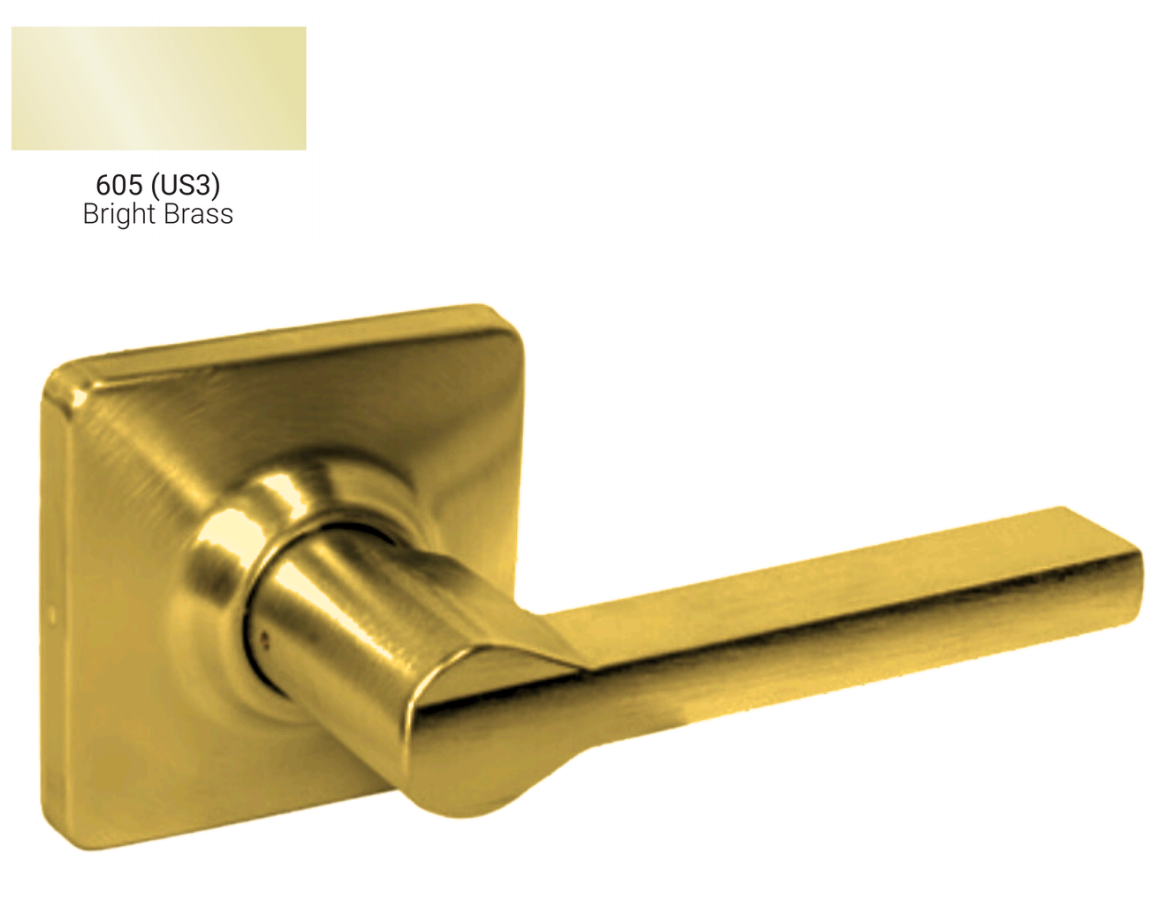

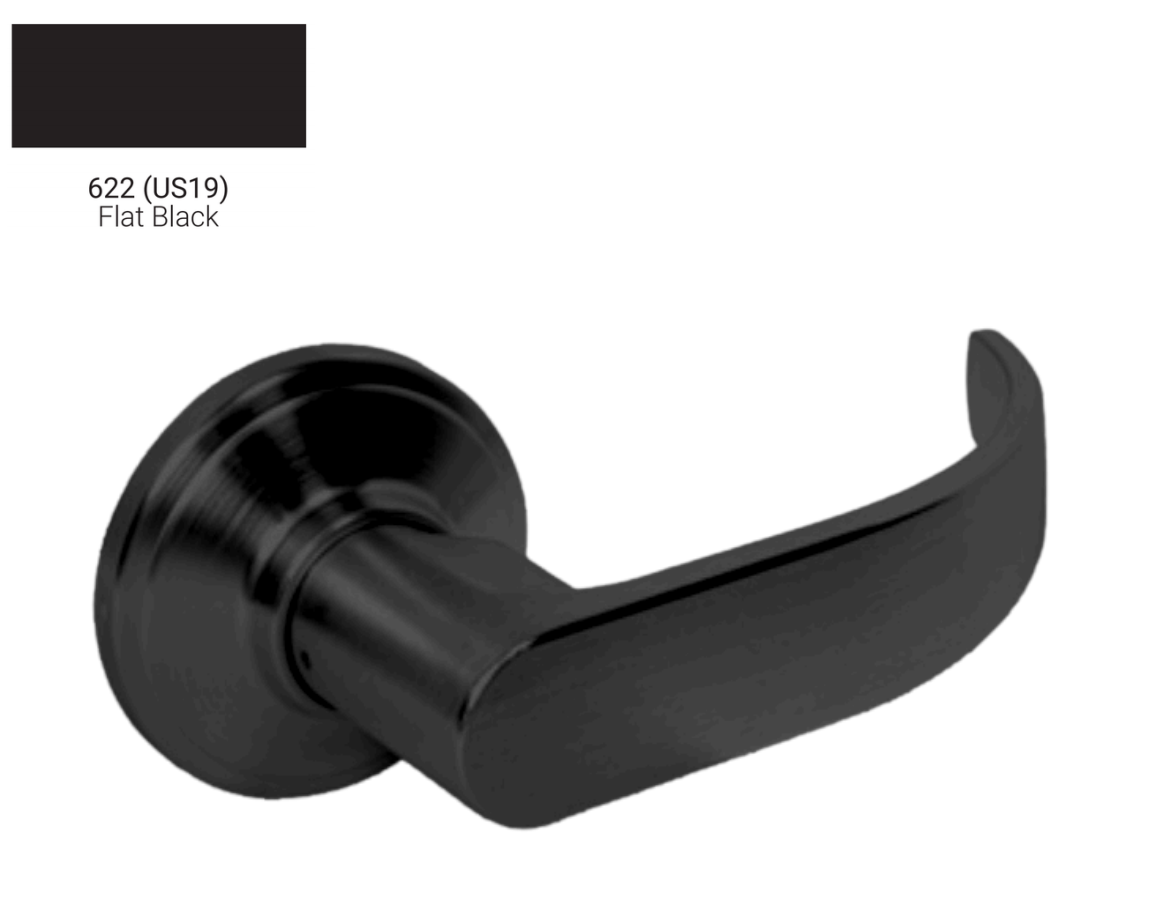

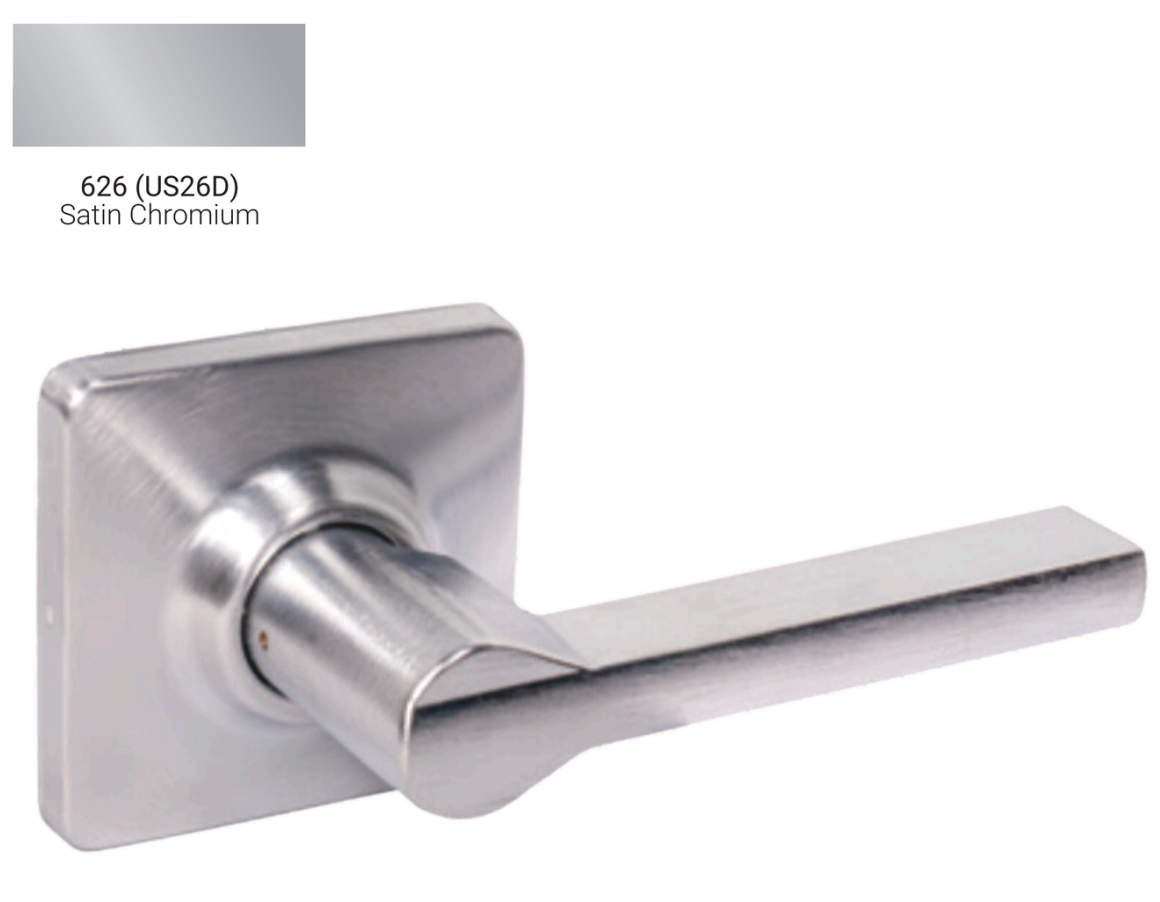

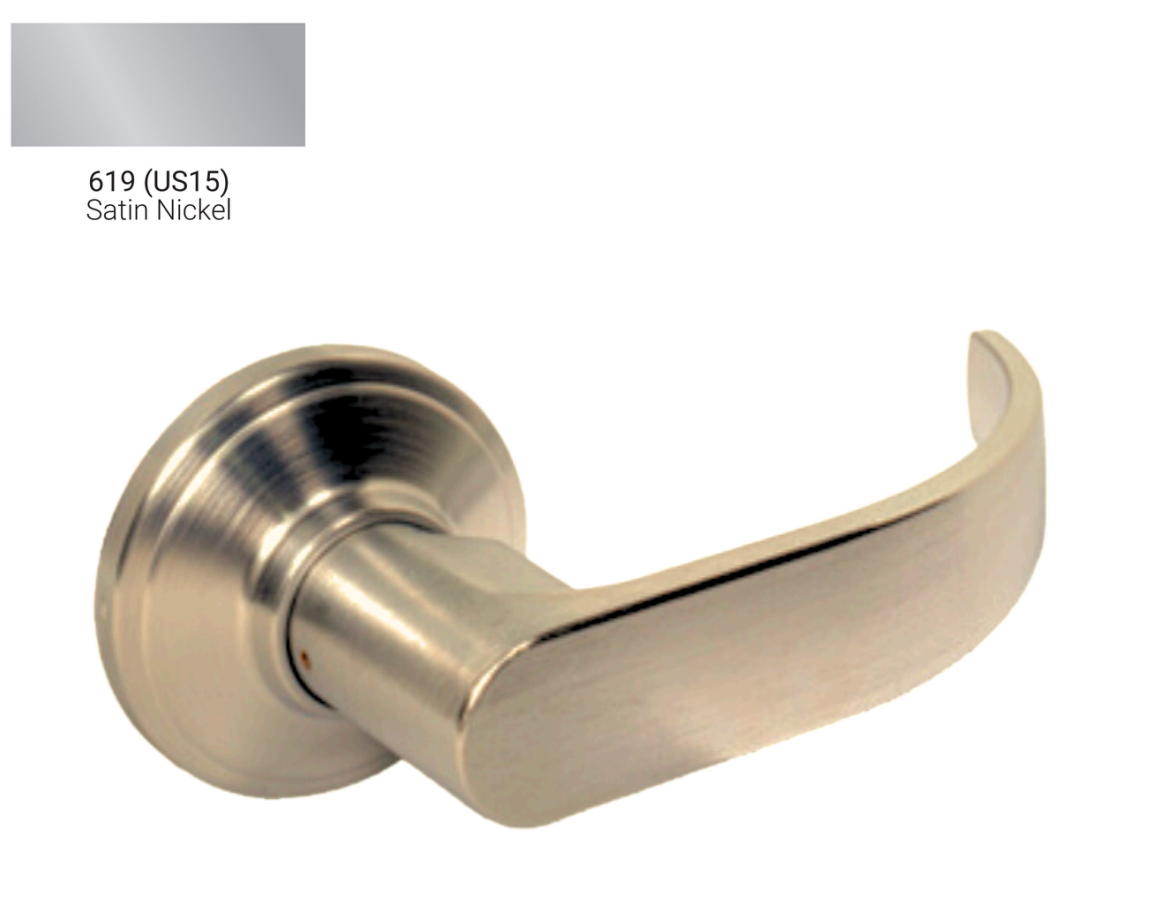

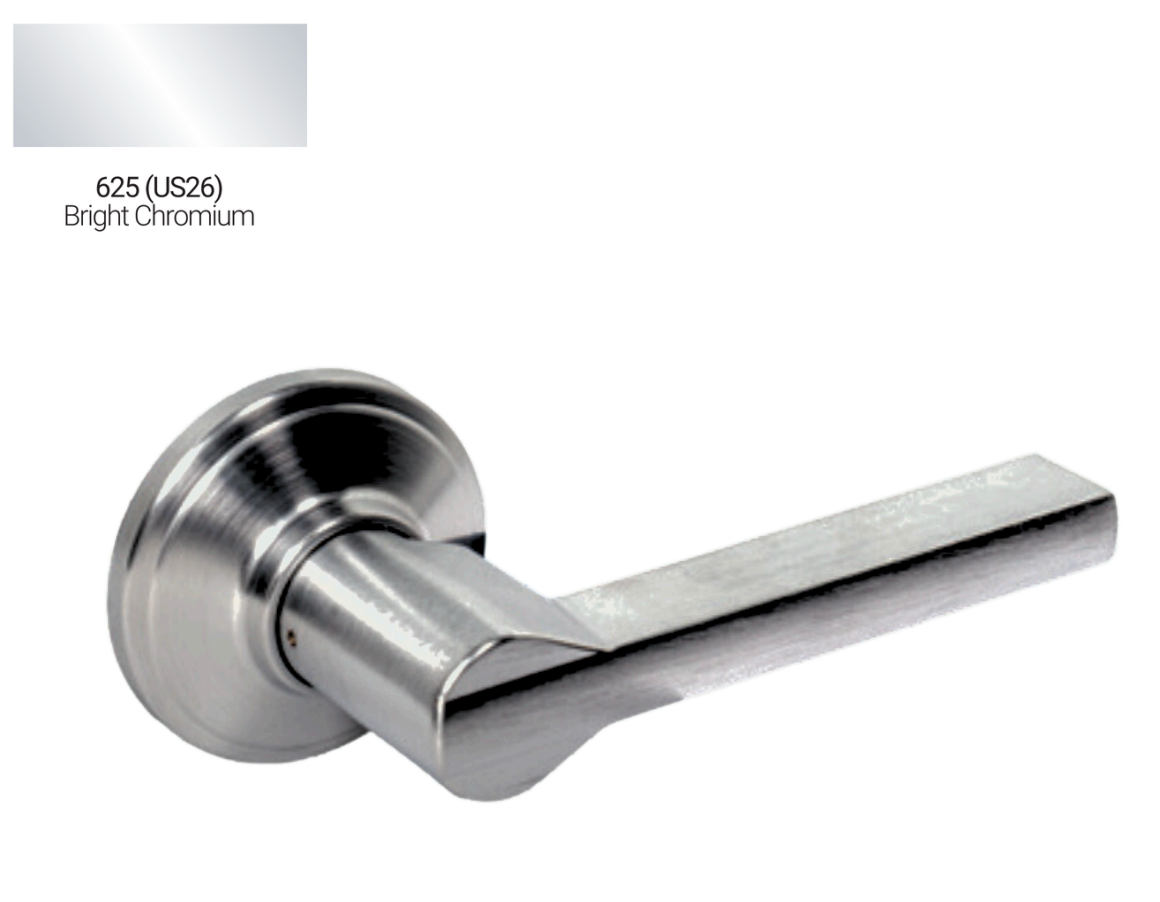

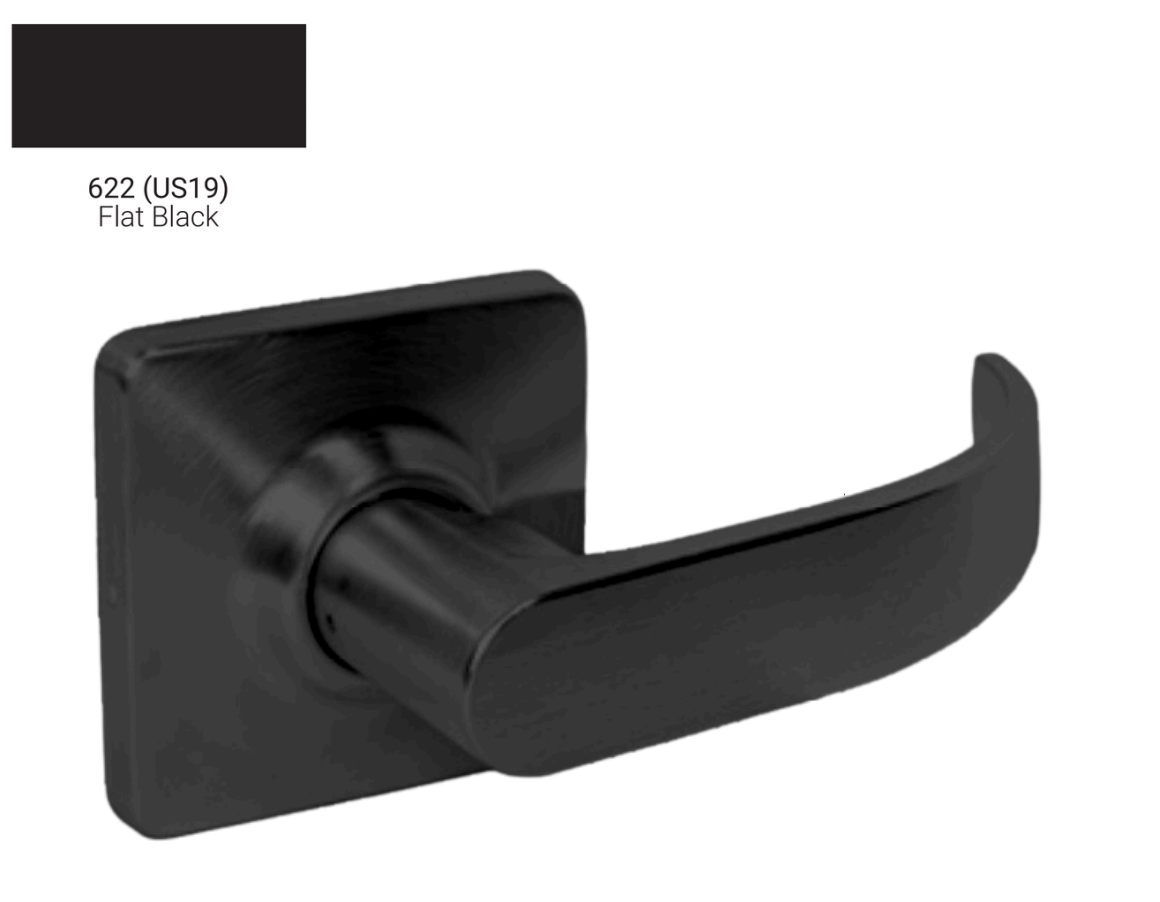

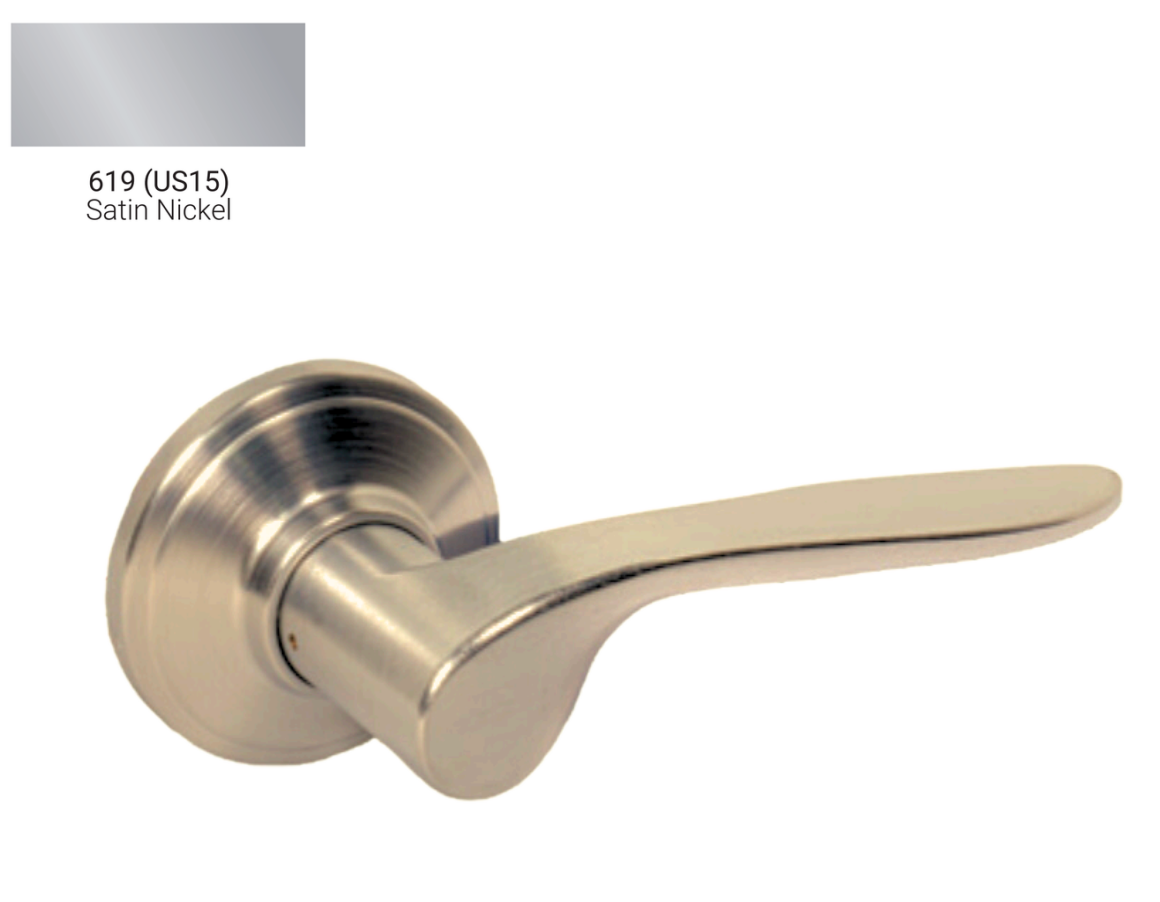

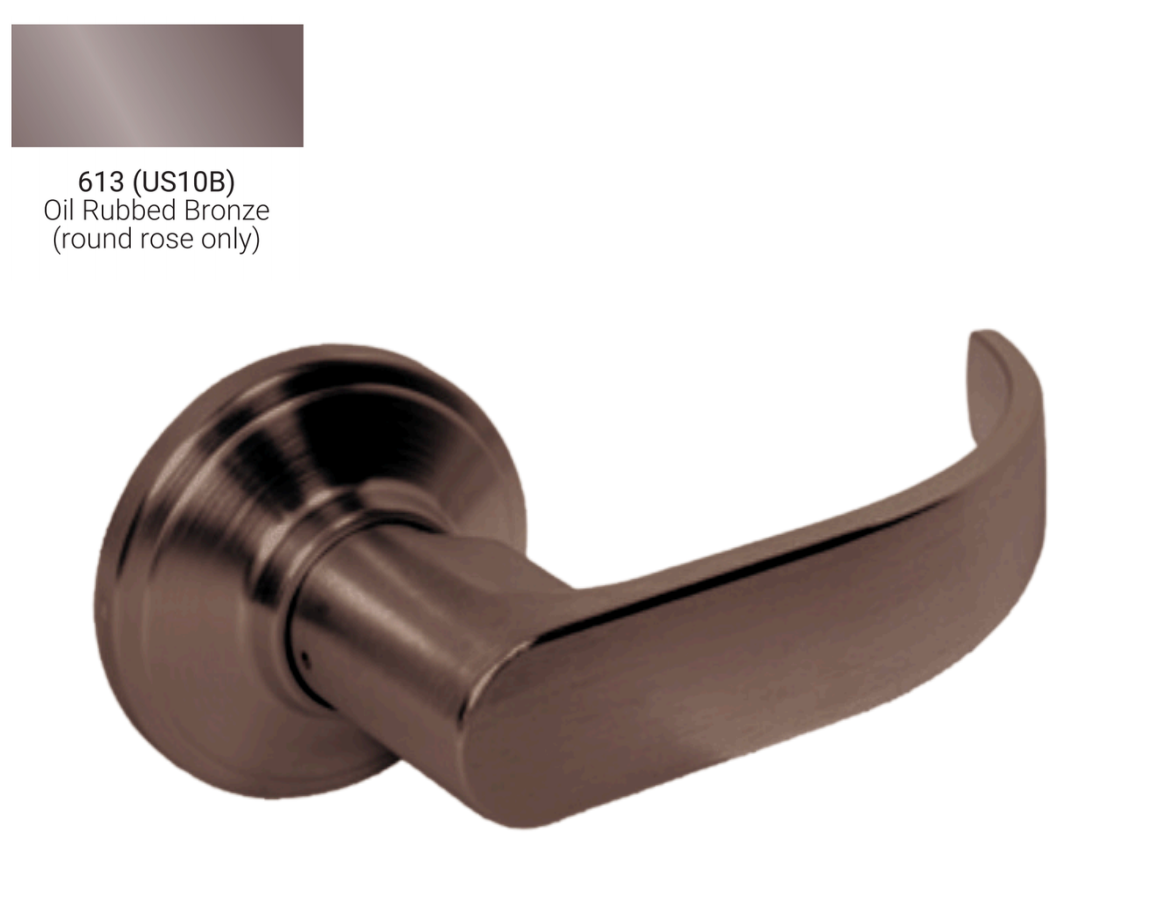

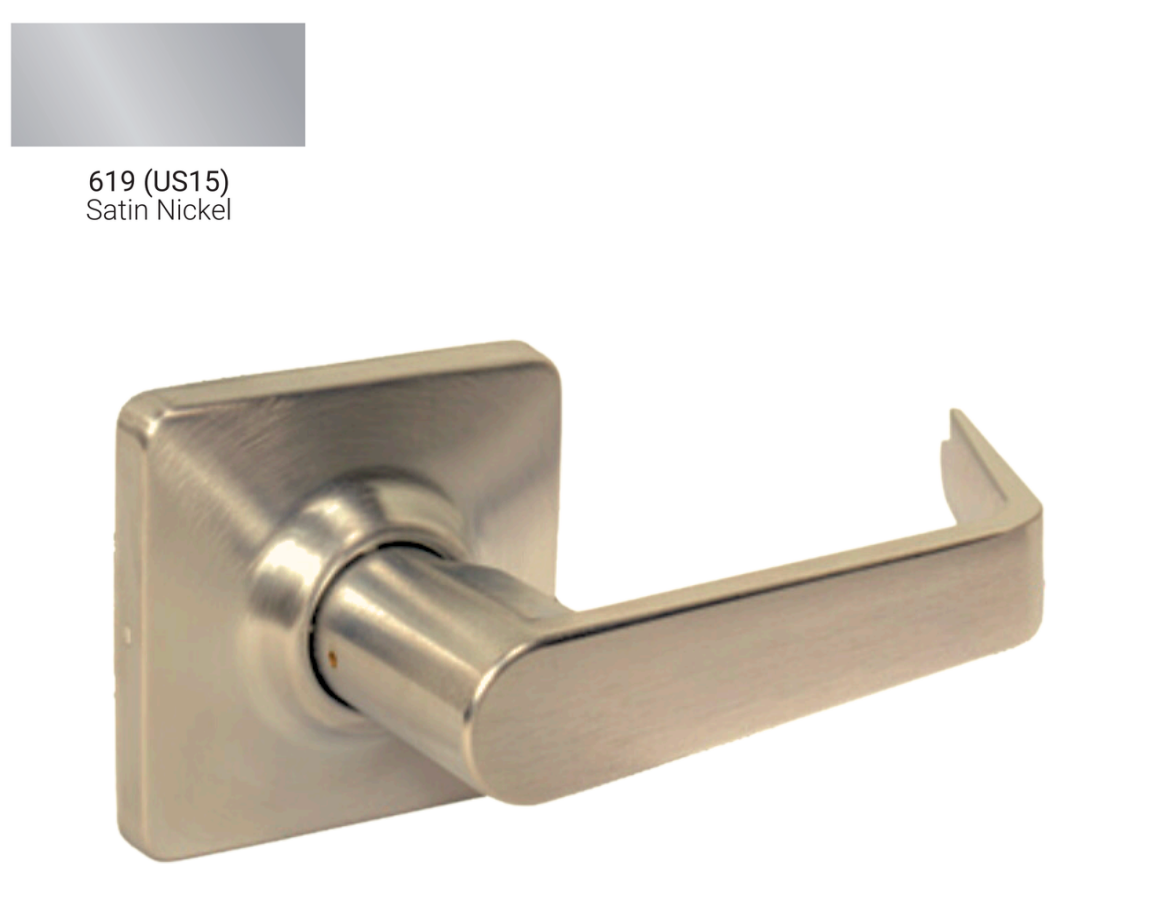

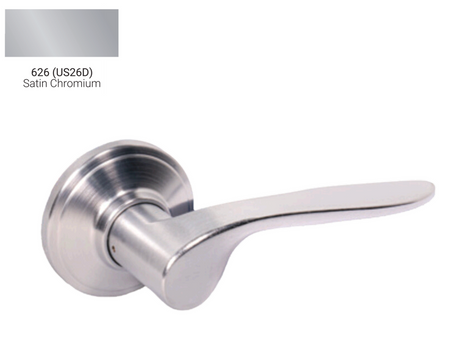

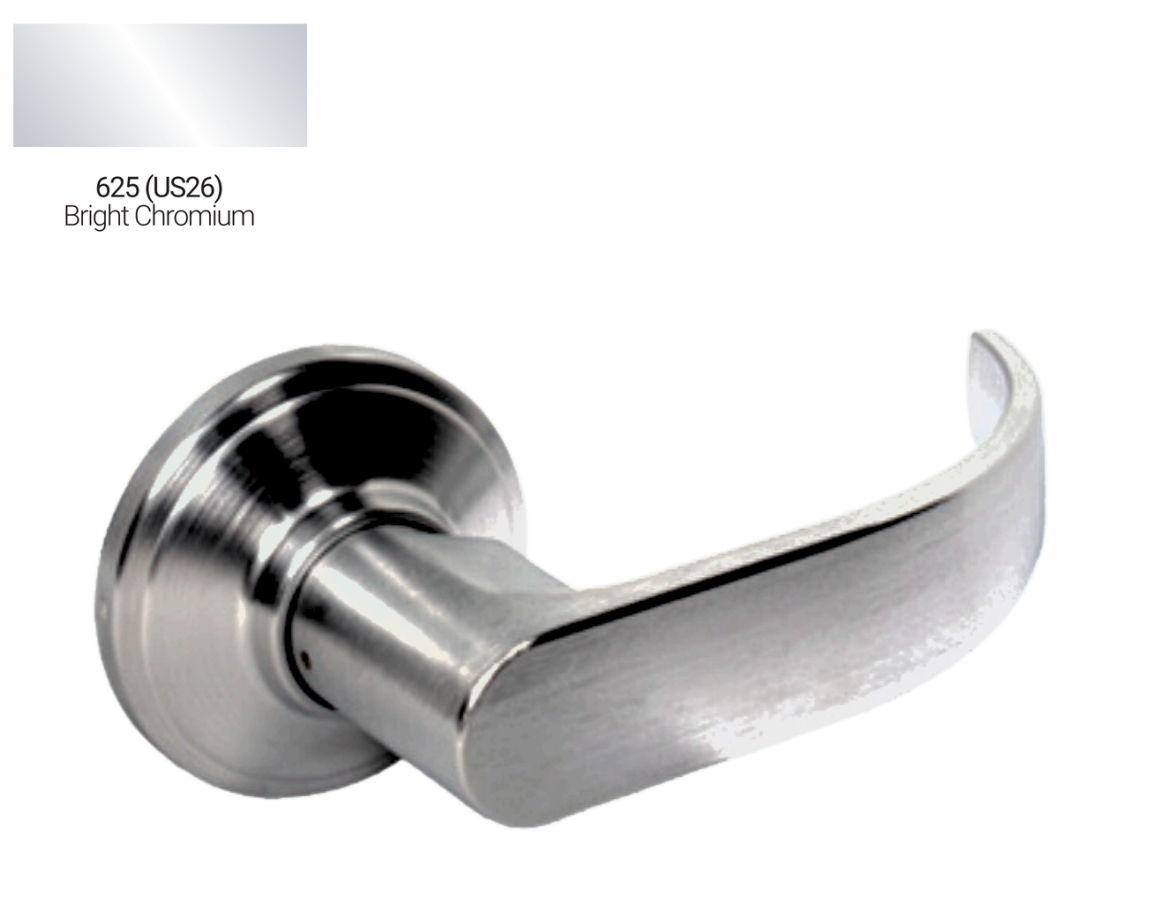

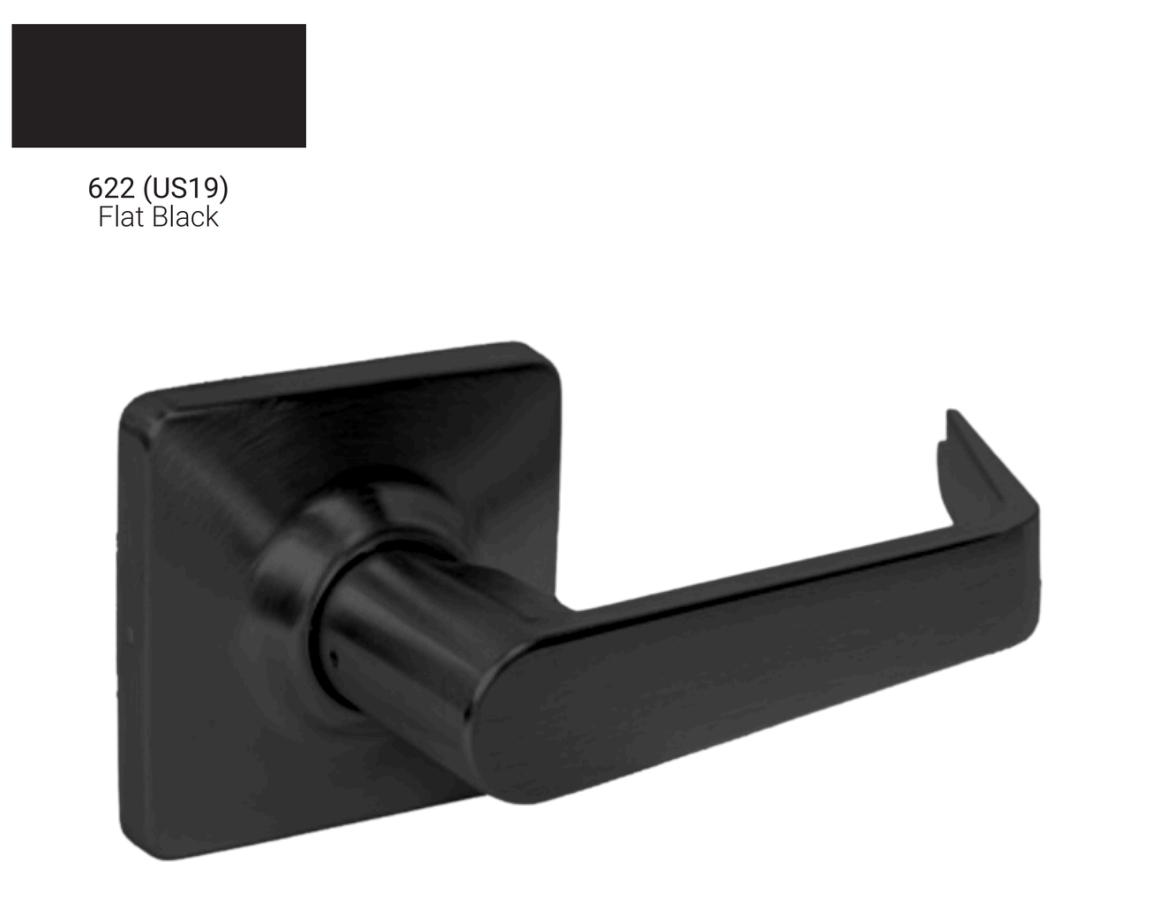

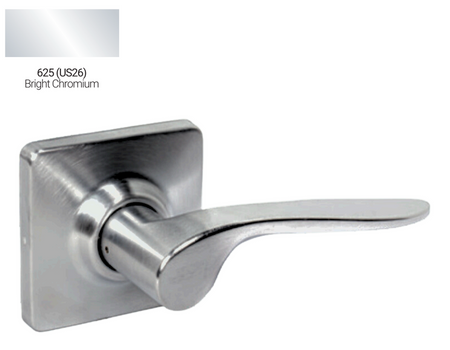

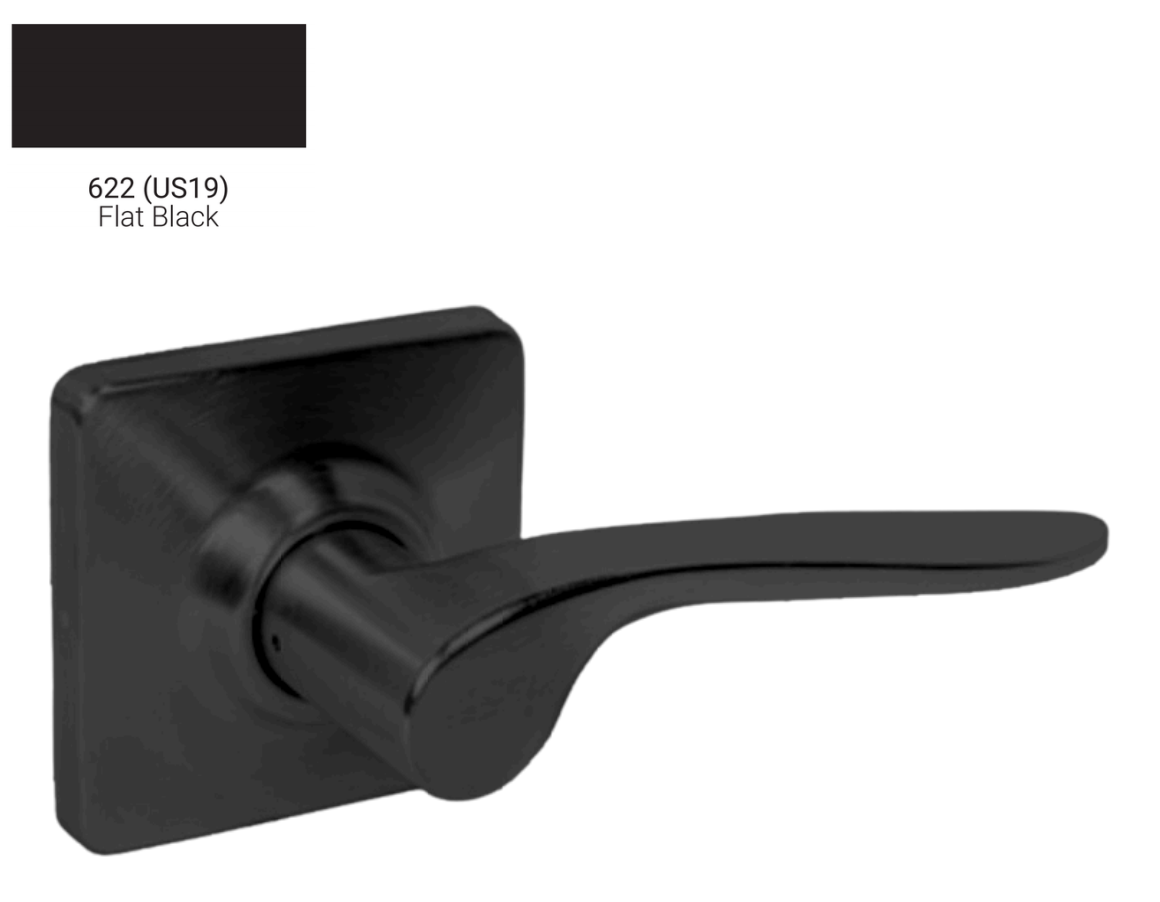

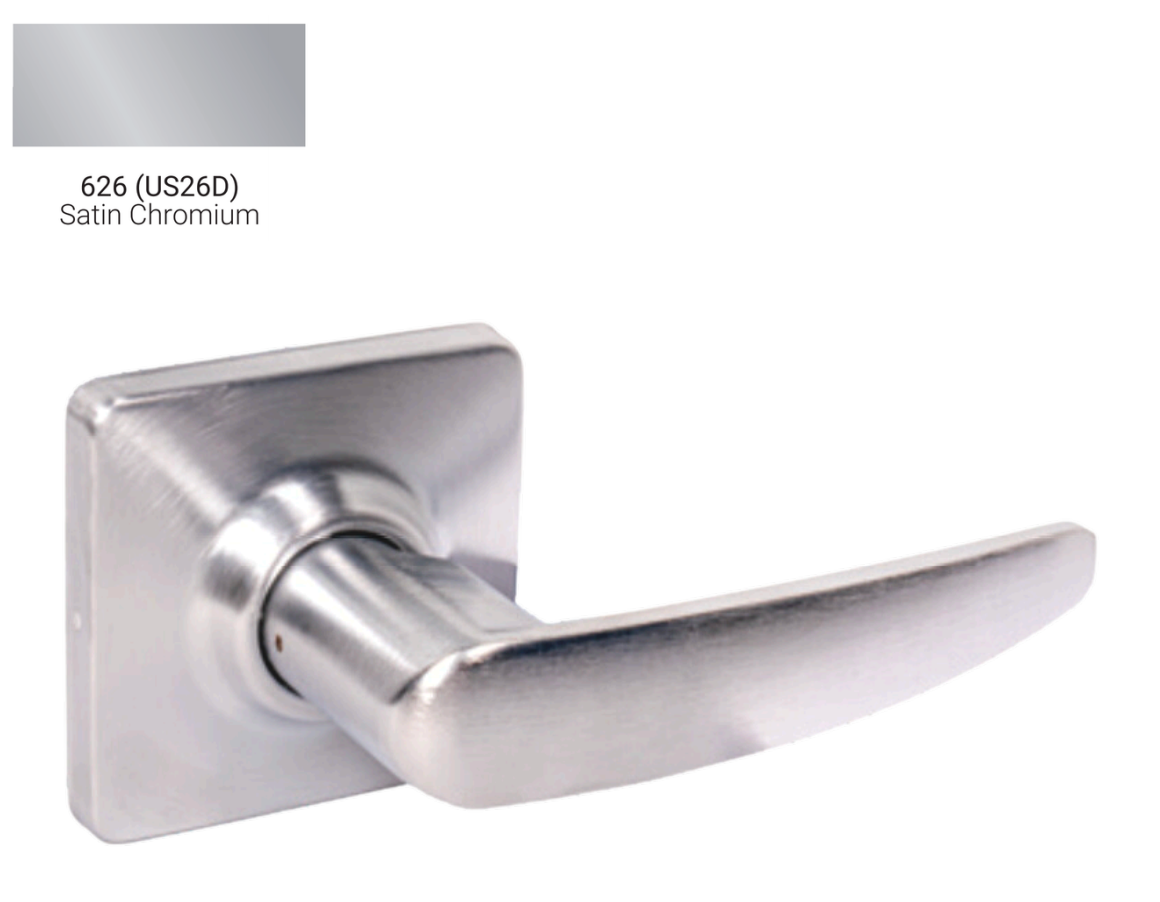

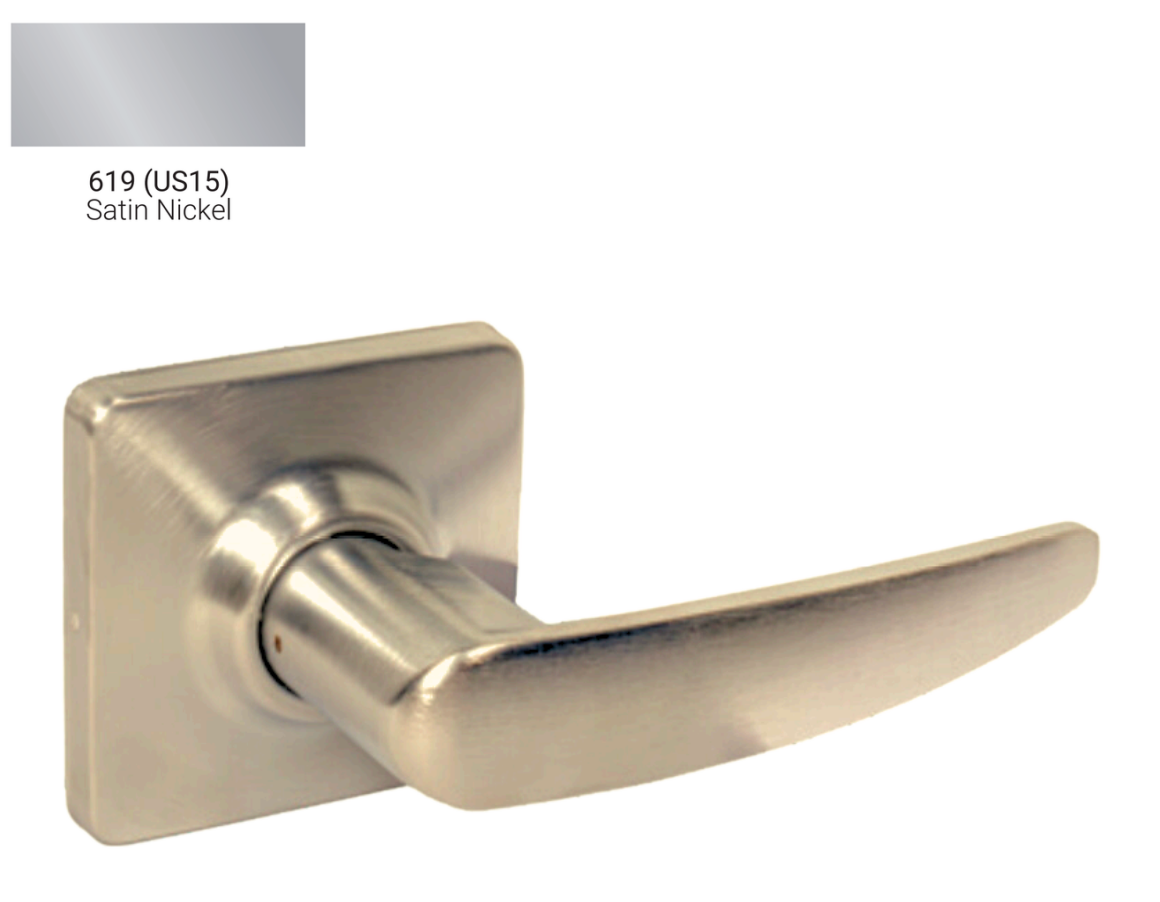

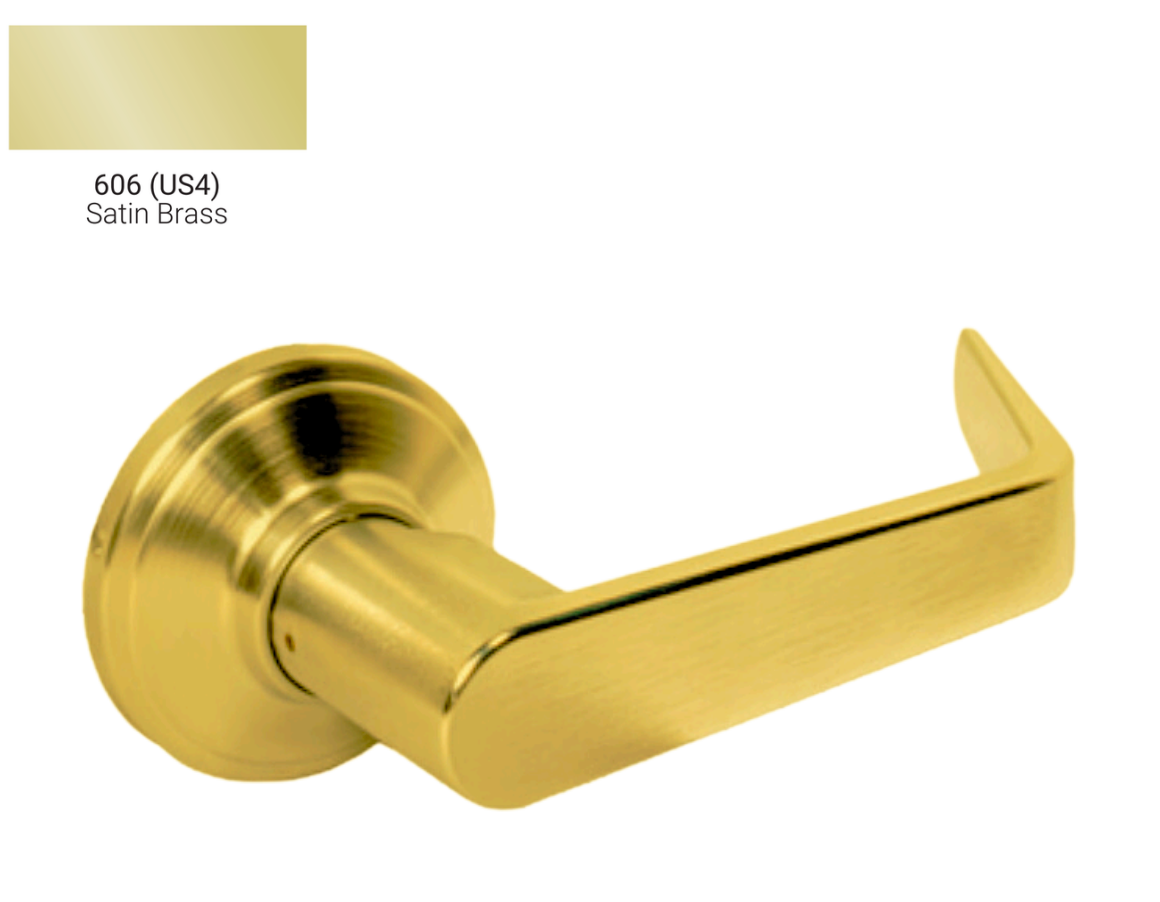

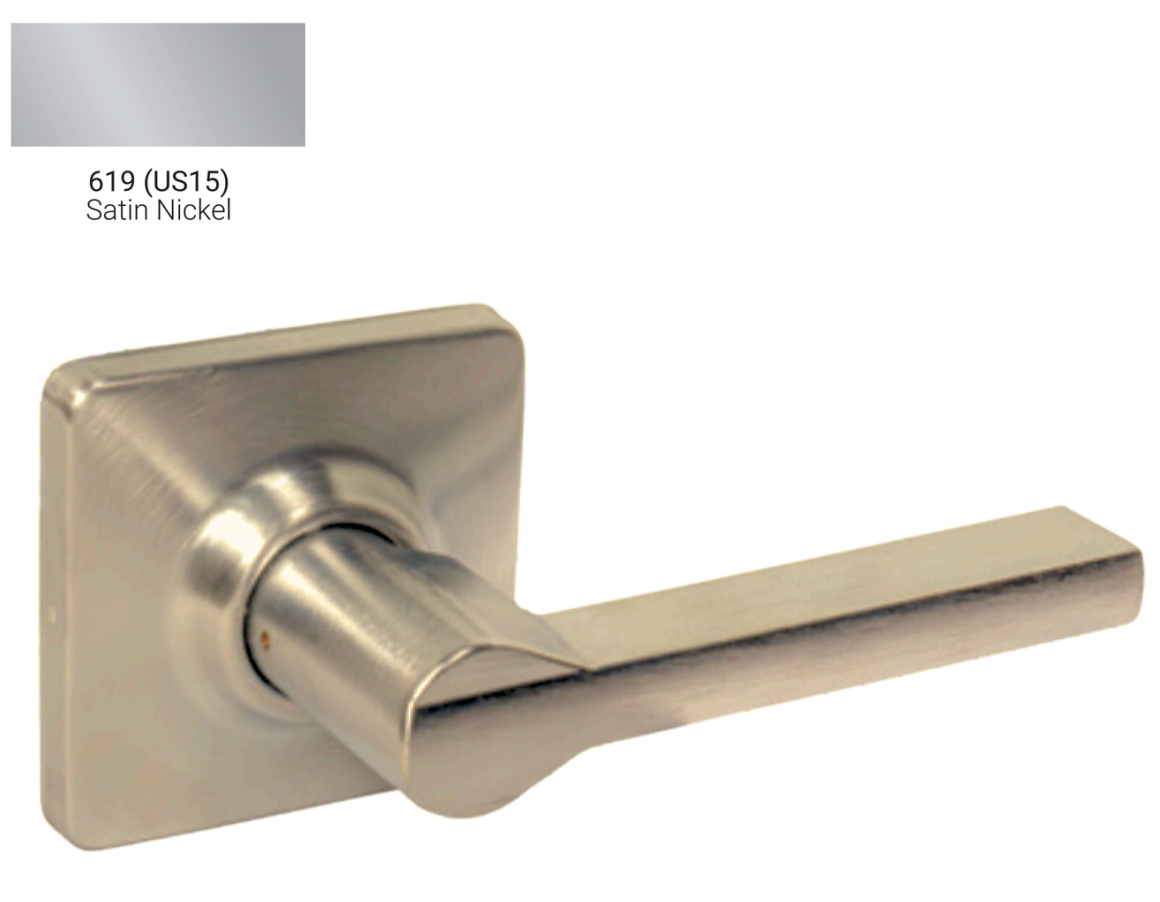

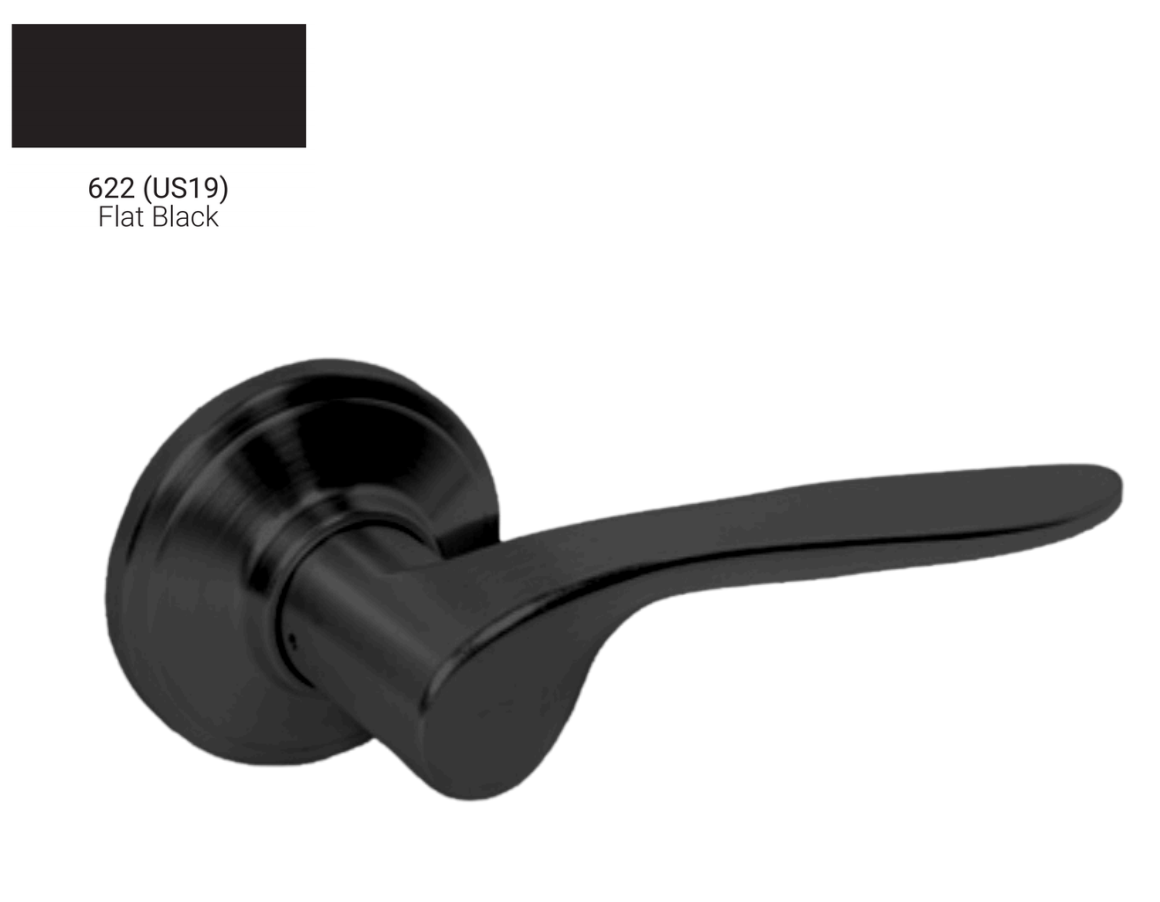

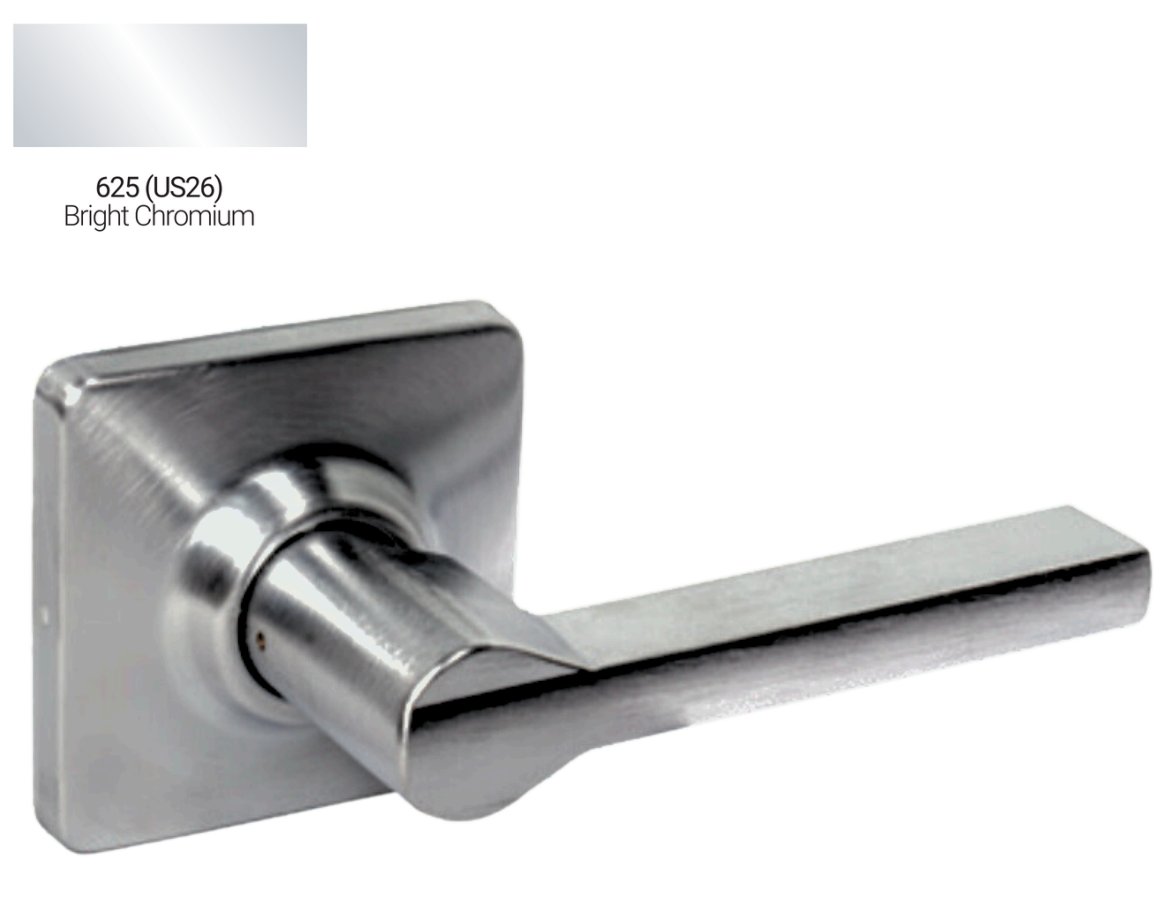

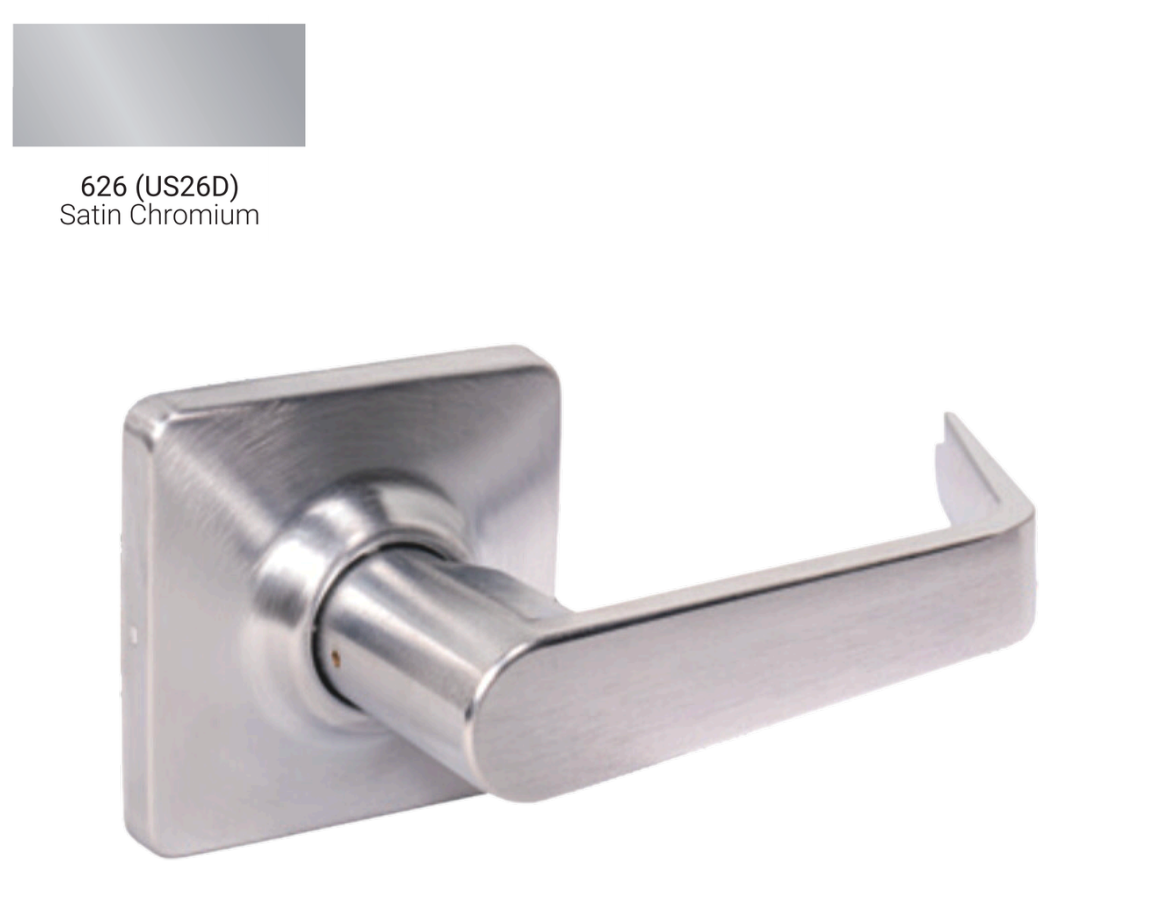

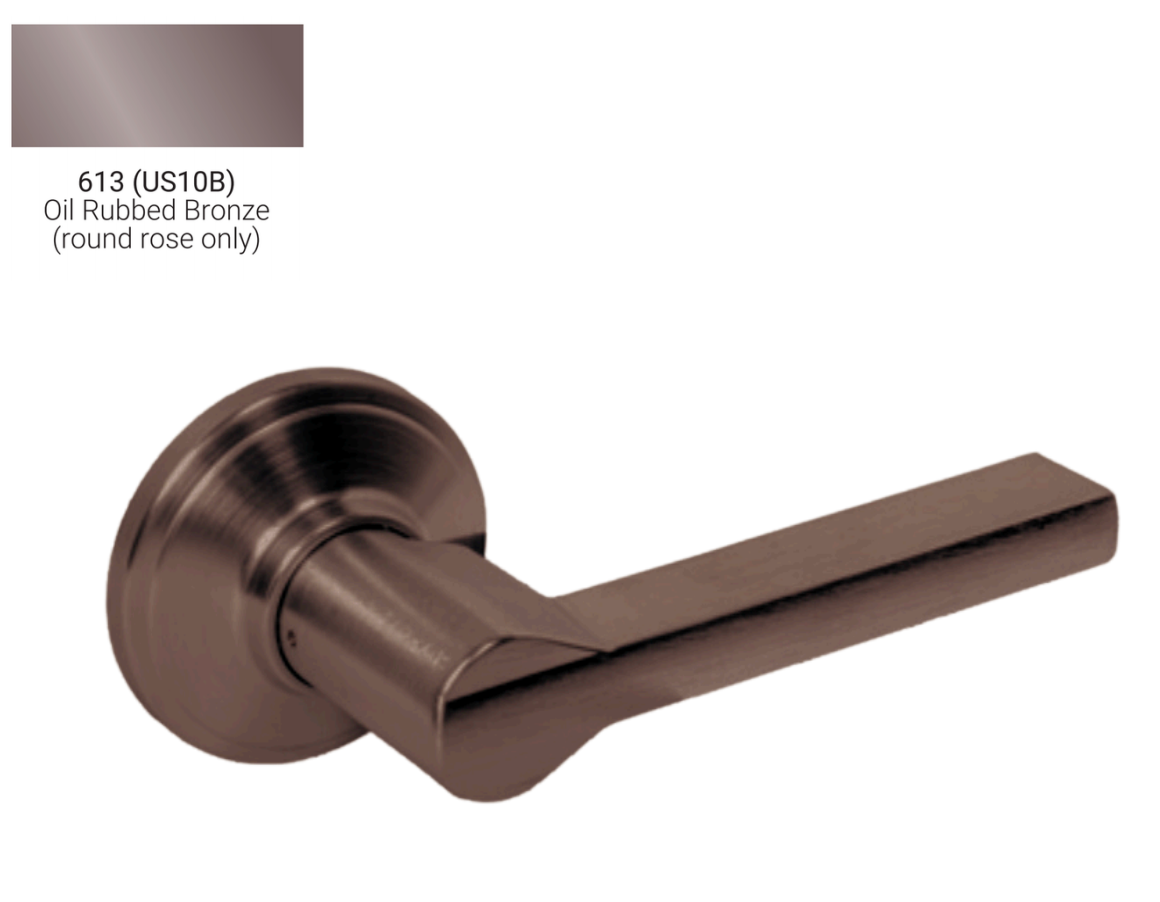

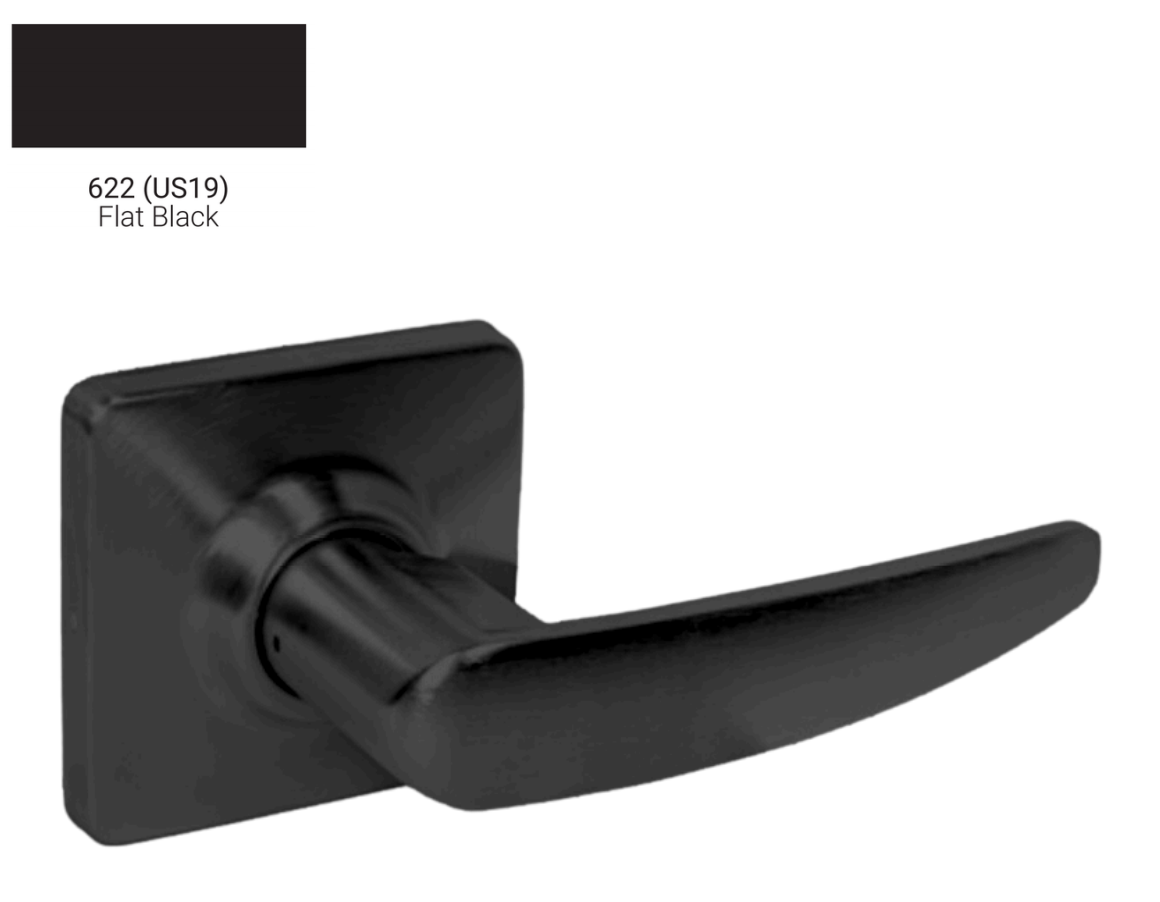

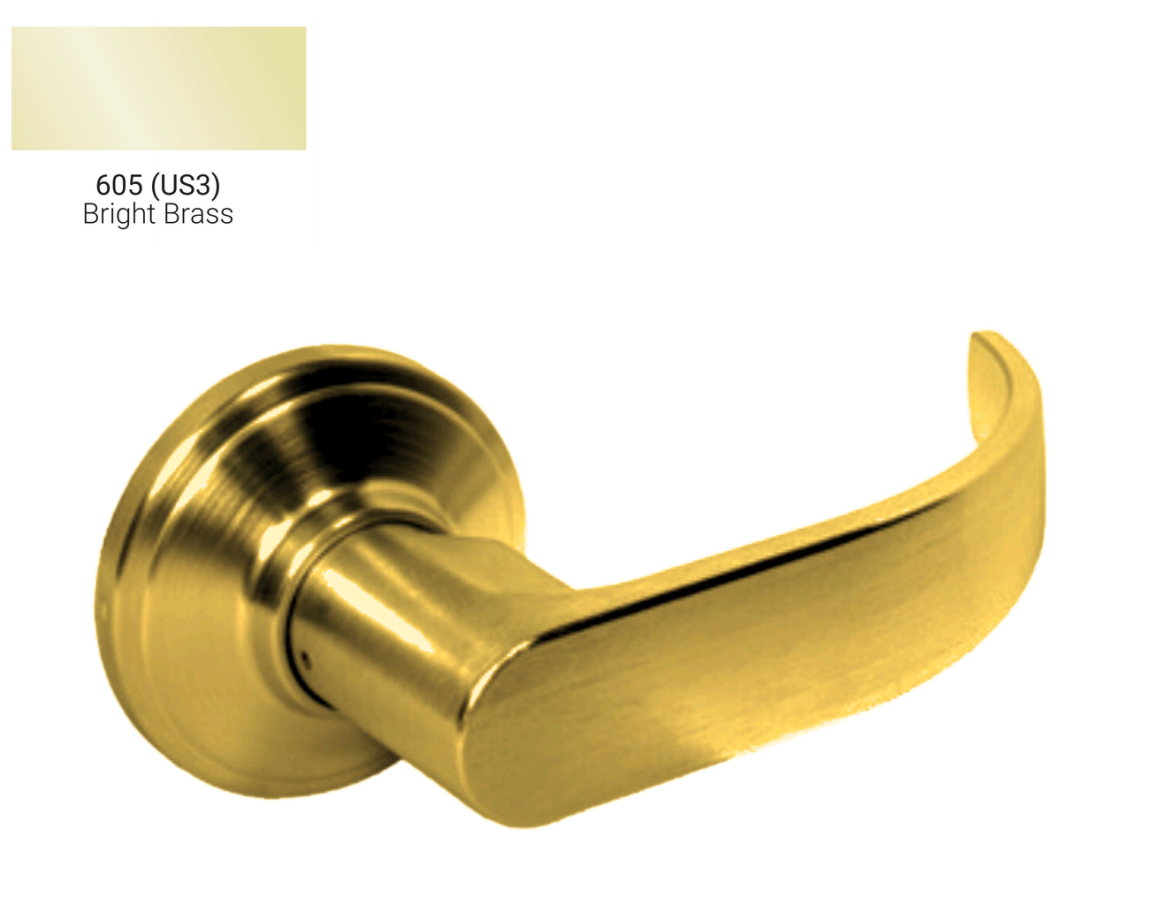

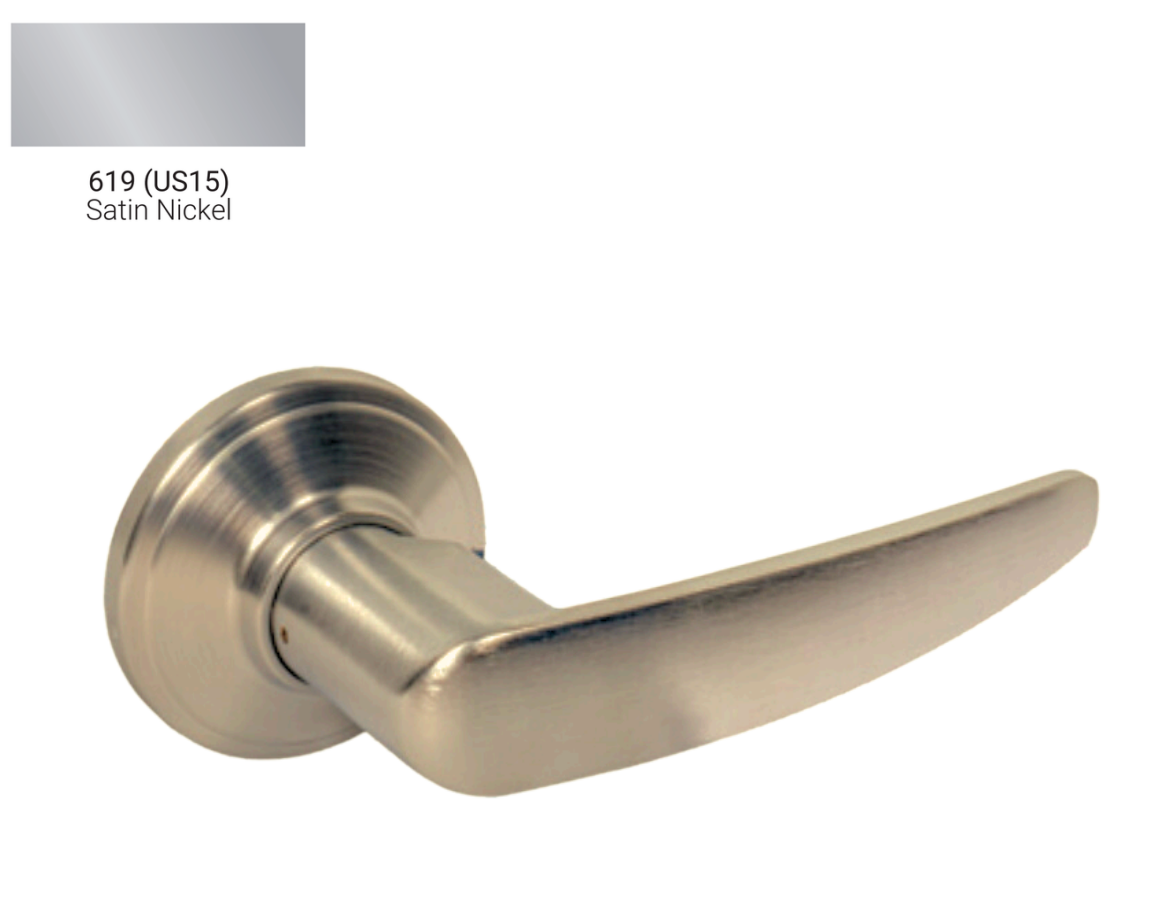

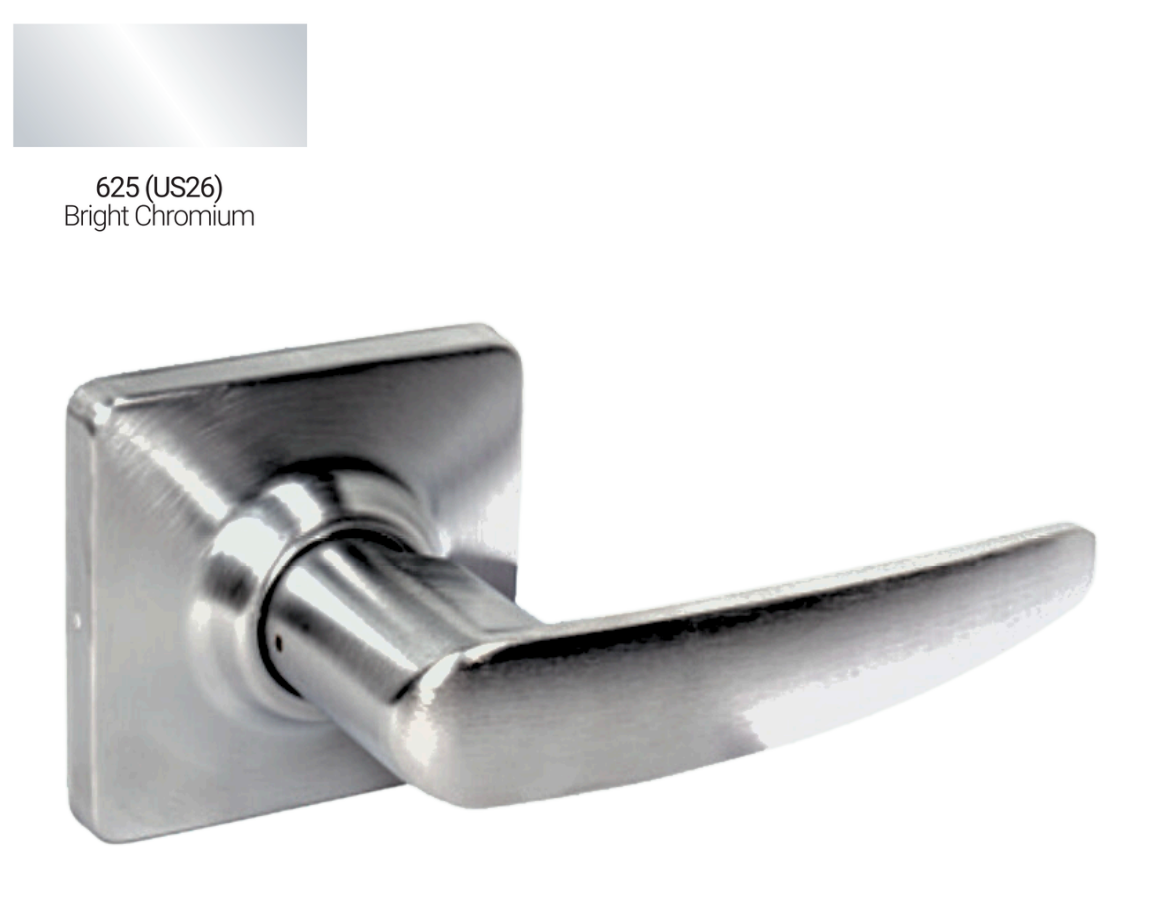

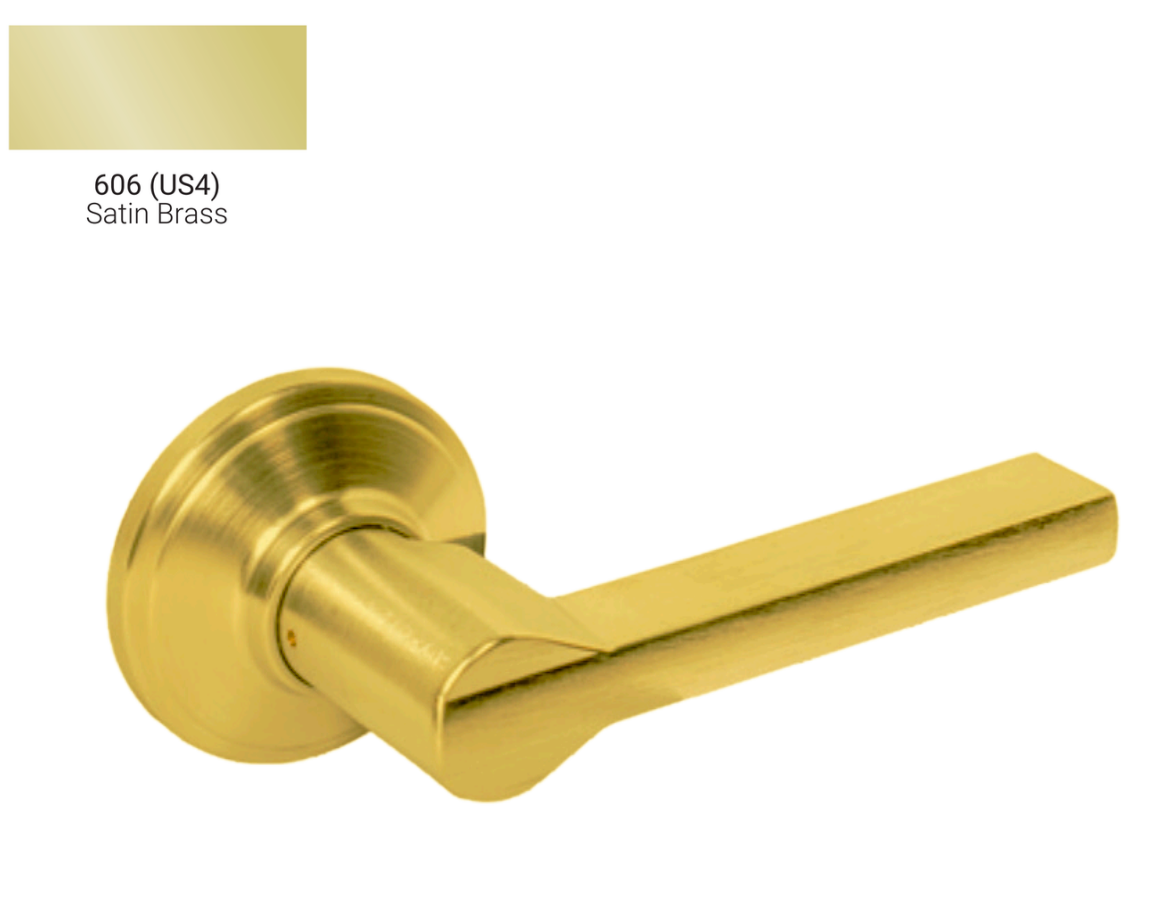

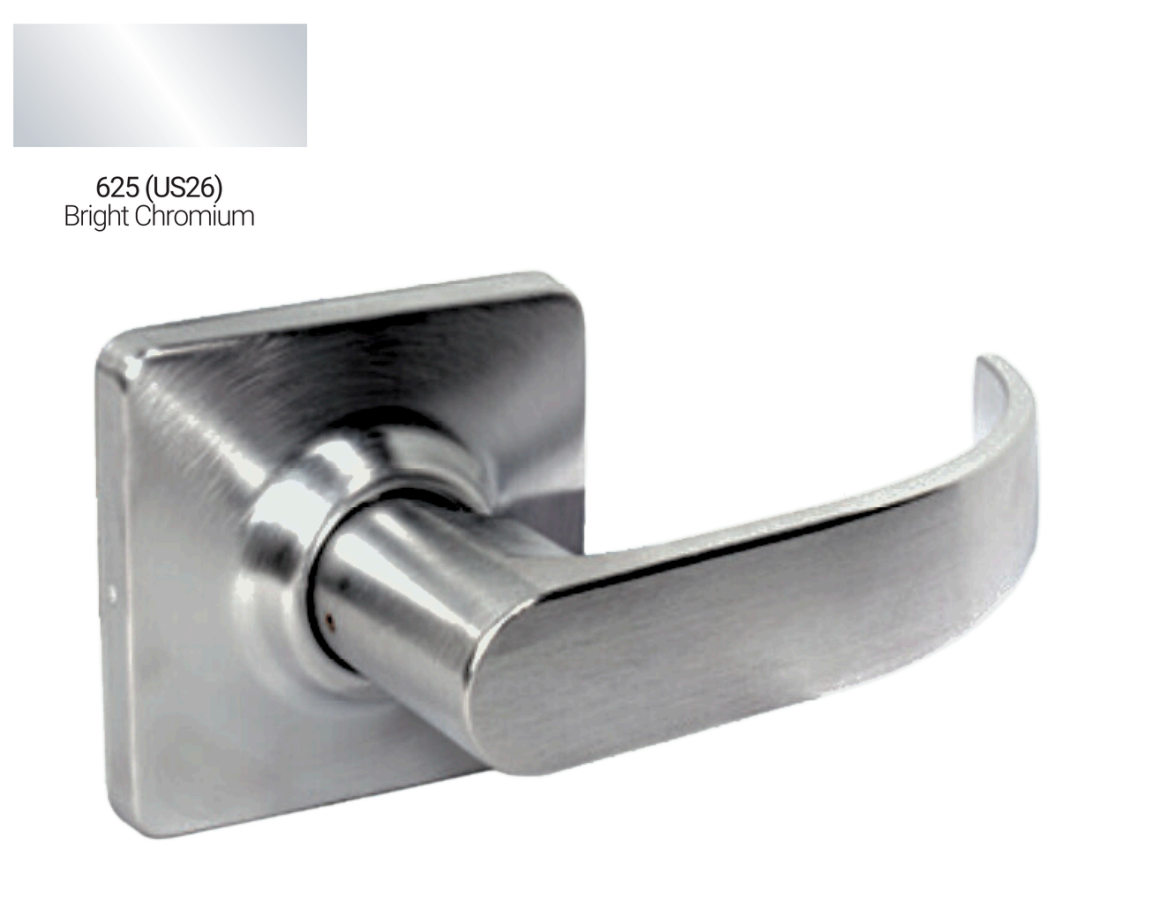

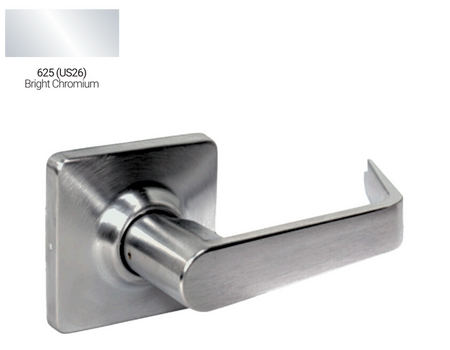

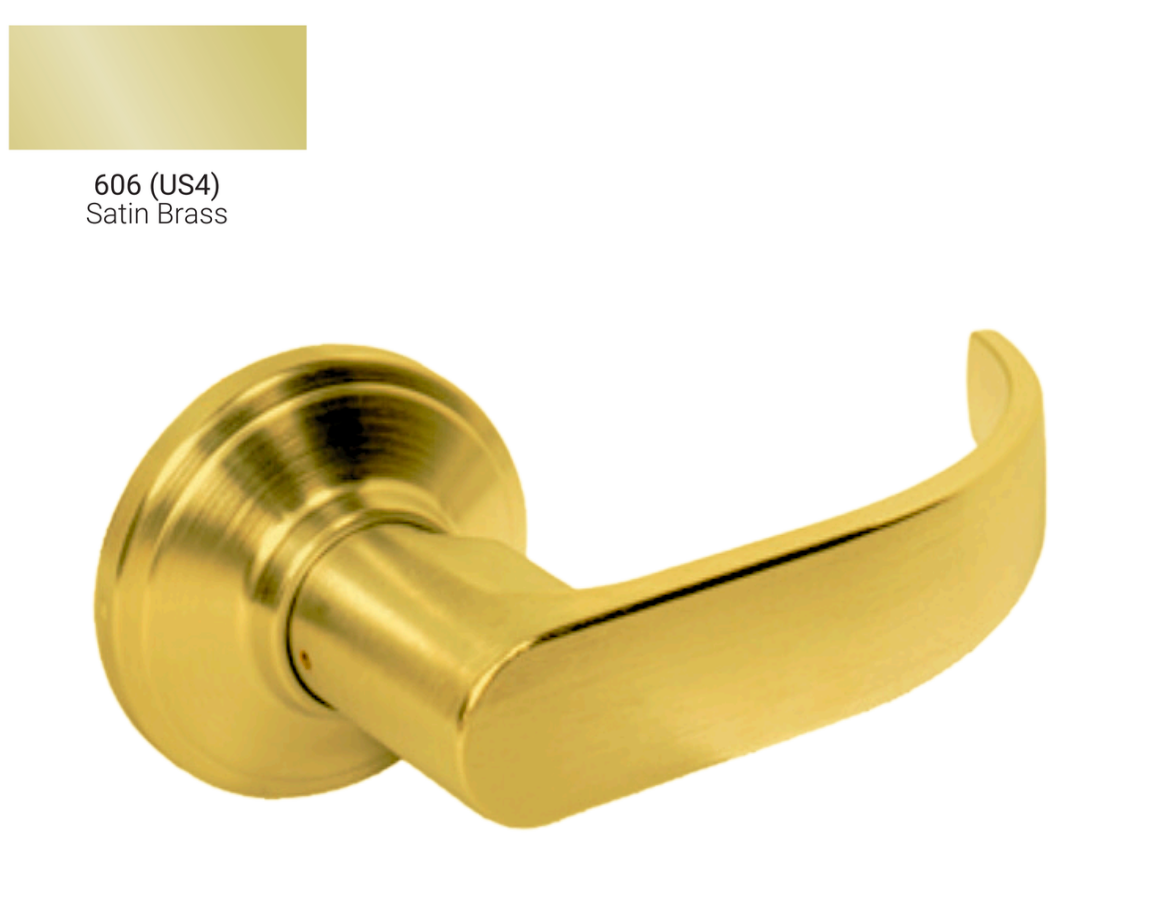

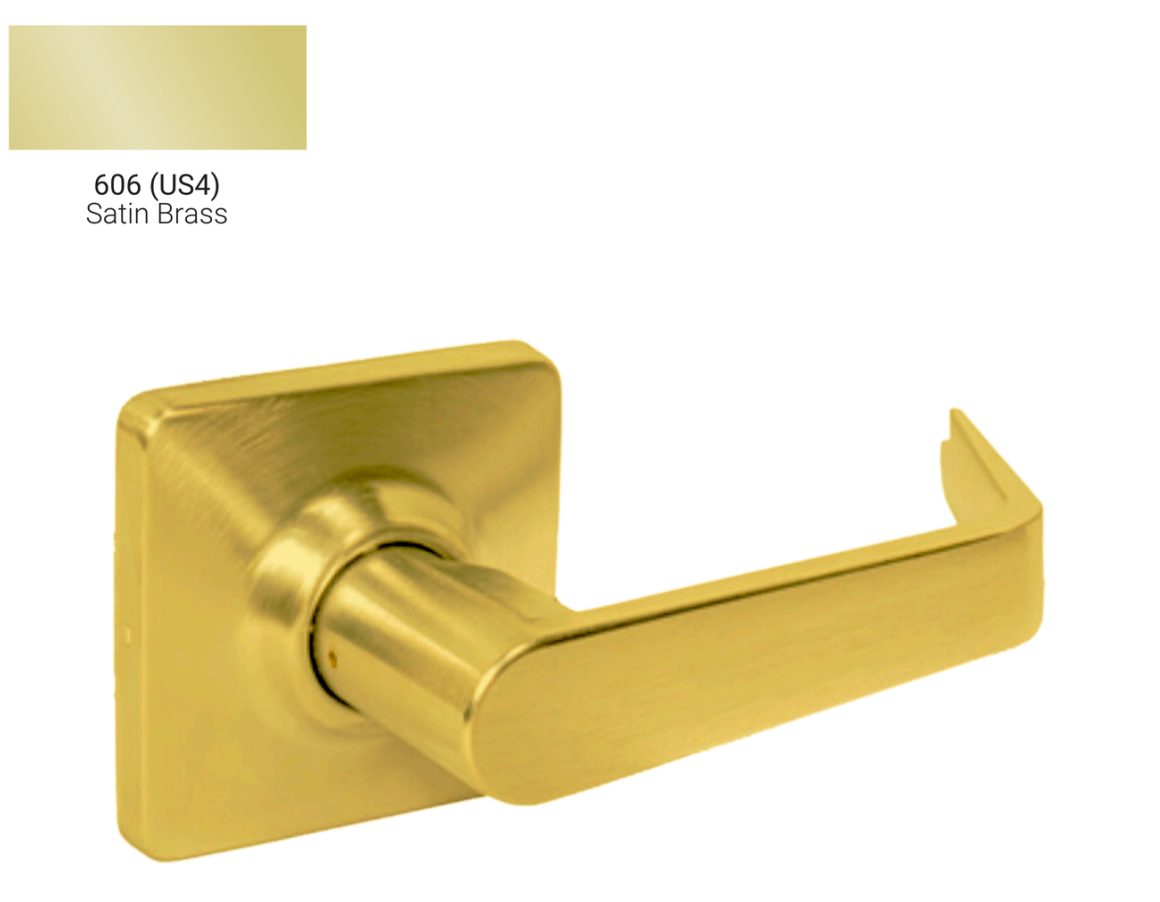

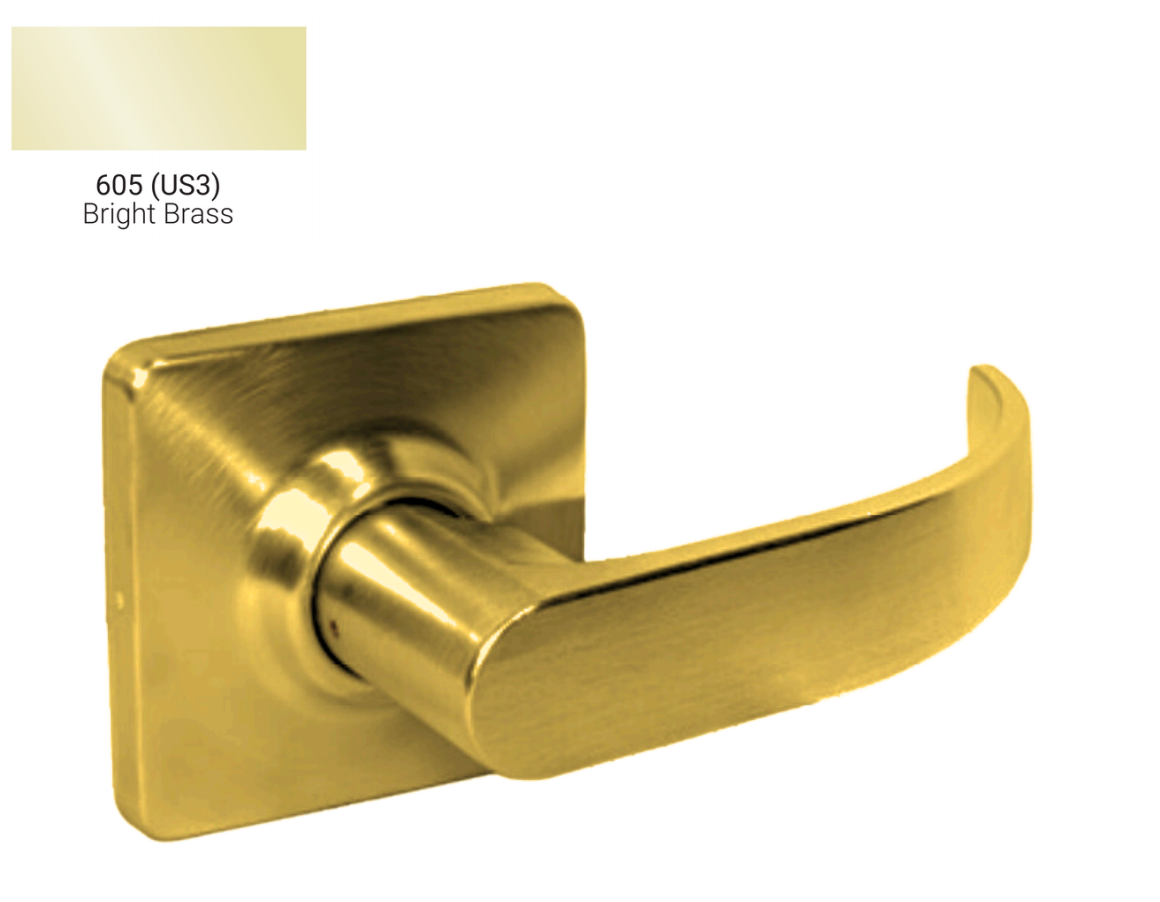

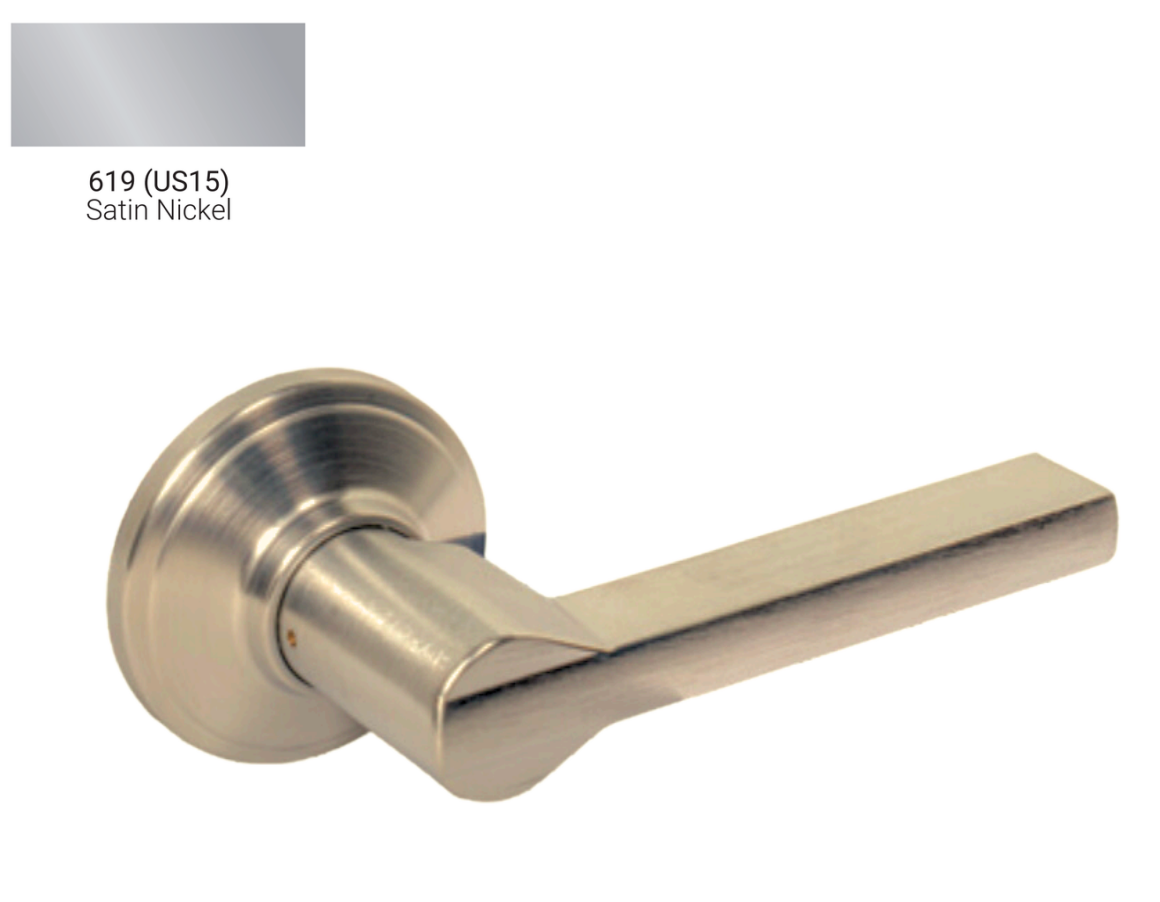

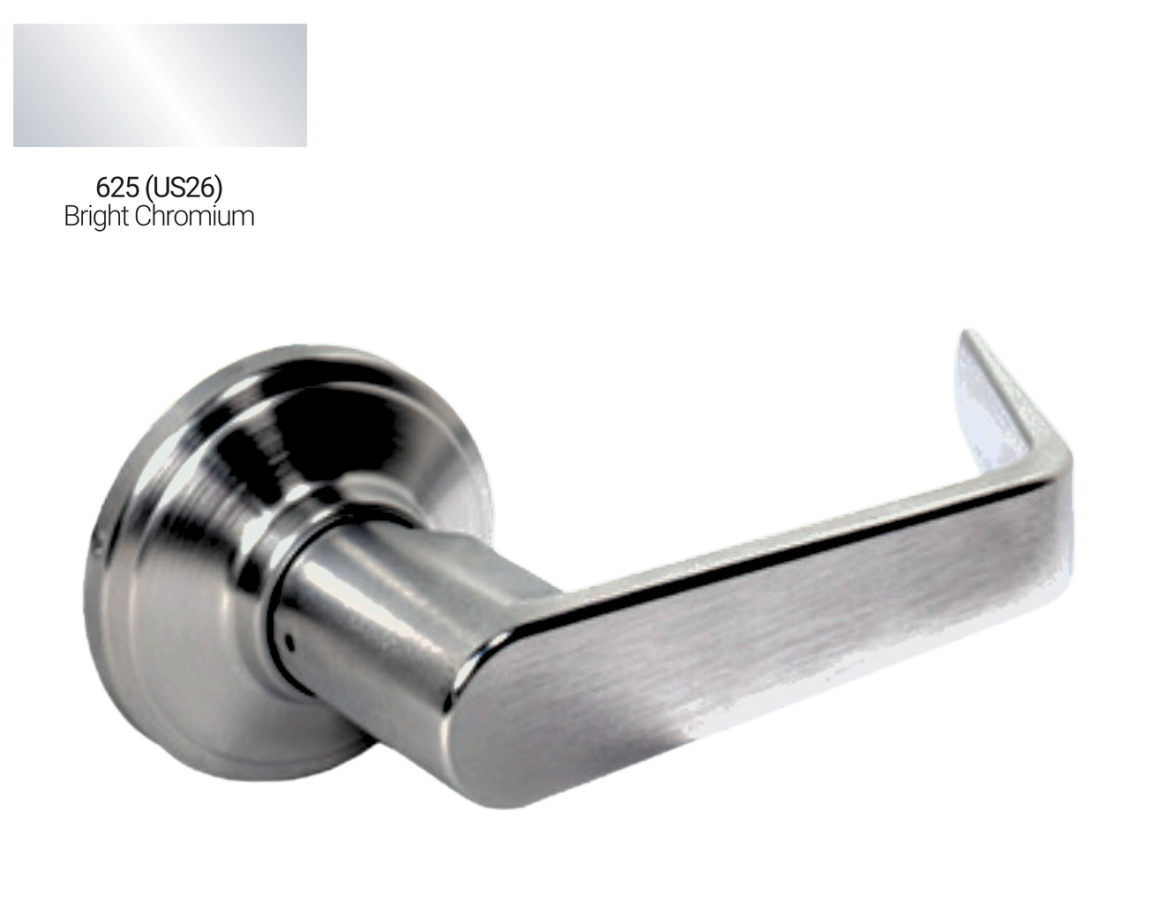

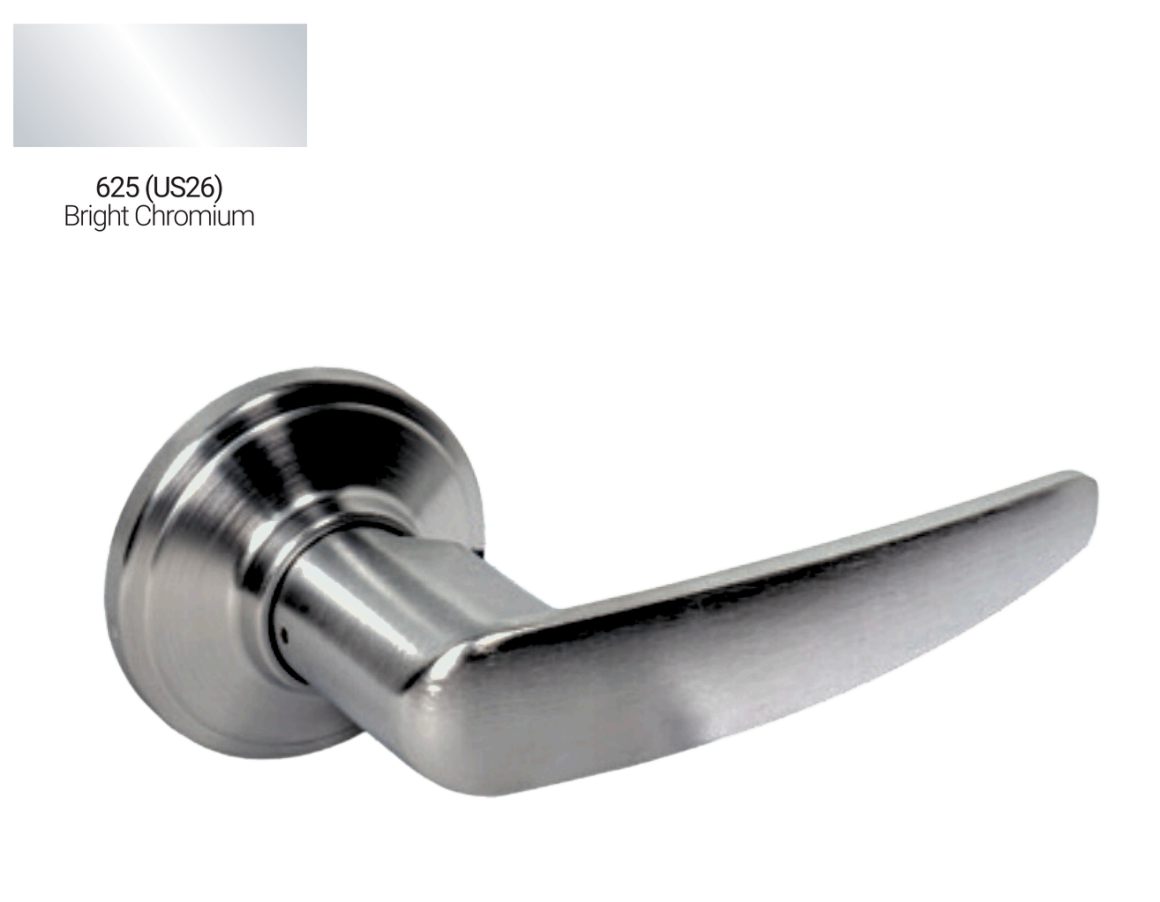

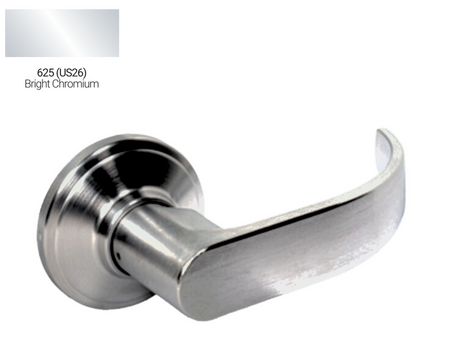

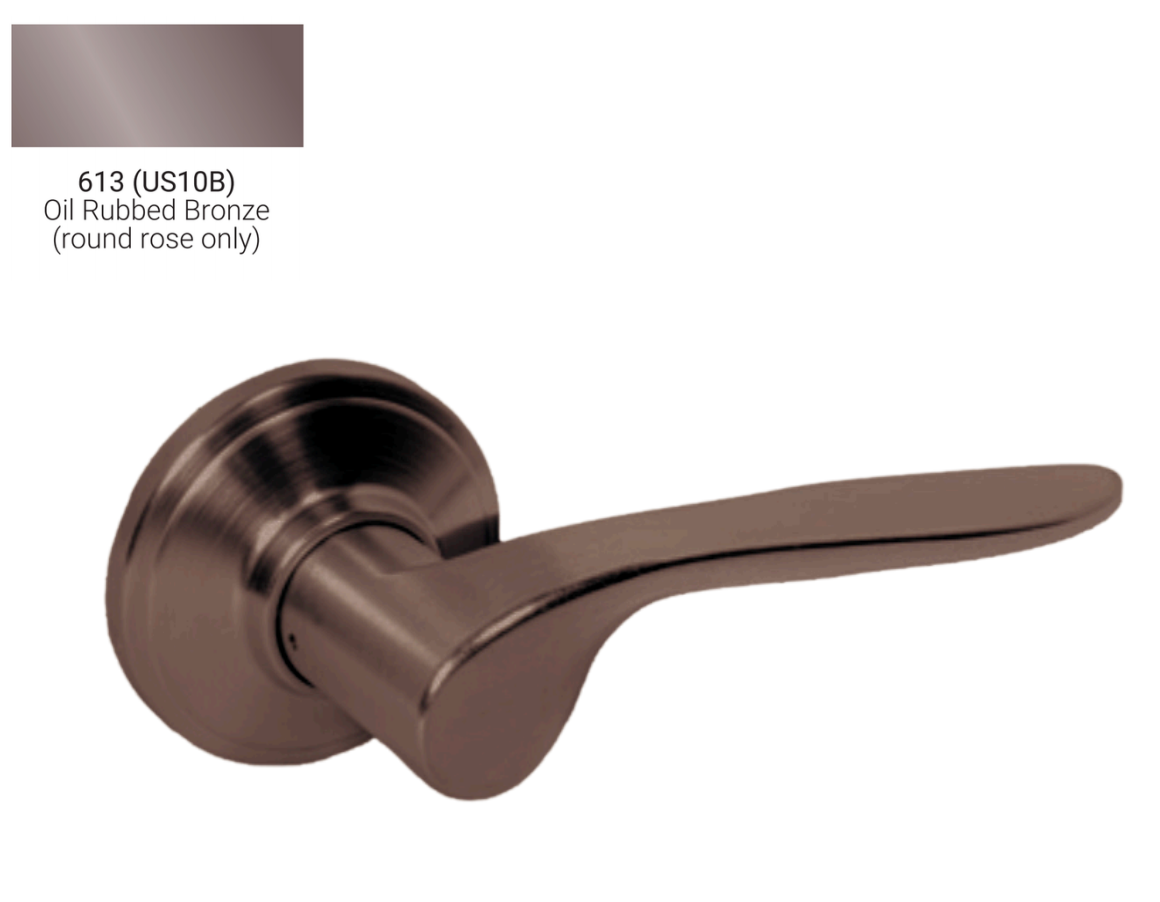

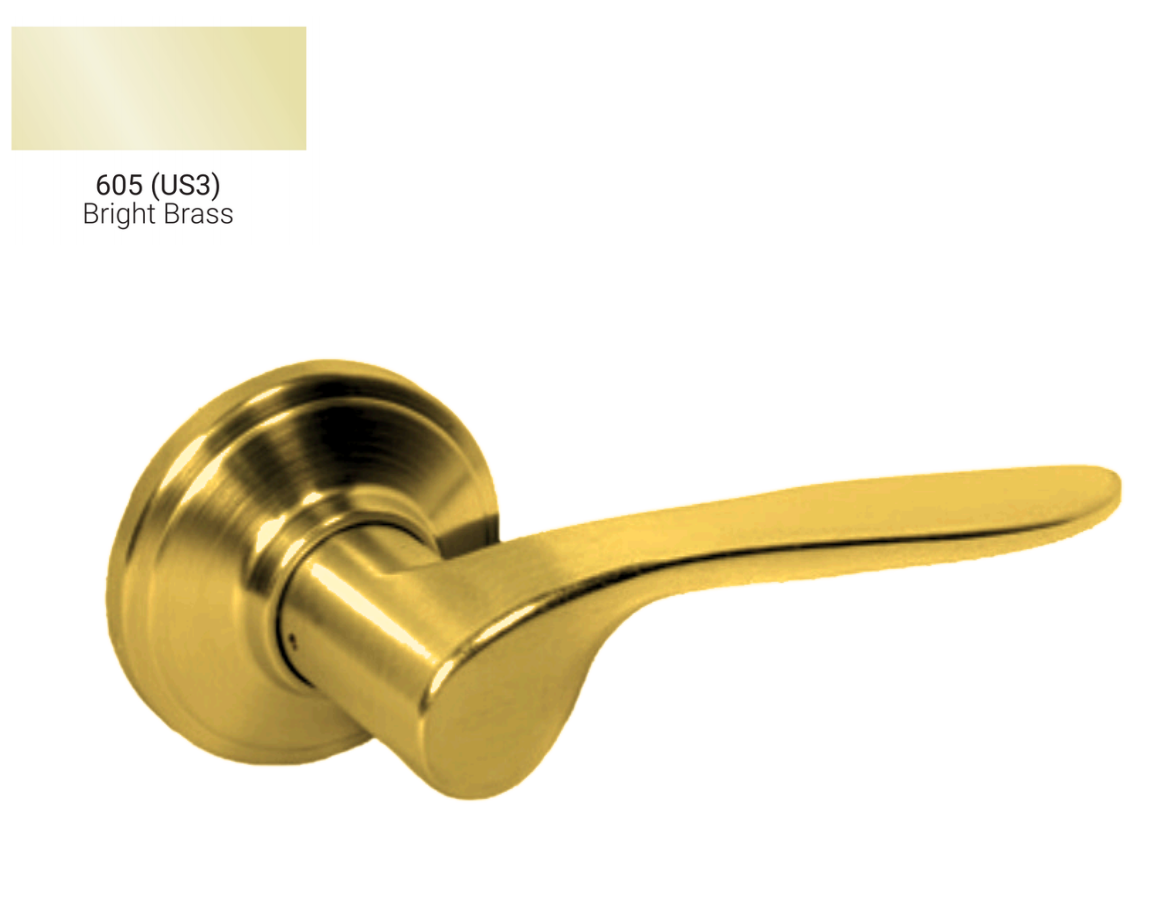

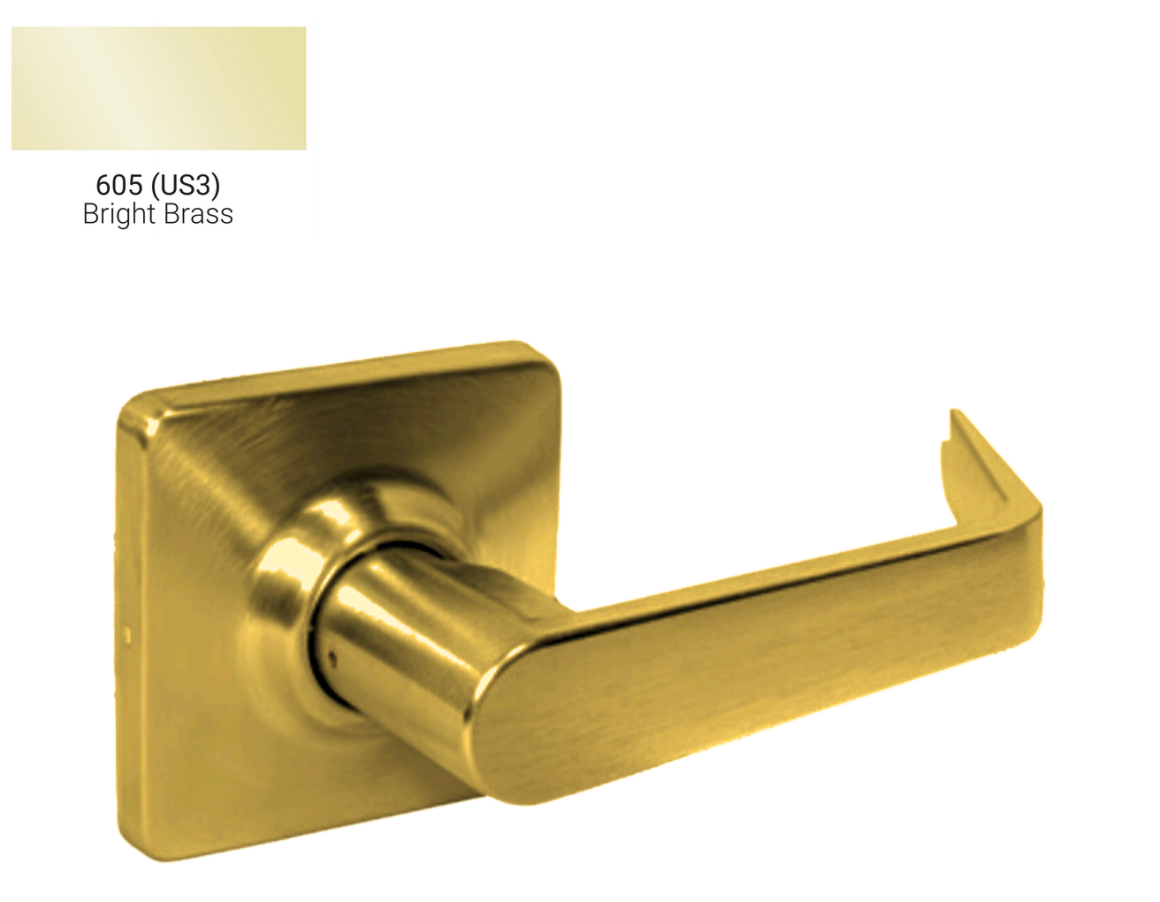

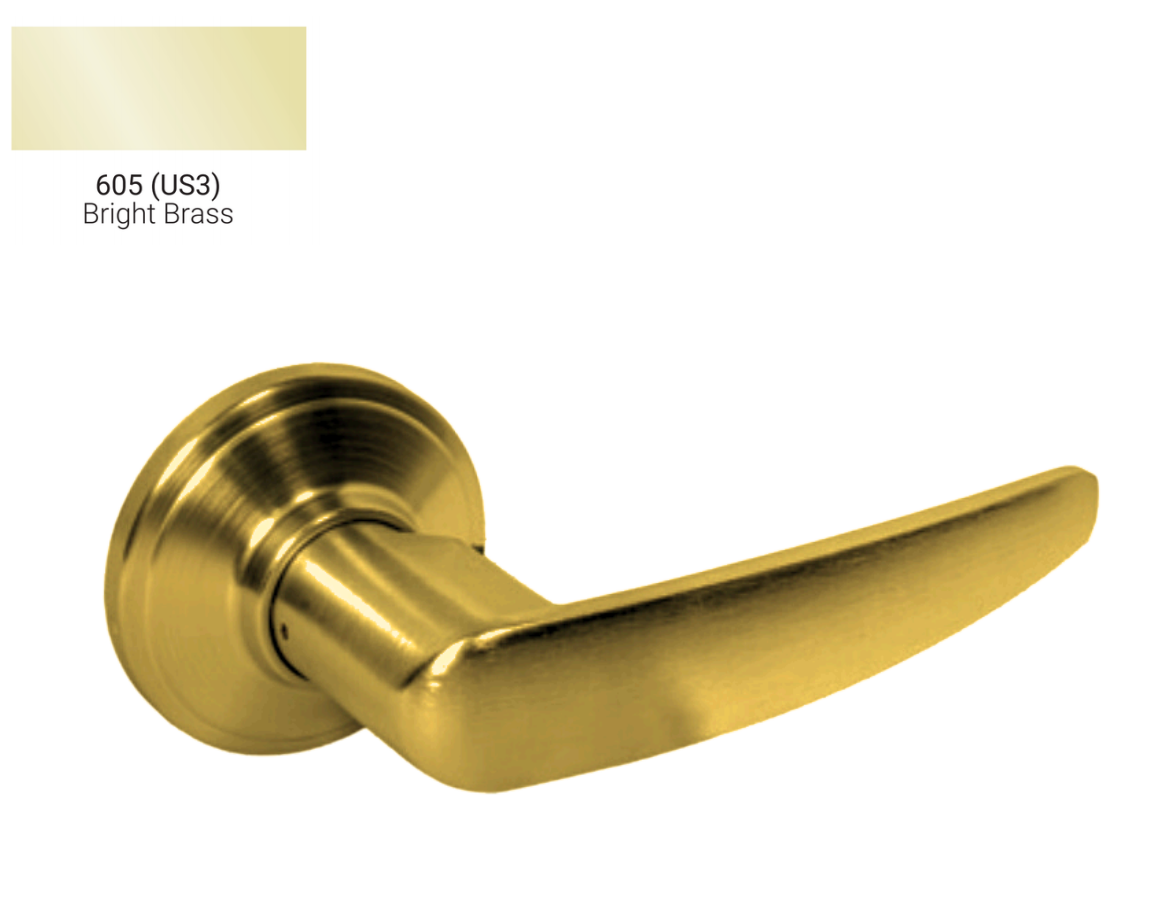

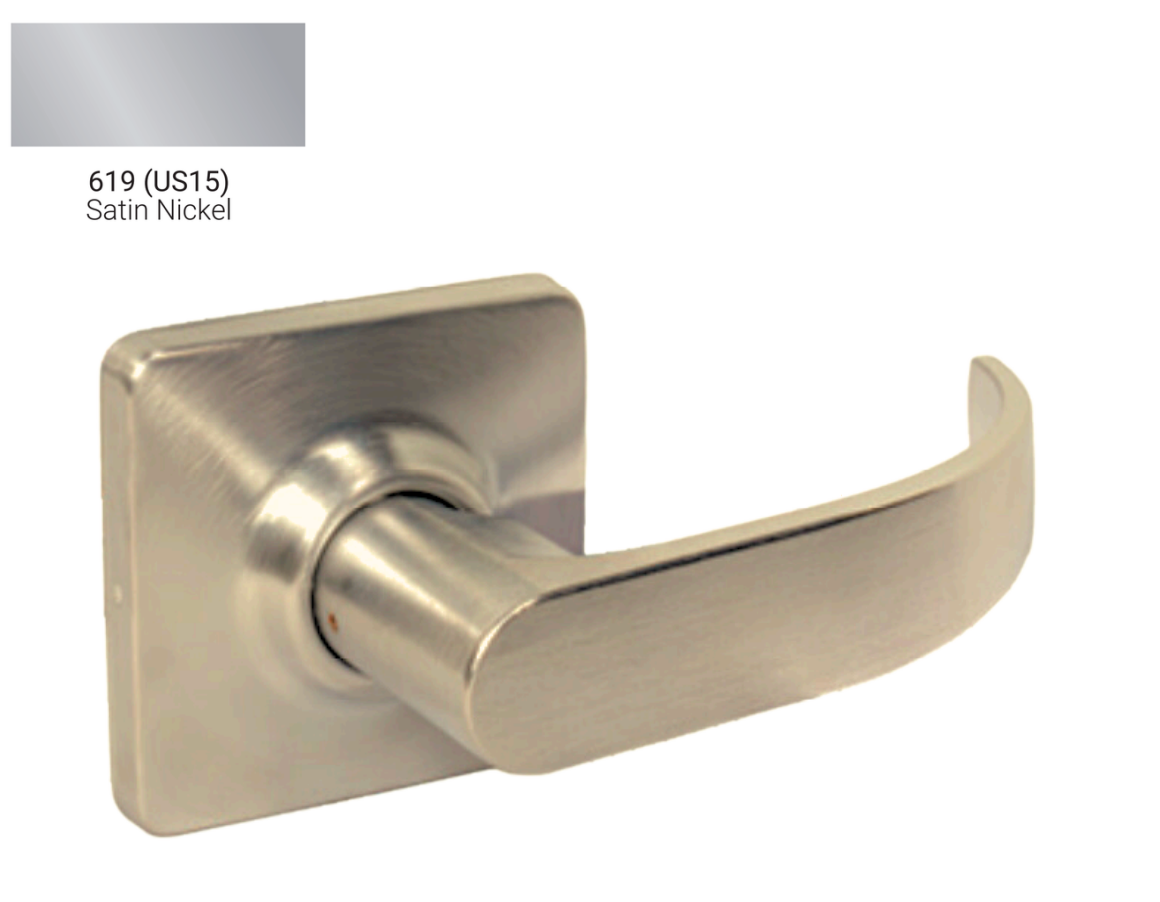

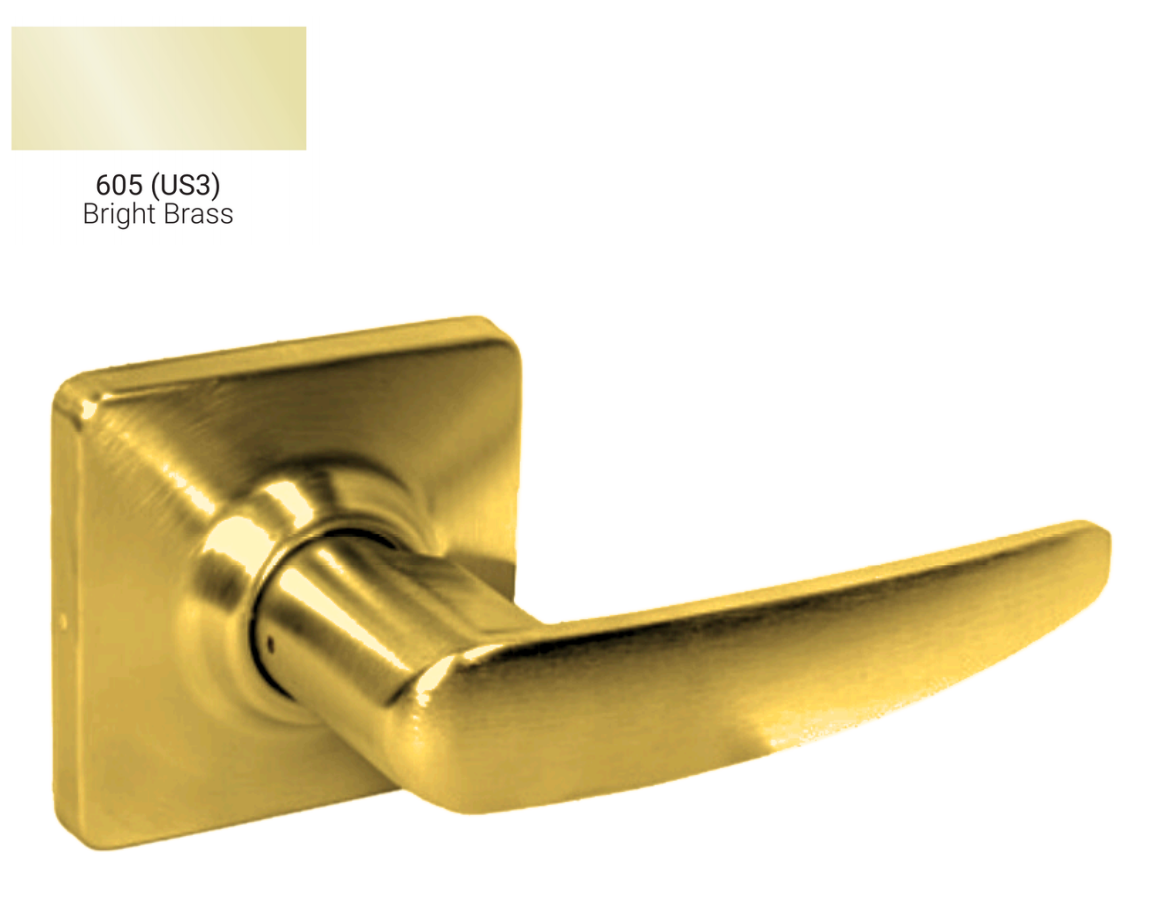

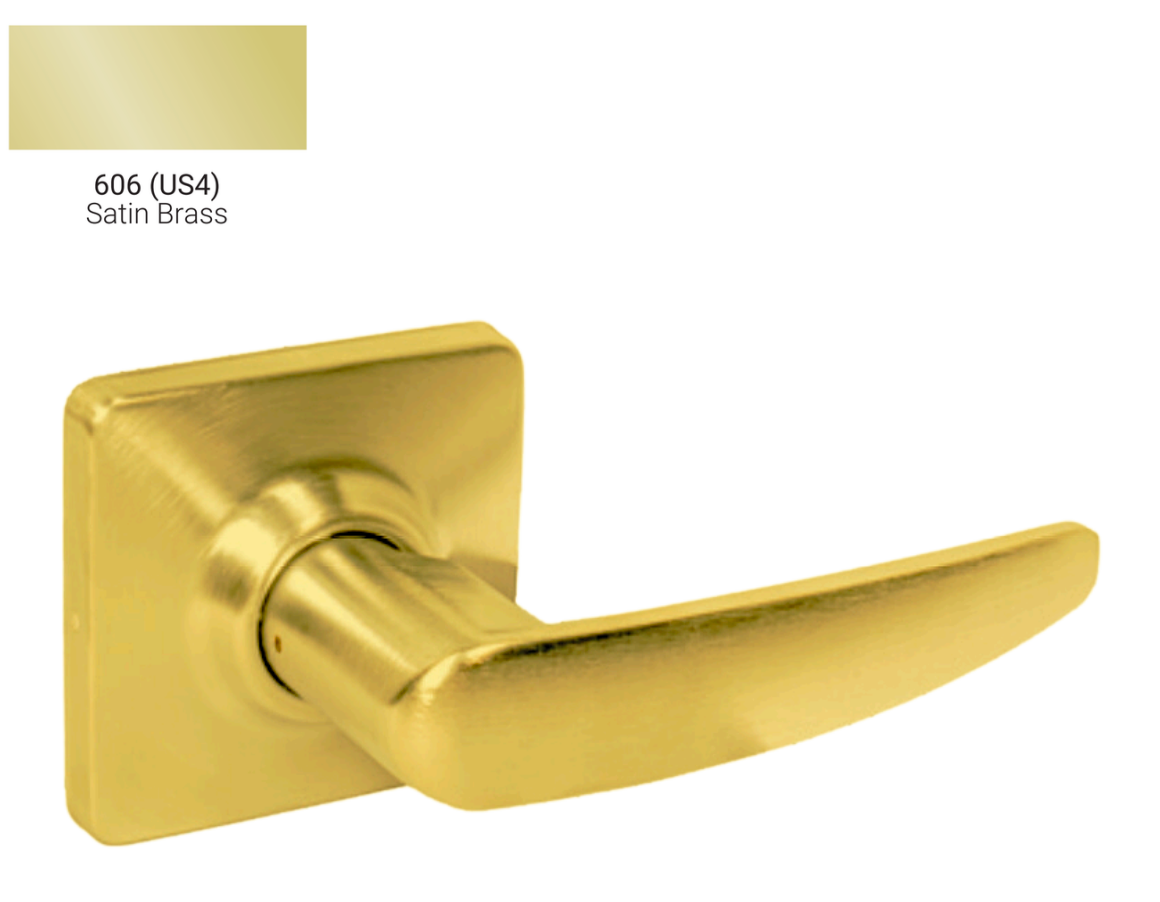

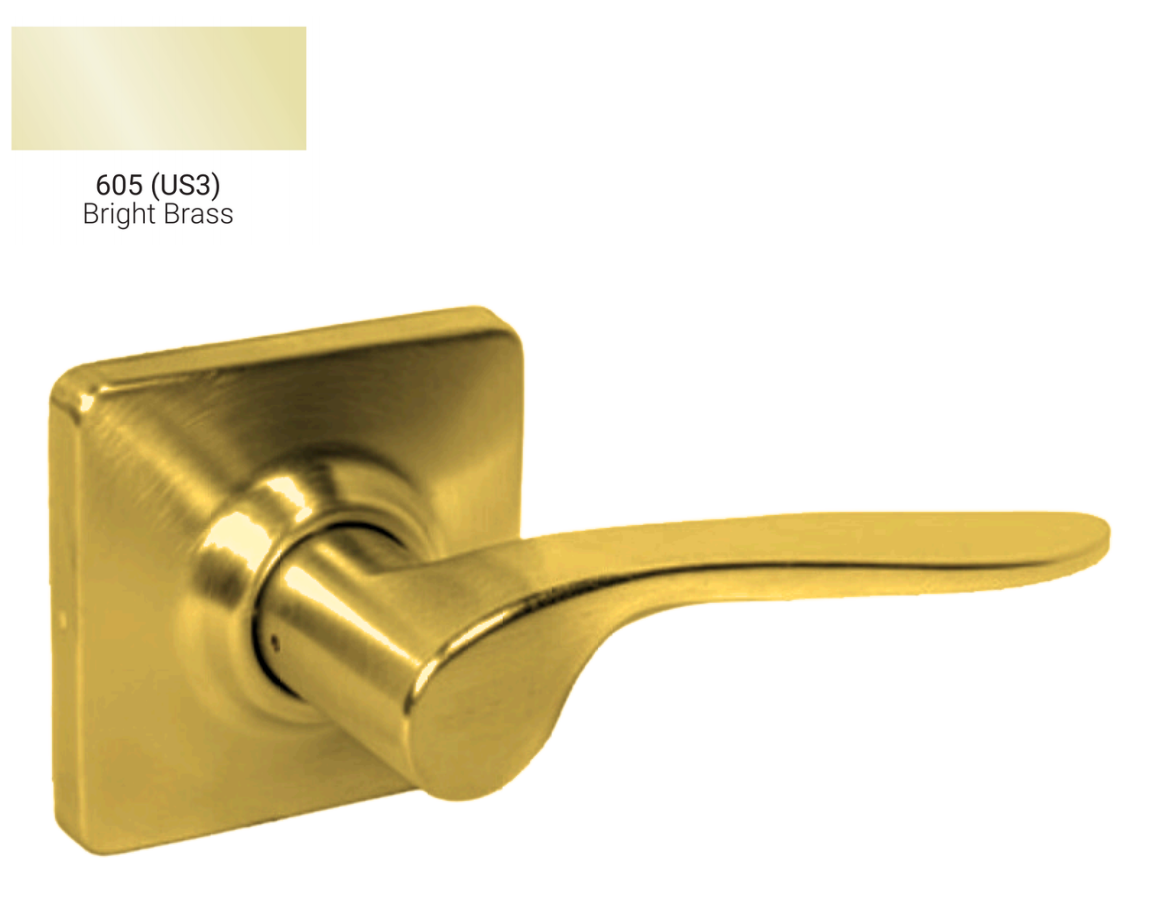

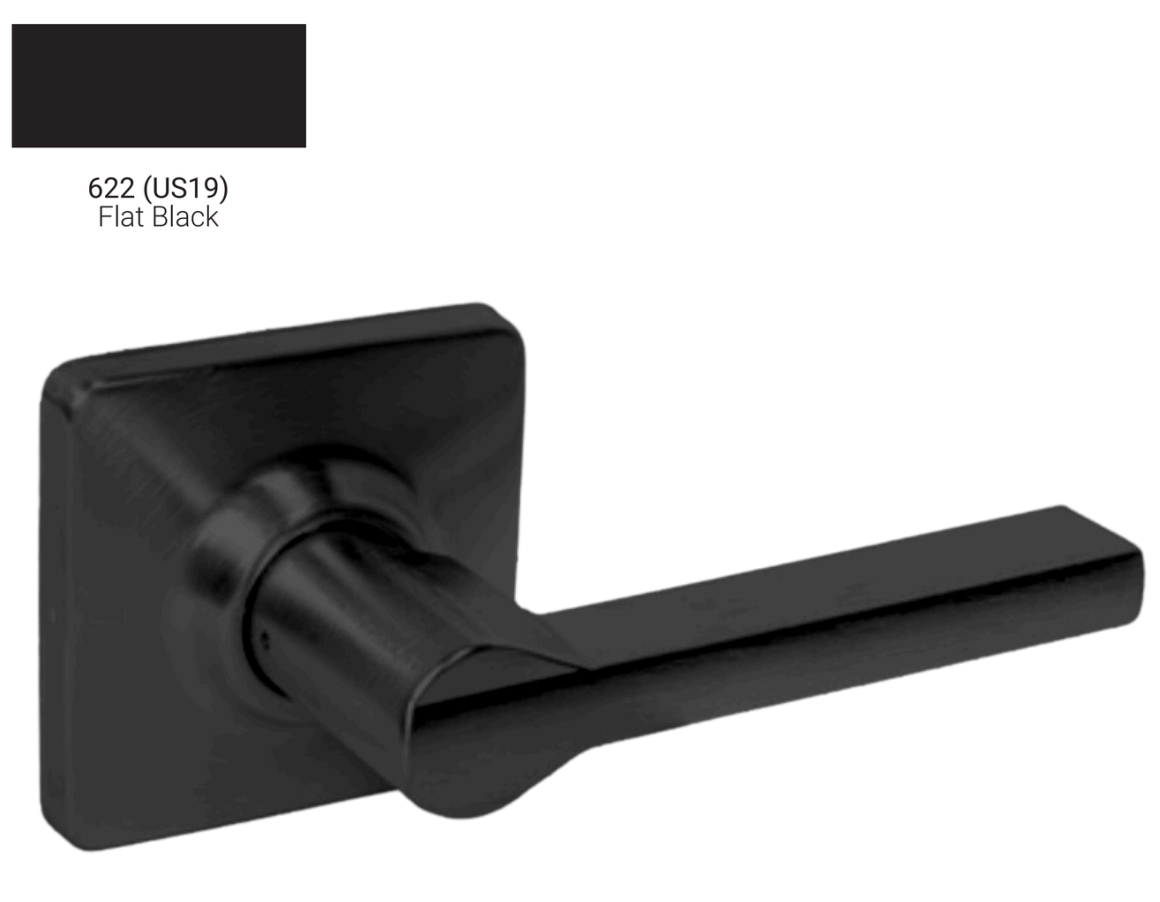

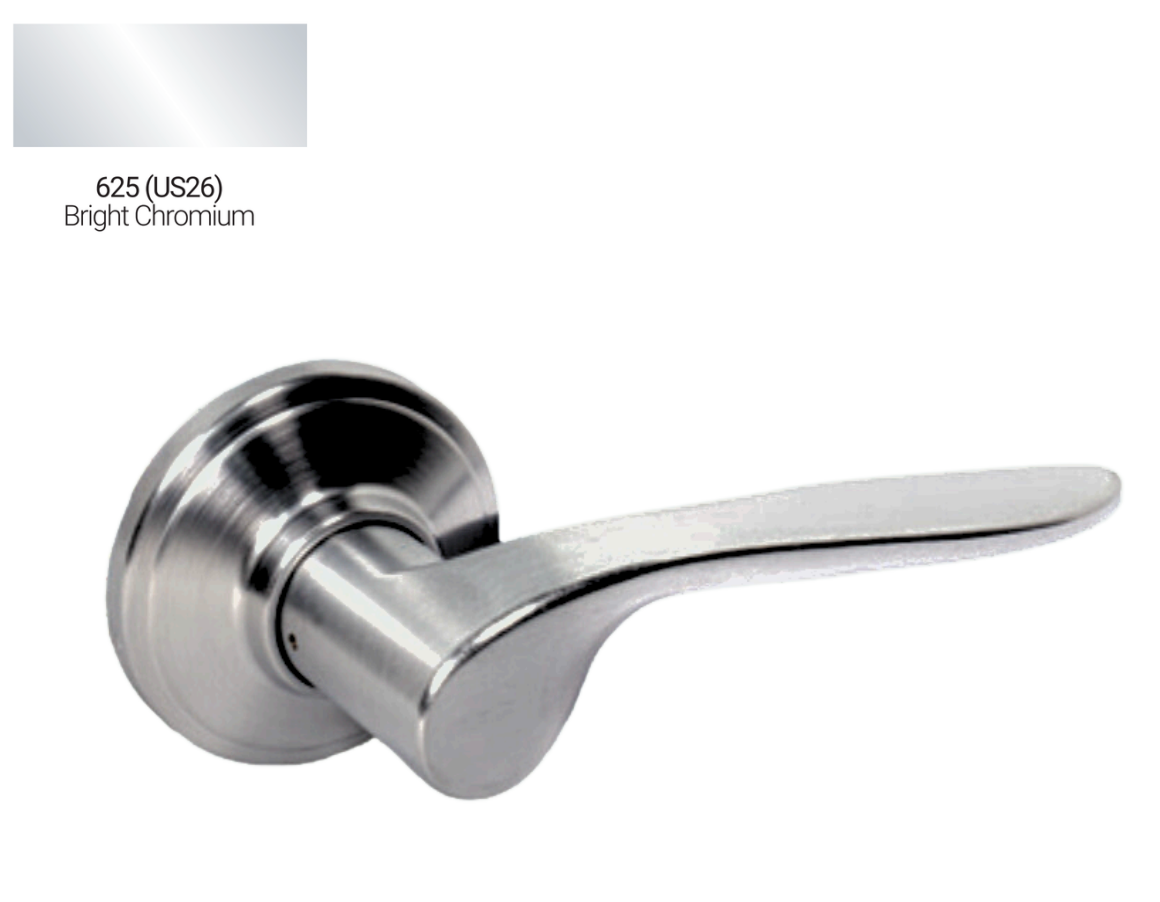

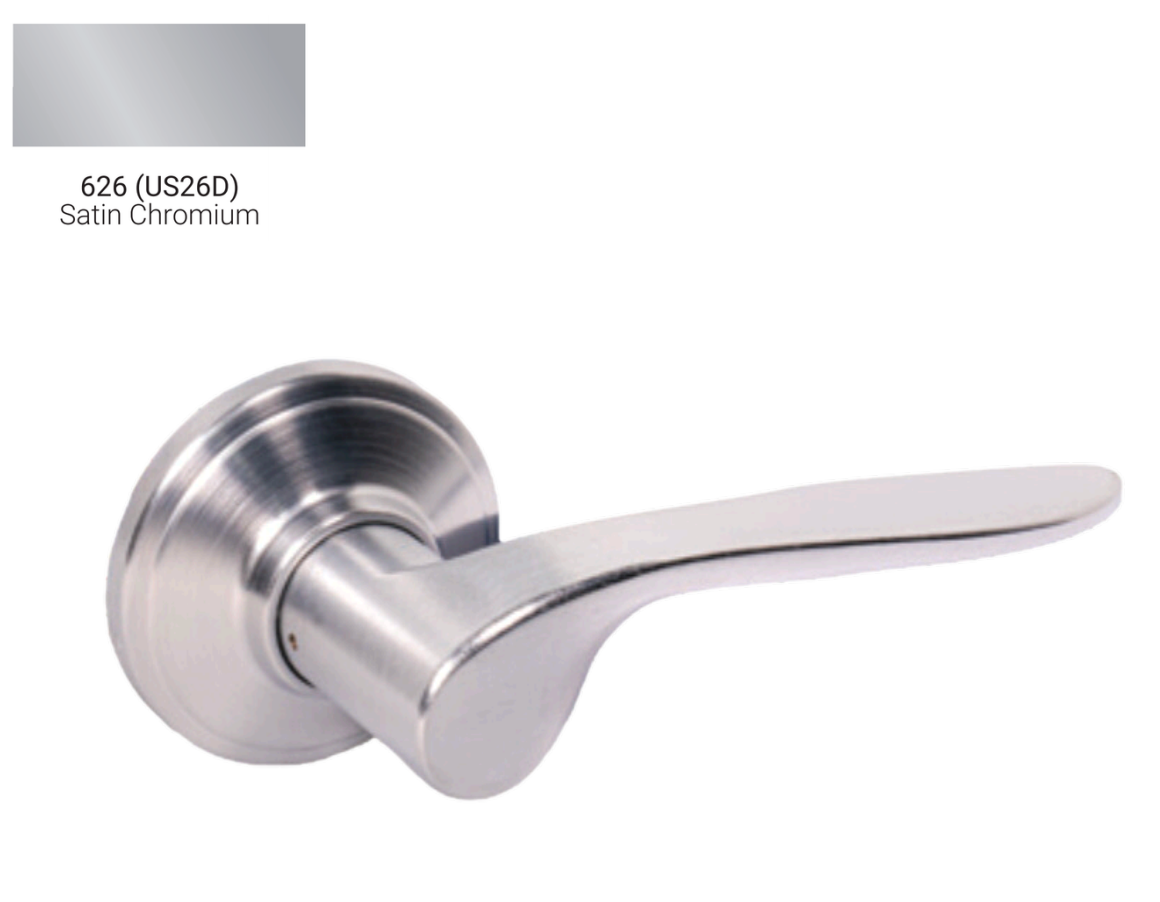

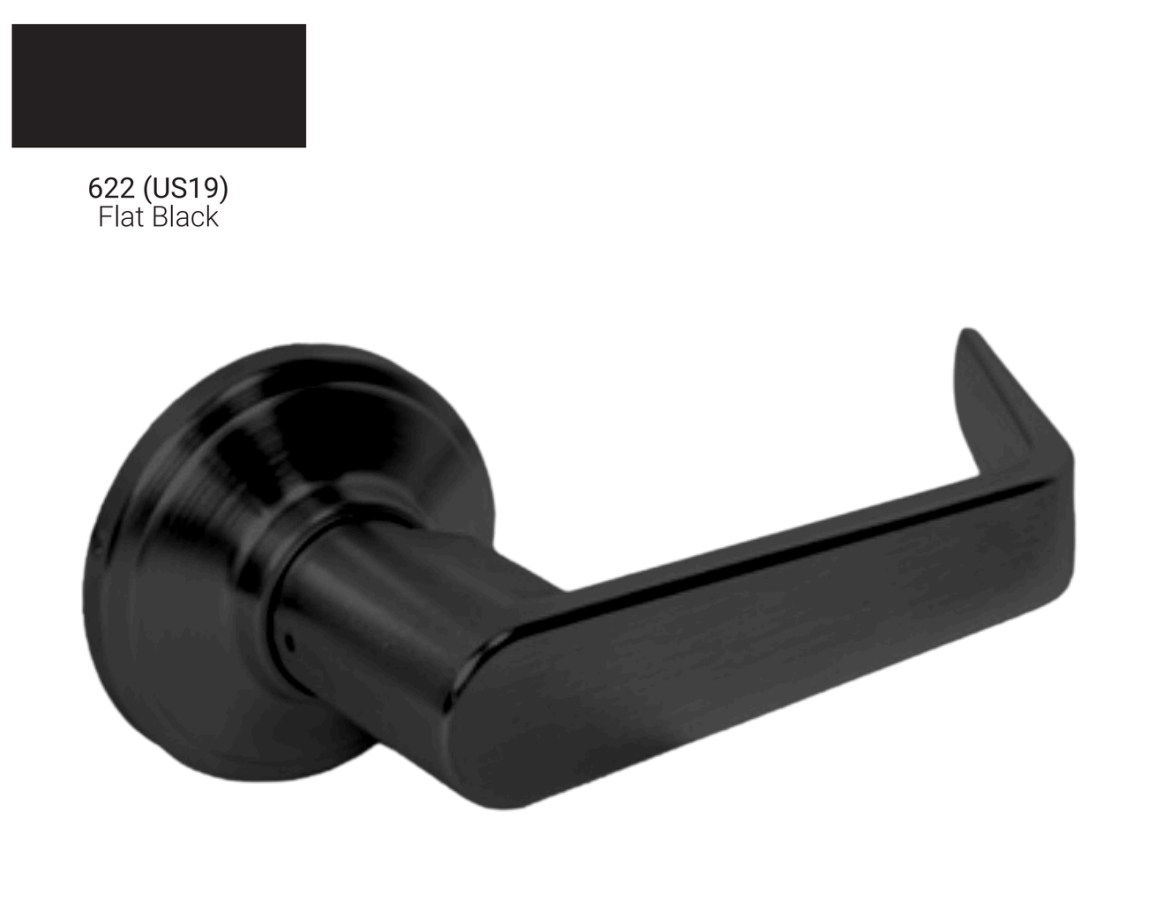

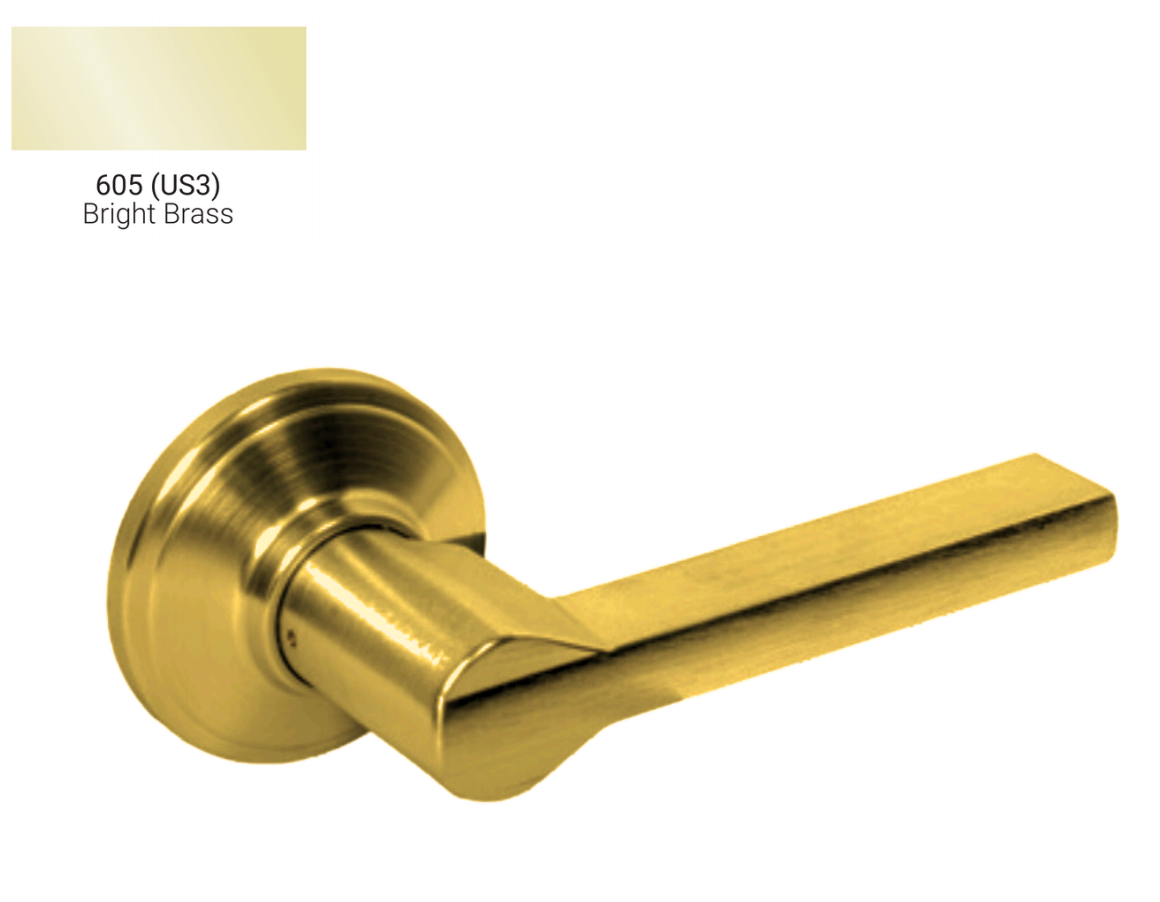

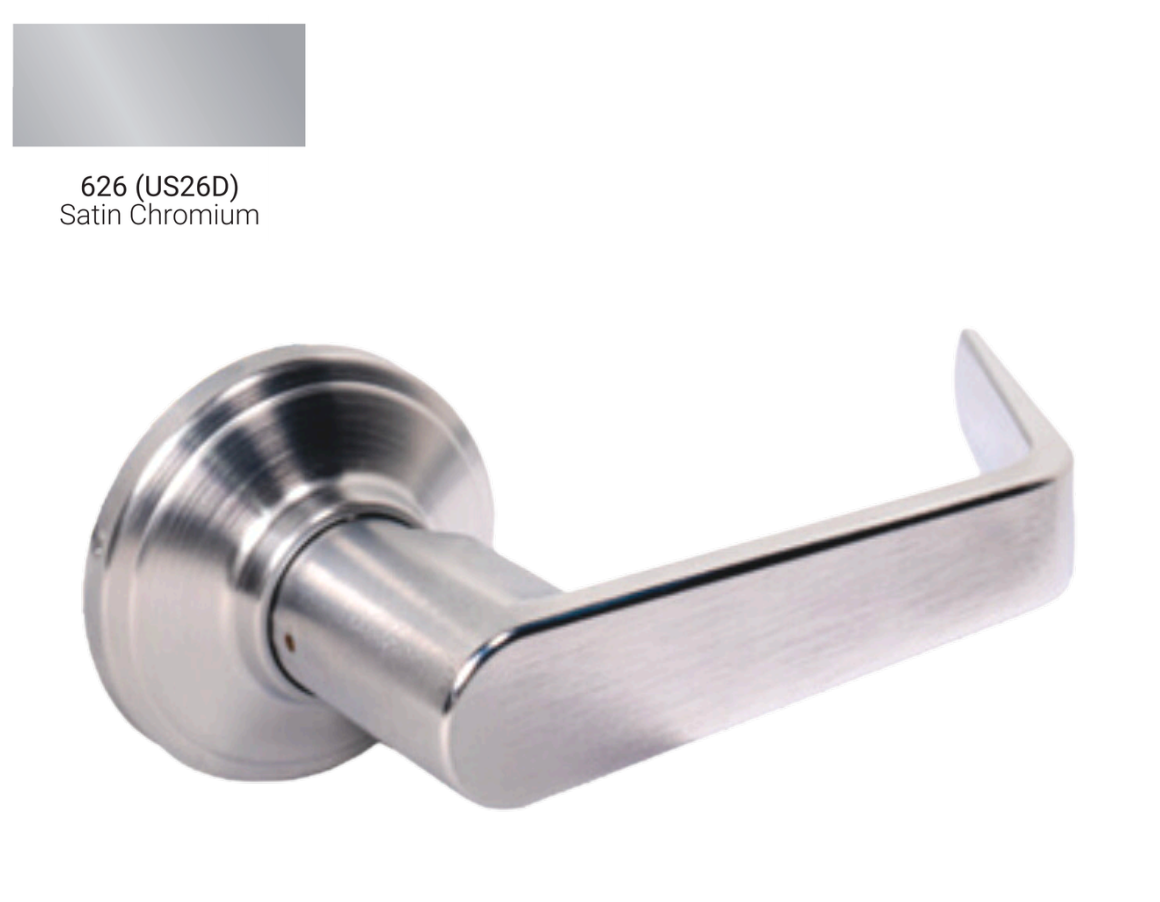

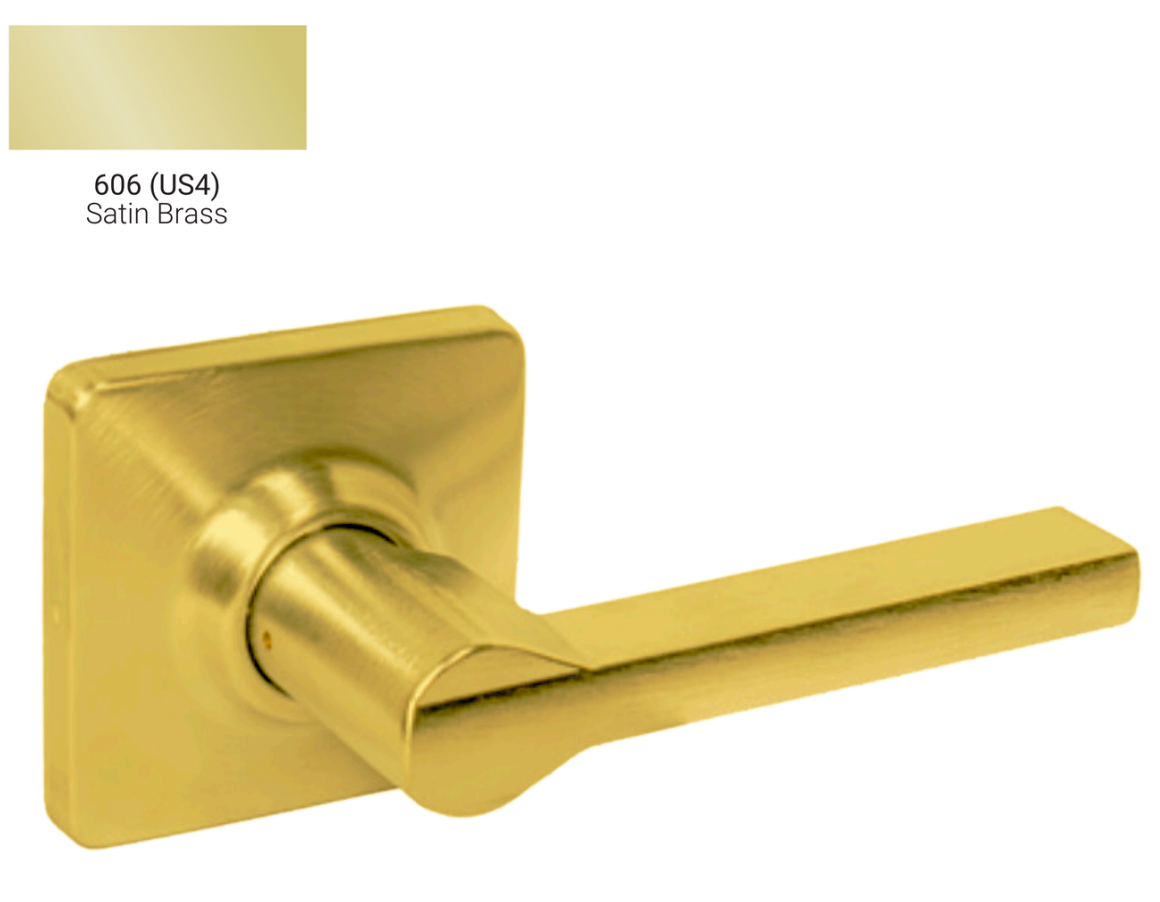

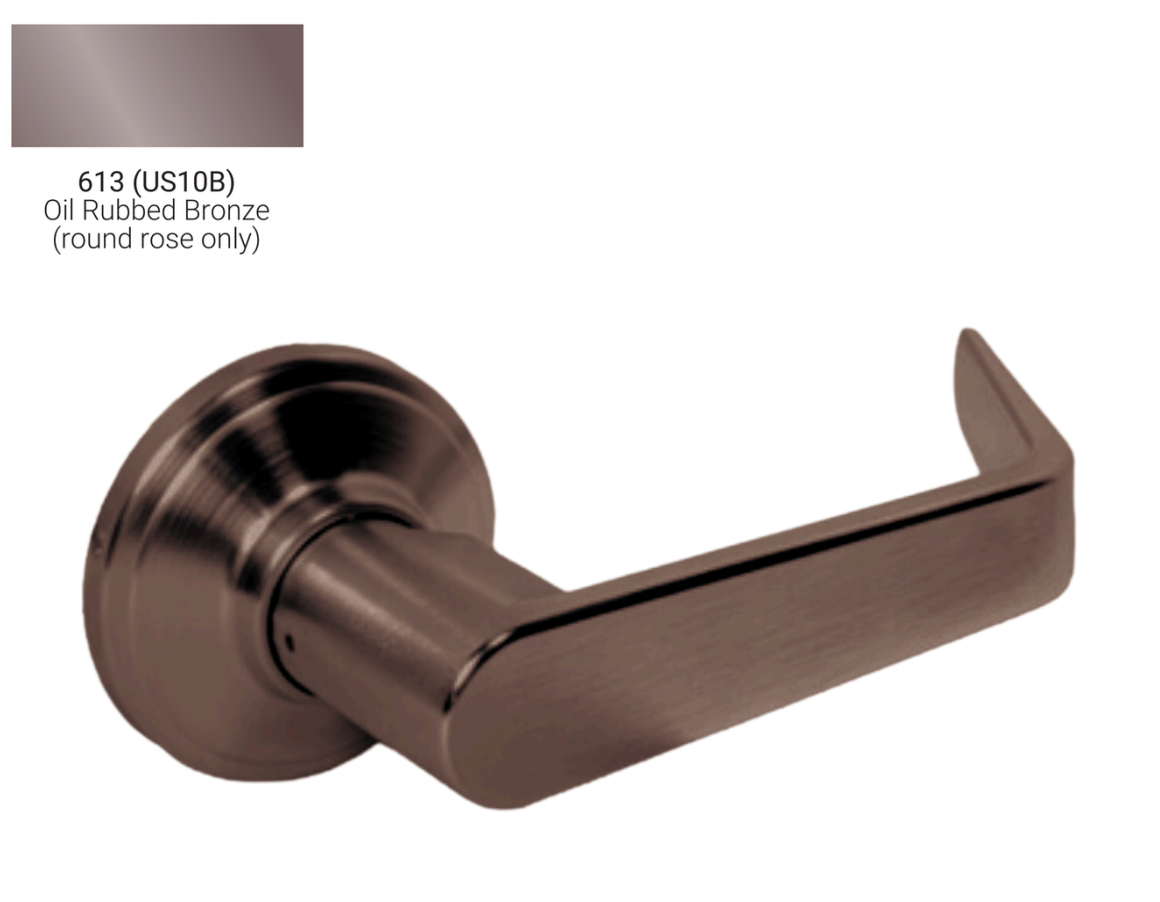

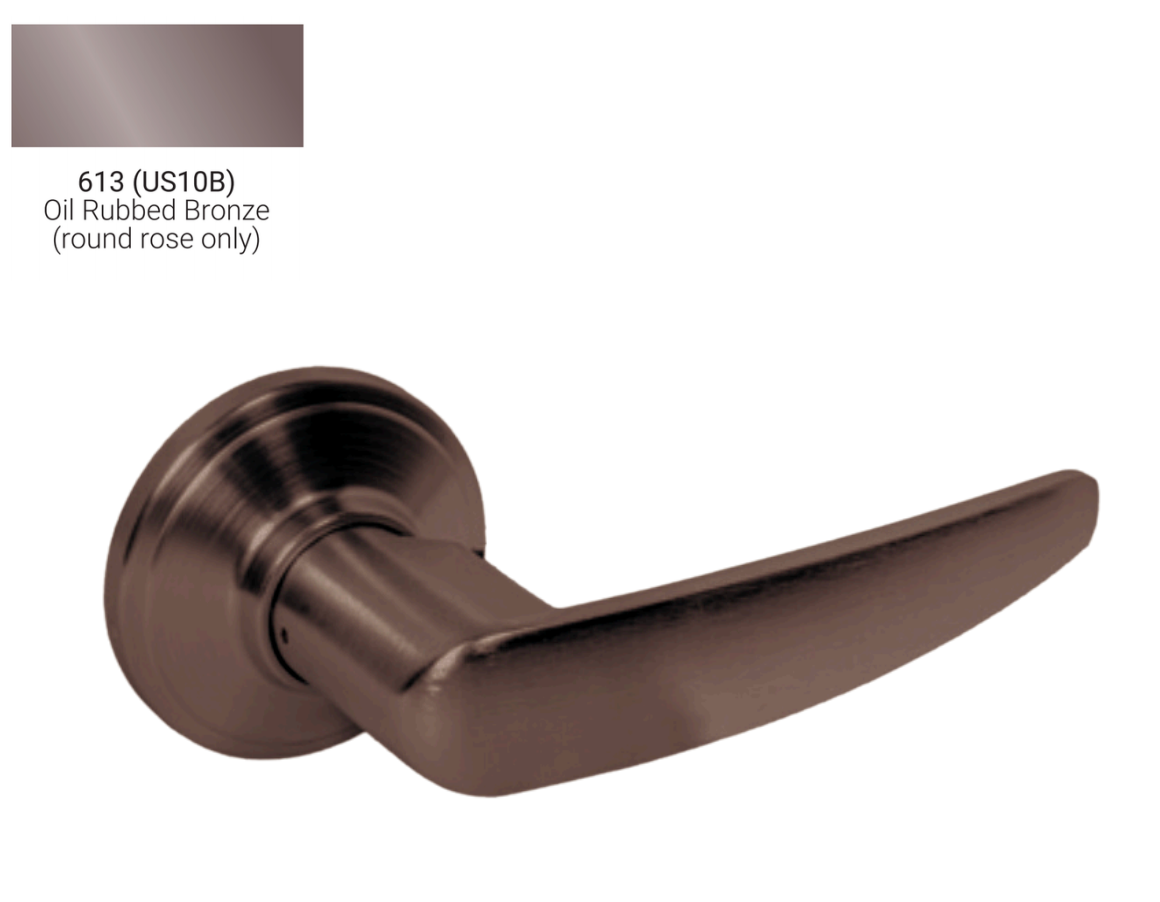

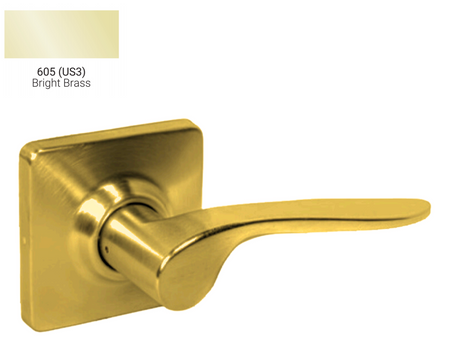

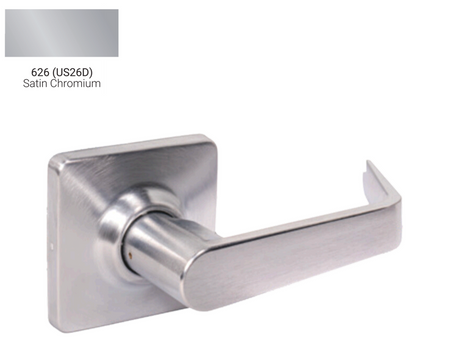

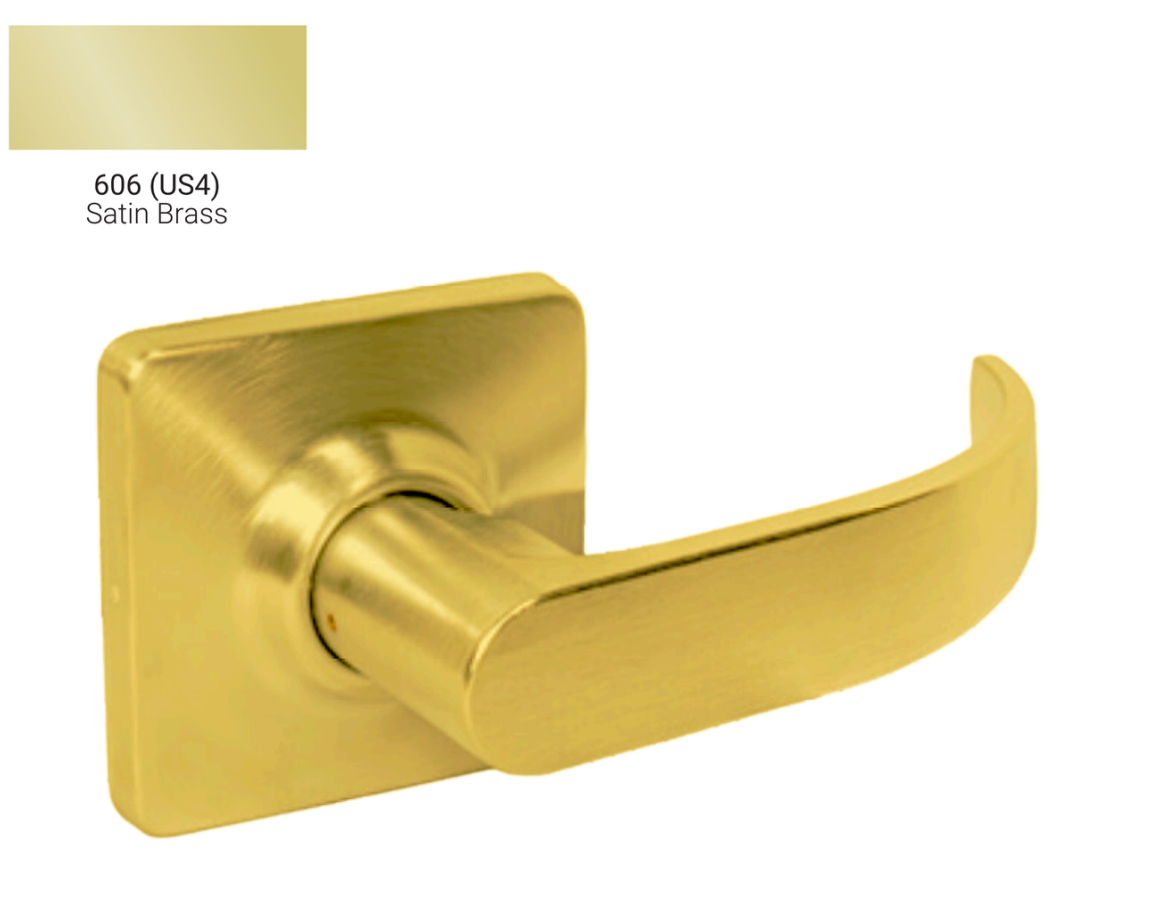

- Choose from 7 elegant finishes available: 605(US3), 606 (US4), 613(US10B), 619(US3), 622(US19), 625(US26), 626(US26D)
Enhance security and style seamlessly with this SF cylindrical lockset, perfect for commercial and residential applications. Unlock quality and choice with the SF Series Cylindrical Lockset – your trusted solution for strength and design excellence.
| FOR DOORS: | 1-3/8” to 1-3/4” thick Preset for 1-3/4” door |
| APPLICATION: | Fits standard 160 and 161 door prep No additional thru-bolt |
| BACKSET: | Adjustable - 2-3/8” - 2-3/4” (Optional UL Listed fire latch has fixed backsets, 2-3/8” or 2-3/4”) |
| CHASSIS: | Heavy-gauge cold rolled steel mechanism Dichromated for corrosion resistance |
| FRONT: | 1” face width, 1/4” radius with square corner filler for 1-1/8” width |
| STRIKE: | Full Lip Strike standard, ASA and T-Strike optional |
| LEVERS: | Philadelphia, Boston, Miami, Memphis and Orlando |
| ROSE: | 2-9/16” Diameter Round Rose, 2-15/16” Square Rose |
| LATCHBOLT: | Adjustable - 2-3/8” - 2-3/4” latch standard, Optional UL fire-rated 2-3/4” or 2-3/8” fixed latchbolts are available |
| HAND: | Non-handed, for Memphis, swap levers to rehand |
| TRIM: | Solid diecast PHL, BSN, MIA, MEM and ORL levers Wrought brass roses Concealed screws |
| KEYS: | Two (2) per Lock |
| KEYWAYS: | SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers |
| INTERCHANGEABLE CORE: | 6 or 7-pin Compatible with Best, Falcon & Arrow. Not available with Memphis lever |
| CYLINDER: | 6-pin Brass Insert Cylinder keyed to 5-pins Standard High Security and UL437 Cylinders Available |
| KEYING: | Options: MK, CMK or GMK / Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems |

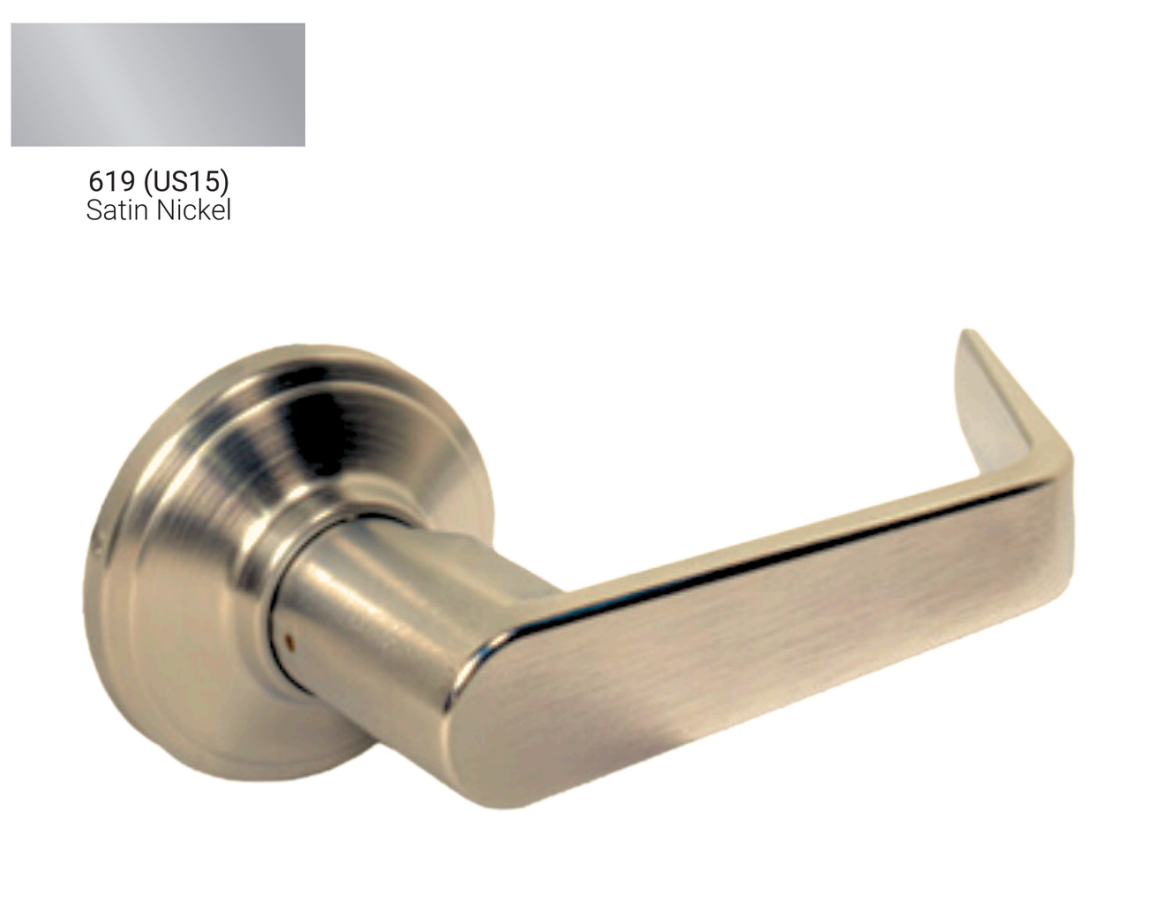

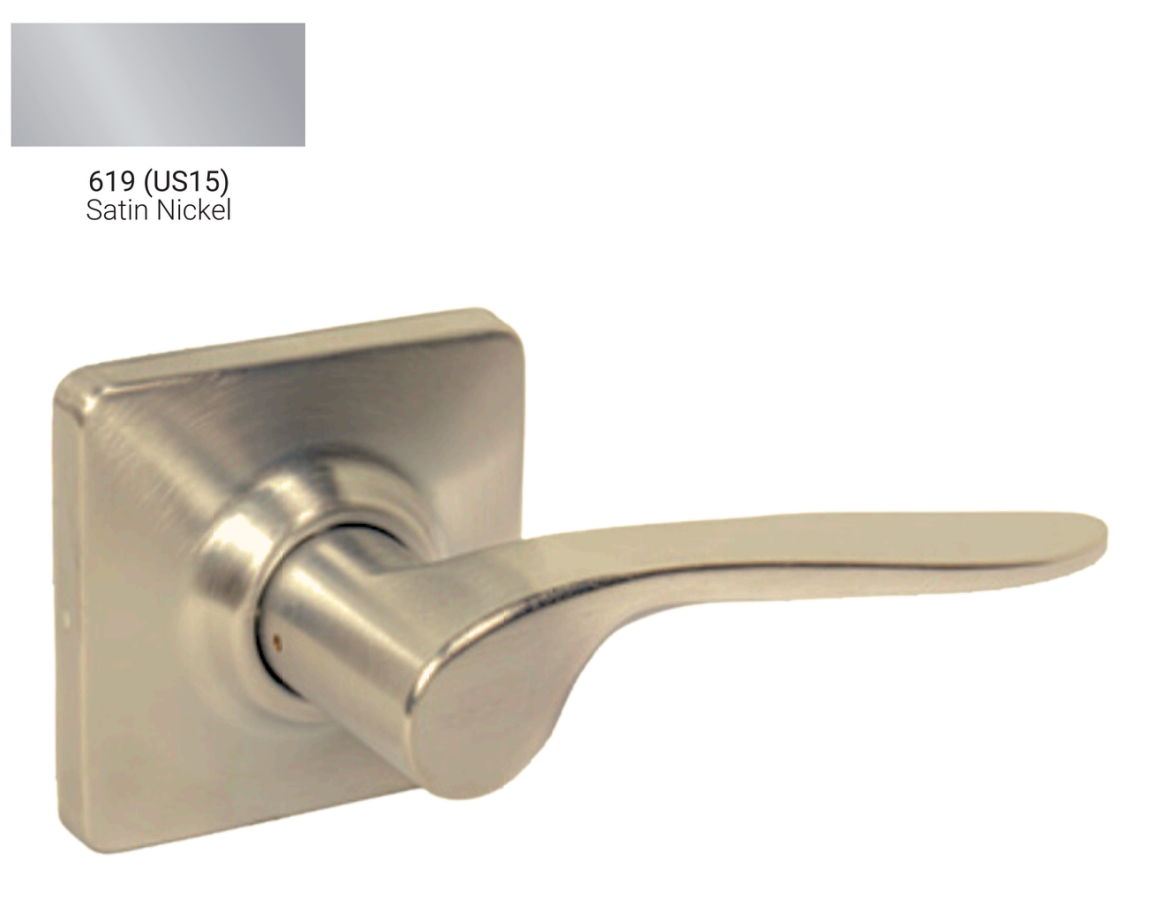

| FINISHES: | 605 (US3), 606 (US4), 613E, 619 (US15), 622 (US19), 625 (US26), 626 (US26D) |
| CERTIFICATIONS, LISTINGS, COMPLIANCES: | Entry function and optional fixed backset latch only. – Certified to ANSI/BHMA 156.2, Grade 2 (fixed backset latch only). – UL listed for single doors up to 4’0” x 8’0” when ordered with UL latchbolt, contact factory for details. TAA compliant. Country of origin: KR Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings |
| WARRANTY: | Three (3) year Limited Warranty |
