Pemko PK33 3/8" Adhesive Perimeter Gasket

Features

• Stays flexible between -40 degrees (F) and 250 degrees (F) with very high resistance to flex fatigue

• Outstanding ozone resistance rating

• Smoke tested in accordance with UL1784-01; meets the requirements of NFPA 105

• Designed for tighter frames

• Demonstrates extremely low closing force

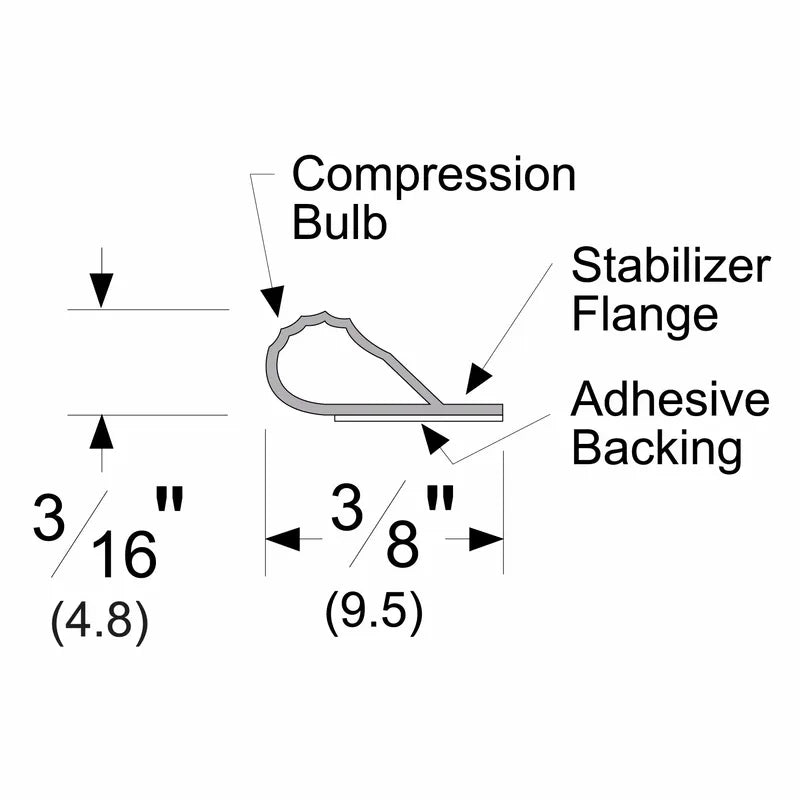

• Seal begins compressing at 3/16"; compresses to seal up to a 1/16" gap

• Category H - Gasketing - Smoke and draft control for positive pressure openings

• Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes without hose stream. When applied to the door and frame assembly in accordance with the manufacturers installation instruction, the assembly will comply with UBC 7-2 (1997) part II

• Category J - Doors - gasketing that has been tested on a positive pressure fire door and frame but is not required for the door to obtain its fire door rating. Category J gasketing does not negatively affect the rating on a positive pressure door

• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes

Benefits

• Excellent resistance to compression set, particularly at elevated temperatures and for extended periods of time

• Available in three seal material colors: dark brown, black and white

Specifications

• Base Material: Thermoplastic

• Gasketing Material: PemkoPrene

• Height: 47/250"

• Maximum Length: 510'

• Minimum Length: 17'

• Mounting Location: Side of Frame

• Mounting Type: Self-adhesive

• Weight: 0.02 lbs

• Width: 3/8"

Certifications

• GREENGUARD Gold Certified

• UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives

• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies

• ASTM E-283-04 (2012)

• ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

Seal Material Colors

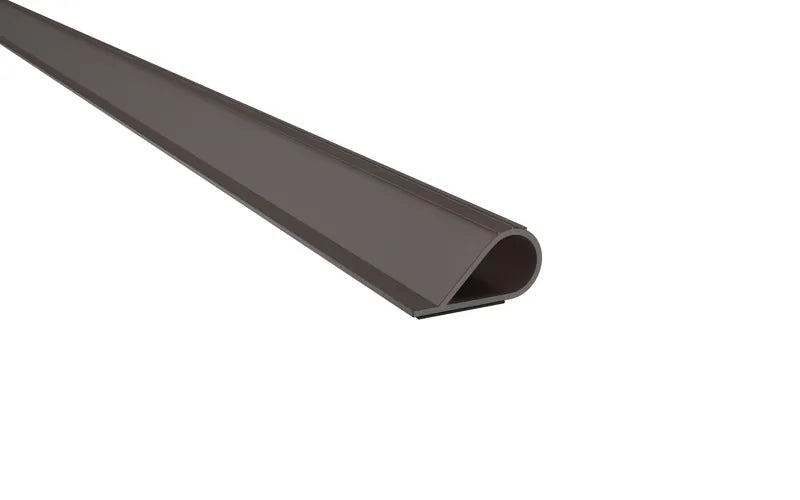

• D - Dark Brown

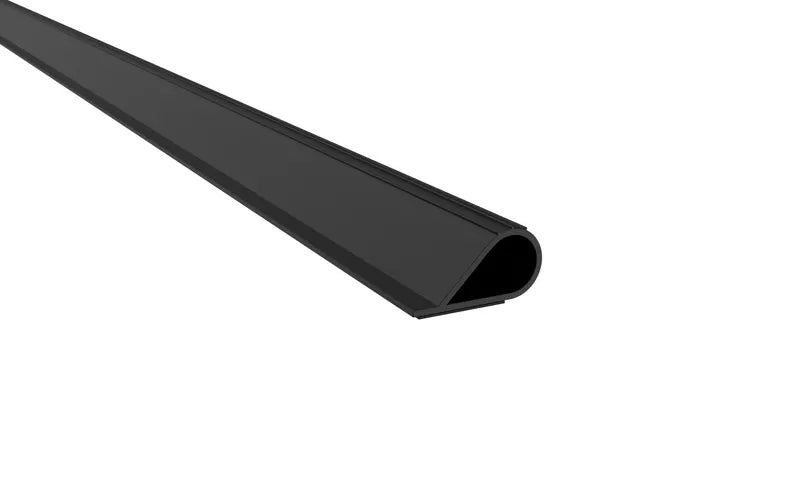

• BL - Black

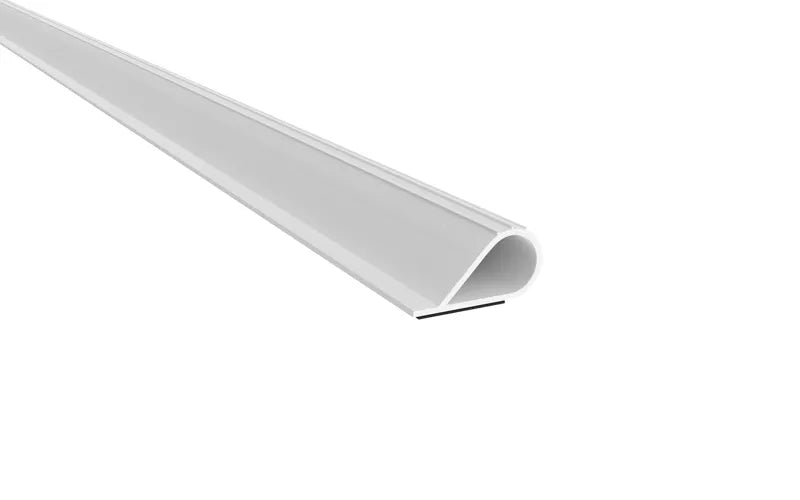

• W - White
