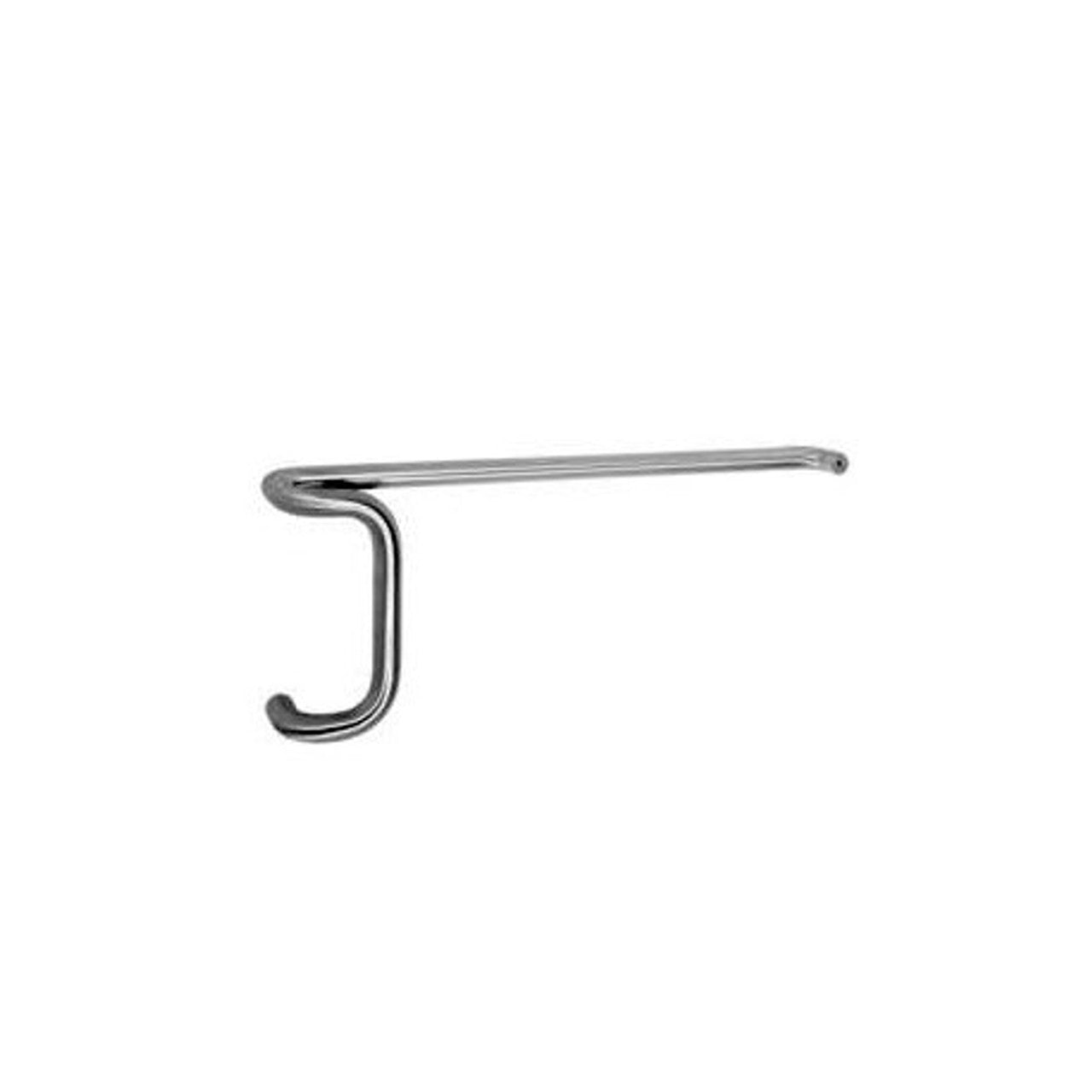

Rockwood BF15747 Offset Single Bar Set, 1" Diameter Pull, Pull 10" CTC, Push 33" CTC

The BF15747 (10" CTC) Series 47 Offset Single Bar Sets feature optional engraving, base plates, and heavy-duty fastening types.

Product Overview

Features

• US32316, US32D316 finishes offer superior corrosion resistance for withstanding harsh environments

Benefits

• US32316, US32D316 finishes ideal for use in coastal, high salt level, urban, and industrial areas, and environments exposed to alkalis and acids

Specifications

• End Shape: Bent

• Grip Shape: Round

• Base Material: Aluminum, Brass, Bronze, Stainless steel

• Door Material: Metal, Wood

• Diameter: 1"

• Push Clearance: 1 3/4"

• Projection: 3 1/2"

• Heavy duty versions of most fastening types available — use suffix HD to fastening type number

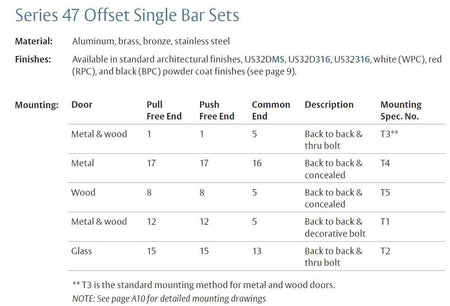

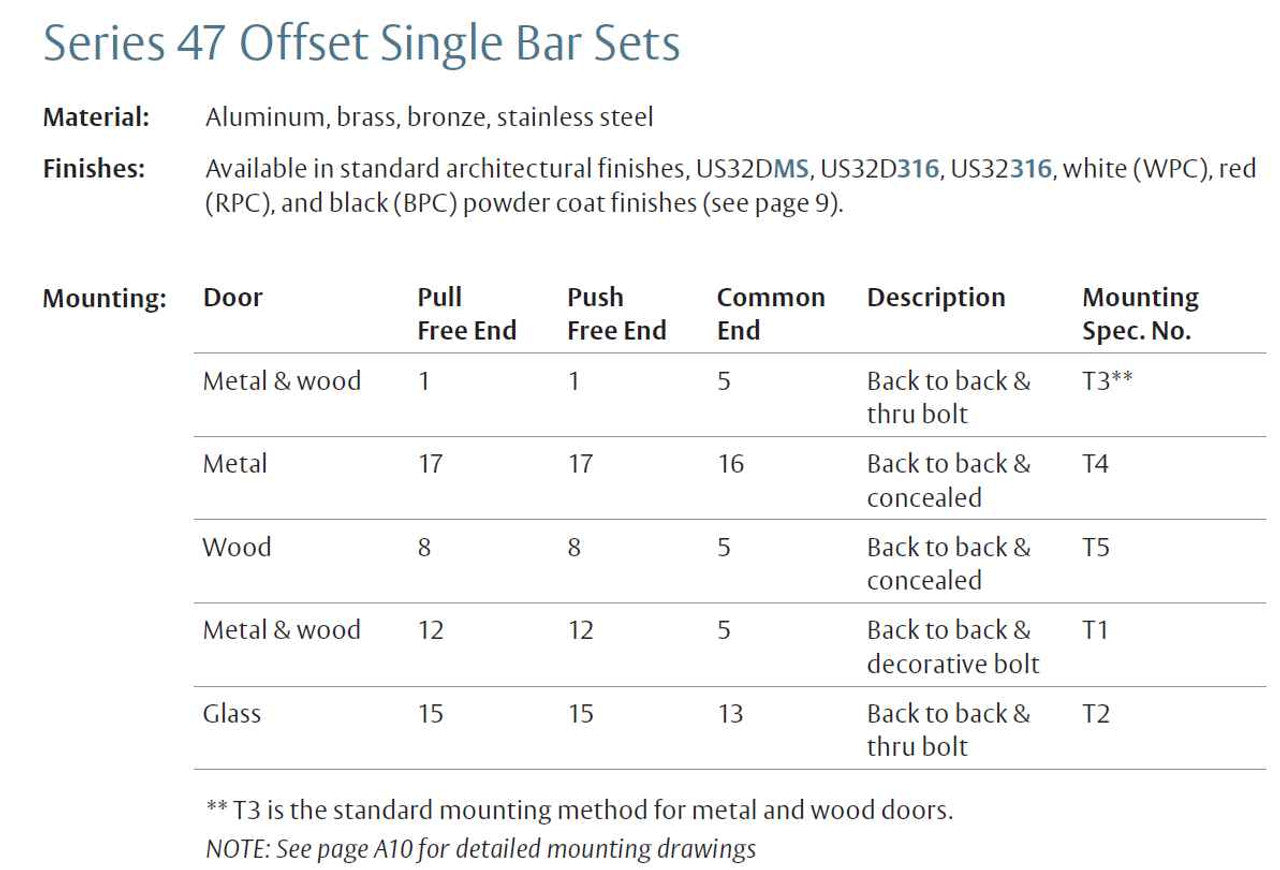

Mountings:

• Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
• Metal: T4 Back to Back and Concealed; Pull Free End = 6, Push Free End = 6, Common End = 5
• Wood: T5 Back to Back and Concealed; Pull Free End = 8,Push Free End = 8, Common End = 5
• Metal and Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
• Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Puss Free End = 15, Common End = 13
• T3 is the standard mounting method for Metal and Wood Doors (See our mounting selections on this site)

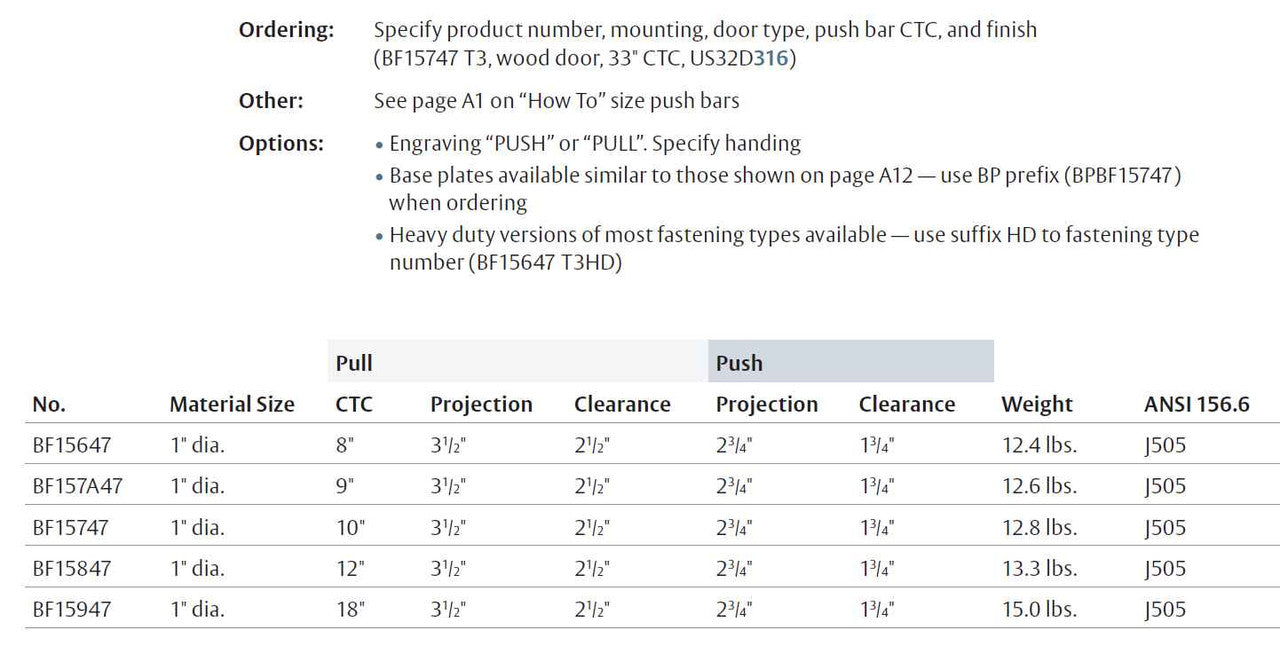

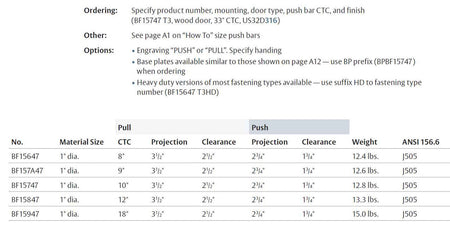

• Ordering: Specify product number, mounting, door type, push bar CTC, and finish (i.e., BF15647 T3, wood door, 33" CTC, US32D316)

Options

• ENG - Engraving
• Y - Base Plate
