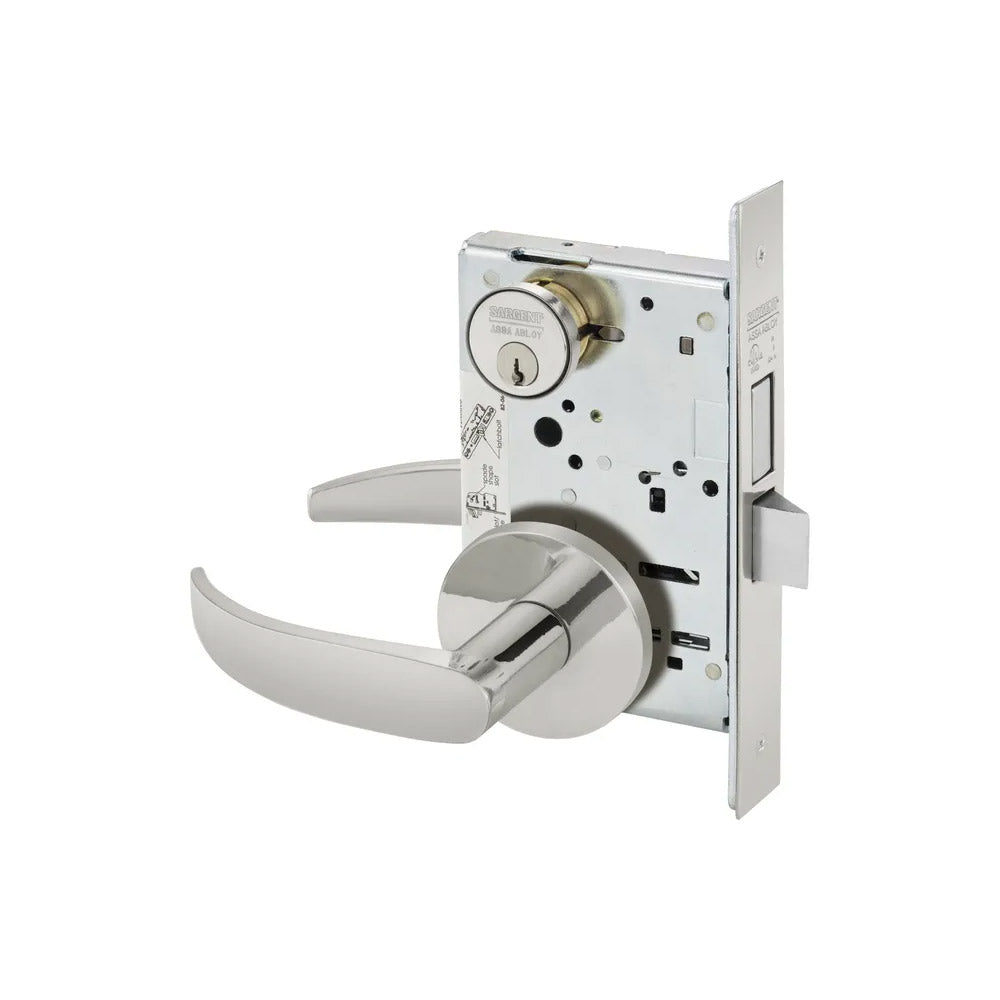

Sargent 8272-8273 Electromechanical Satin Chrome, Heavy Duty Single Cylinder Mortise Lock, Grade 1
SKU: 8272-LNL-12V
Regular price
$1,050.00
OVERVIEW

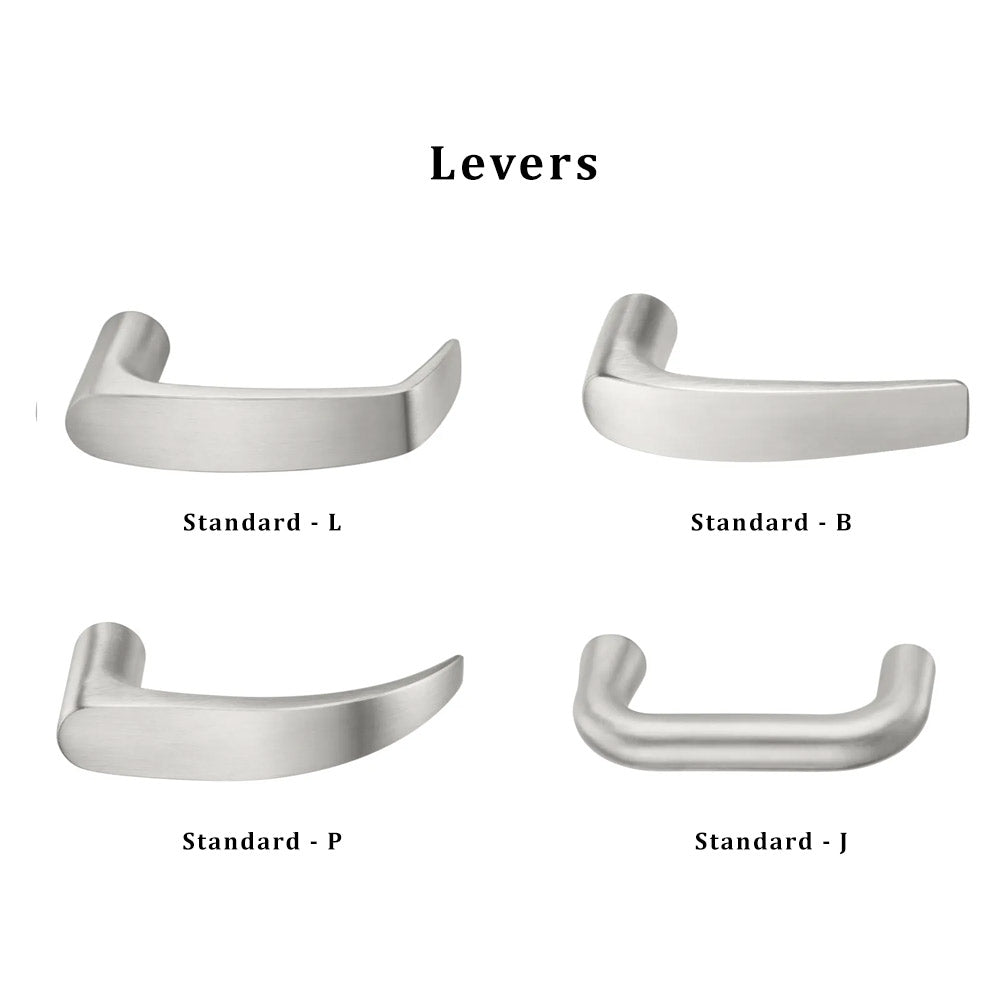

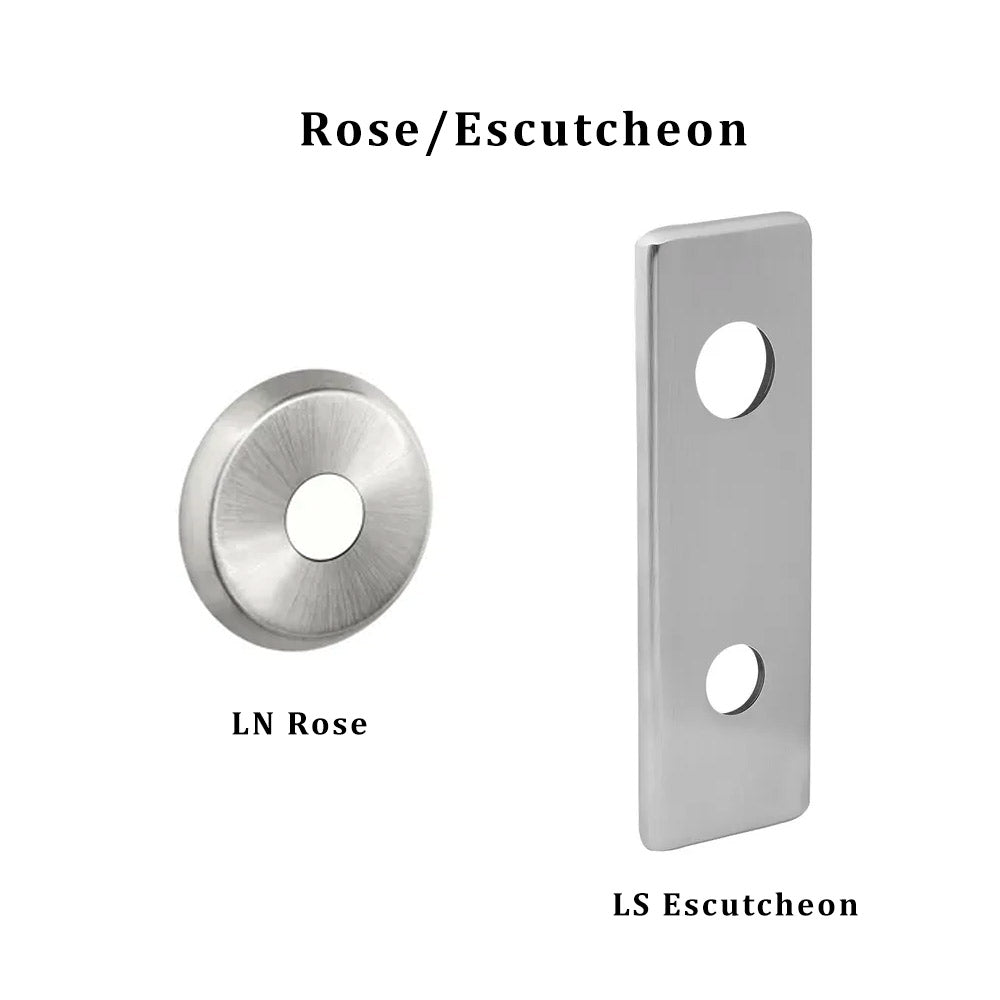

The 8200 Series mortise locks offer maximum security, performance, and durability with high-quality components. It's the industry benchmark for mortise locks, featuring a multi-functional lock body with a variety of lever and escutcheon styles. The lock is robust, easy to install, and has a redesigned status indicator option with a large viewing window for assurance. The electromechanical version operates from 12 to 24VDC, with EcoFlex technology that significantly reduces power consumption up to 96%.
FEATURES
Heavy duty lever-style mortise lock
Utilizes EcoFlex technology on all electromechanical functions, creating up to 89% energy savings.

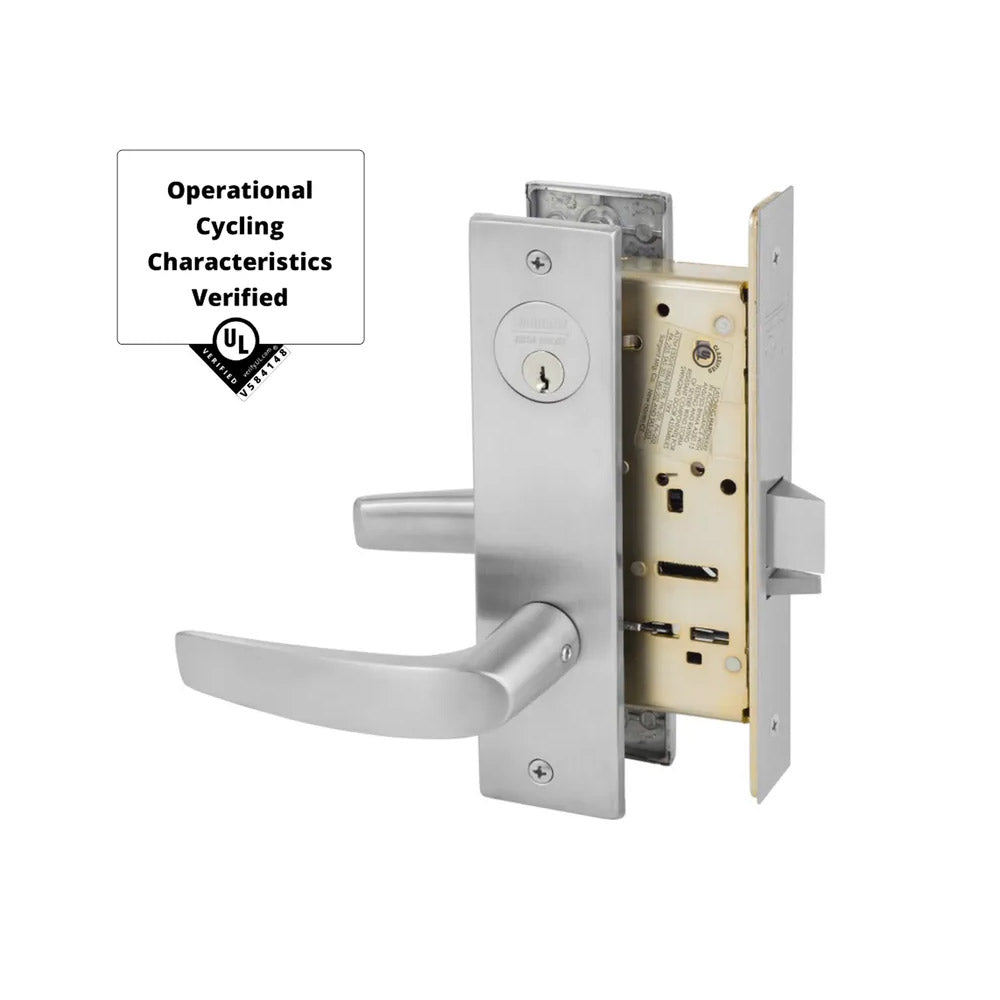

UL Cycle Above and Beyond test completed at 16 million cycles (Verification ID: V584148)
Integrates with all SARGENT key systems (Degree, Signature, KESO, and XC)
Available in 56 different functions, including electromechanical, security and monitoring
Available with behavioral health trim

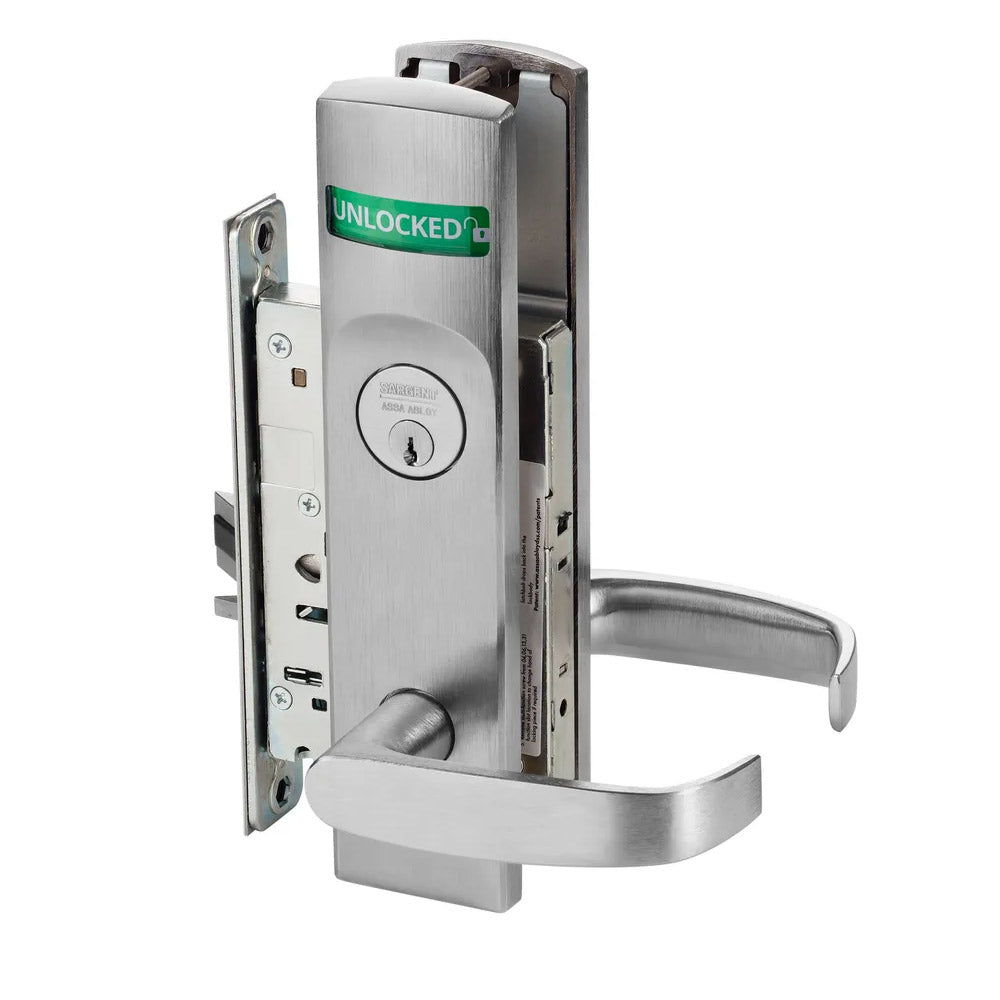

Status indicators available
Patented design and construction
10-year limited warranty
BENEFITS
Strength & Reliability: Far exceeds independently verified testing, making it the strongest and most durable mortise lock in the industry
Security: Several security features provide additional resistance against vandalism and unauthorized entry
Flexibility & Aesthetics: Aesthetic design combined with a wide variety of functions, lever designs and architectural finishes to match a wide range of styles and make it ideal for all types applications
Ease of Install and Maintenance: Multifunctional lockbody makes switching functions on-site easy and reduces inventory requirements
PRODUCT SPECIFICATIONS
ANSI/BHMA Code: A156.13
ANSI/BHMA Series: Series 1000
Backset Depth (Standard): 2 3/4"
Cylinder Pins: 6 pin, 7 pin
Door Thickness (Standard): 1 3/4"
Handing: Field Reversible
Latchbolt Throw: 3/4"
Maximum Backset: 2 3/4"
Minimum Backset: 2 3/4"
Maximum Door Thickness: 1 3/4"
Minimum Door Thickness: 1 3/4"
Number of Keys: 2
Strike Type: Curved Lip
UL Listed: Yes
ULC Listed: Yes
Warranty: 10-year limited warranty; 2-year on electrical components
Power ON, locks both levers
Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
Key on either side retracts latchbolt
Lever from either side retracts latchbolt, except when levers are locked
Both Levers can only be locked & unlocked electronically
Levers can not be locked separately, only together
