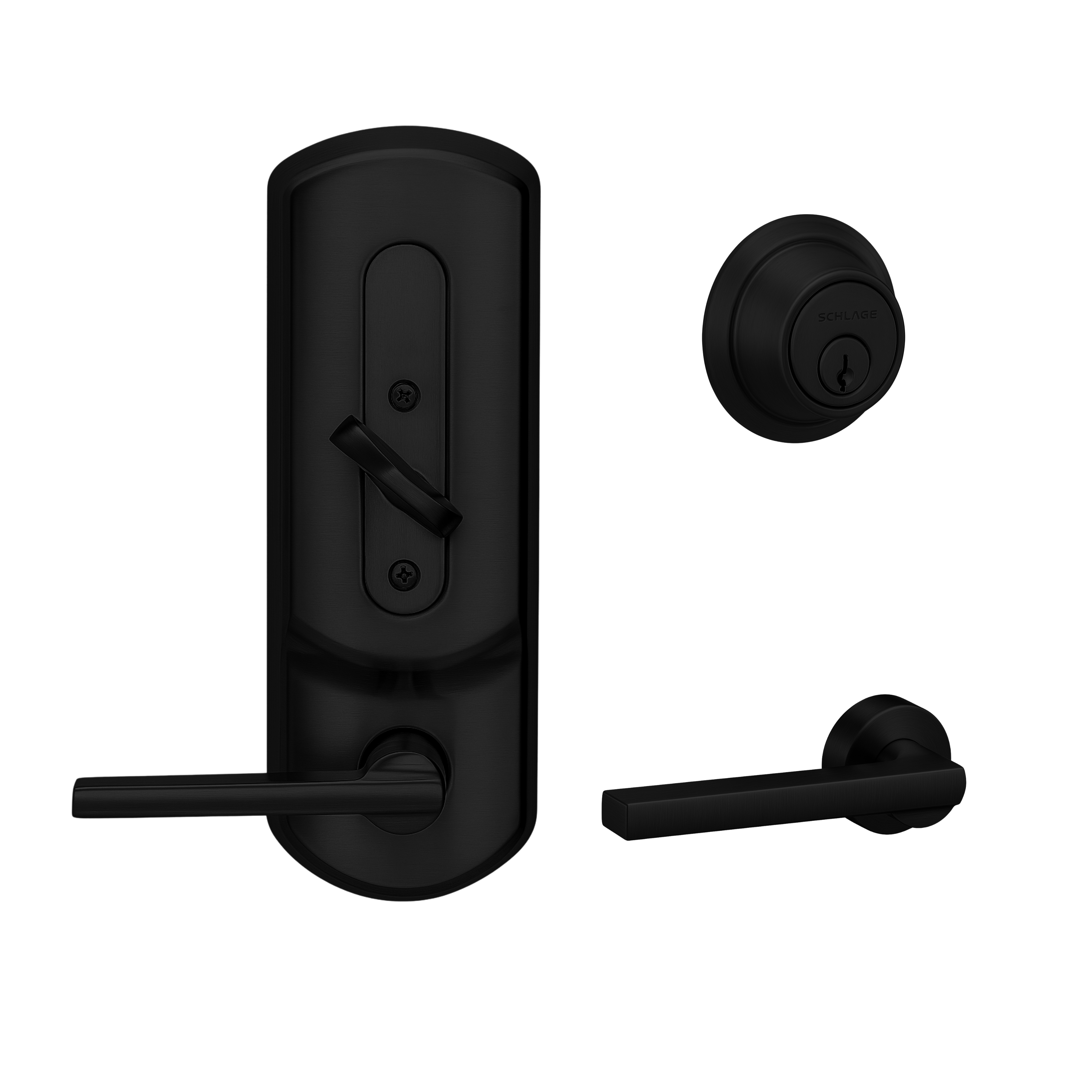

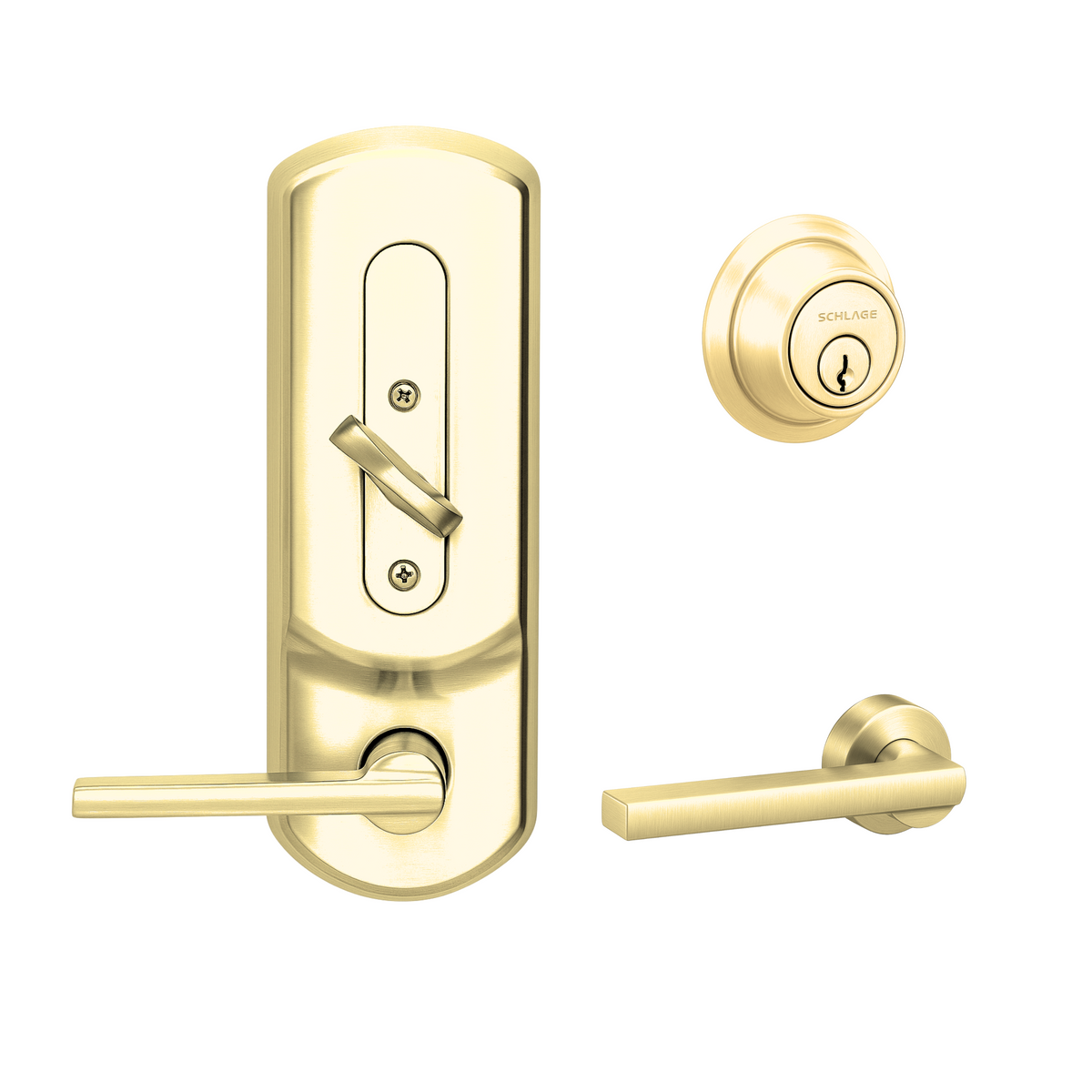

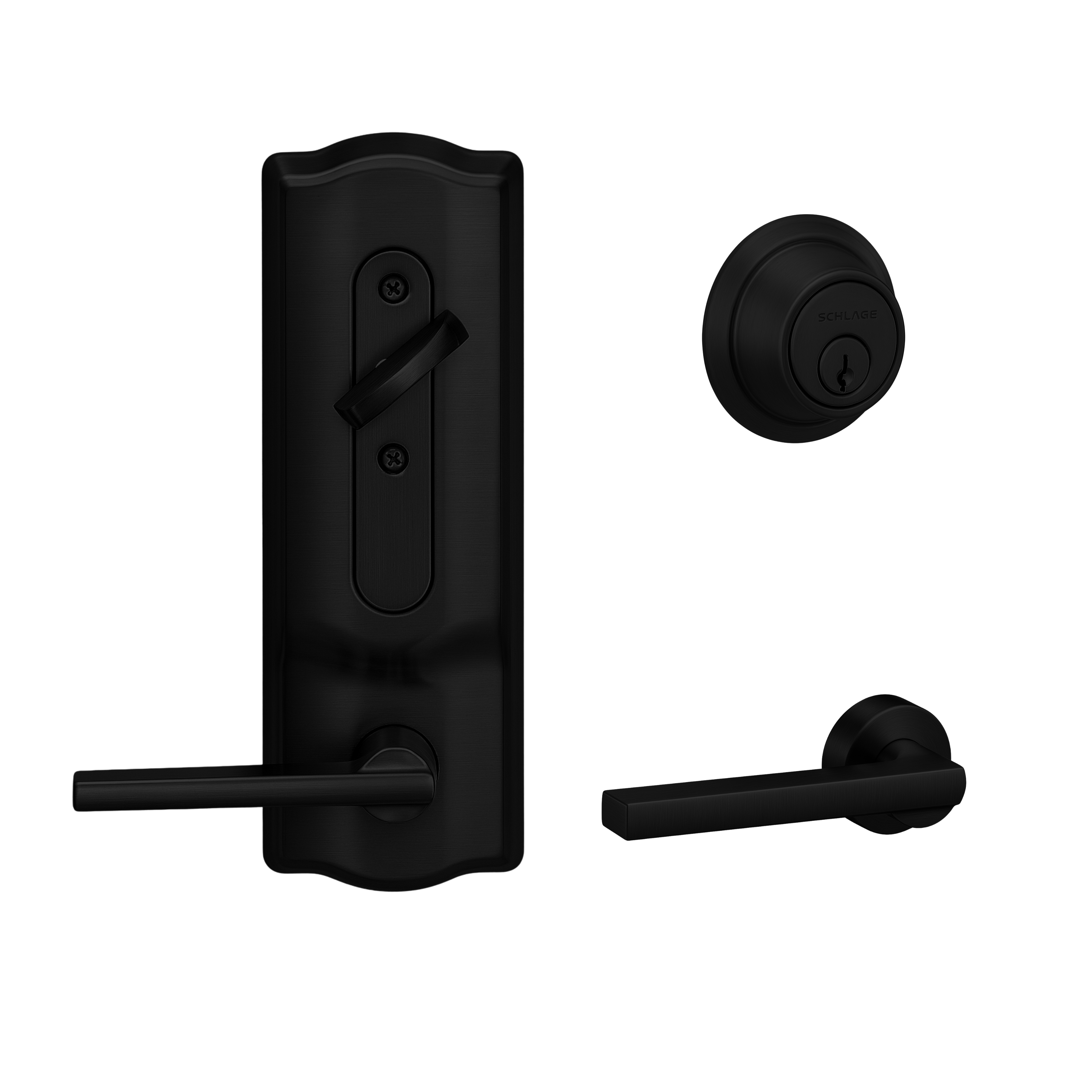

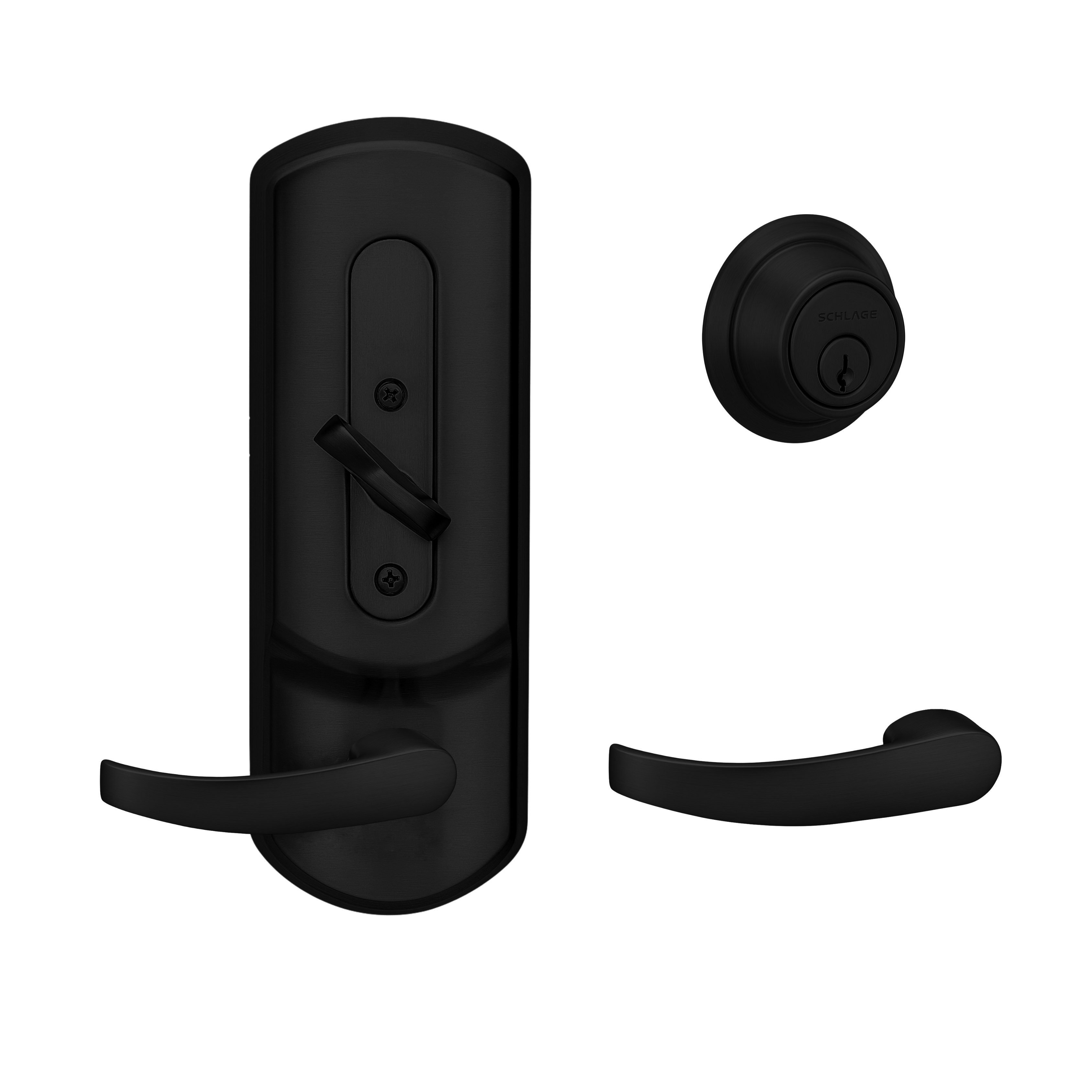

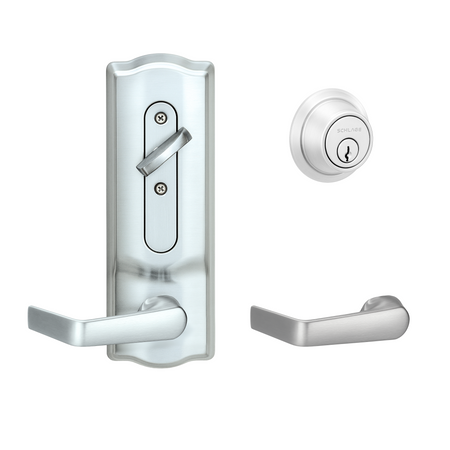

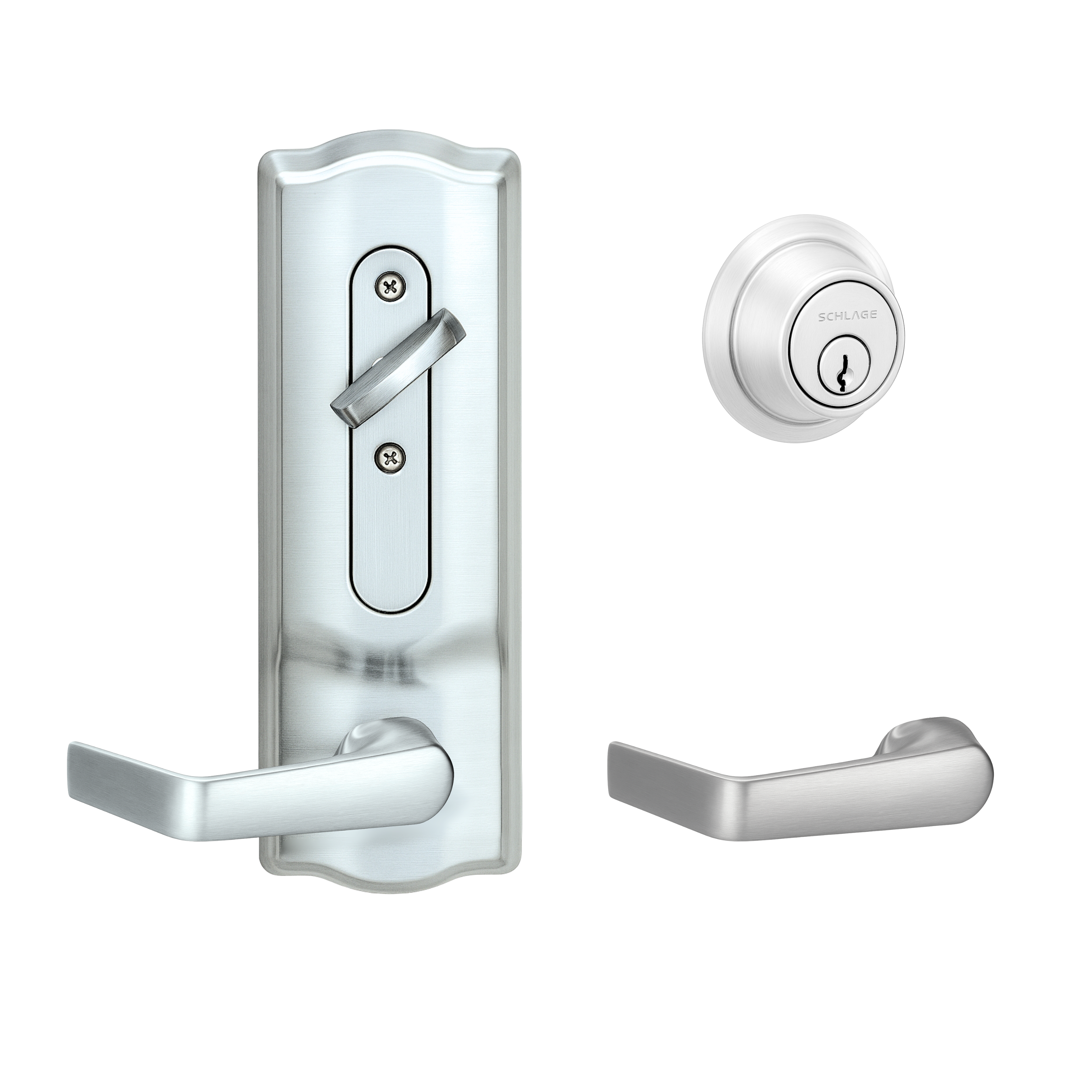

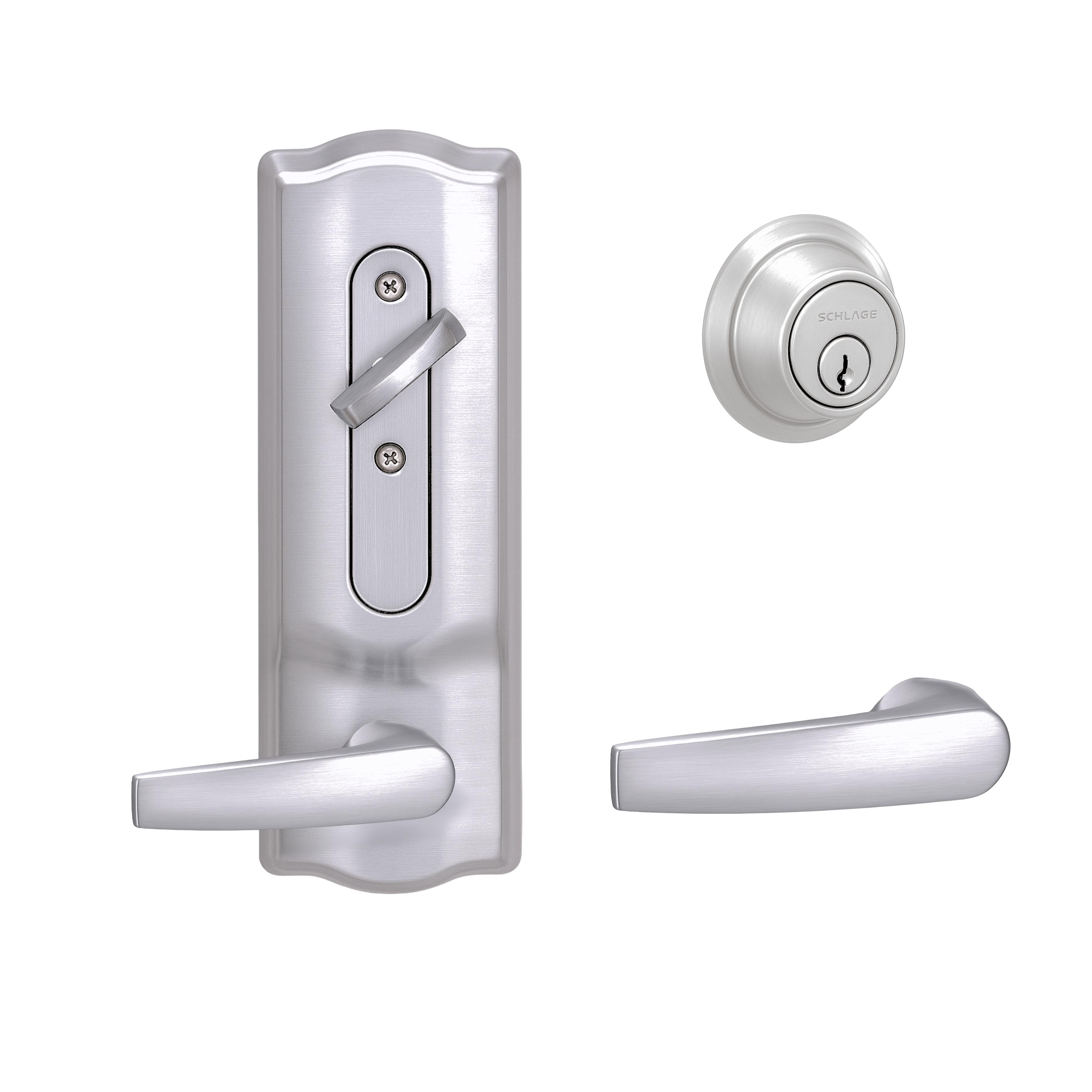

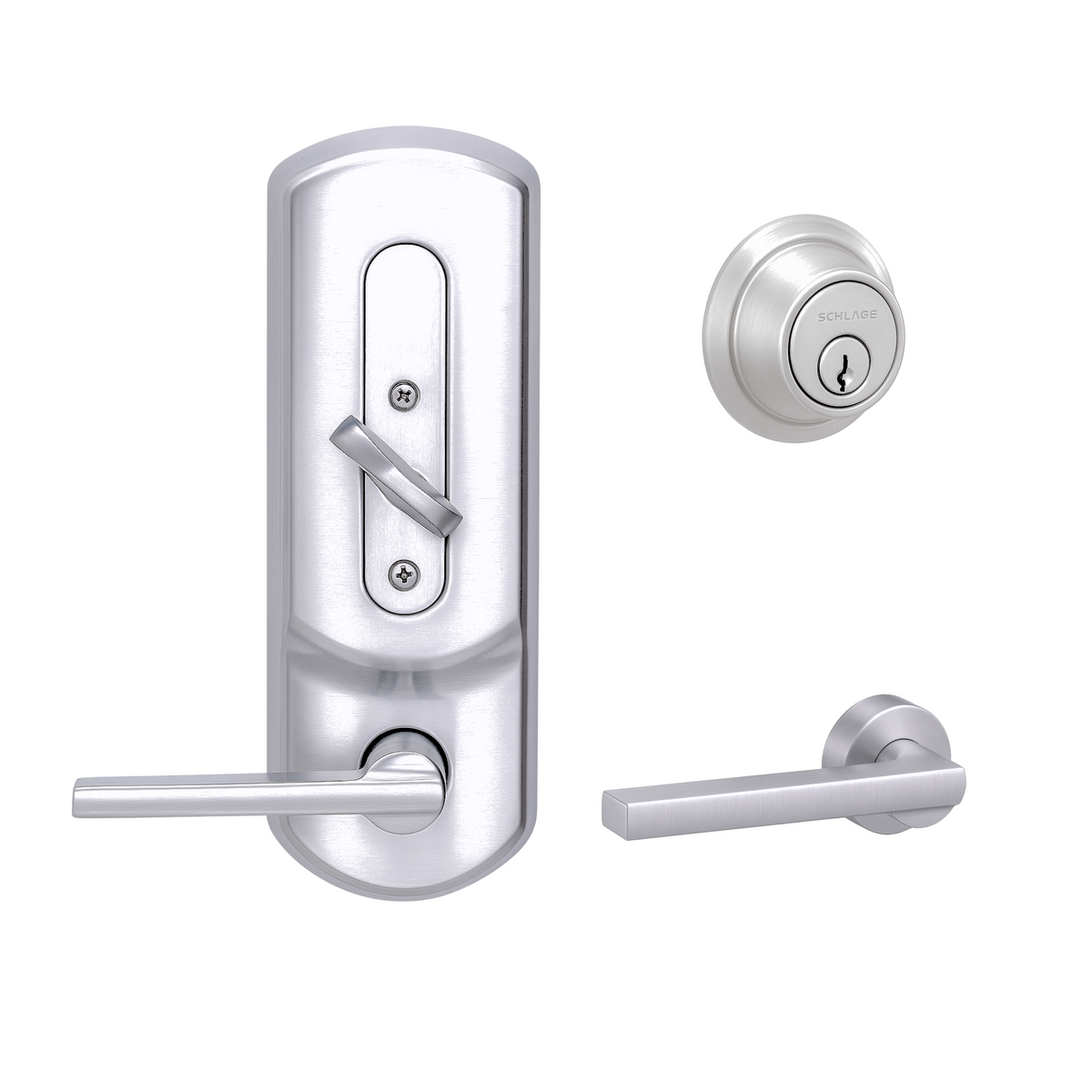

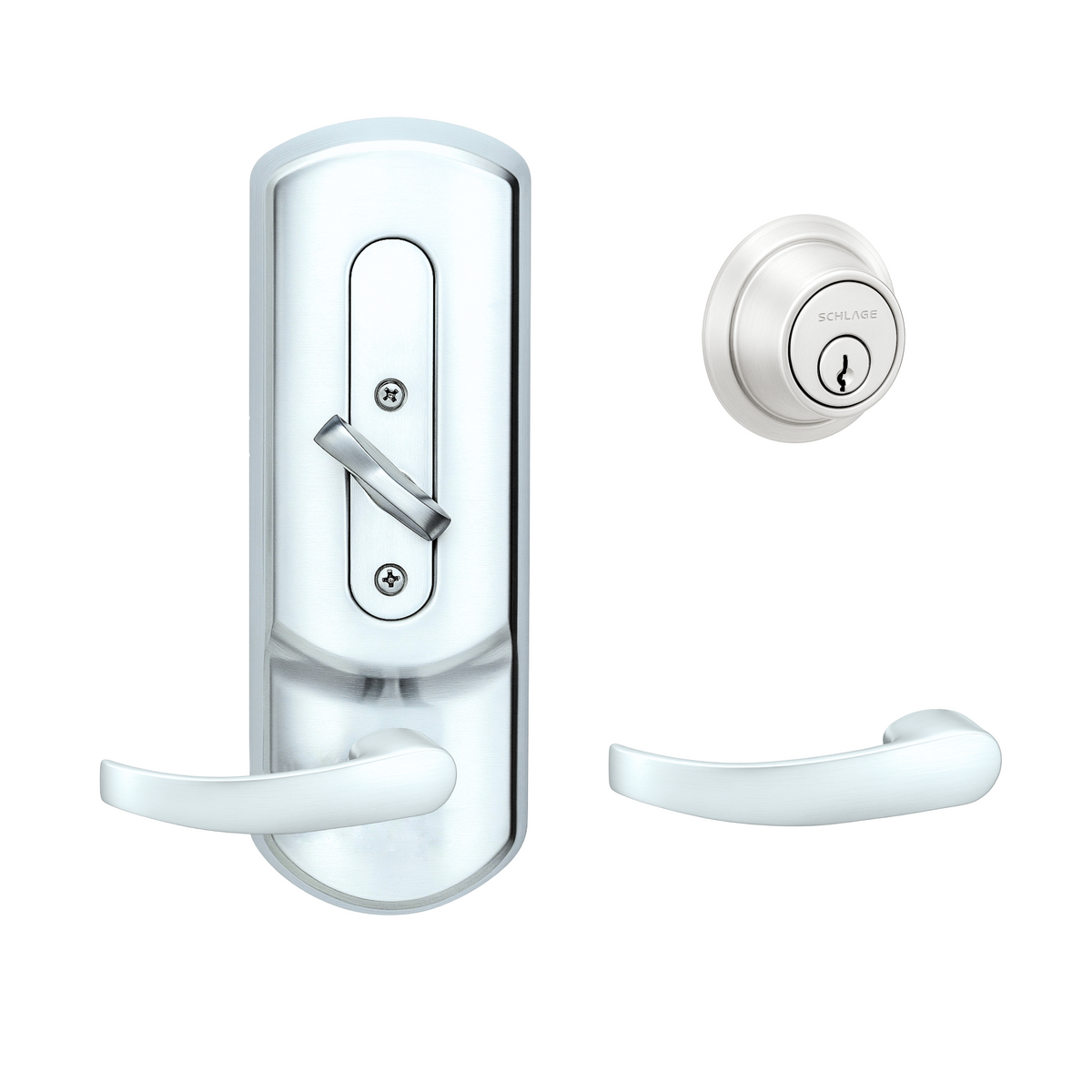

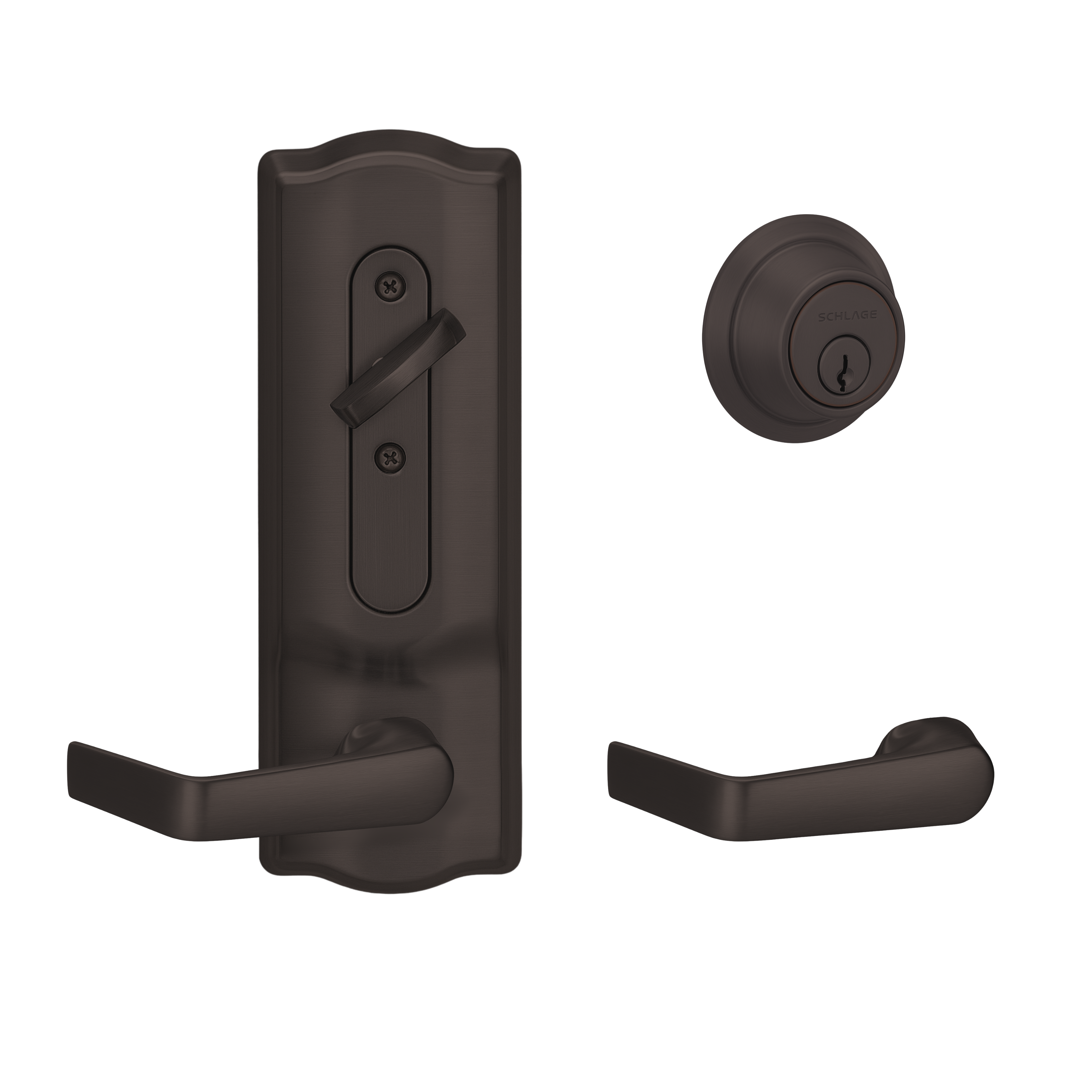

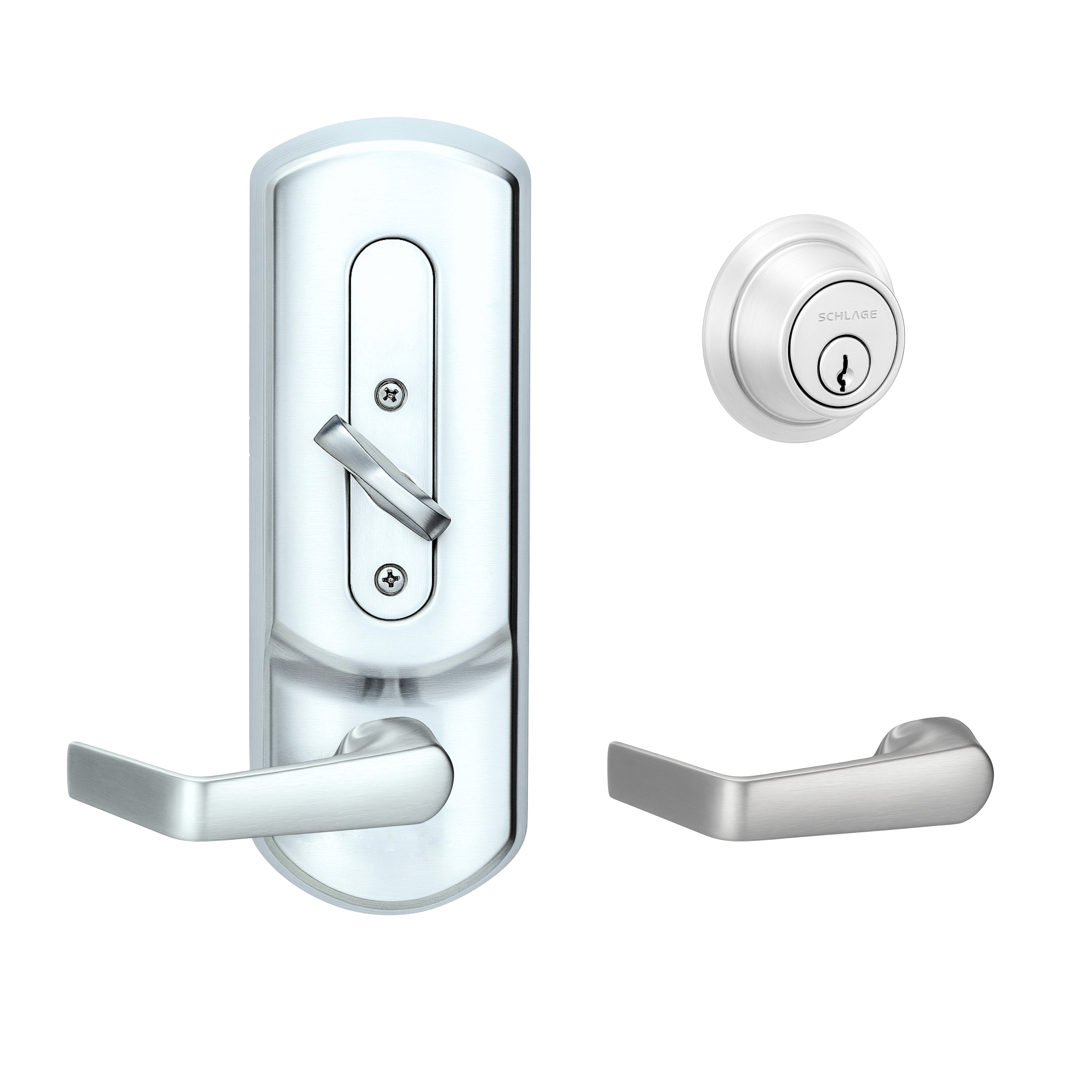

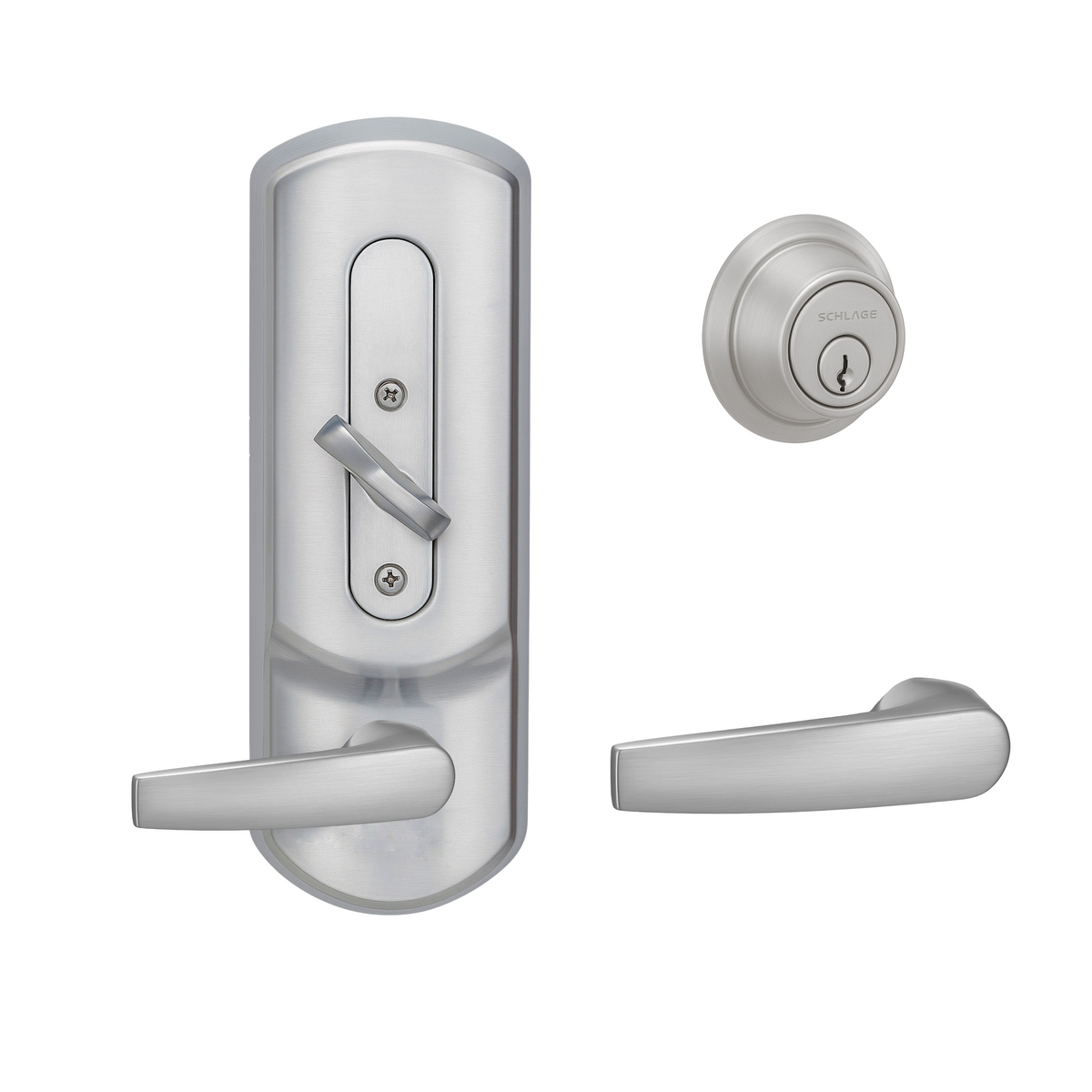

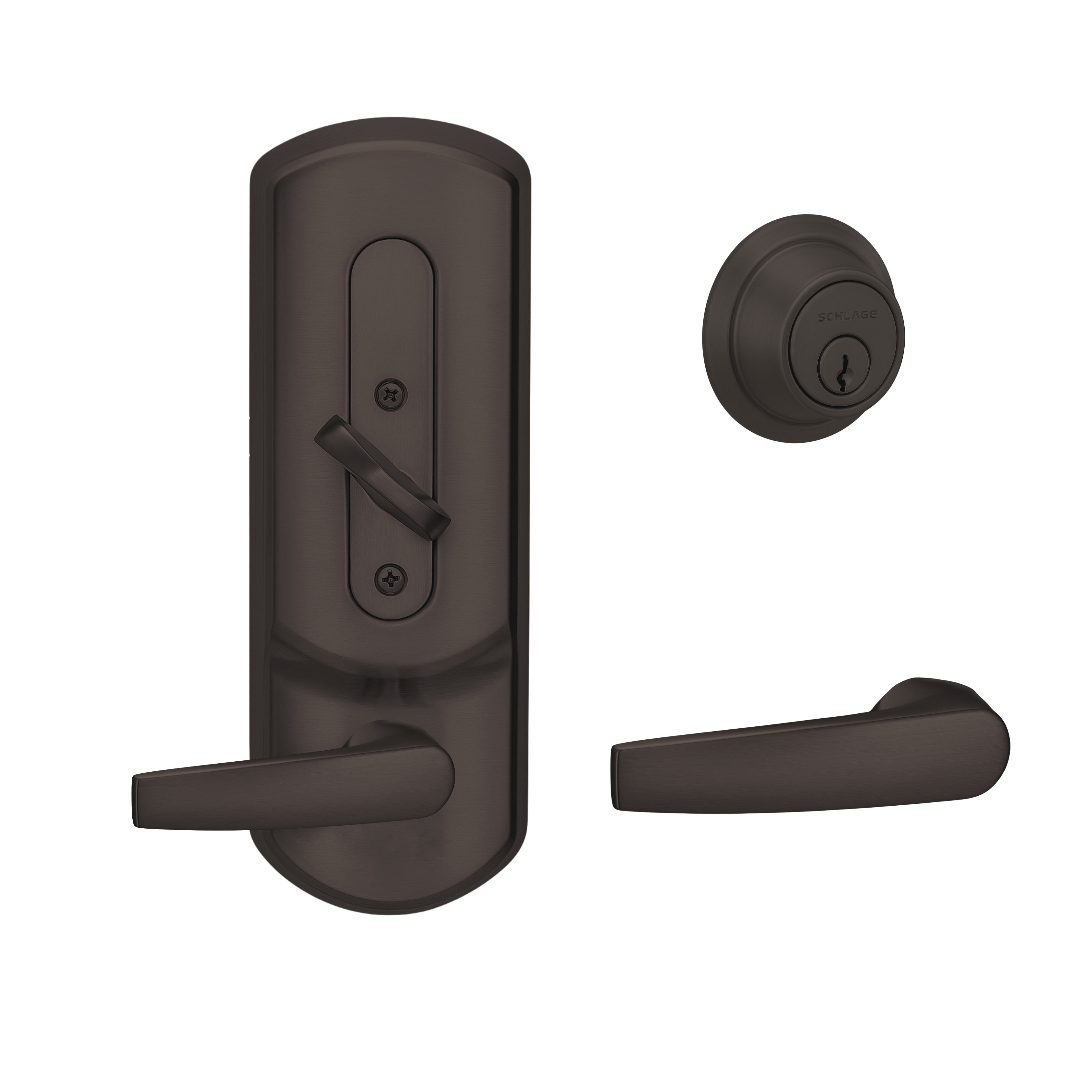

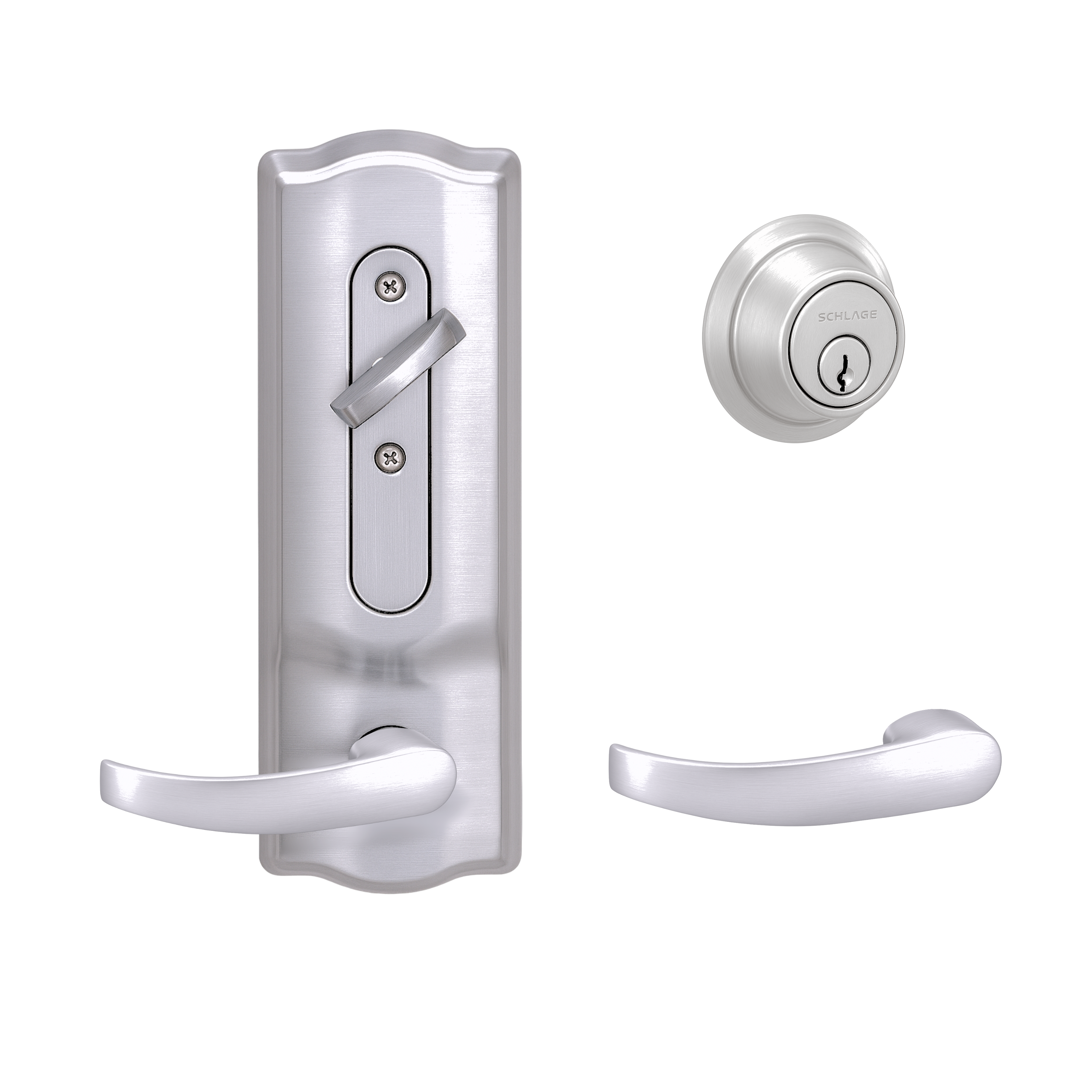

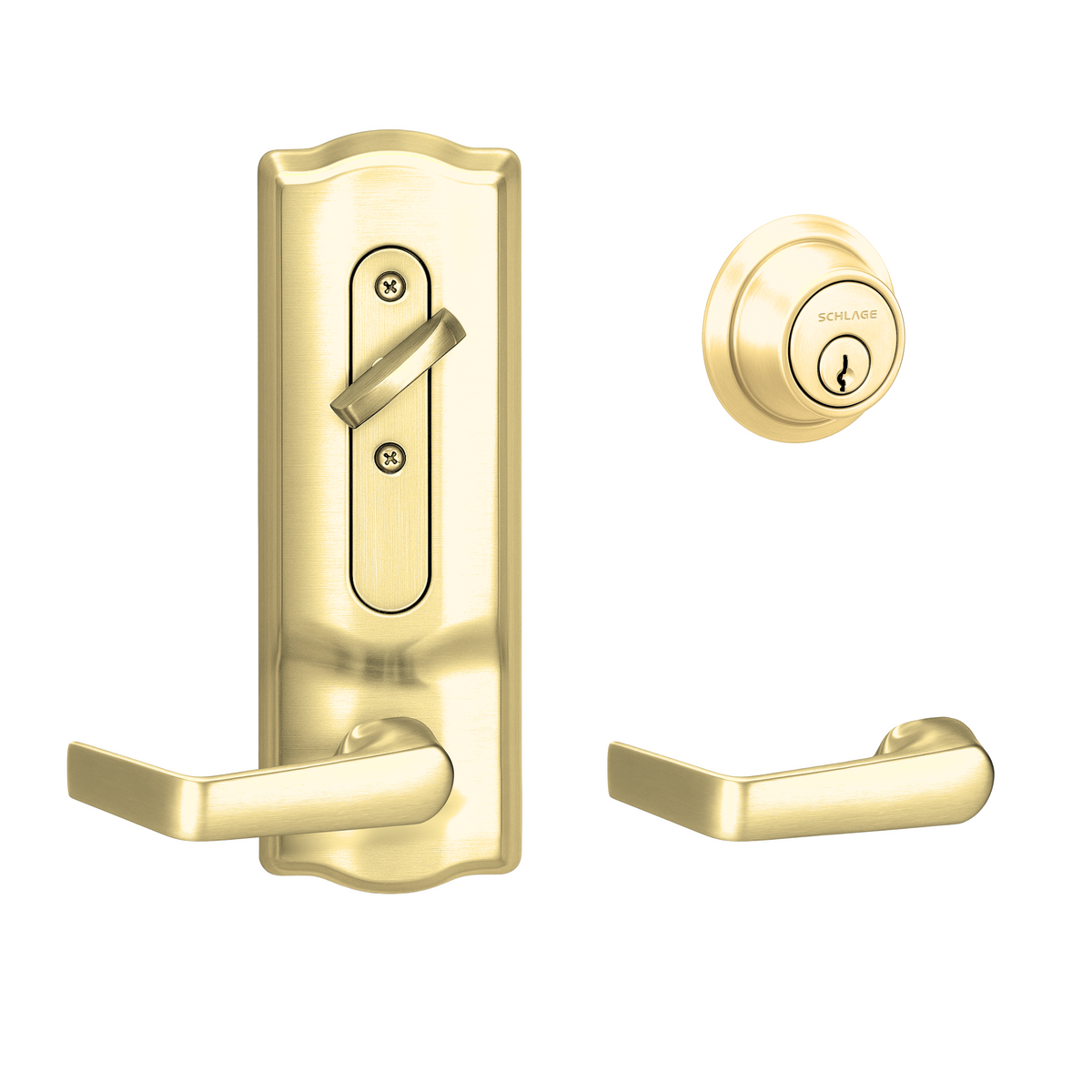

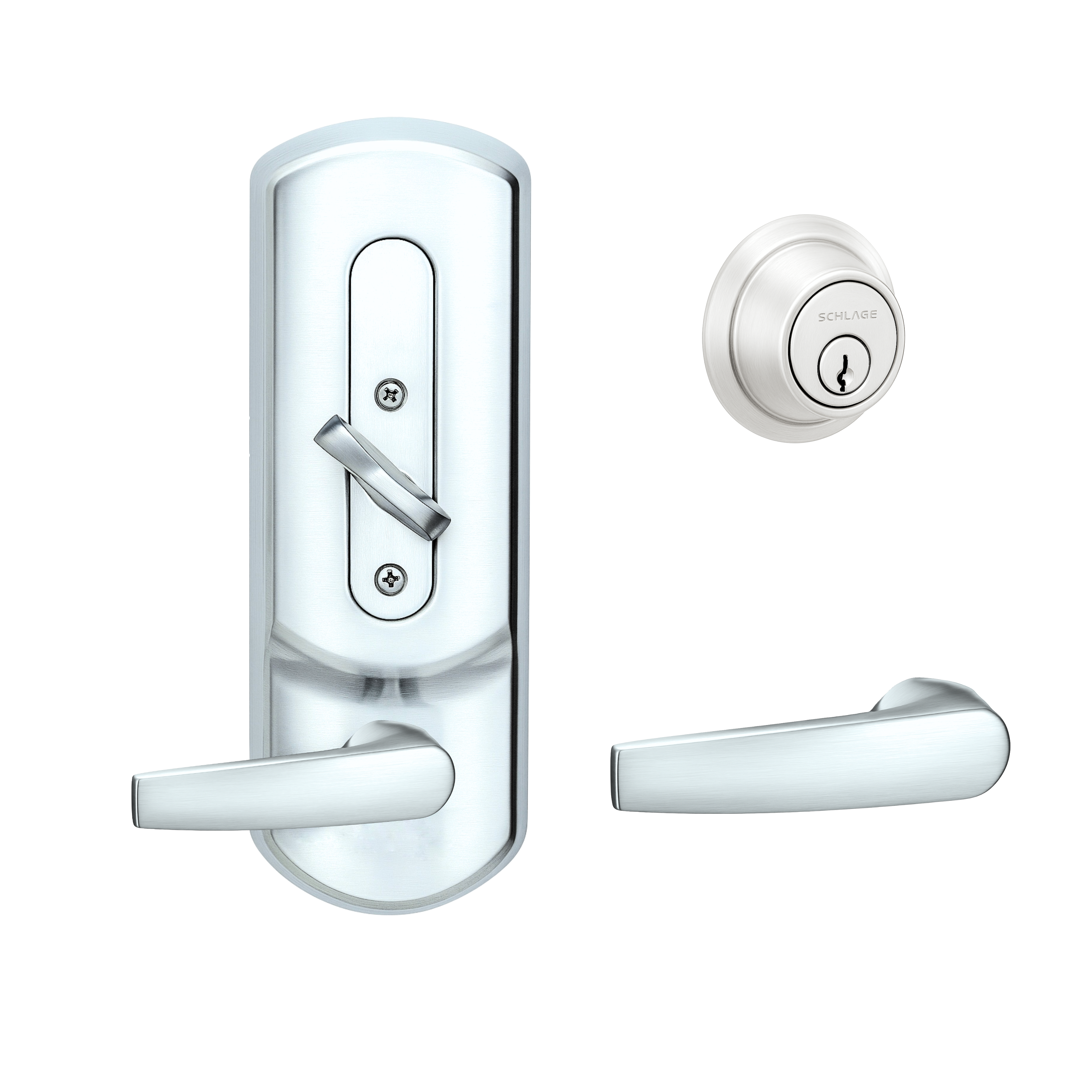

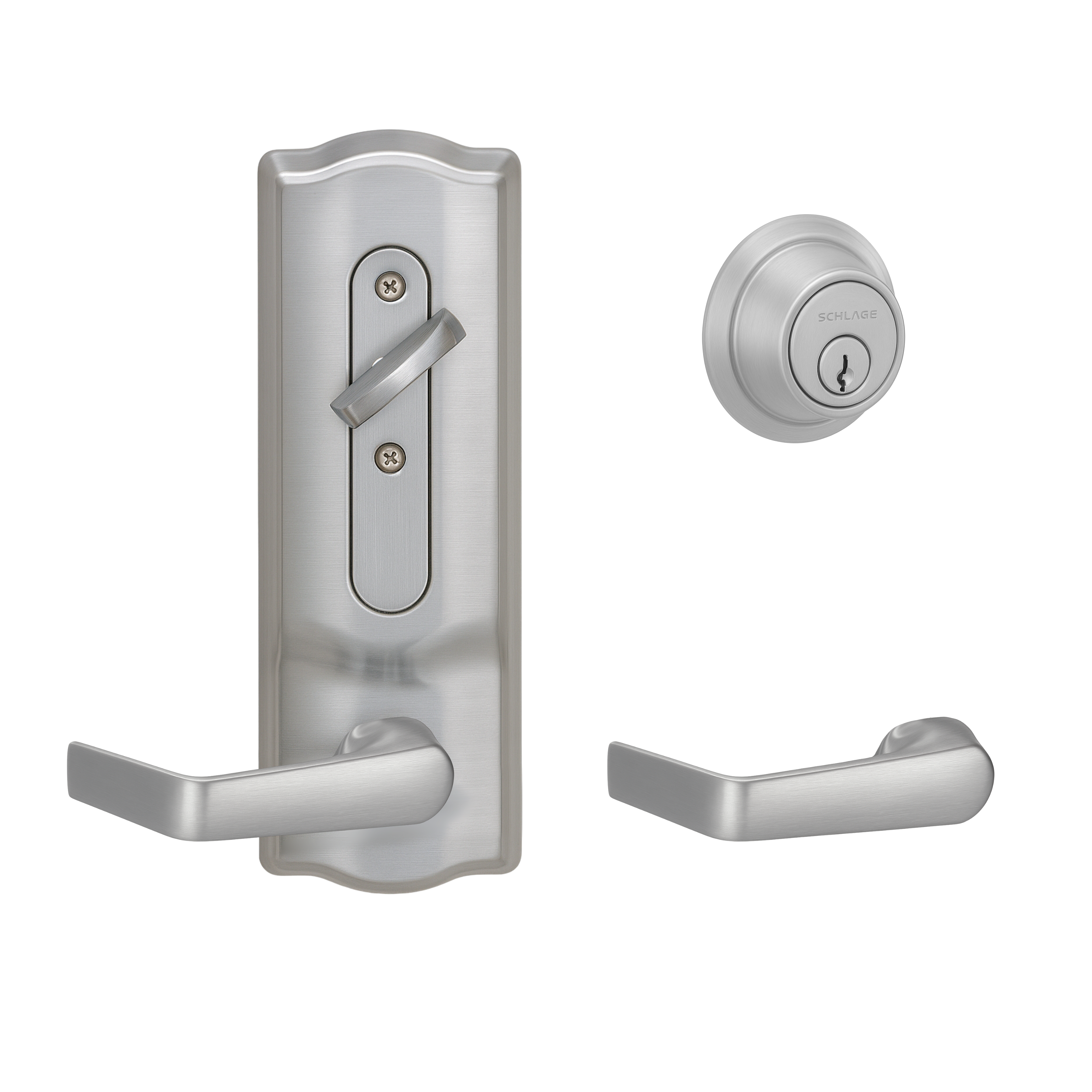

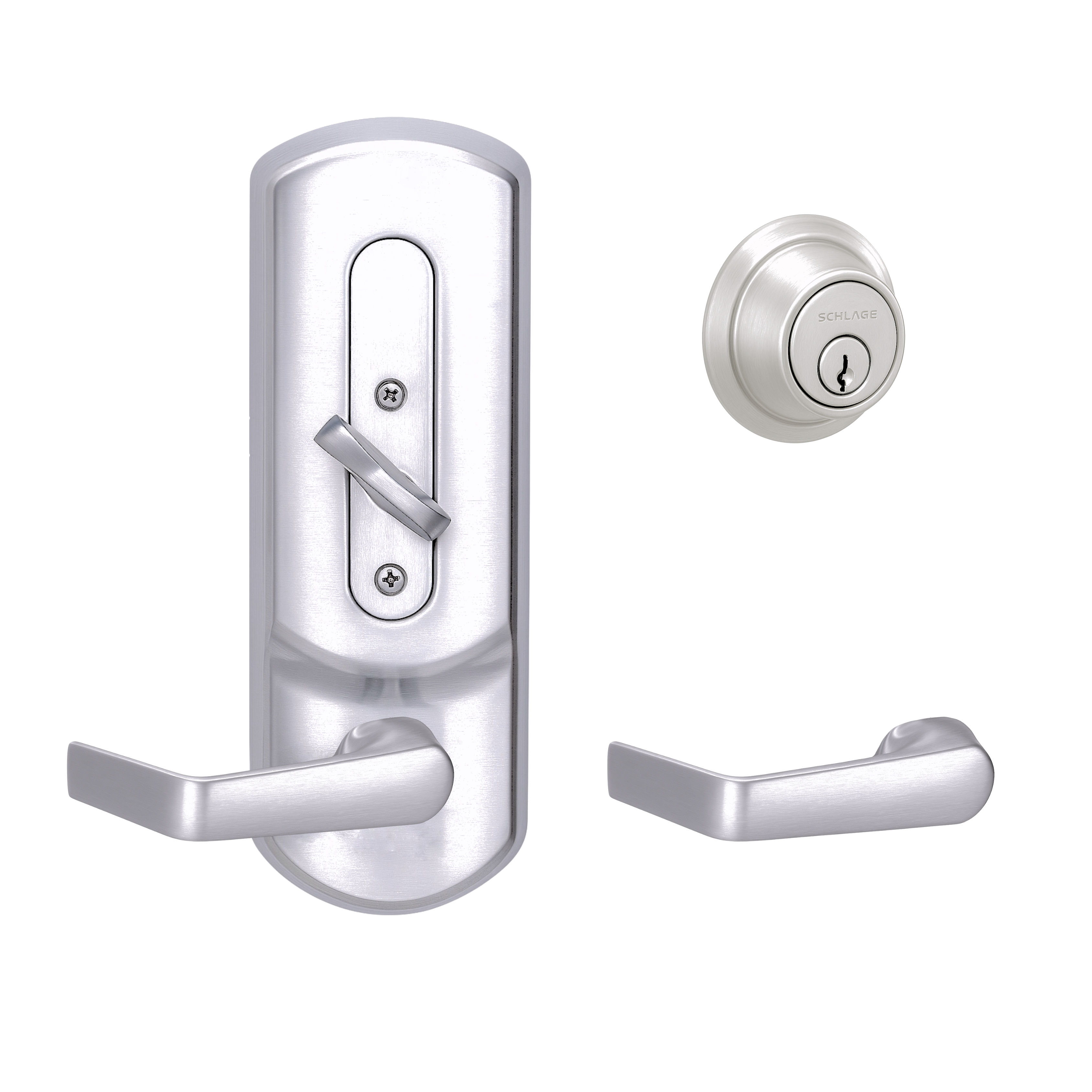

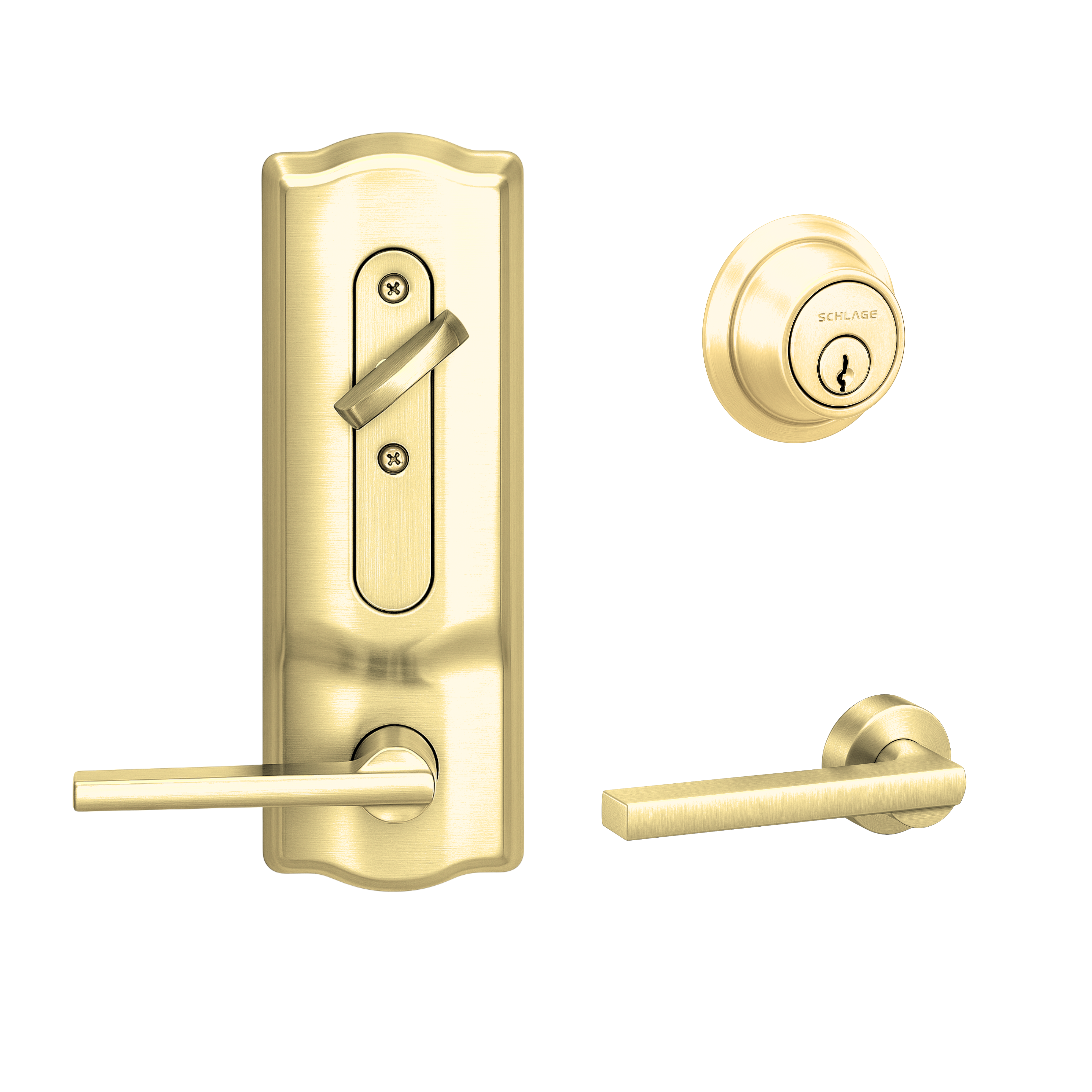

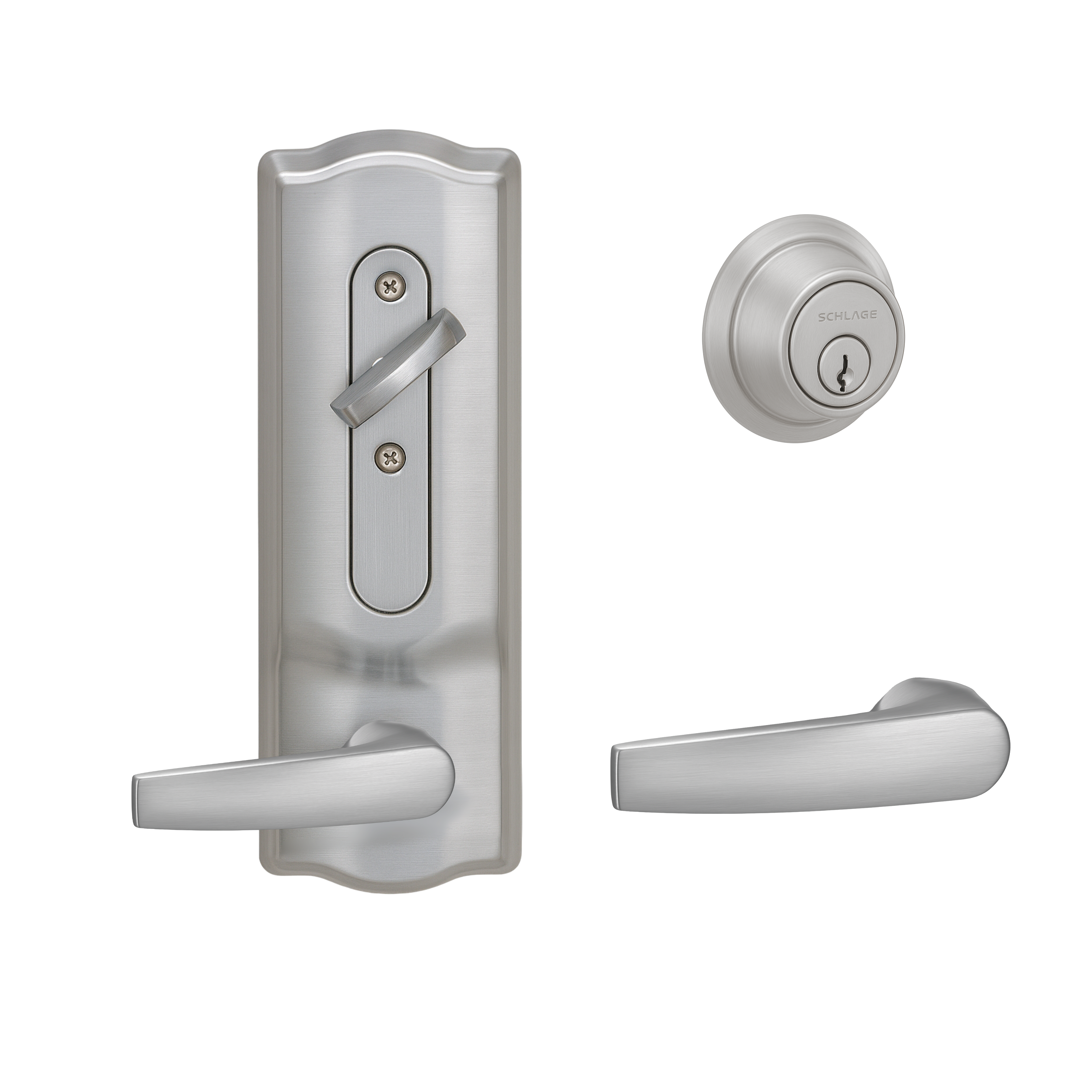

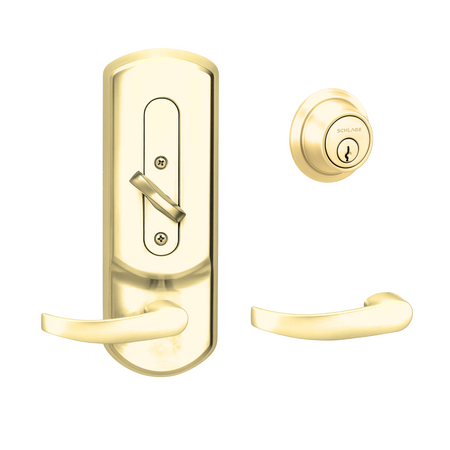

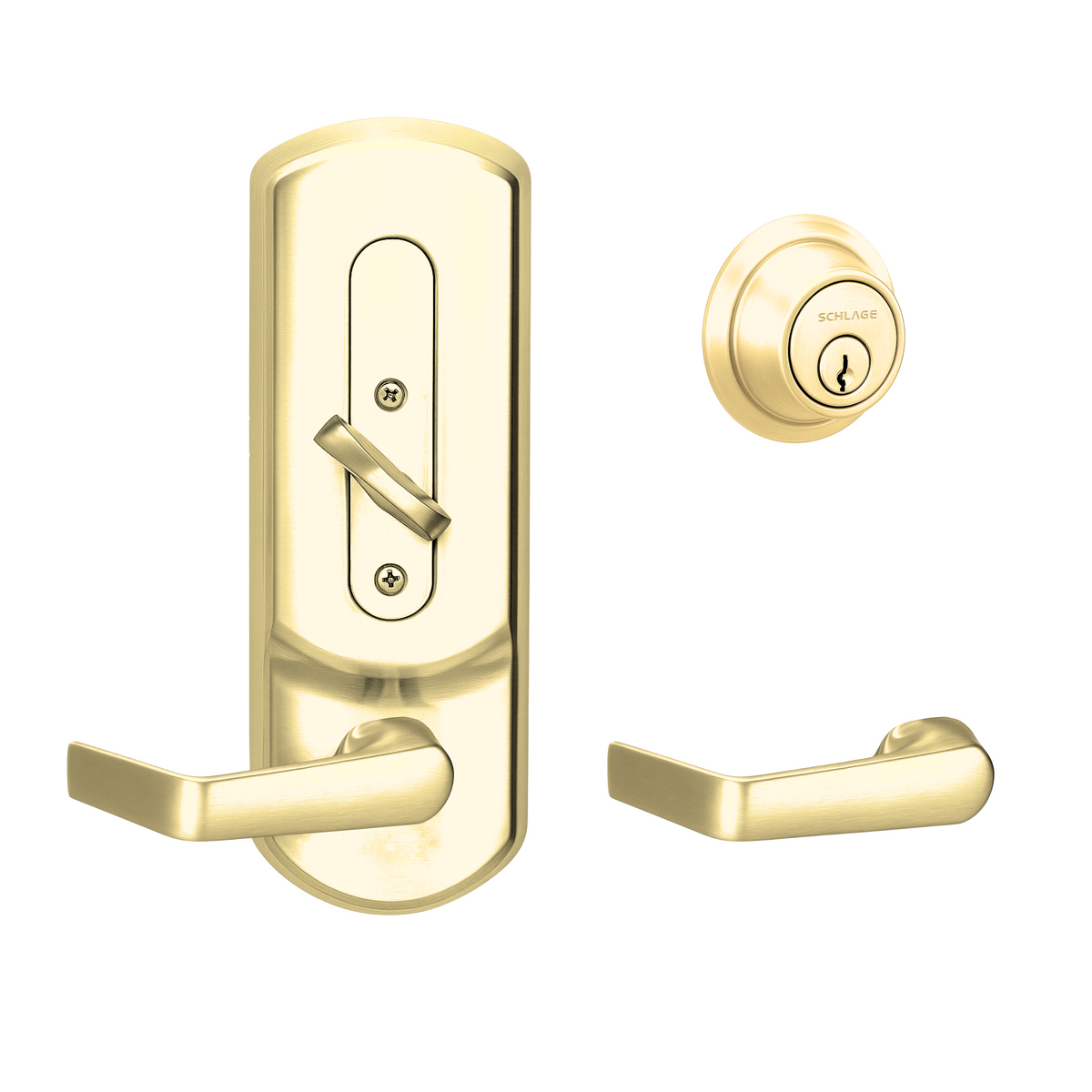

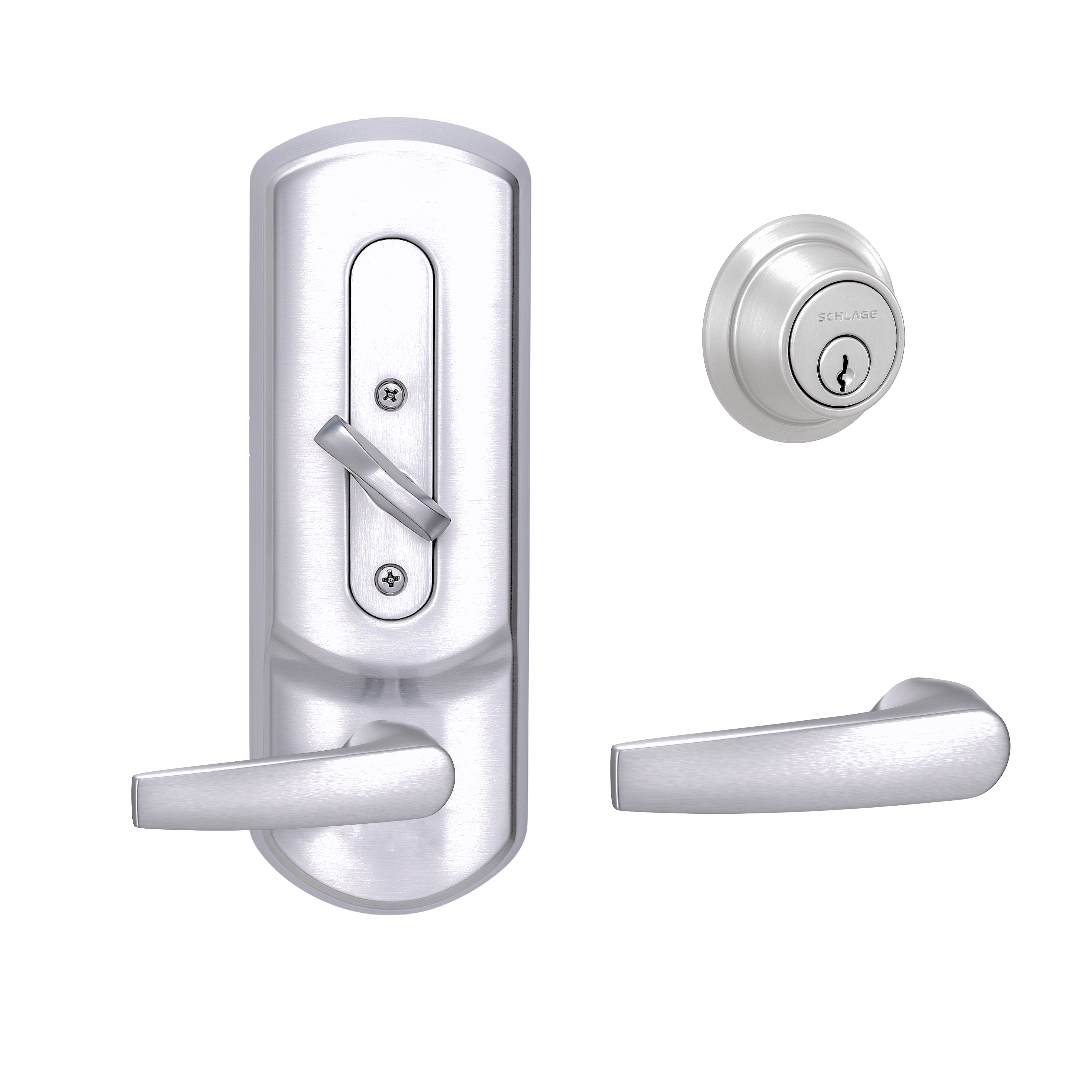

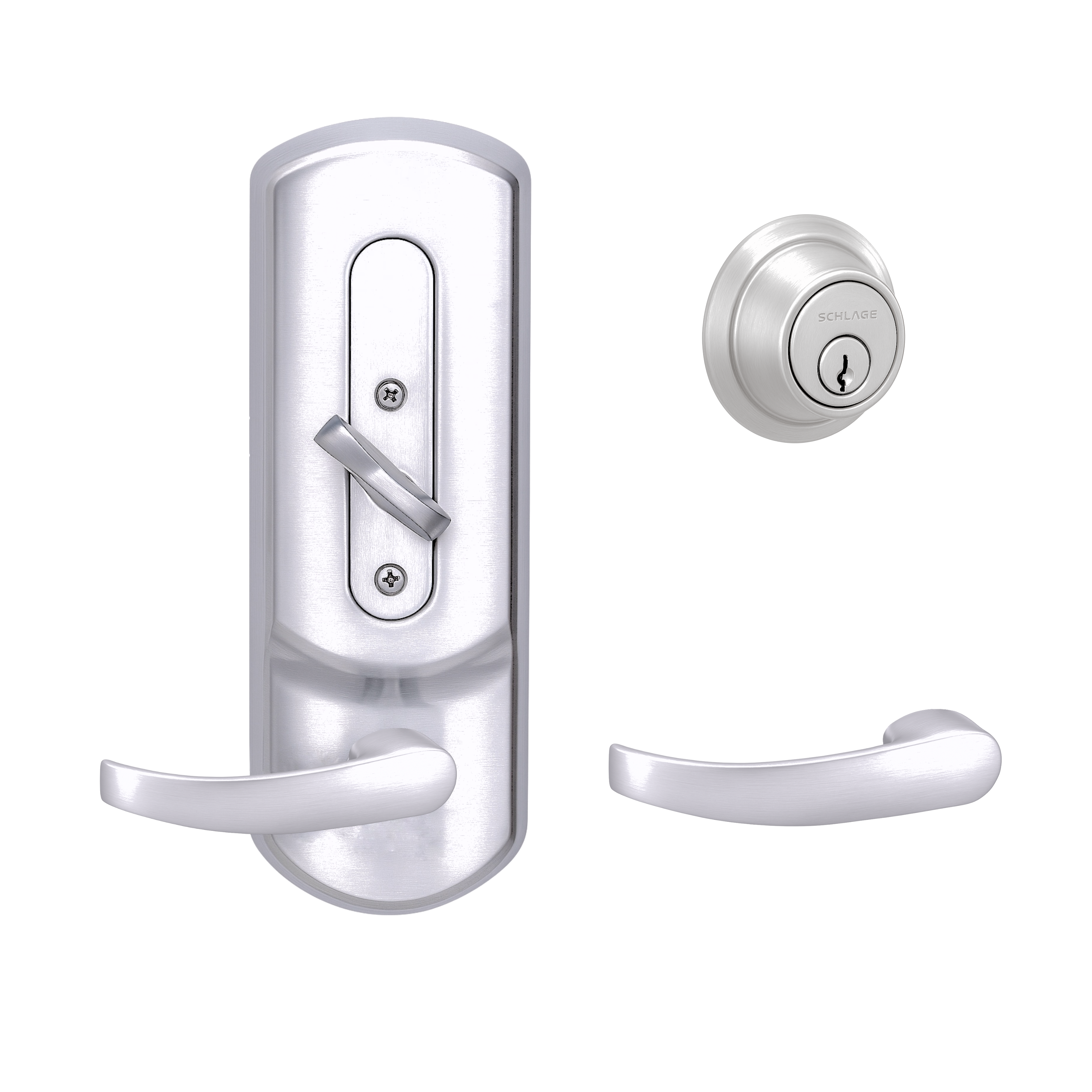

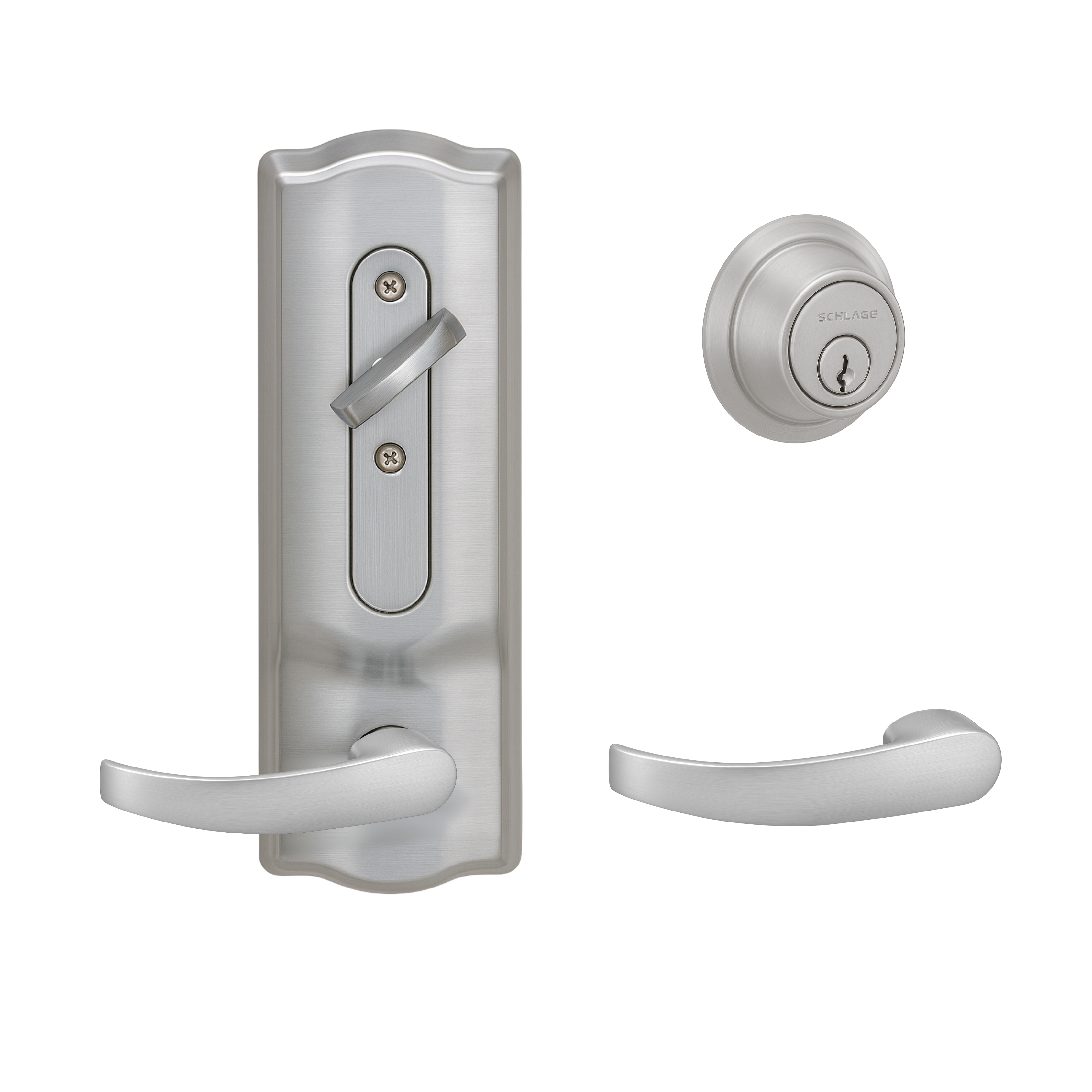

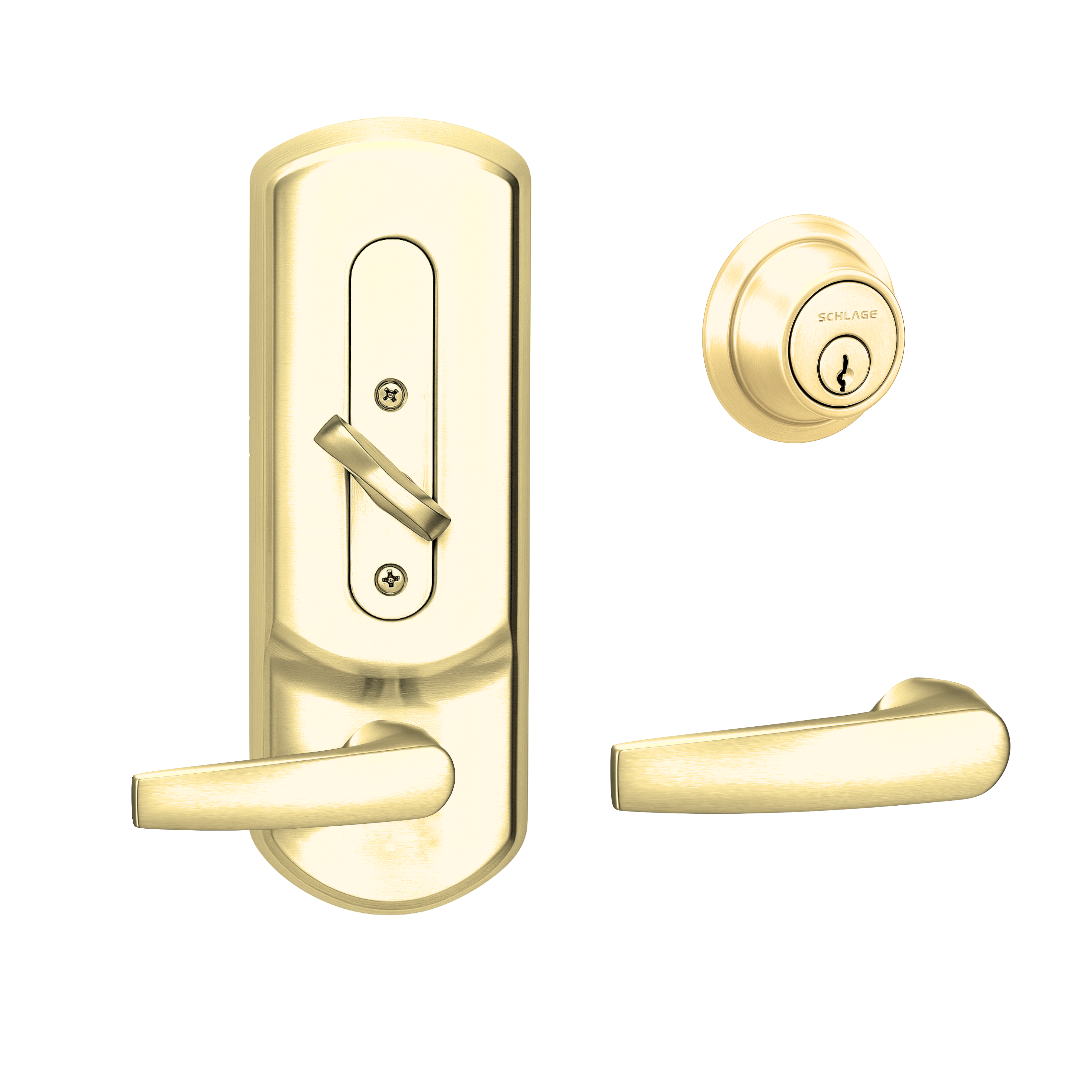

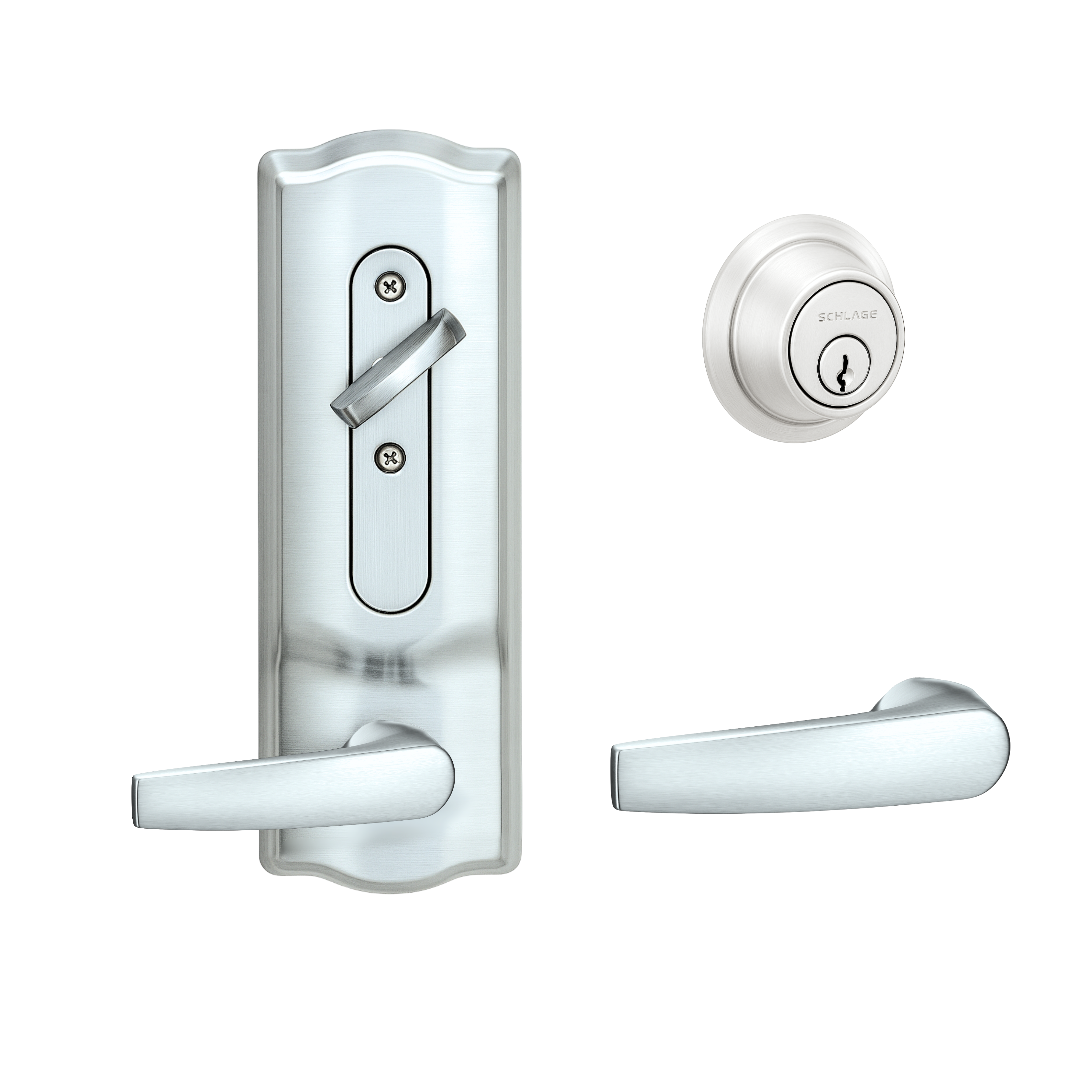

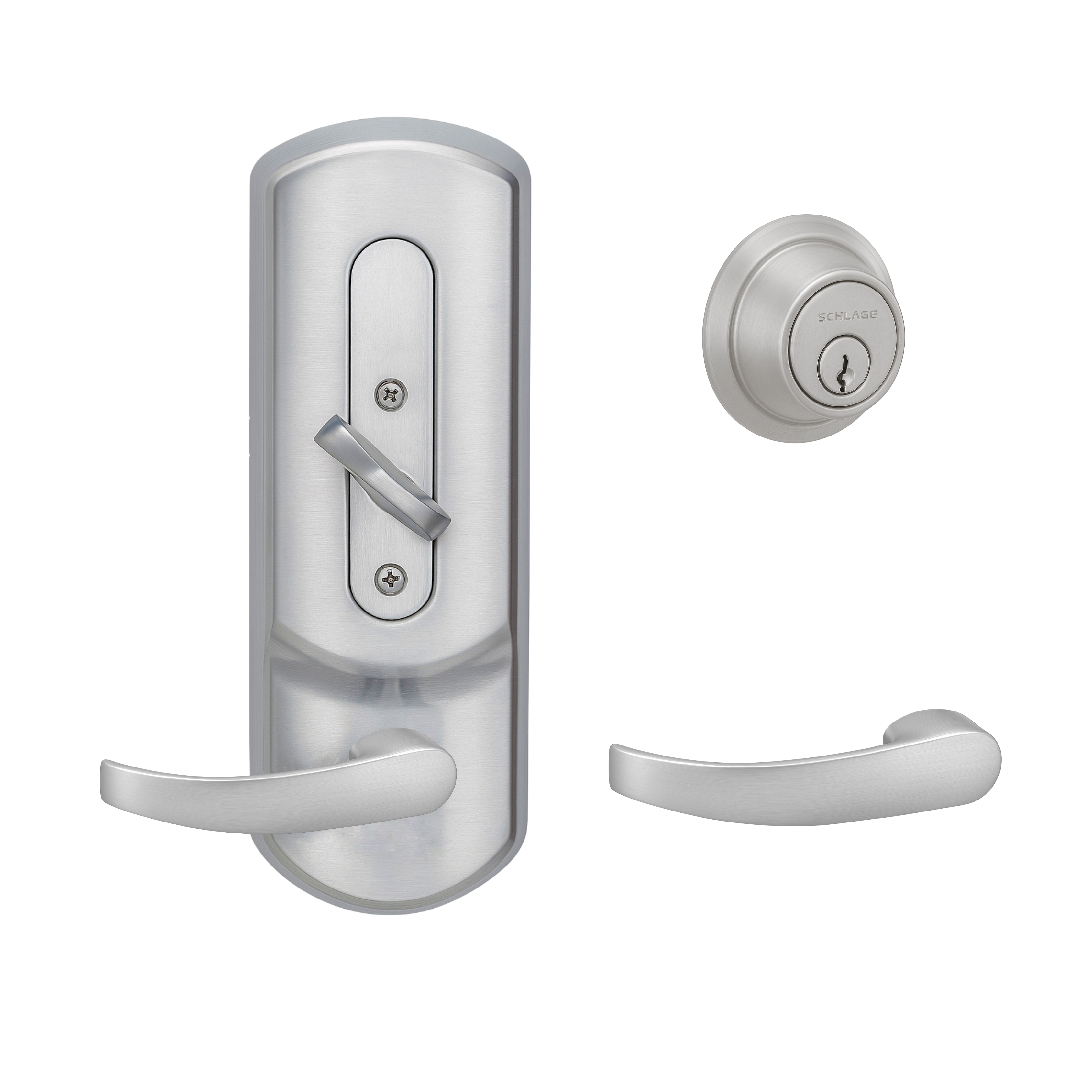

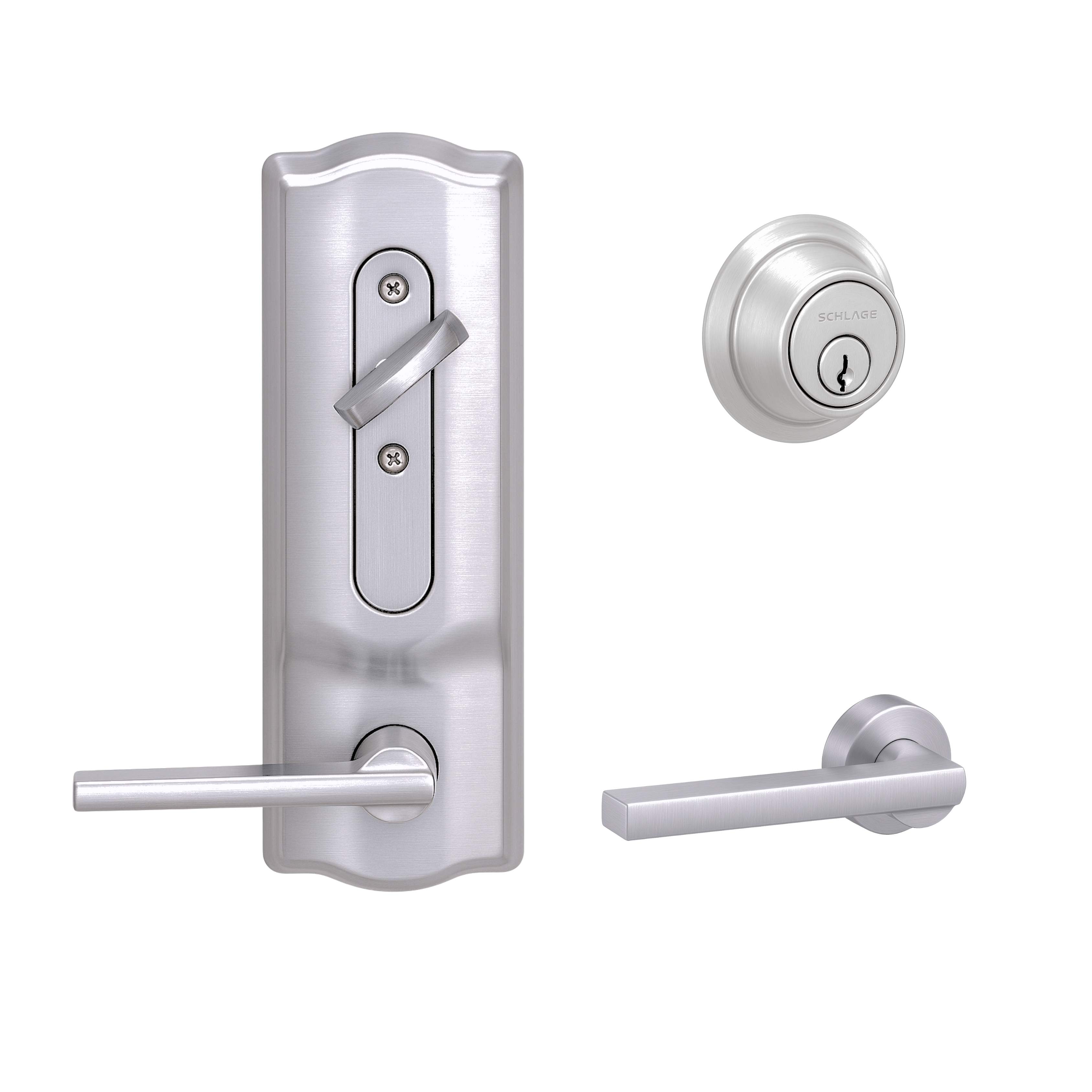

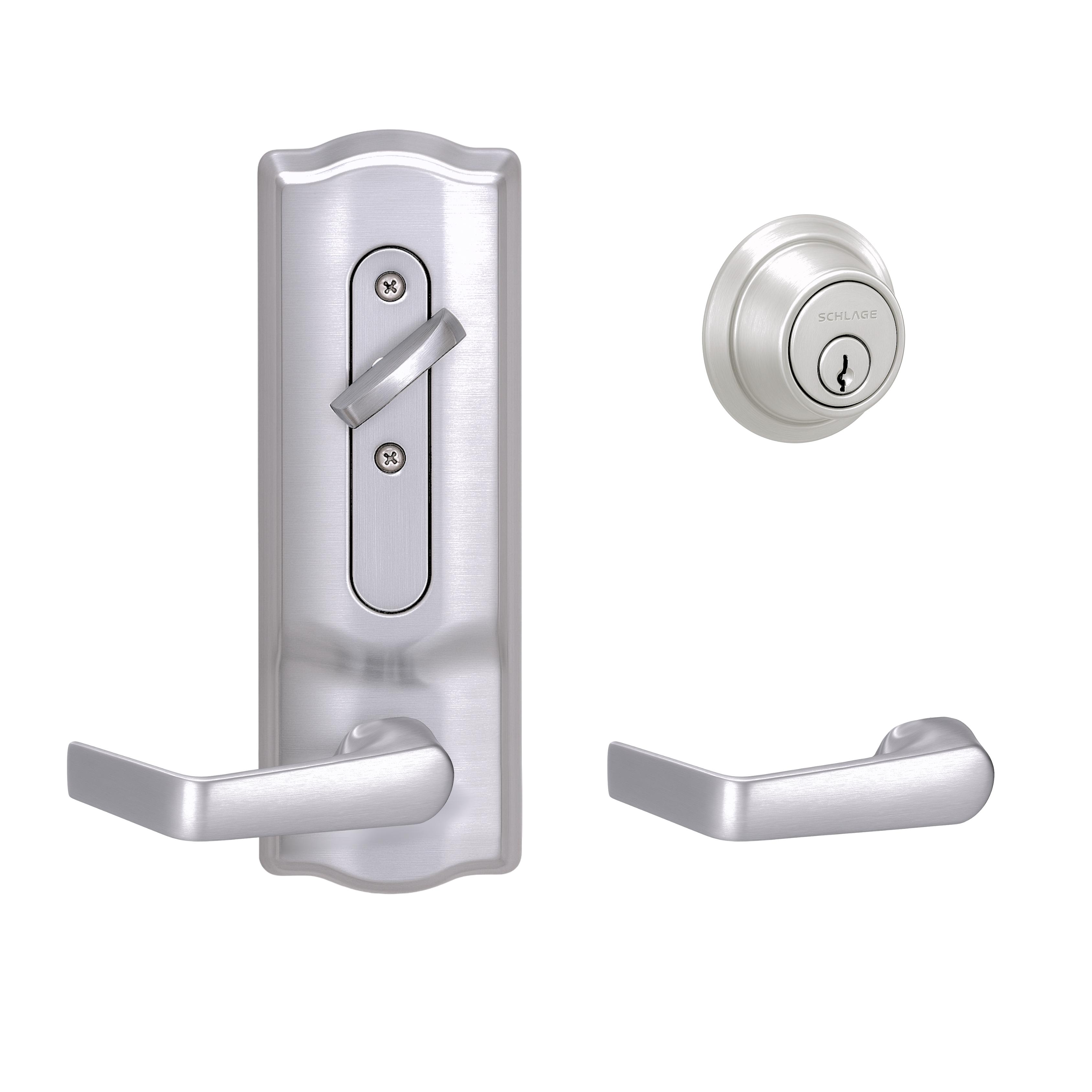

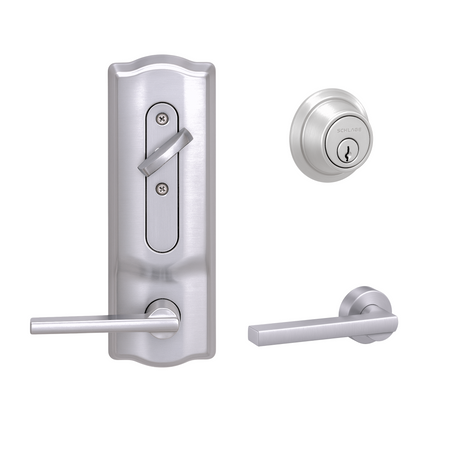

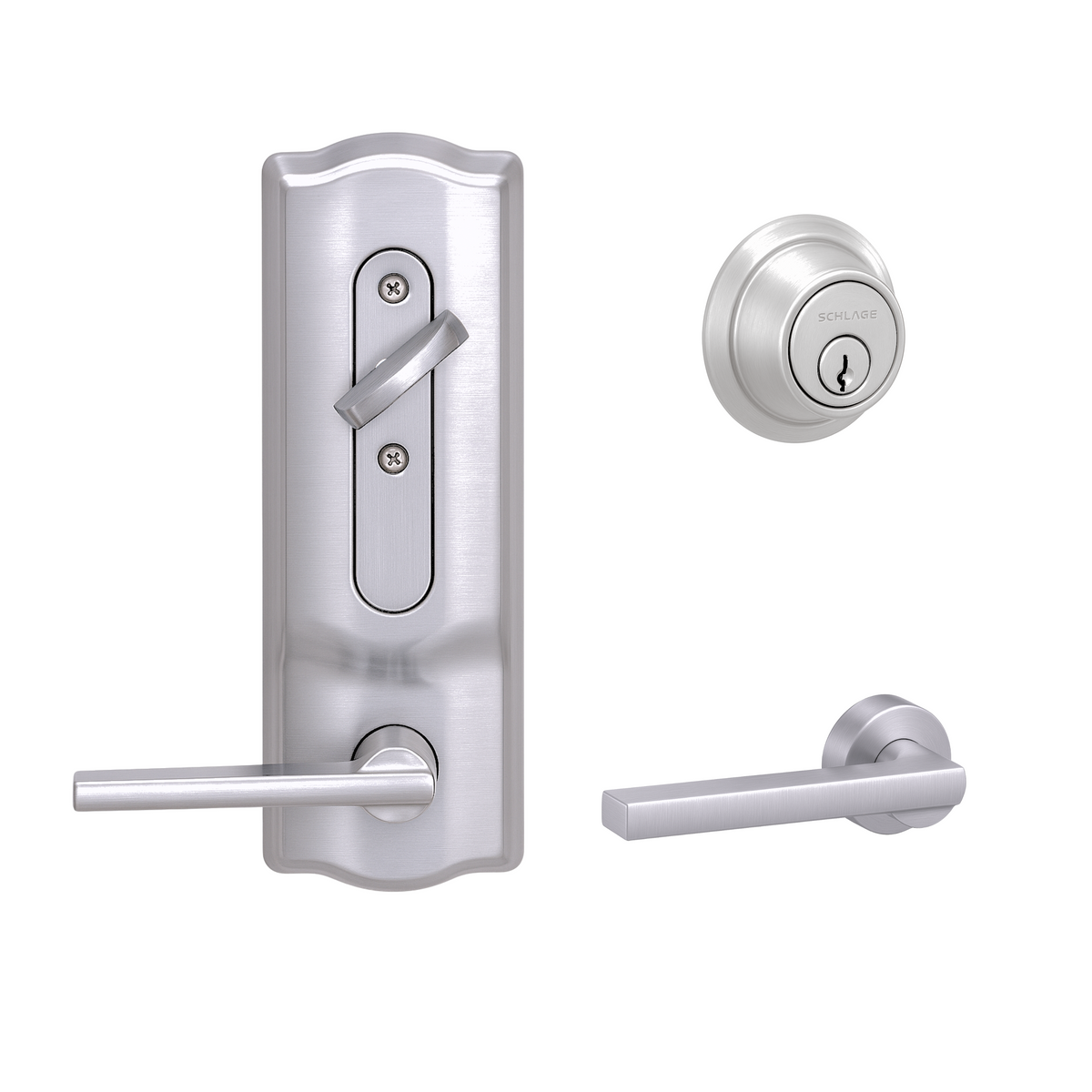

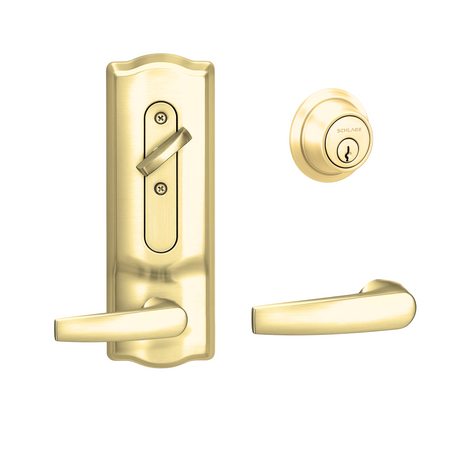

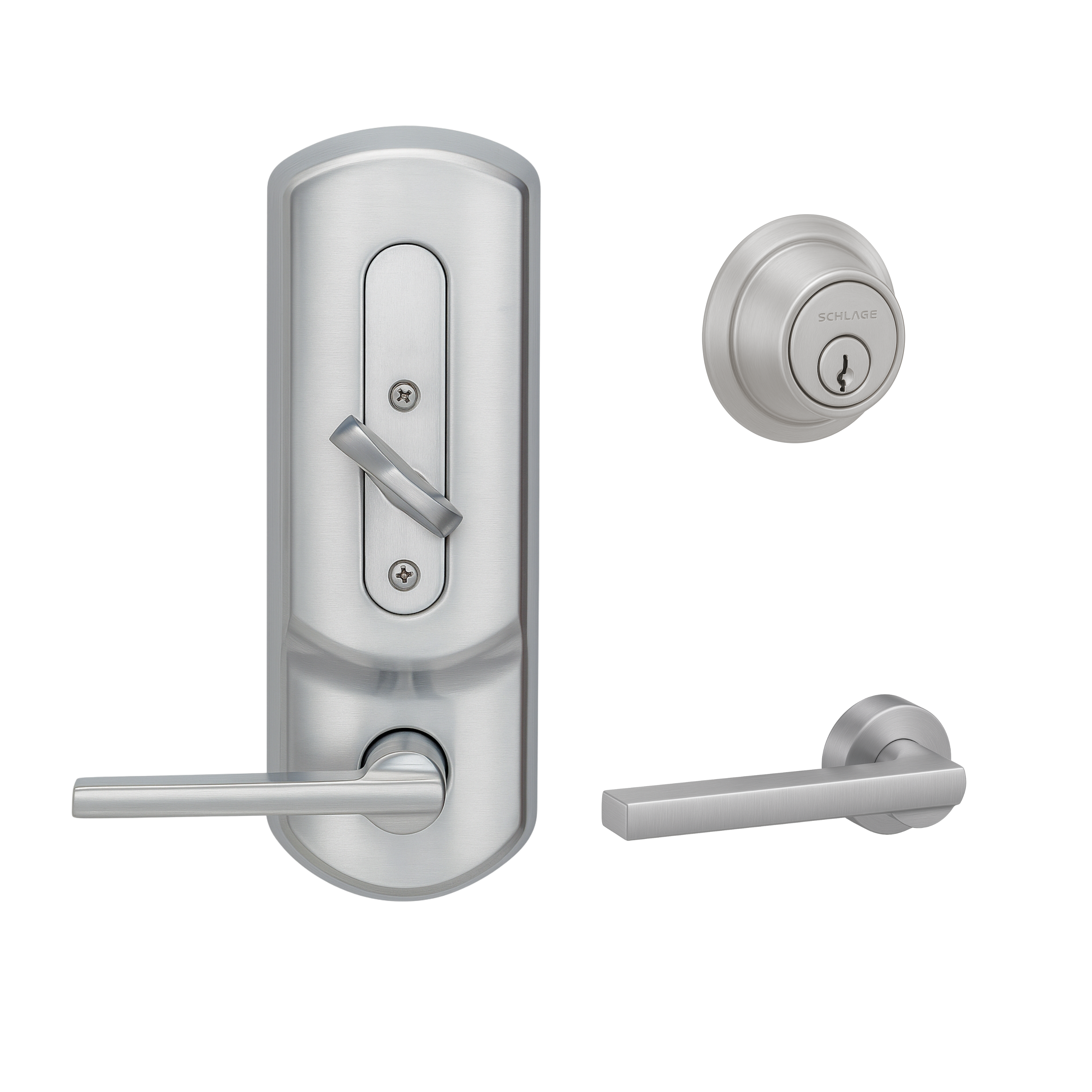

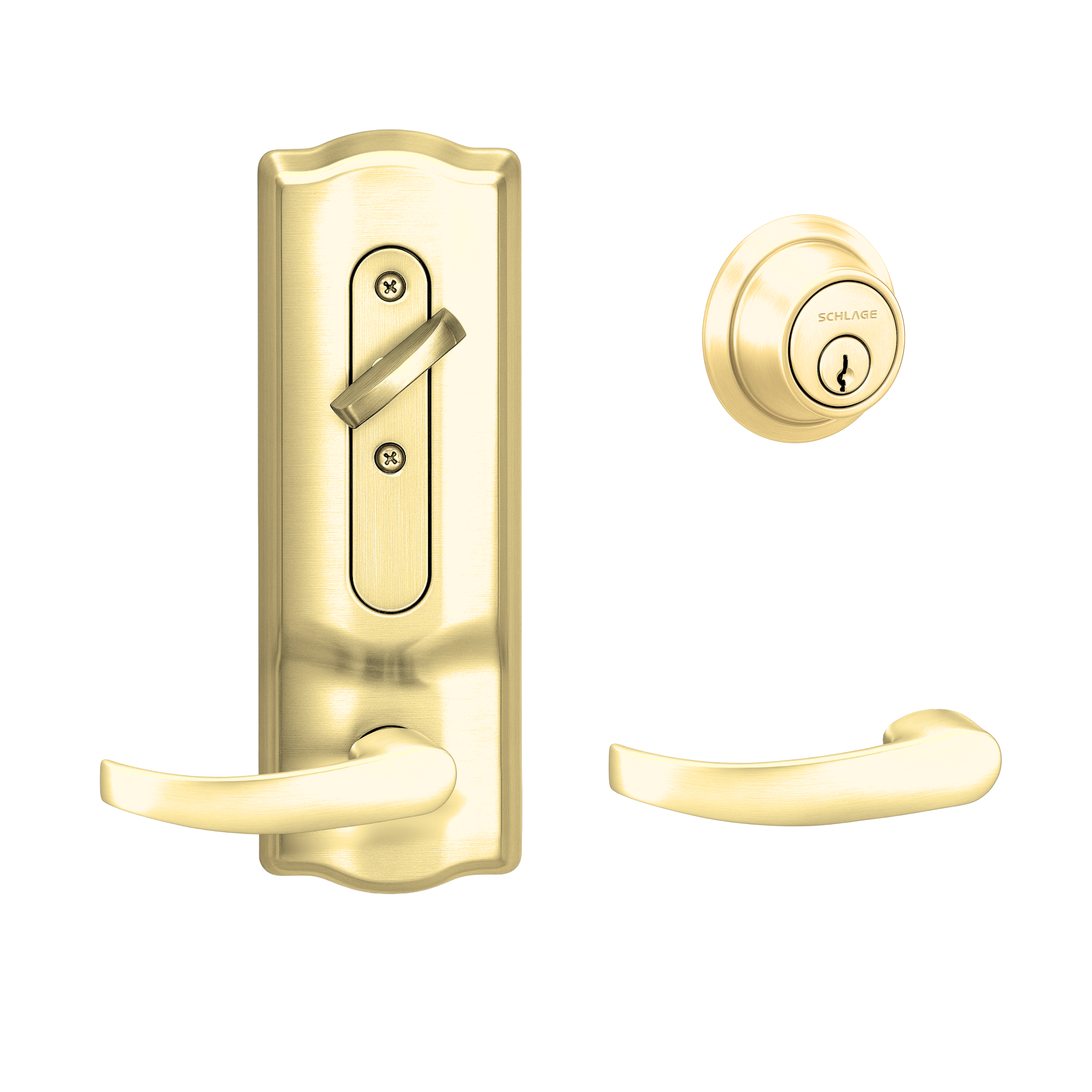

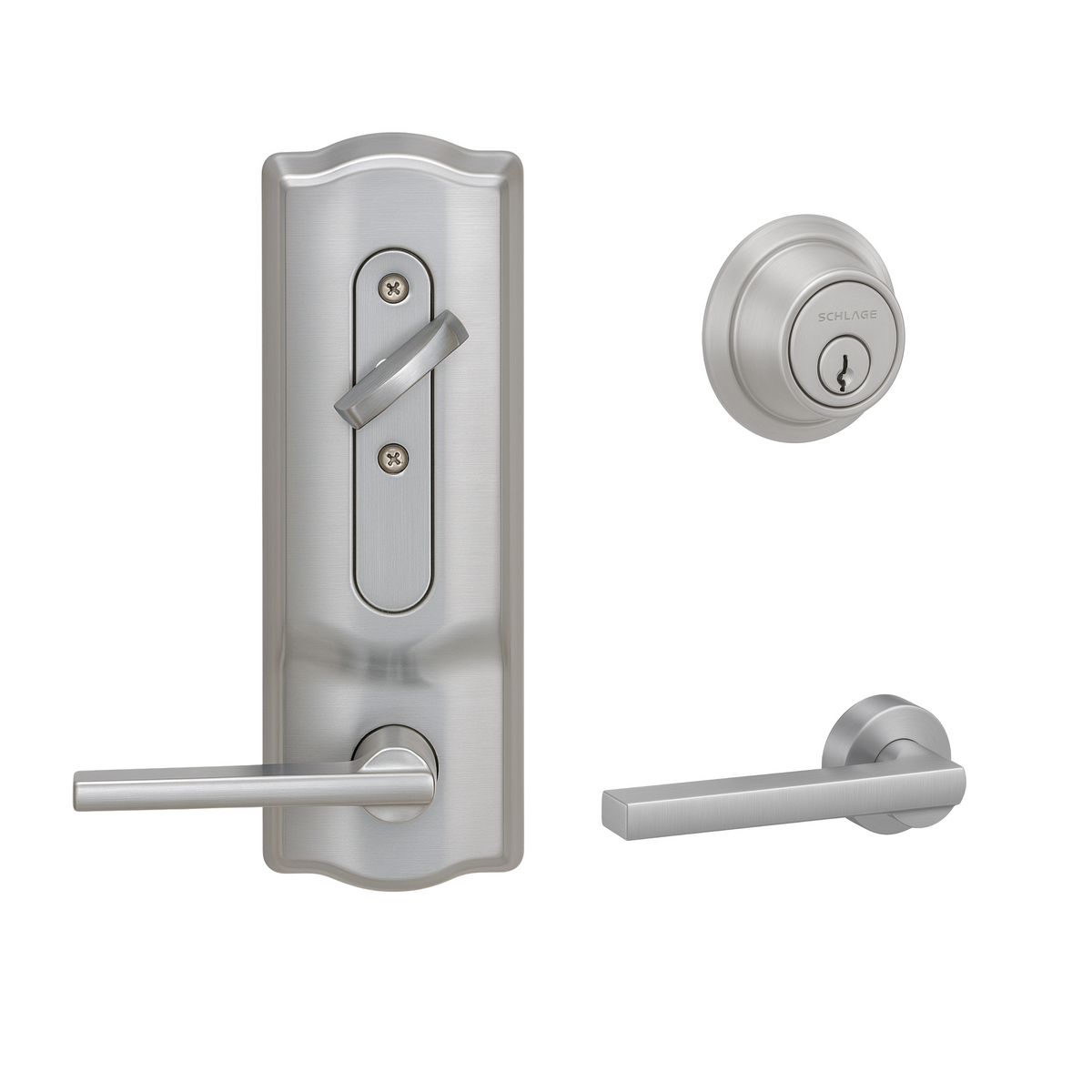

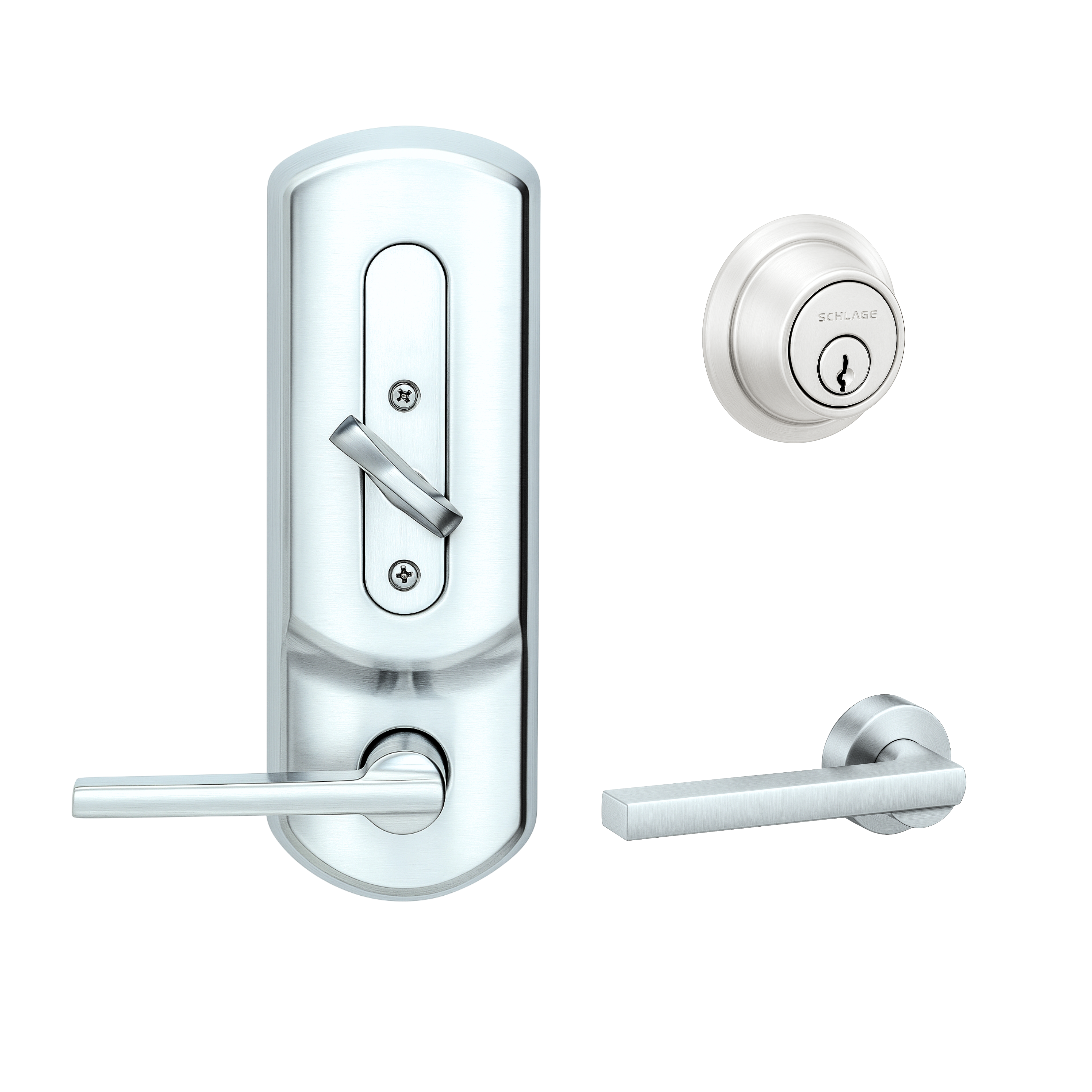

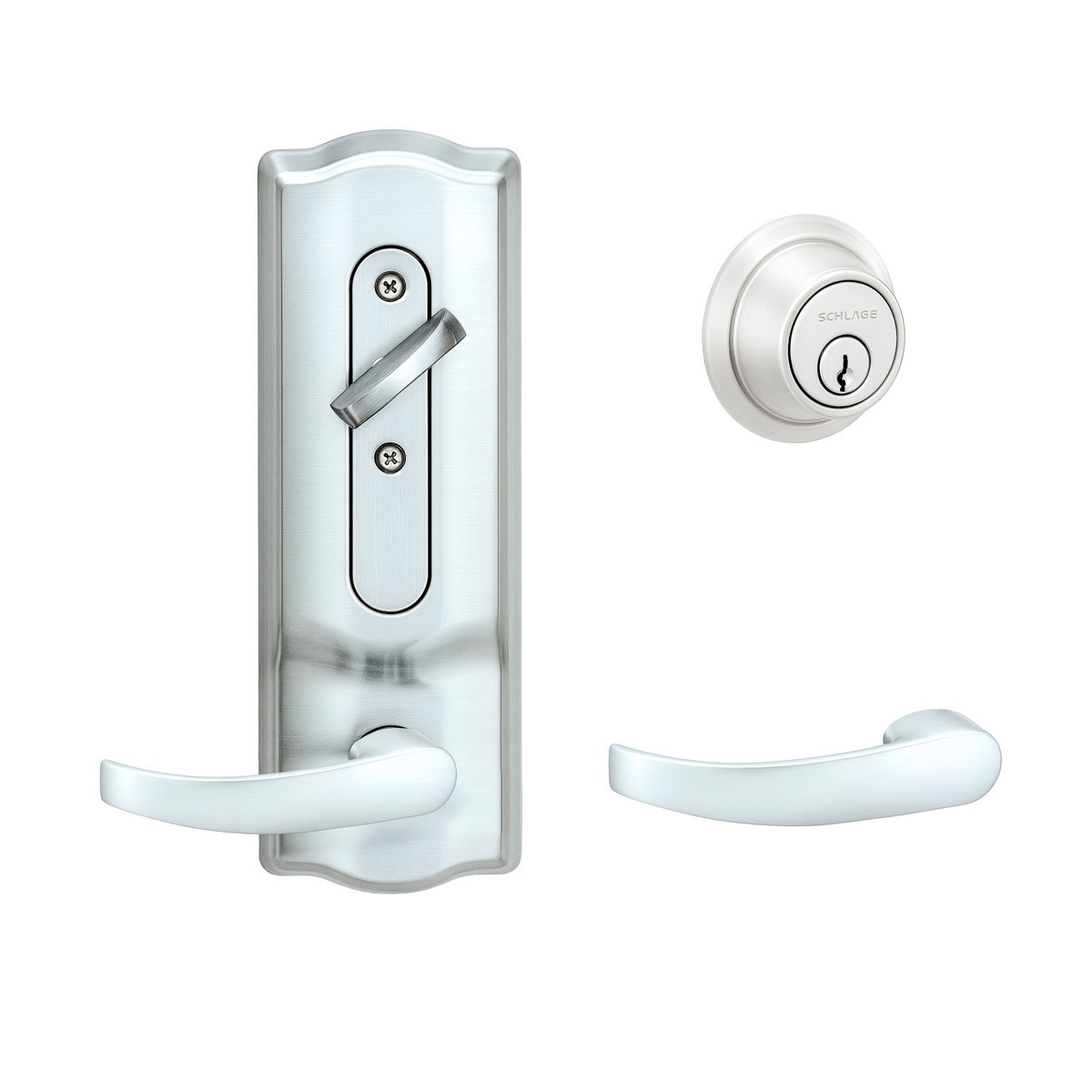

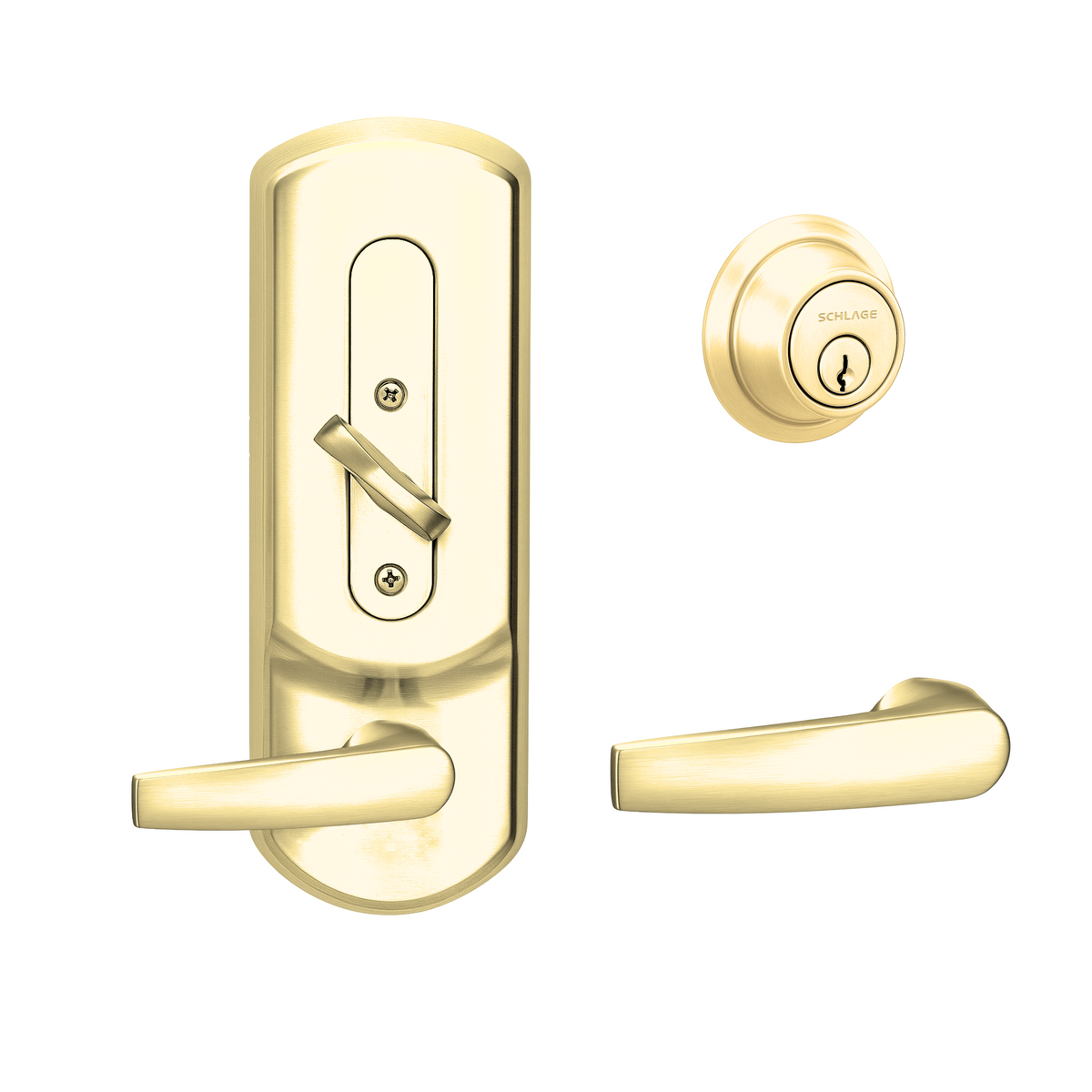

The CS210 interconnected lock provides exceptional performance, aesthetics, and flexibility for both residential and commercial applications. The CS210 features single motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish. Eighteen lever designs, two outside deadbolt designs and two inside escutcheon designs - each in a choice of seven finishes - ensure the right aesthetics for whatever type of project. The adjustable escutcheon allows each lock to easily support either 4" or 5 1 ⁄2" door preps, eliminating any job-site surprises.
Security
- Exceeds ANSI/BHMA Grade 2 requirements
- UL listed for 3-hour fire door
- Solid zinc bolt with hardened steel anti-saw pin
- Metal wood frame reinforcer uses 3" screws to anchor deep into wood door frame to protect against kick-in attacks
- Free spinning, cylinder collar resists wrenching and prying
- Removeable security shield protects bolt from ice-pick attack through the door
- Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
Aesthetics

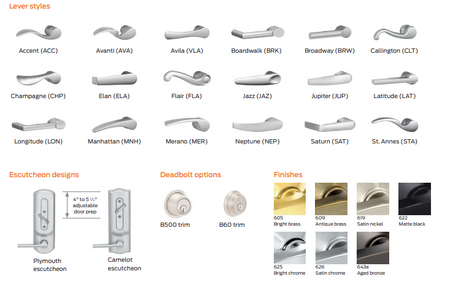

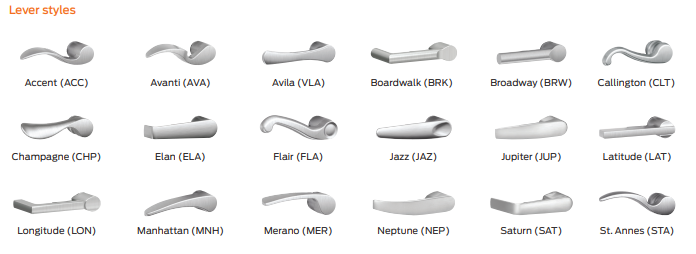

- 18 lever styles
- Two deadbolt designs
- Two escutcheon designs
- Seven available finishes
- Suites with F Series and S Series tubular locks
Functional features
- Entrance function
- Adjustable backset has a lock-in-place helix design
- Field configurable to fit a 4" or 5-1/2" door prep
Built to Last
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Material
- Deadbolt: Zinc with hardened steel anti-saw pin insert
- Deadbolt trim ring: 7/16" and 1/8" solid brass
- Cylinder: Solid brass in a solid zinc housing
- Deadbolt wood frame reinforcer: Metal with 3" screws standard
- Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
Door Thickness
- Door thickness: 1-3/4" to 2" (44 mm to 51 mm) standard; 1-3/8" (35 mm) available
Trim Options
- 18 lever designs made of pressure cast zinc, plated to match product finish specification
- Escutcheons: wrought brass, plated to match product finish specification
Deadbolt
- 1" housing diameter; 0.81" x 0.62" x 1" throw
- Backset: Adjustable 2-3/8" or 2-3/4" backset (60 mm or 70 mm) standard; 5" optional
- Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard; round corner options available
- Strike: 1-1/8" x 2-3/4" with square corners standard; round cornered options available
Latch
- Backset: Adjustable 2-3/8" or 2-3/4" backset (60 mm or 70 mm) standard; 5" optional
- Latchbolt: 1/2" (13 mm) throw brass, chrome plated standard
- Faceplate: square and round corner dual option 1" x 2-1/4" (25 mm x 57 mm) standard
- Strike: 1-5/8" x 2-1/4" (41 mm x 57 mm) T-strike standard; T-strike and round corner options available
- Strike lip length: 1-1⁄8" (29 mm) standard
