Schlage

Schlage L9092EU - Electrified Mortise Lock - Grade 1, Fail Secure, Outside Levers EU, Outside Cylinder Override

Name: Schlage L9092EU - Electrified Mortise Lock - Grade 1, Fail Secure, Outside Levers EU, Outside Cylinder Override
Brand: Schlage
SKU: L9092EU-06A-626-P
Price: 1454.62 USD
Availability: InStock

SKU: L9092EU-06A-626-P

Regular price $1,454.62

Finish

Cylinder Type

Lever and Rose/Escutcheon

Product variants

Quantity

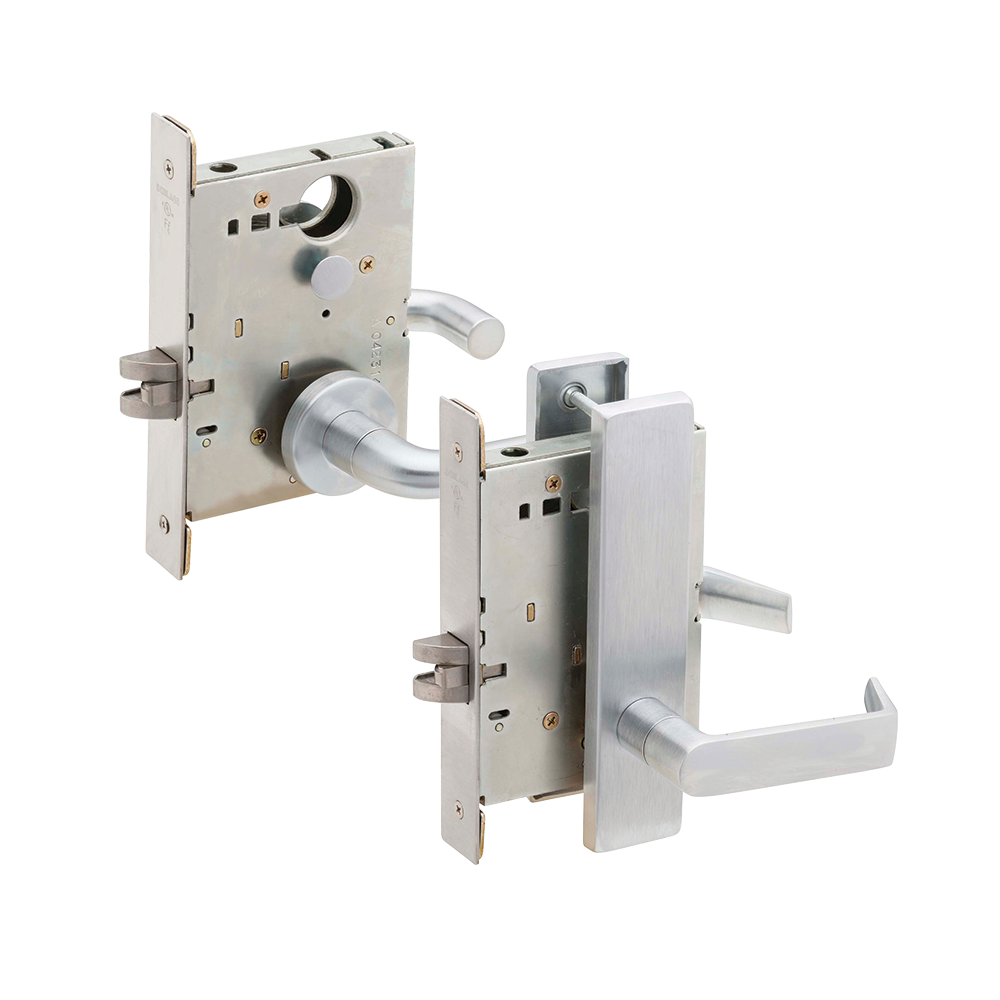

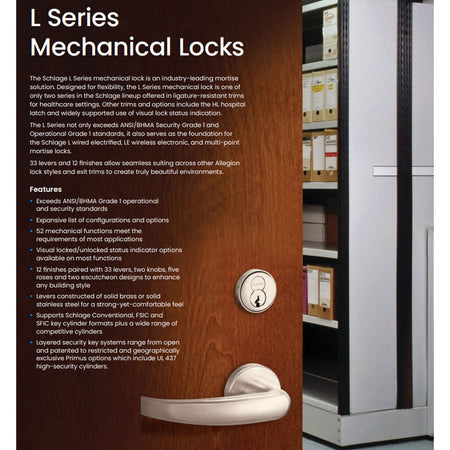

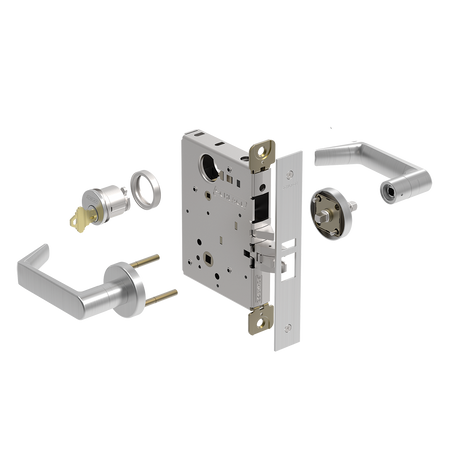

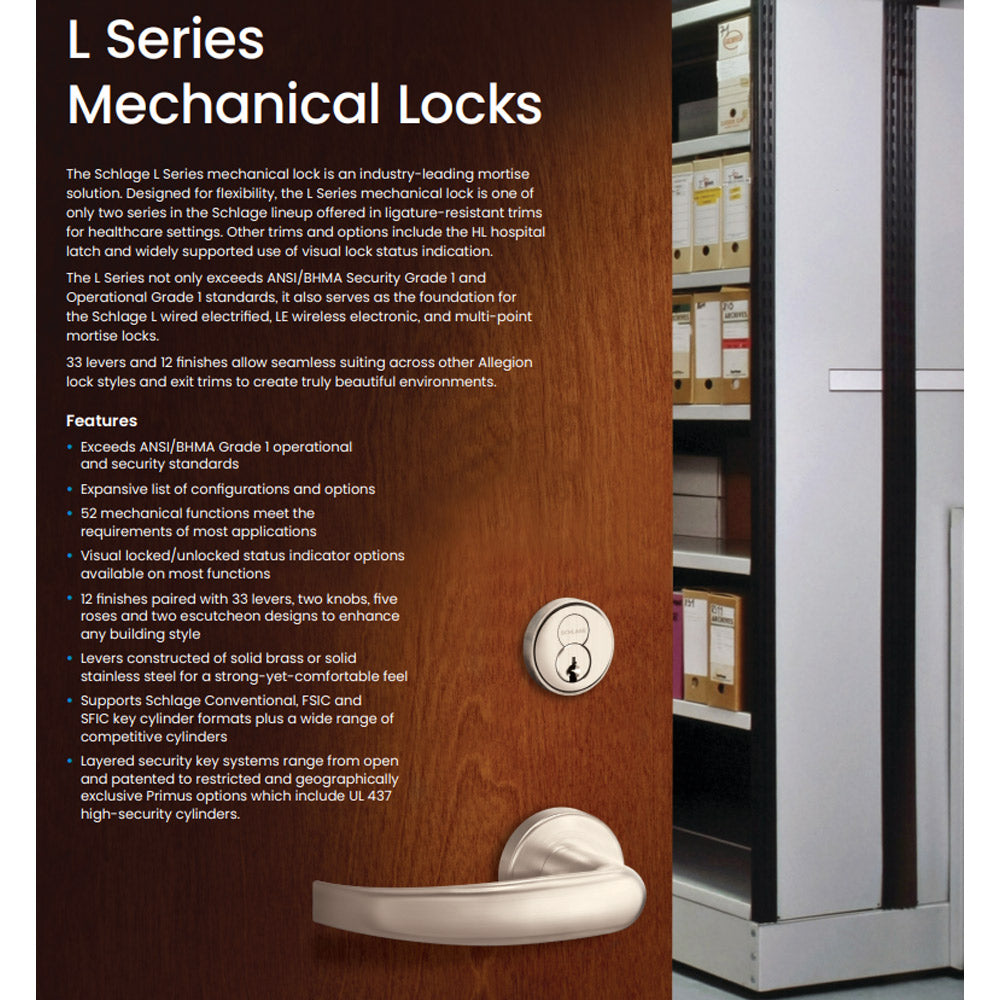

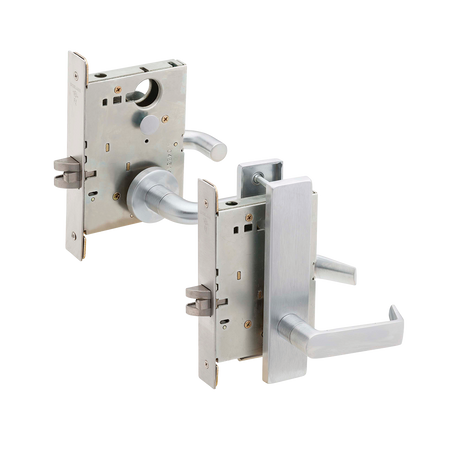

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Security

Exceeds ANSI/BHMA Grade 1 Security and Operational standards

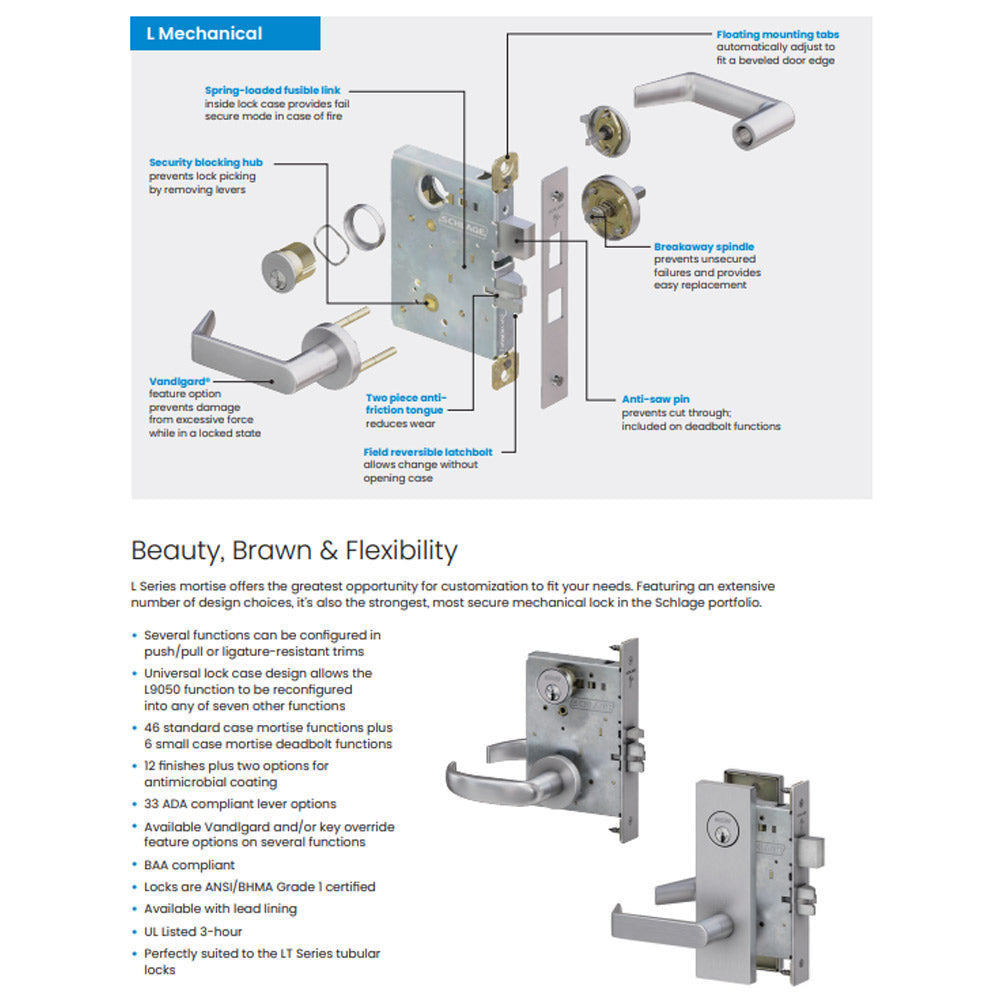

Deadbolt functions include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

55+ standard functions (custom functions are also available)
Universal lock case allows 10 functions to be created from a single lock body
Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

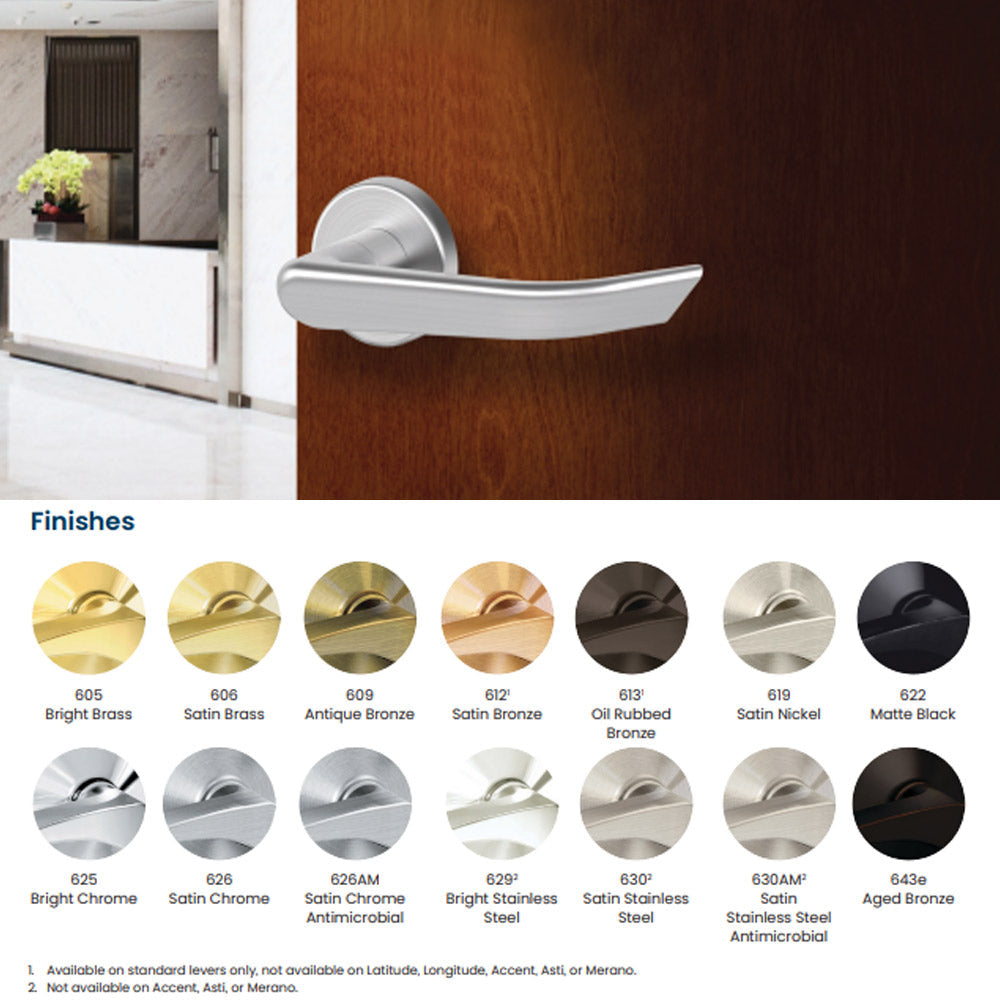

14 finishes

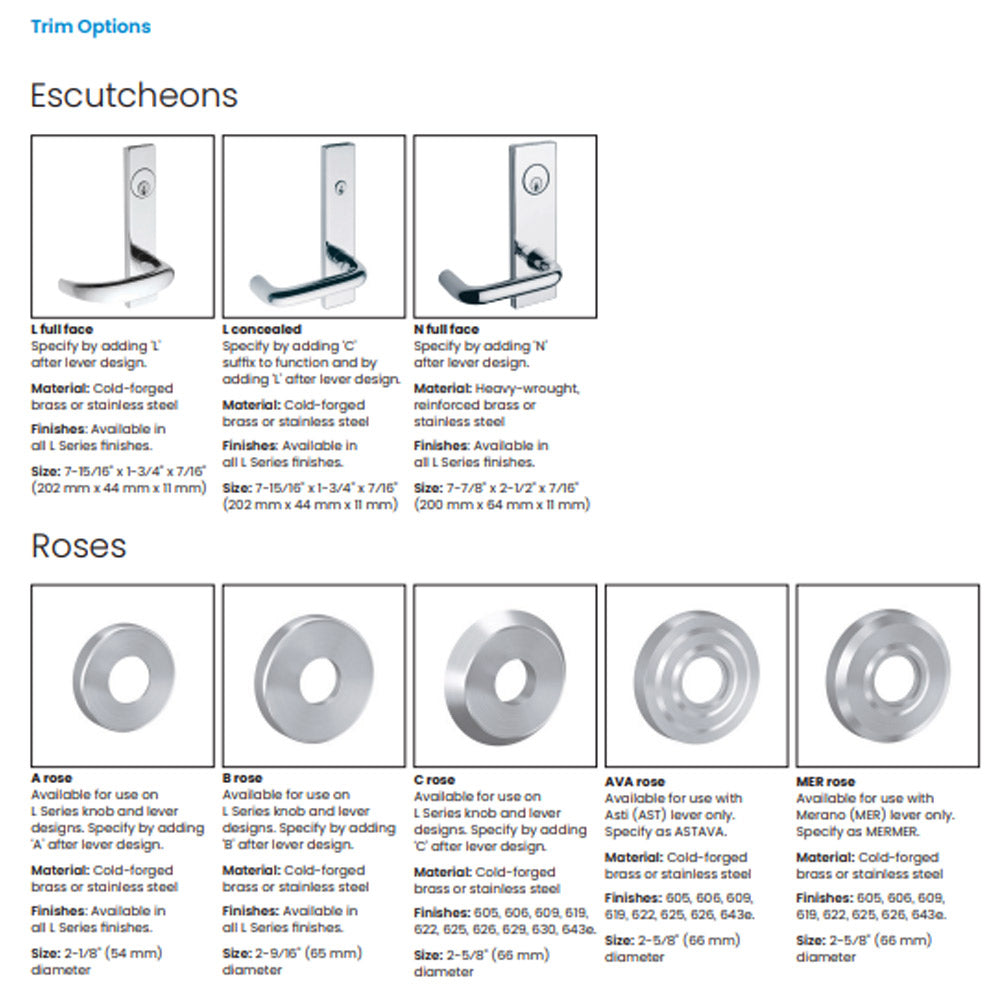

33 lever, two knob, five rose and three escutcheon designs
Locking lever bushing eliminates exposed screws on inside levers
All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Available options

Exclusive 180° visibility indicator
Vandlgard^® free-wheeling outside trim option is available on most functions, including electrified
Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
New Gold Standard ligature resistant trim for behavioral health applications

View the Schlage L Series catalog to see all specifications and certifications.

Meets BAA (Buy American Act)
L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
UL listed for 3-hour fire door (except L9076 and L9077)
With interchangeable core cylinders: Grade 2 security
With concealed shell cylinder: A156.13 Grade 1 operational and security
ANSI/ASTM F476-76 Grade 40, UL listed
L400: tested and certified under ANSI/BHMA A156.36 Grade 1
California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
Electrified functions are UL19X listed for single-point locking applications
UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
Miami-Dade NOA's and Florida Building Commission Listings
Meet ADA requirements
