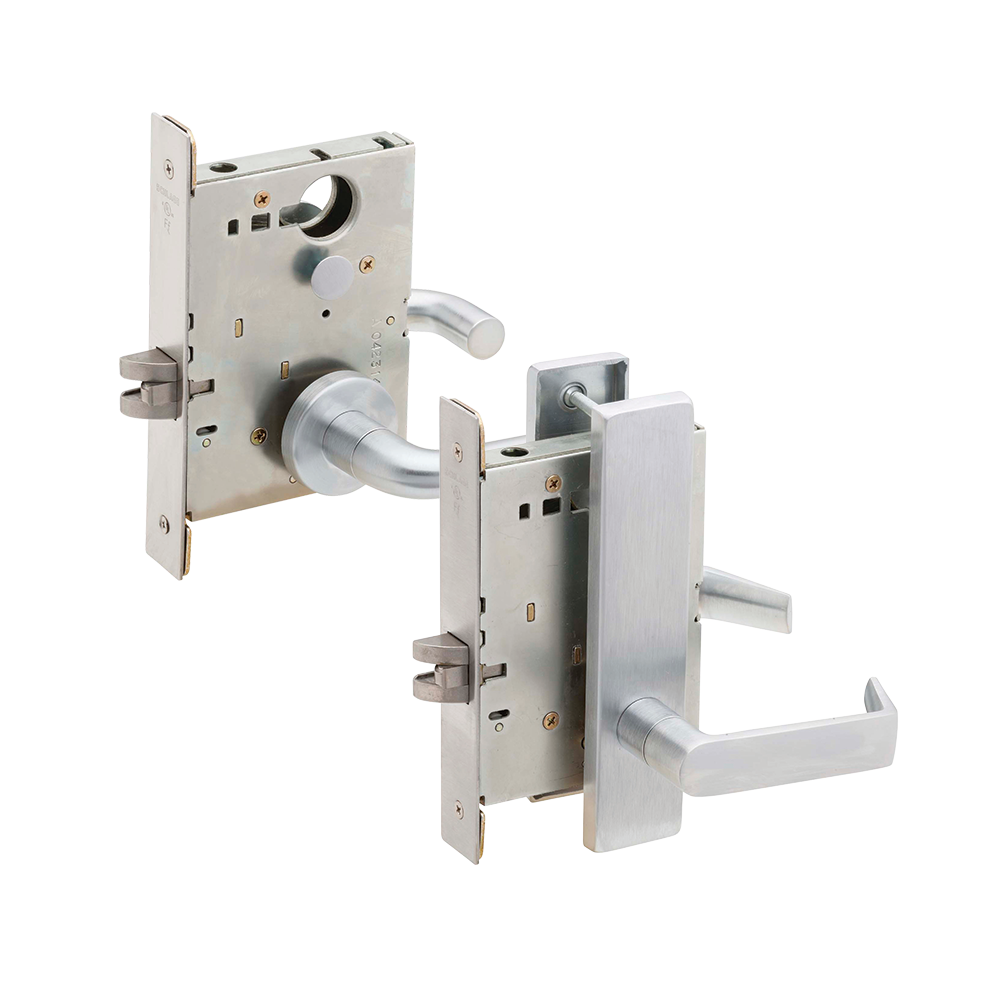

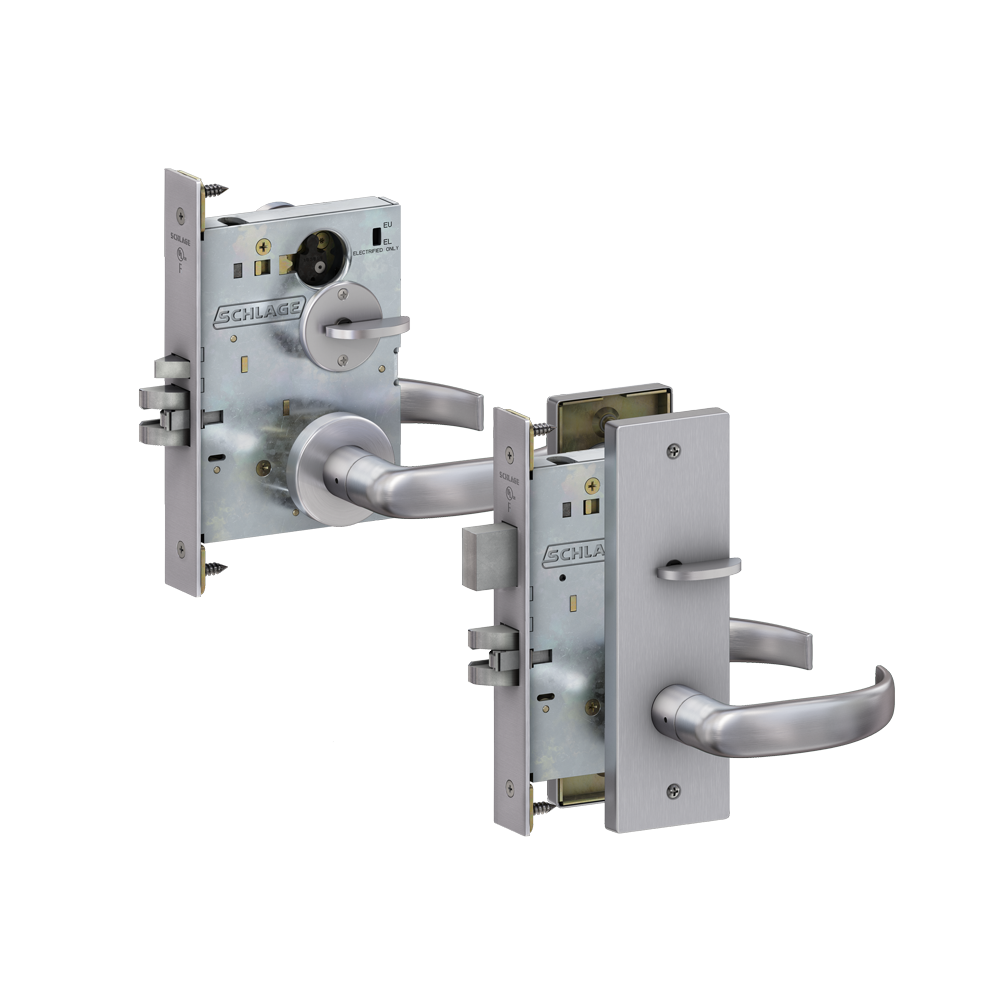

Schlage L9095EU - Electrified Mortise Lock - Grade 1, Fail Secure, Both Levers EU, Double Cylinder Override, 12/24VDC

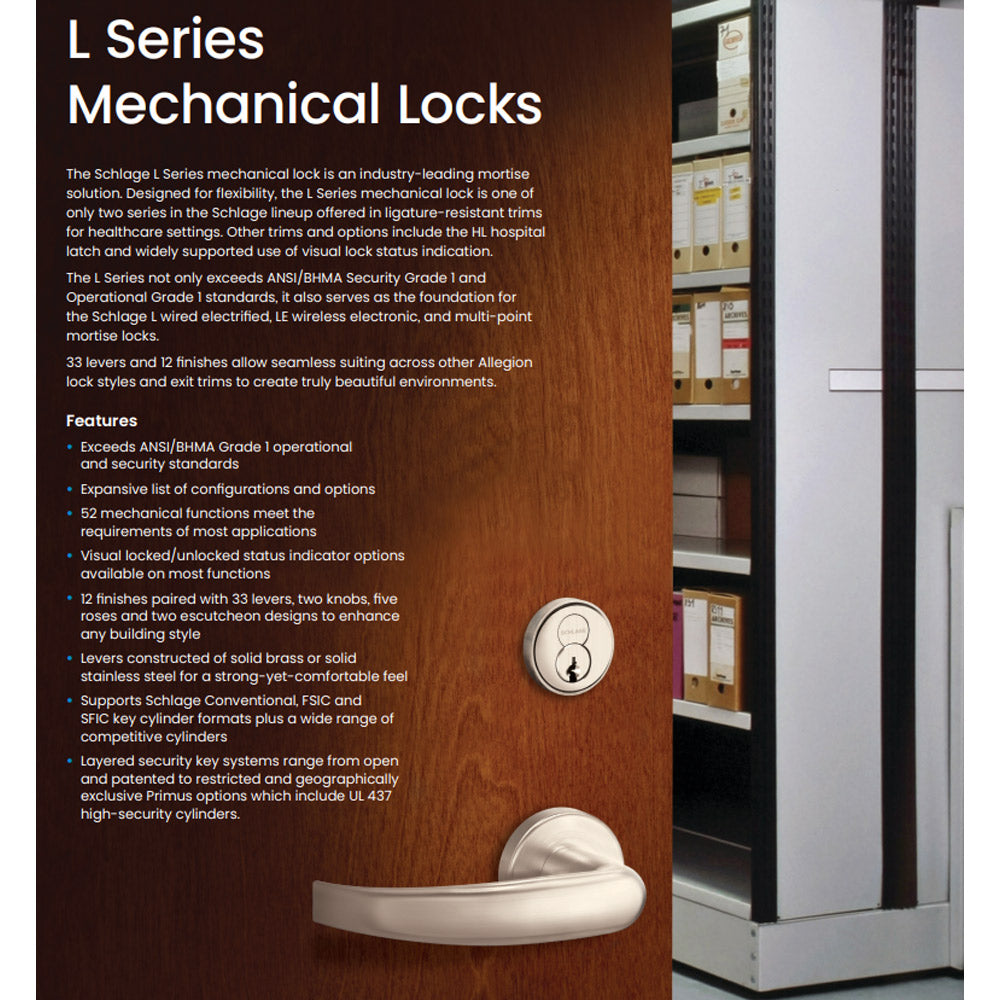

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

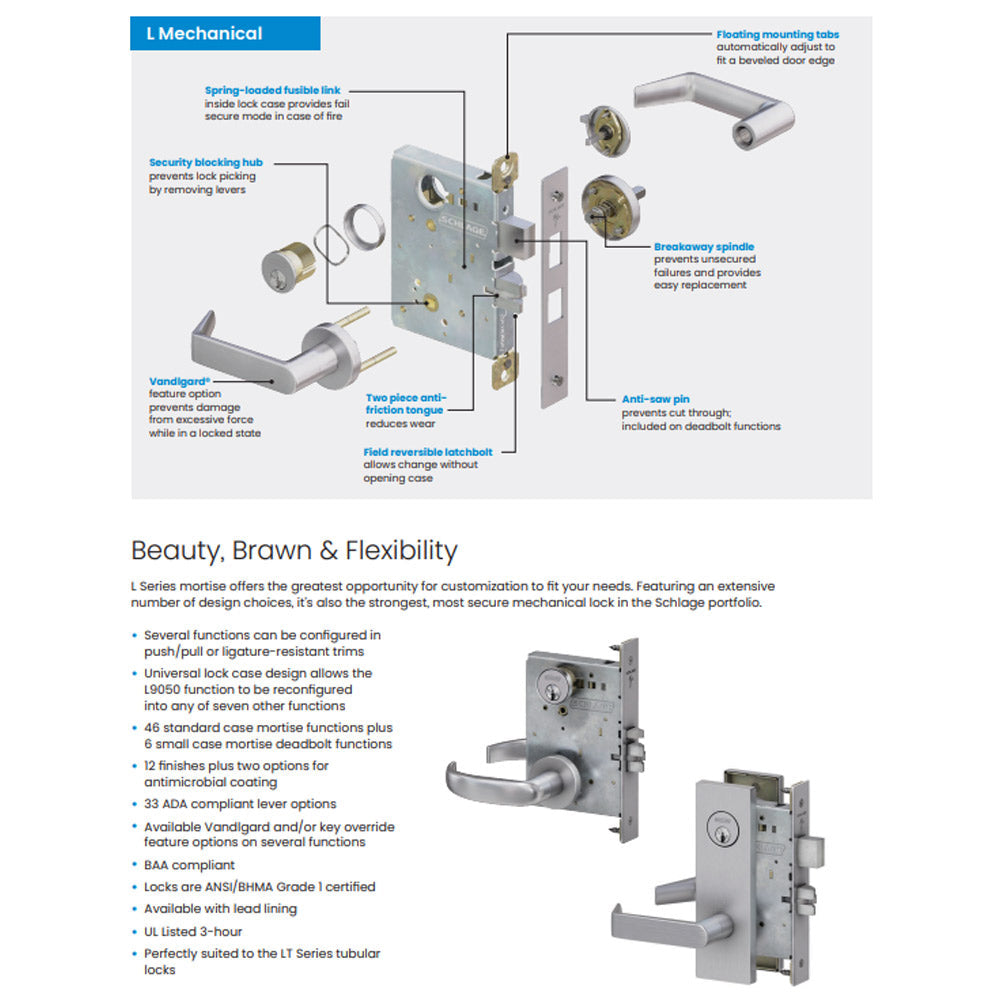

Security

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards
• Deadbolt functions include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

• 55+ standard functions (custom functions are also available)
• Universal lock case allows 10 functions to be created from a single lock body

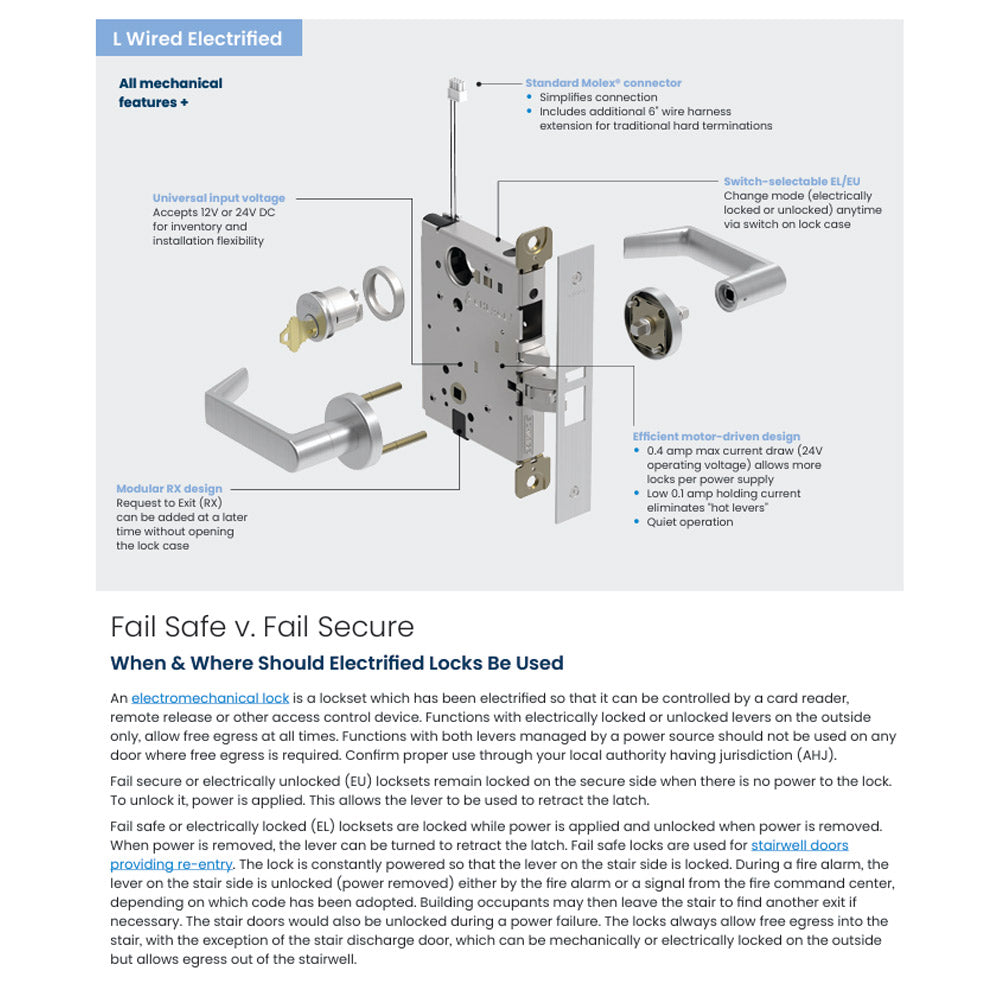

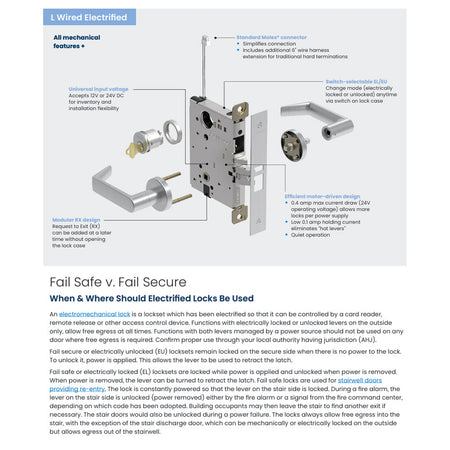

• Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

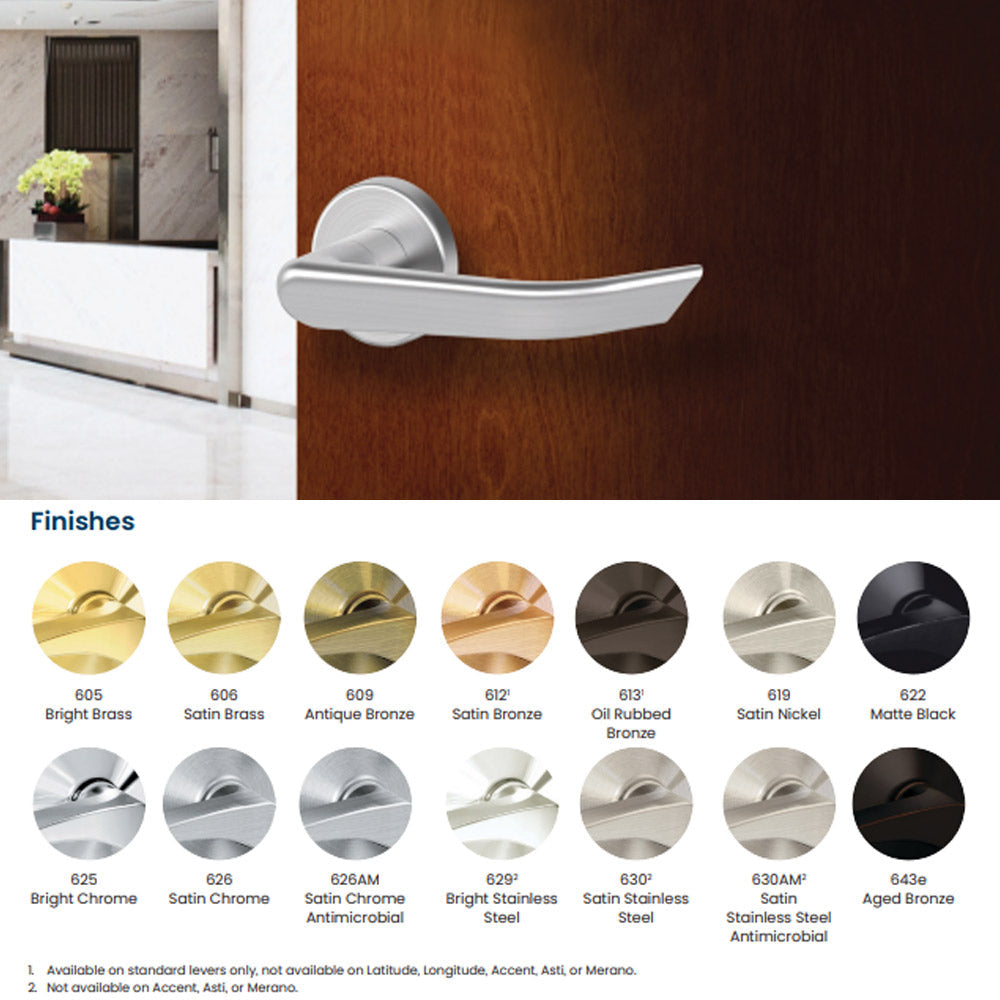

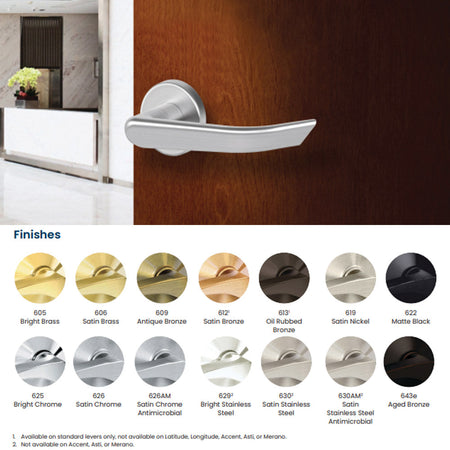

• 14 finishes

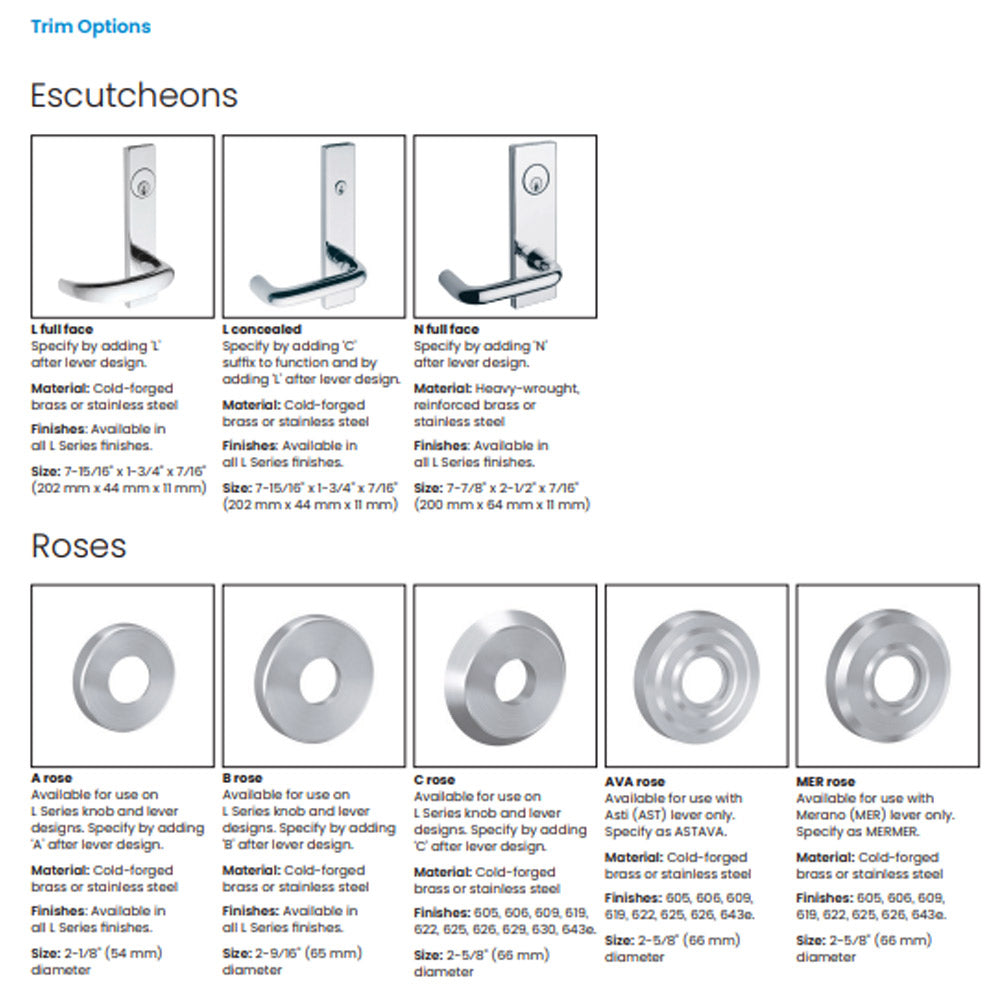

• 33 lever, two knob, five rose and three escutcheon designs
• Locking lever bushing eliminates exposed screws on inside levers
• All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Available options

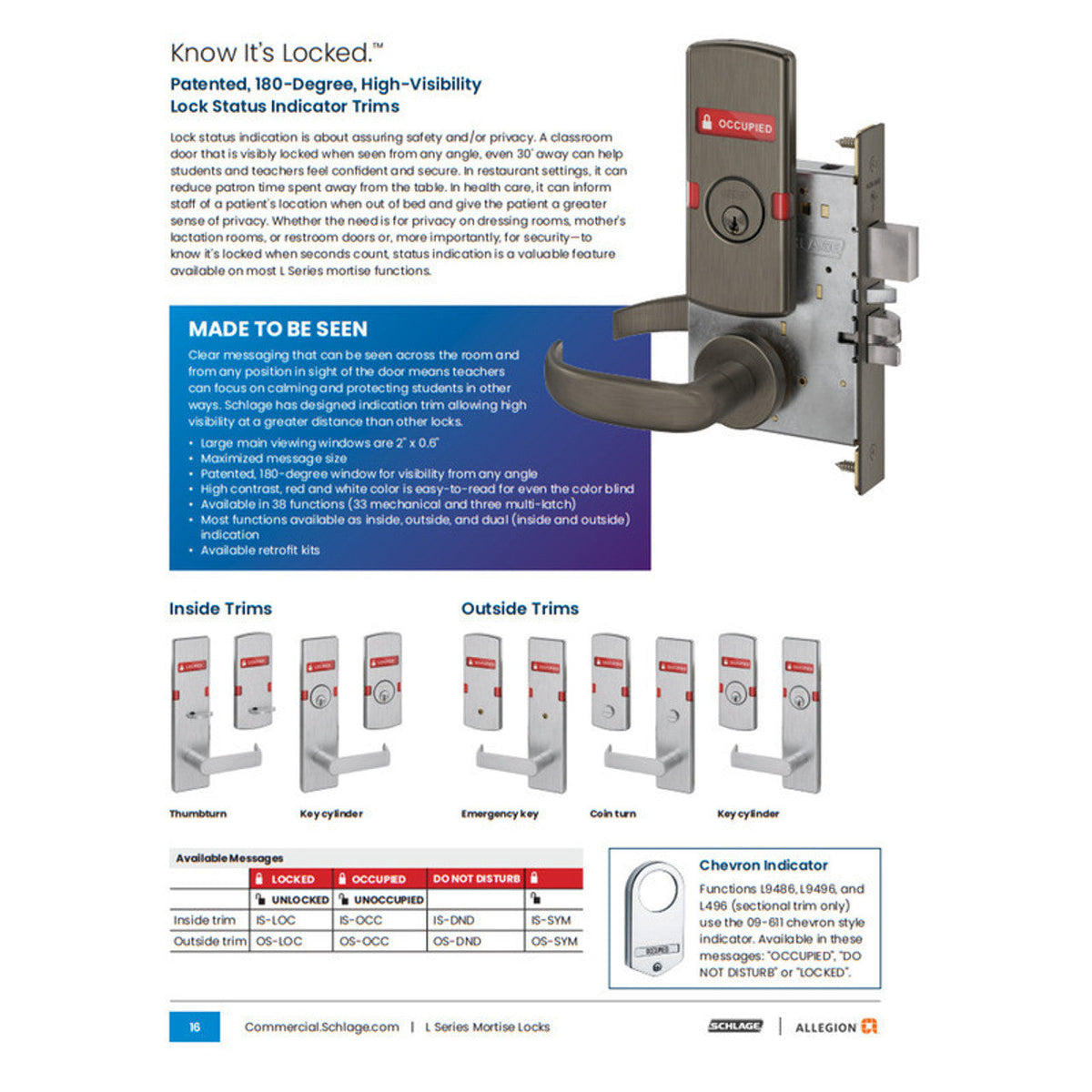

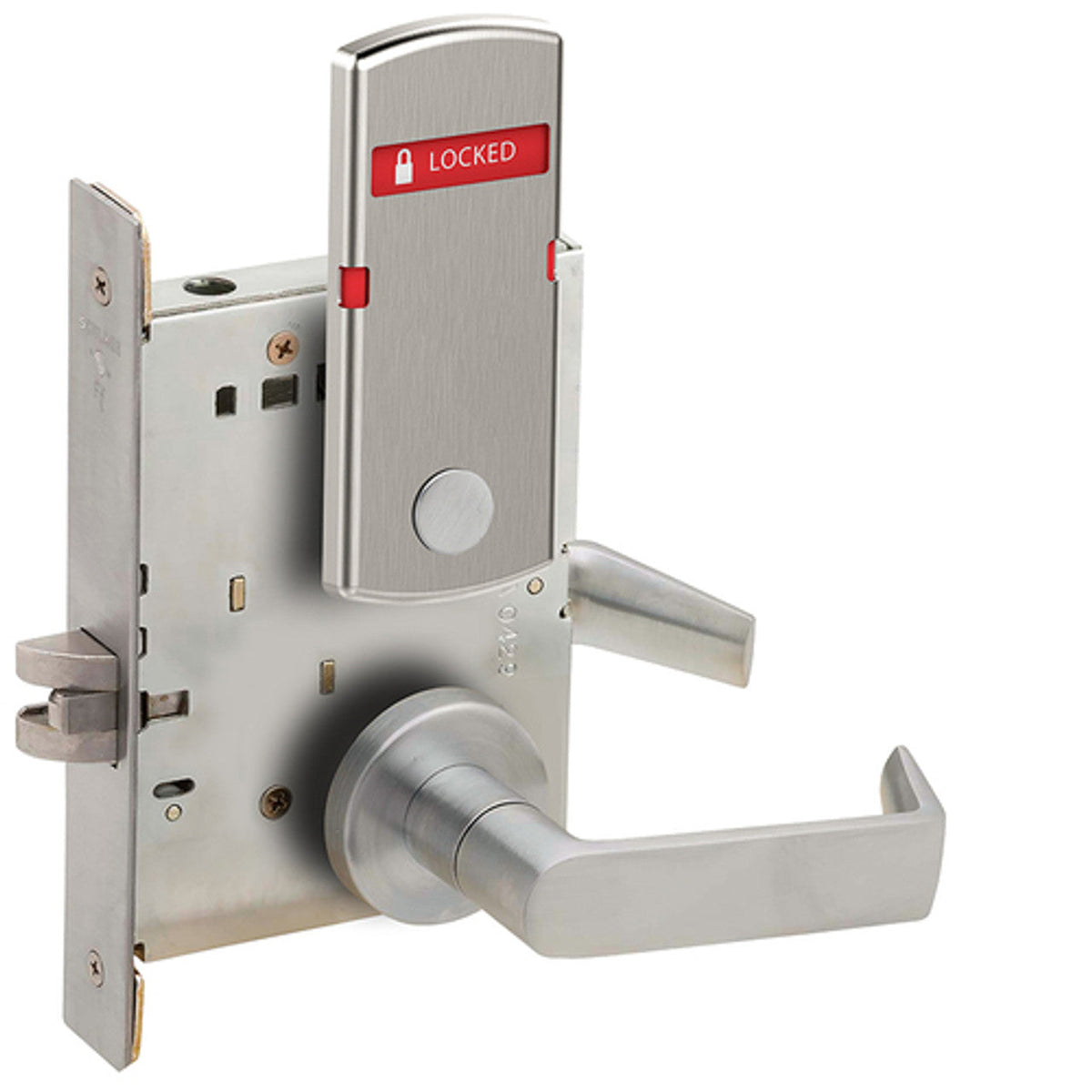

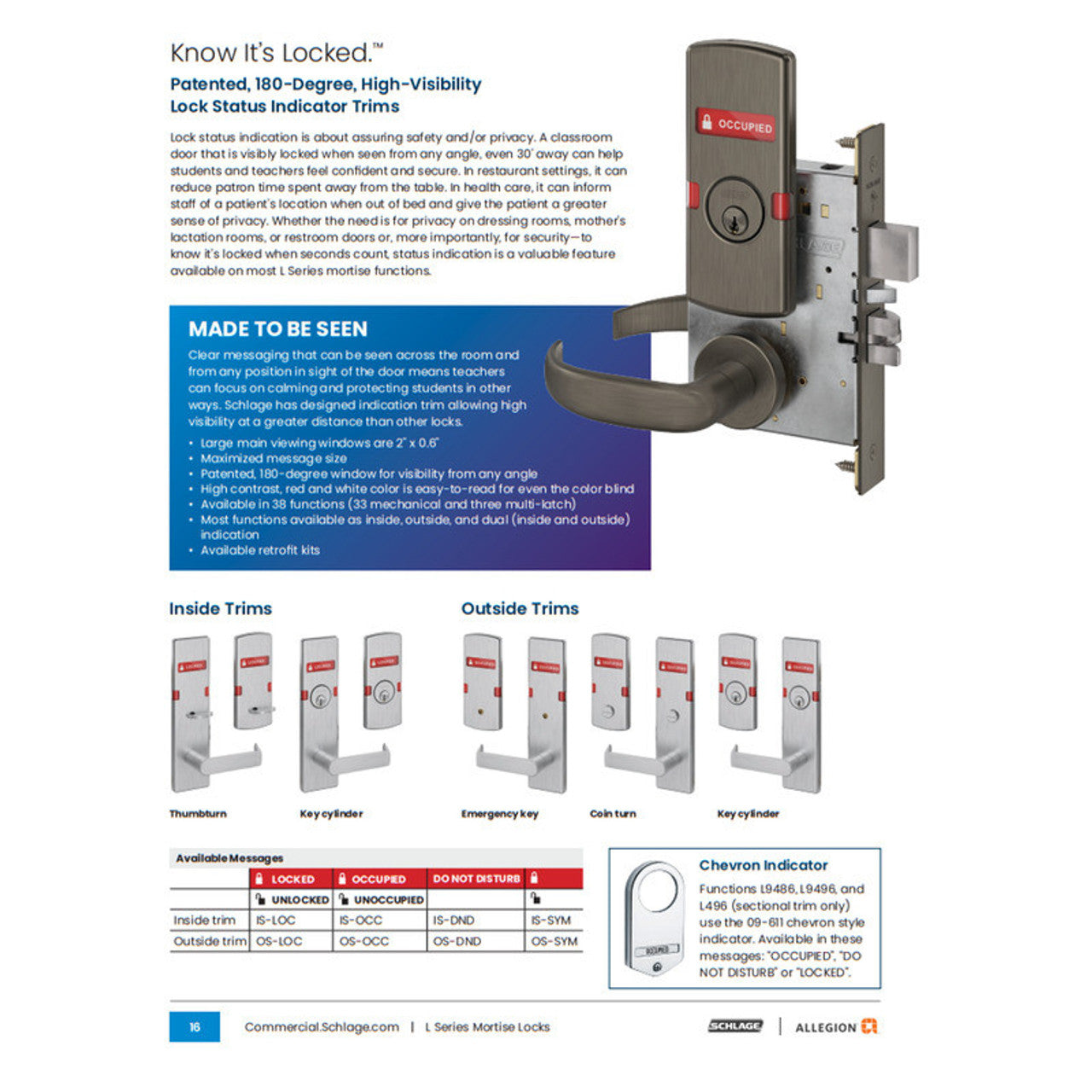

• Exclusive 180° visibility indicator
• Vandlgard^® free-wheeling outside trim option is available on most functions, including electrified
• Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
• New Gold Standard ligature resistant trim for behavioral health applications

View the Schlage L Series catalog to see all specifications and certifications.

• Meets BAA (Buy American Act)
• L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
• UL listed for 3-hour fire door (except L9076 and L9077)
• With interchangeable core cylinders: Grade 2 security
• With concealed shell cylinder: A156.13 Grade 1 operational and security
• ANSI/ASTM F476-76 Grade 40, UL listed
• L400: tested and certified under ANSI/BHMA A156.36 Grade 1
• California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
• UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
• Electrified functions are UL19X listed for single-point locking applications
• UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
• Miami-Dade NOA's and Florida Building Commission Listings
• Meet ADA requirements
