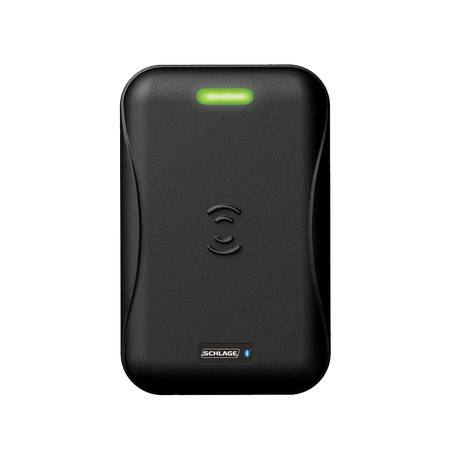

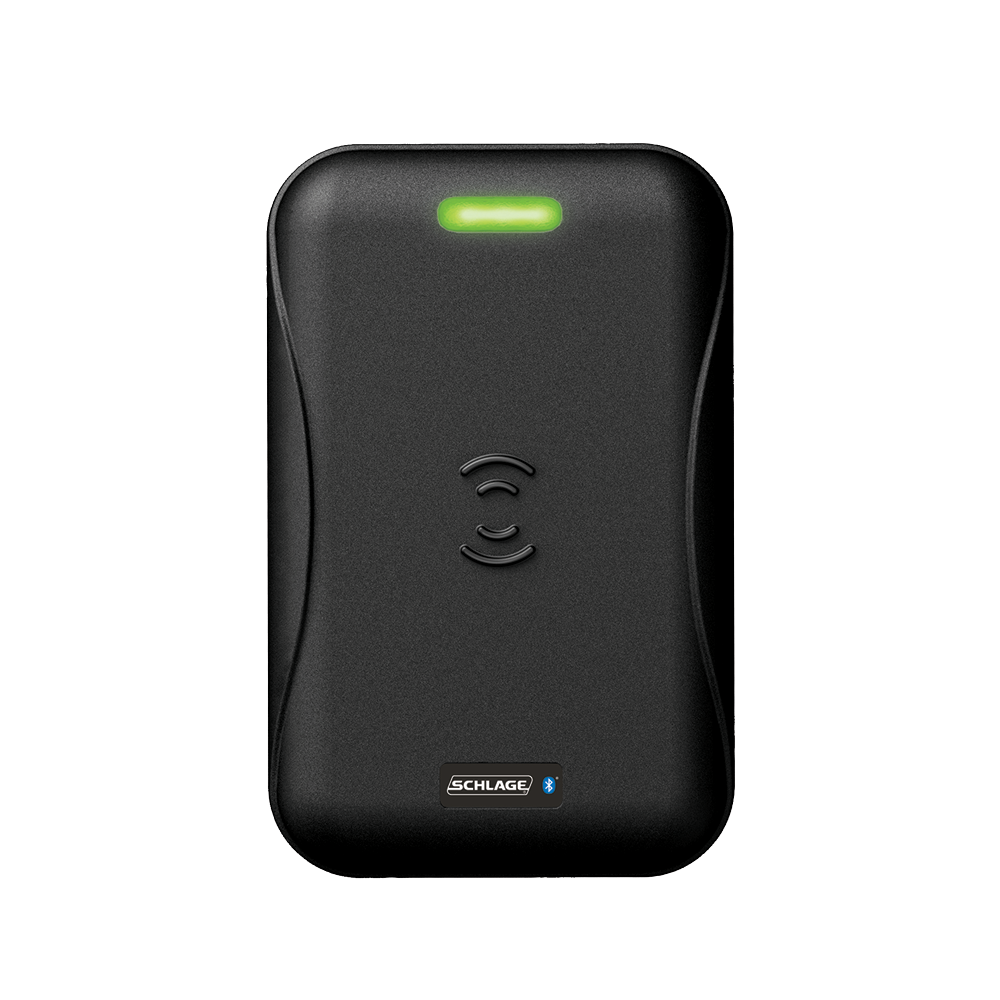

Mobile ready Schlage® MTB readers deliver maximum capabilities and compatibility in one single unit for simplified access control. The MTB15 wall mount is designed to support Bluetooth® (BLE) and NFC technologies in addition to reading both proximity and smart, allowing a seamless transition to more secure credentials at customers' own pace.
Technology
- Support for the widest range of credential technologies, including the latest in mobile:
- Schlage Mobile Bluetooth® Credentials (BLE)
- NFC including Apple’s Enhanced Contactless Polling (ECP) to support credentials in the Apple Wallet
- All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication
- OSDP Verified
Simplicity
- Commission via ENGAGE mobile app for reader updates and easy configuration
- Improved voltage range of 5V to 28V for simplified power management
- Accommodates interior, exterior, metal and non-metal installation environments
- Limited lifetime warranty
Installation
- Improved quick-connect cable allows for easy installation
- Easy-to-install mounting bracket
- Reads 125 kHz proximity, 13.56 MHz smart, 2.4 GHz Bluetooth and NFC technologies, with the ability to process multiple formats
- Wiegand, Clock & Data and RS-485 outputs come standard for simple interface with most access control panels
Physical dimensions (HxWxD): 5.1″ x 3.25″ x 0.76″
Frequency: 2.4GHz, 13.56 MHz and 125 kHz
System interface: Wiegand / Clock & Data / OSDP / Optional RS-485 capability
Standard default PIV output: 75 bit†
Standards: ISO 14443A, ISO 15693
Power: 5-28 VDC
Wiring: 22 AWG, 12 conductor, 12" length
Operating temperatures: -31° to 151°F (-35° to 67° C)
LED (red, green, or amber) visual indicator and audio feedback
Material: PBT Polymer
Compatibility
The MTB mobile enabled multi-technology reader will read Schlage® Mobile Bluetooth® Credentials, industry-leading smart credentials as well as proximity credentials. When installed as part of a proximity credential based system, the multi-technology reader will enable you to step up over time to more secure and versatile smart or mobile technology.
Credential types
- 2.4 GHz Mobile Bluetooth Low Energy (BLE)
- Mobile Near Field Communication (NFC)
- 13.56 MHz smart, including MIFARE Classic® and MIFARE® DESFire® EV1, EV2 and EV3
- 125 kHz proximity Schlage Mobile Access Credentials via 2.4 GHz Bluetooth
For full credential system compatibility list, see the MTB reader data sheet.
Styles
- Mobile (Bluetooth, NFC)
- Cards
- Keyfobs
- PVC adhesive discs
- Wearable wristbands
- Custom artwork options
For complete details, visit the Credentials page.
