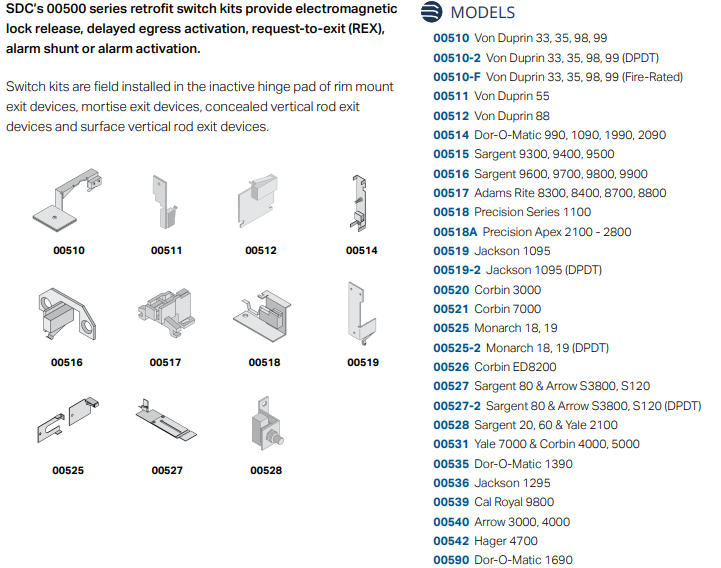

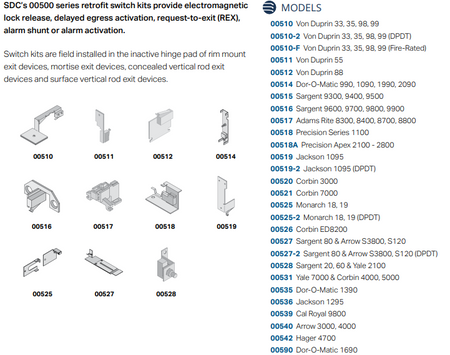

SDC’s 00500 series retrofit switch kits provide electromagnetic lock release, delayed egress activation, request-to-exit (REX), alarm shunt or alarm activation.

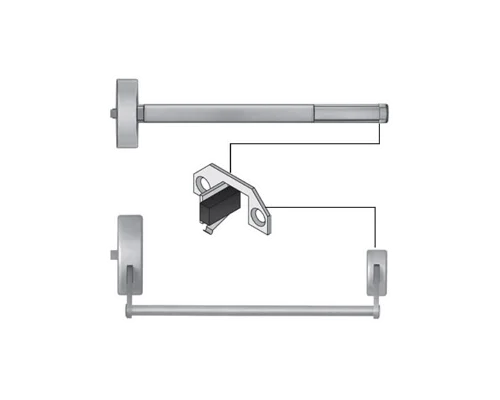

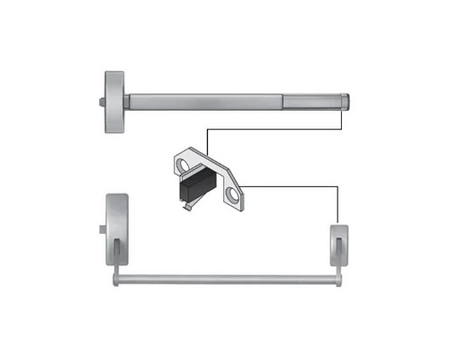

Switch kits are field installed in the inactive hinge pad of rim mount exit devices, mortise exit devices, concealed vertical rod exit devices and surface vertical rod exit devices.
00510 Von Duprin 33, 35, 98, 99
00510-2 Von Duprin 33, 35, 98, 99 (DPDT)
00510-F Von Duprin 33, 35, 98, 99 (Fire-Rated)
00511 Von Duprin 55
00512 Von Duprin 88
00514 Dor-O-Matic 990, 1090, 1990, 2090
00515 Sargent 9300, 9400, 9500
00516 Sargent 9600, 9700, 9800, 9900
00517 Adams Rite 8300, 8400, 8700, 8800
00518 Precision Series 1100
00518A Precision Apex 2100 - 2800
00519 Jackson 1095
00519-2 Jackson 1095 (DPDT)
00520 Corbin 3000
00521 Corbin 7000
00525 Monarch 18, 19
00525-2 Monarch 18, 19 (DPDT)
00526 Corbin ED8200
00527 Sargent 80 & Arrow S3800, S120
00527-2 Sargent 80 & Arrow S3800, S120 (DPDT)
00528 Sargent 20, 60 & Yale 2100
00531 Yale 7000 & Corbin 4000, 5000
00535 Dor-O-Matic 1390
00536 Jackson 1295
00539 Cal Royal 9800
00540 Arrow 3000, 4000
00542 Hager 4700
00590 Dor-O-Matic 1690
