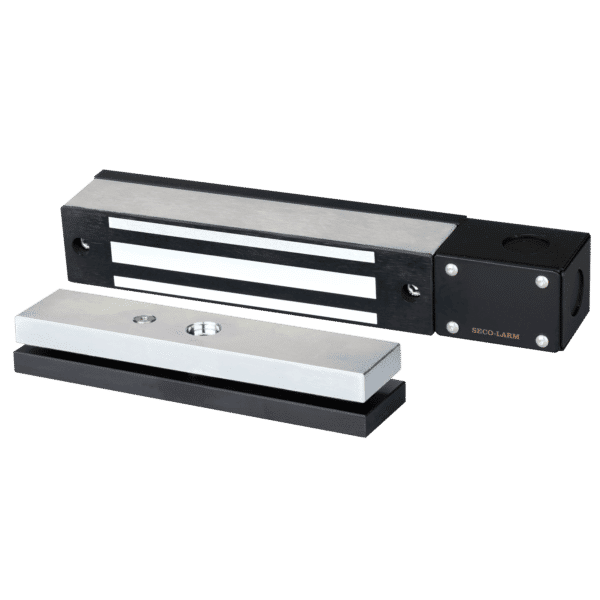

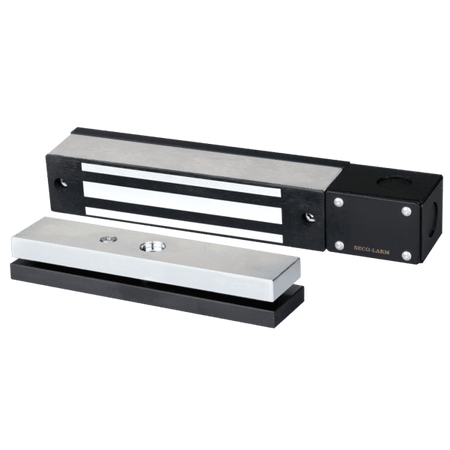

600-lb Electromagnetic Gate Lock, Face Mount, Weldable
Electromagnetic Gate Lock with brackets for armature and magnet. The E-942FC-600SQ is primarily designed for swinging gates.
- 600-lb (272 kg) Holding force
- No residual magnetism
- MOV Surge protection
- Face mounting
- For sliding or swinging gates
- Weld or bolt brackets directly to the gate
- Brackets are zinc-plated for corrosion resistance
- Water- and vandal-resistant attractive stainless-steel black finish to match most gates
- Maintenance-free, factory-sealed design
- Fail-safe operation (releases if power is removed)
- Waterproof (IP67) and vandal resistant for indoor and outdoor applications
- Dual-threaded conduit fitting
- Attractive stainless steel housing
- Junction box with 4 knockouts
- Complete mounting hardware for typical installations
- Additional brackets available for easy mounting or atypical situations
- 12/24VDC Selectable
- Lifetime limited warranty*
*Warranty applies in the USA and Canada only. Contact SECOÂLARM for details.
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12VDC or 24VDC |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | IP67 Waterproof |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Certification | RoHS, cUL, UL, CE |
| Weight | 10.40-lb (4.75kg) |
| Maglock & Armature Weight (Approx.) | 6.4-lb (2.9kg) |
| Bracket Weight (Approx.) | 3.95-lb (1.8kg) |
| Type | Electromagnetic Gate Lock, 600-lb Holding Force, Face Mount, Weldable |
