DT-7 Securitron Timers & Timing Modules

SKU: DT-7
Regular price $171.22
Regular price Sale $290.00 Sale price $171.22

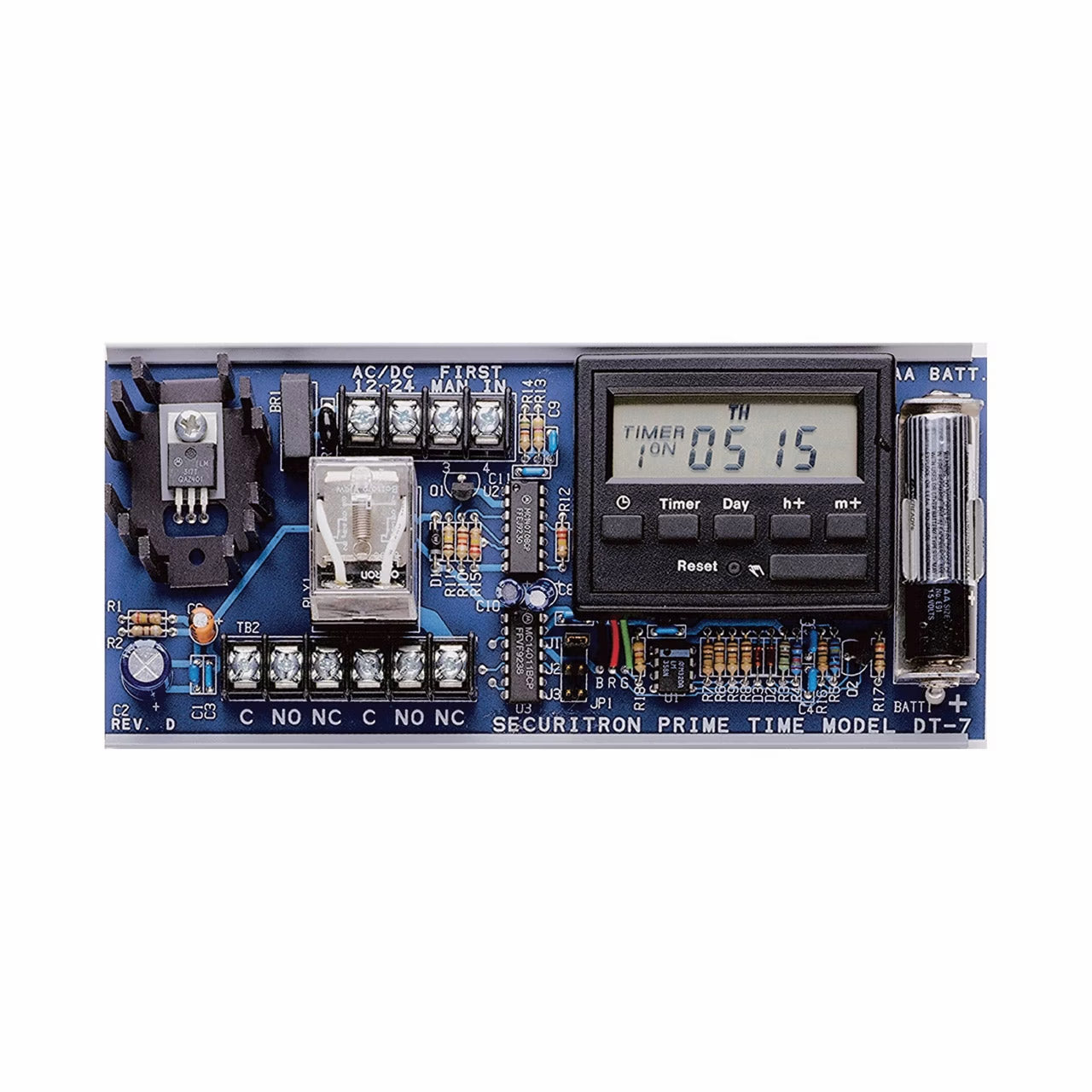

7-Day Digital Timer, 12 Events per Day, First Man in Feature, 12/24VDC/AC

Inventory loading
Control doors equipped with electrified hardware - with or without access control - with The DT-7 digital timer. The DT-7 can be used as a stand-alone unit, or in conjunction with DK and other products. Versatile programming supports timed unlocked/locked/or access- control-only states to turn electric locks or other security systems on and off at programmed times. 7-day digital timer with 10A DPDT relay can be operated in toggle or pulse mode. 12 programmed on/off times, set daily (6 on, 6 off ), on selected days, or on blocks of days. "First Man In" feature delays preset action until first access. Supports holiday programming. 12 or 24 VAC or VDC. AA battery provides backup to the display module program memory, battery not included. 170 mA at 12V or 24V ( VAC or VDC). Operating Temperature +32 to +113F [0 to +45C].
BAA QUALIFIED: Yes
BURGLAR RATED: No
COUNTRY OF ORIGIN: USA
ENVIRONMENT: Indoor
FIRE RATED: No
LIMITED WARRANTY: Lifetime
LINE DRAW: 170 Ma
MANUFACTURER: Securitron
PLASTIC COLOR: Blue
SERIES: Securitron Switches, Relays, Timers and Pushbuttons
WEIGHT: 0.75
