EL-TSH-CL Securitron Exit Device Part

SKU: EL-TSH-CL
Regular price $343.06
Regular price Sale $592.00 Sale price $343.06

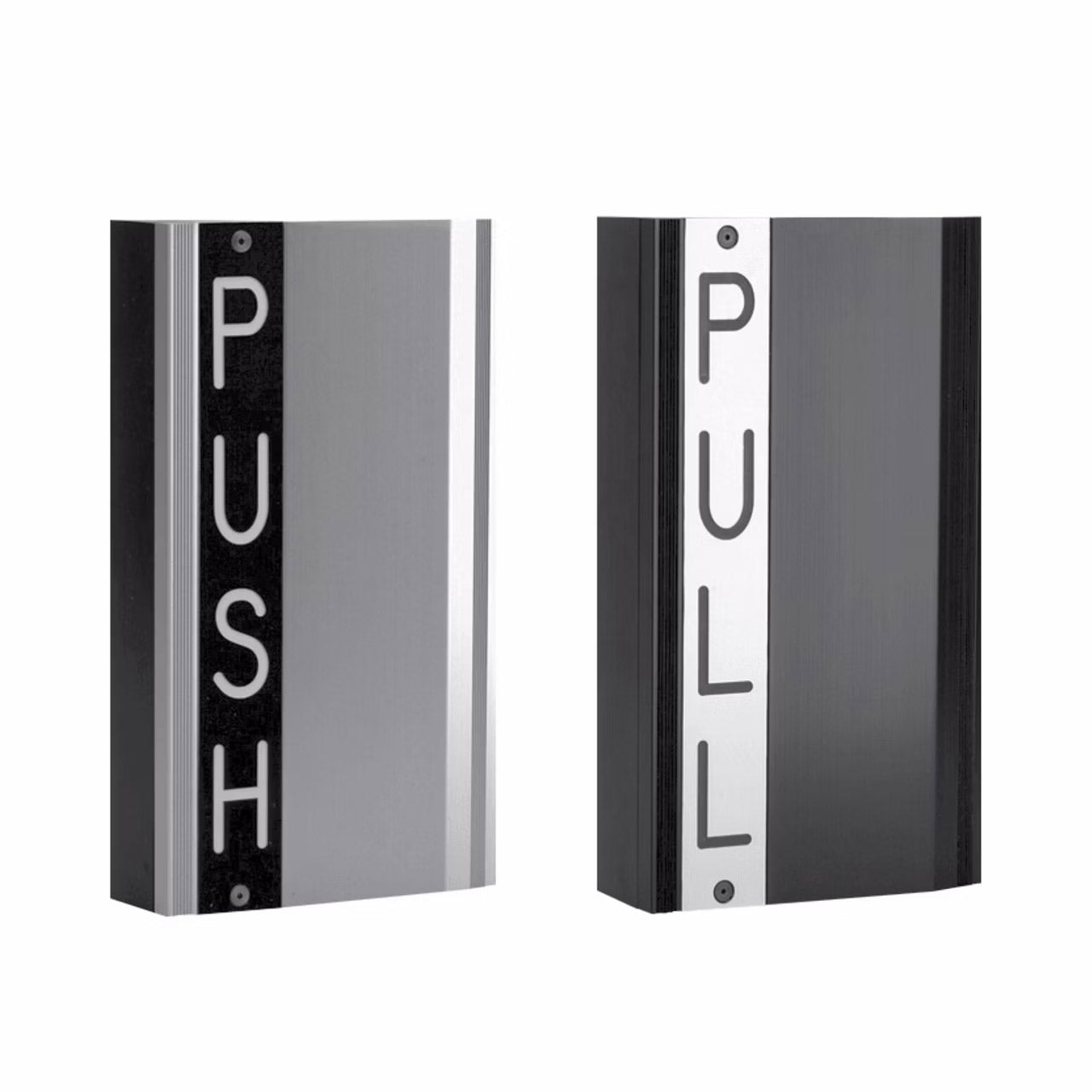

Electrolynx Touch Sense Handle, Aluminum

Inventory loading

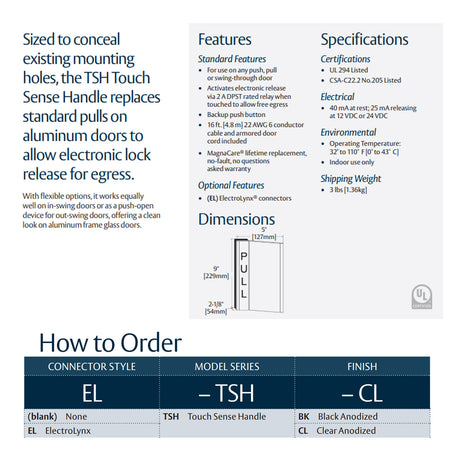

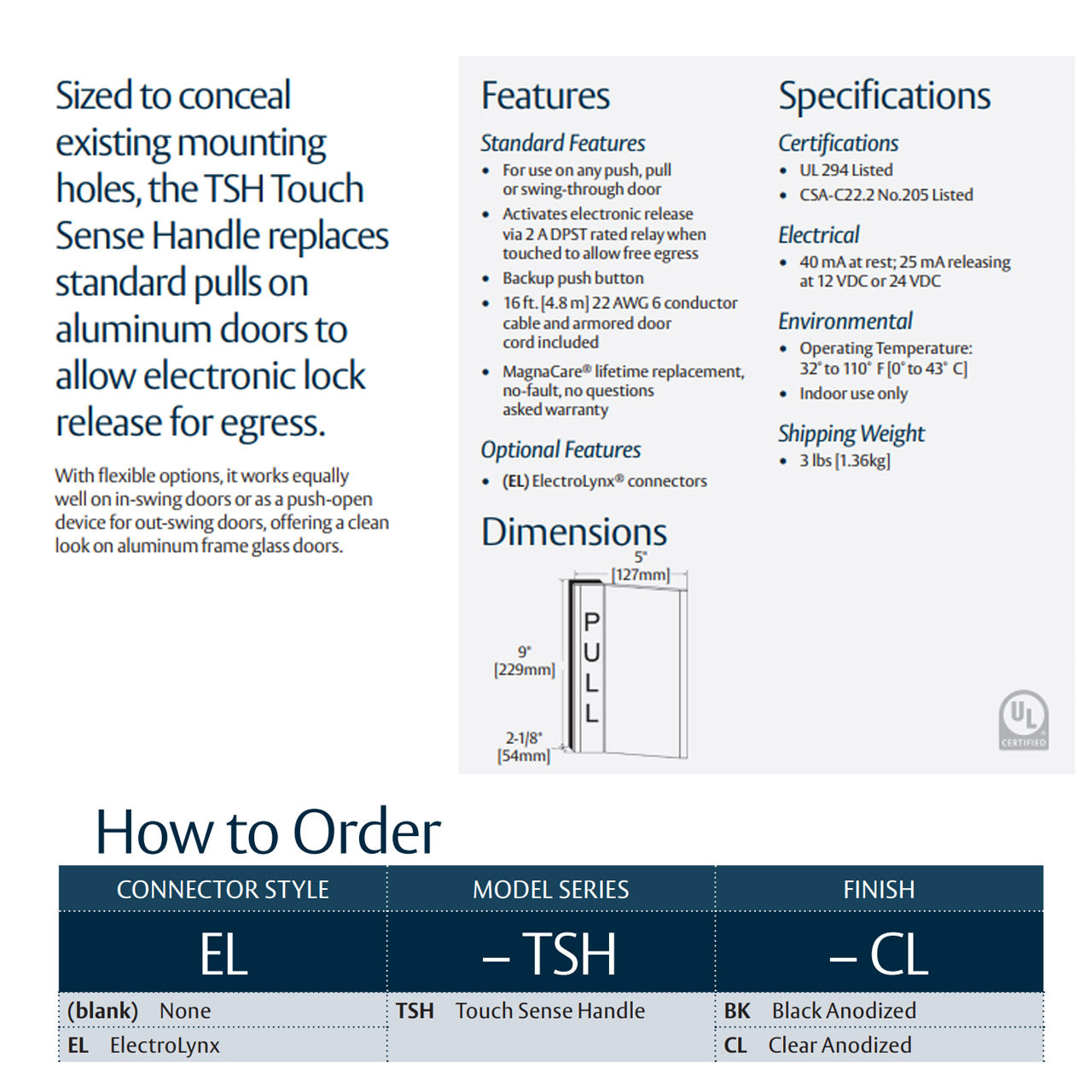

Sized to conceal existing mounting holes, the TSH Touch Sense Handle replaces standard pulls on aluminum doors to allow maglock release for egress. With flexible options, it works equally well on in-swing doors or as a push-open device for out-swing doors, offering a clean look on aluminum frame glass doors. For use on any push, pull or swingthrough door. Activates electronic release via DPST 2A rated relay when touched to allow free egress. Backup push button. 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included. Automatic dual-voltage 12 VDC/24 VDC.
BAA QUALIFIED: Yes
BASE MATERIAL: Aluminum
BURGLAR RATED: No
COUNTRY OF ORIGIN: USA
FINISH: 628/US28 Satin Aluminum Clear Anodized
FINISH DESCRIPTION: Satin Aluminum Clear Anodized
FINISH TITLE: 628/US28
FIRE RATED: No

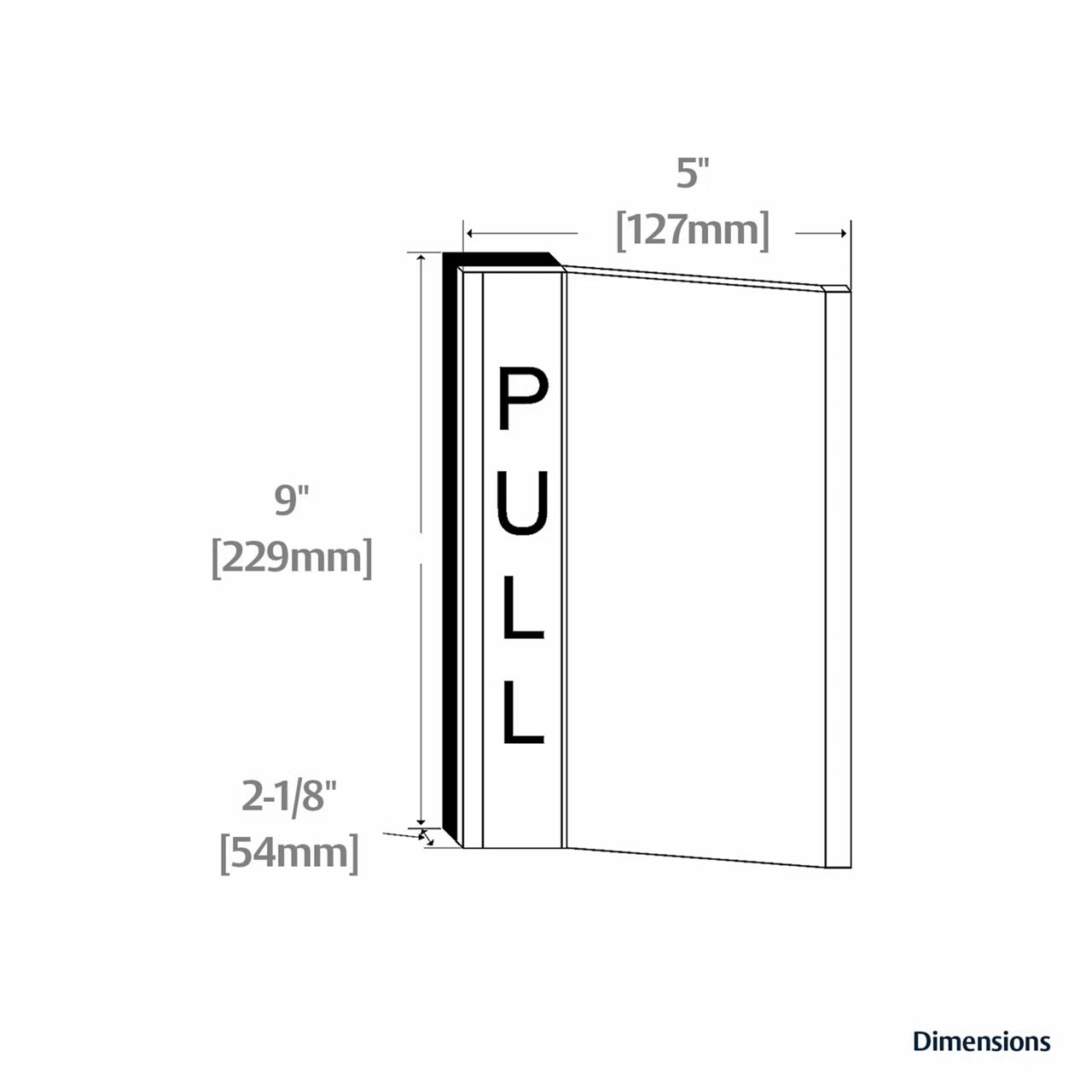

HEIGHT: 2.125
LENGTH: 9
LIMITED WARRANTY: Lifetime
MANUFACTURER: Securitron
PLASTIC COLOR: Black
SERIES: Securitron Exit Devices
WEIGHT: 3
WIDTH: 5
