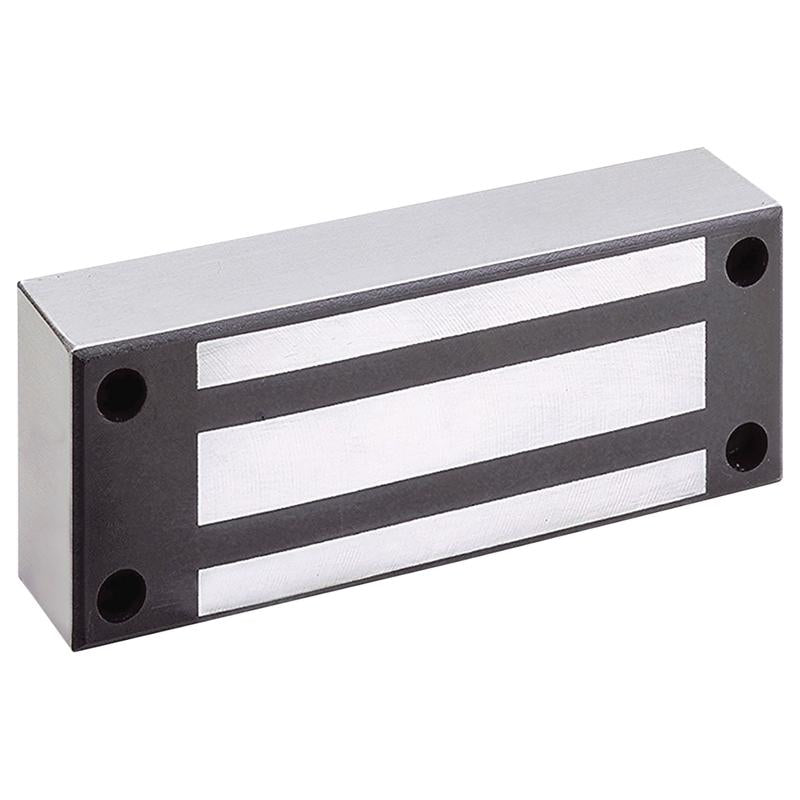

M62 Securitron Maglocks

SKU: M62
Regular price $330.86
Regular price Sale $565.00 Sale price $330.86






Maglock, 1200lbs. Holding Force, 12/24VDC, Satin Stainless Steel

Inventory loading
The M62 is a strong, easy-to-maintain solution for interior, perimeter and exterior access control. With unsurpassed durability, the M62 will last long after most buildings wear out. Flexible mounting options support applications for hollow metal, concrete filled metal, wood, or glass with aluminum frames, and Herculite doors. Options include single and double door configurations, or specialty applications such as gates and fences. Ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Fully sealed for weatherproof operations. 10 ft. [3.05m] of jacketed, stranded conductor cable. Automatic dual-voltage. Instant release circuit with no residual magnetism. Noise suppression with included MOV. Efficient, low power usage. Rust resistant with all ferrous metal surfaces plated for durability. Fits in 2.5" of flat mounting space. 1,200 lbs. [544kg] holding force. Dimensions: Magnalock: 8"L x 1-3/4"D x 3"H, Strike: 6"L x 1/2"D x 2-3/4"H. Electrical: 250 mA at 12 VDC, 150 mA at 24 VDC. Operating Temperature: -40 to +140F [-40 to +60C], indoor or outdoor use.
BAA QUALIFIED: Yes
BASE MATERIAL: Stainless Steel
BURGLAR RATED: No
COUNTRY OF ORIGIN: USA
FINISH: 630/US32D Satin Stainless Steel
FINISH DESCRIPTION: Satin Stainless Steel
FINISH TITLE: 630/US32D
FIRE RATED: 3 Hours {A}
GRADE: Grade 1
HEIGHT: 3
LENGTH: 8
LIMITED WARRANTY: Lifetime
MANUFACTURER: Securitron
MOUNTING LOCATION: Direct Mount
OPERATING VOLTAGE: 12VDC/24VDC
SERIES: Securitron Durable Magnalocks
STRIKE TYPE: Standard Strike
SWITCH TYPE: None
WEIGHT: 11
WIDTH: 3.25
