Description

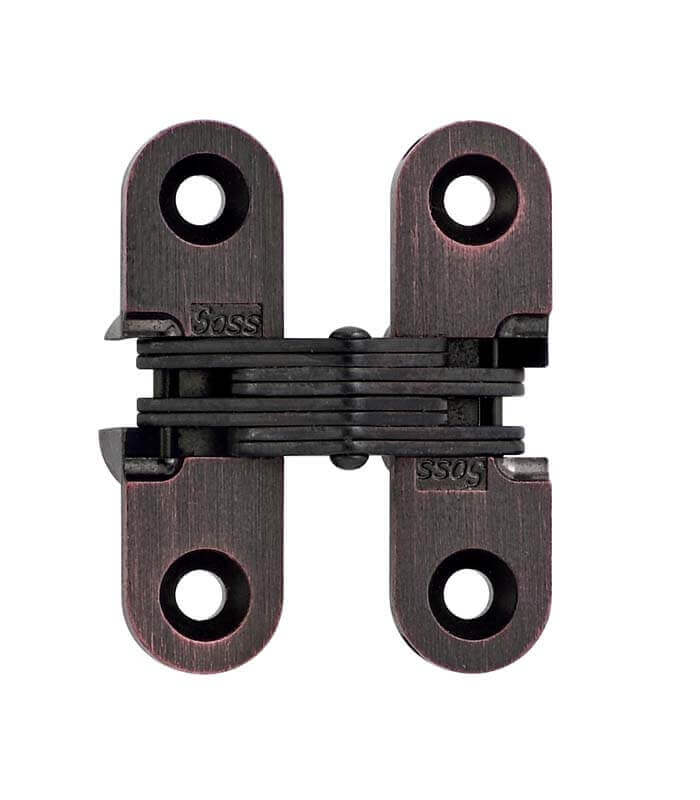

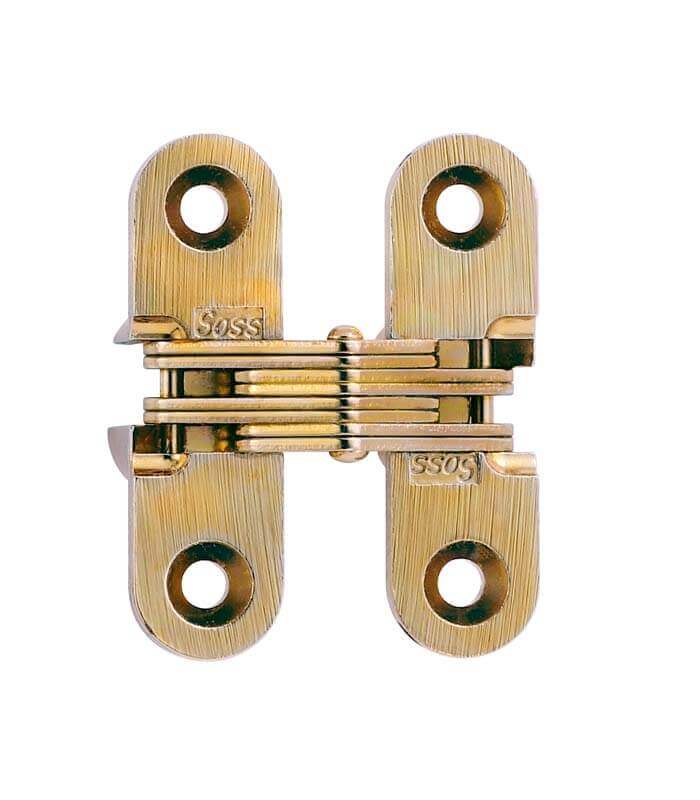

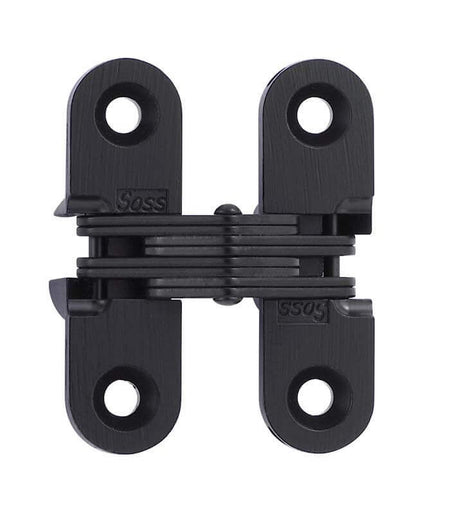

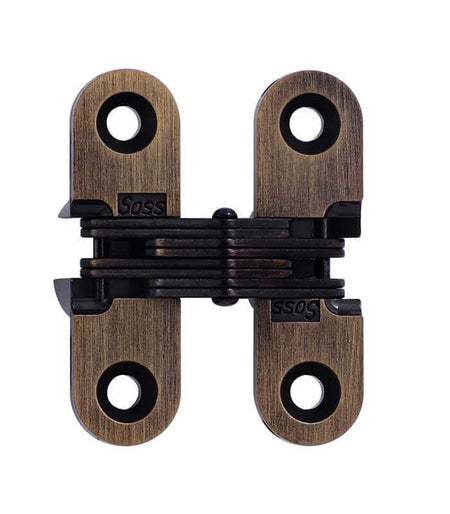

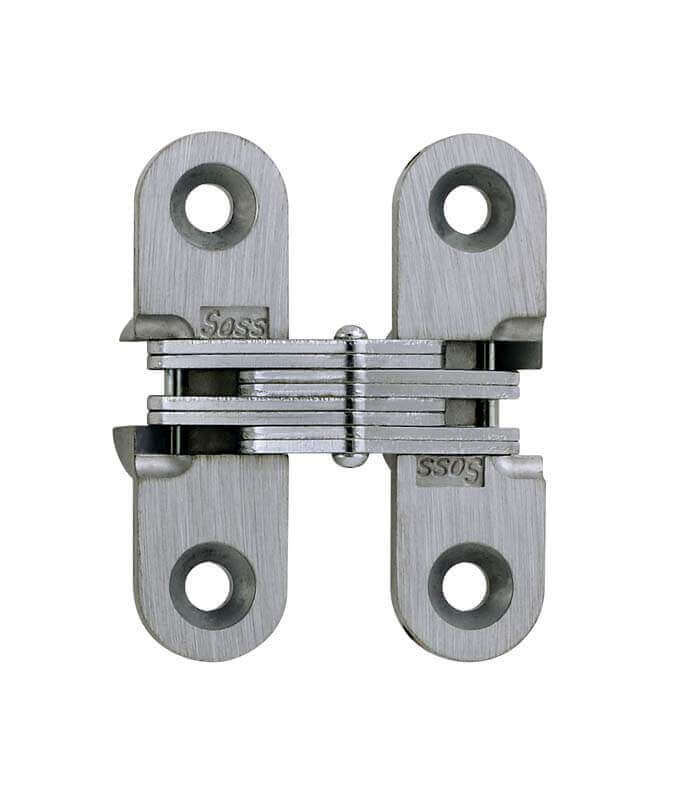

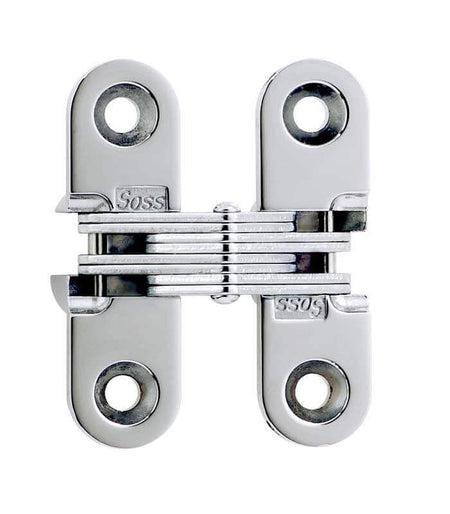

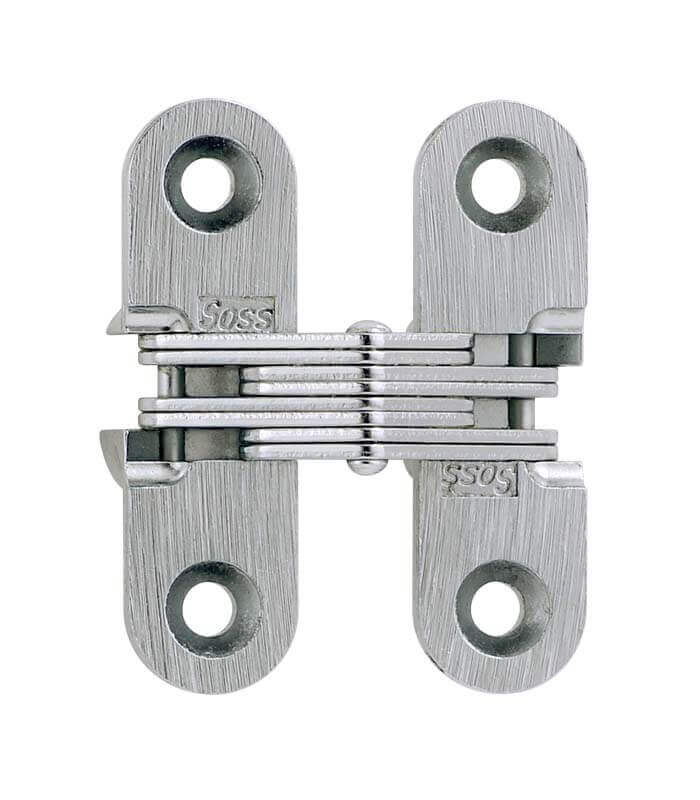

SOSS® Invisible Hinge model #203 is for use in wood or metal applications that are 3/4″ to 1″ thick. The model #203 is made of zinc and steel materials. This cabinet style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.
Wood screws included. Machine screws are available for an additional charge.
Additional Information
| Application | Cabinet, Metal, Wood |
|---|---|
| Min. Material Thickness | 3/4″ |
| Fire Rating | No |
| Power Transfer | No |
| Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | Wood |
| Packaging | 2 each carded / = 1 Pair |
| Packages Per Container | 10 Pair |
| Price Per | Pair |

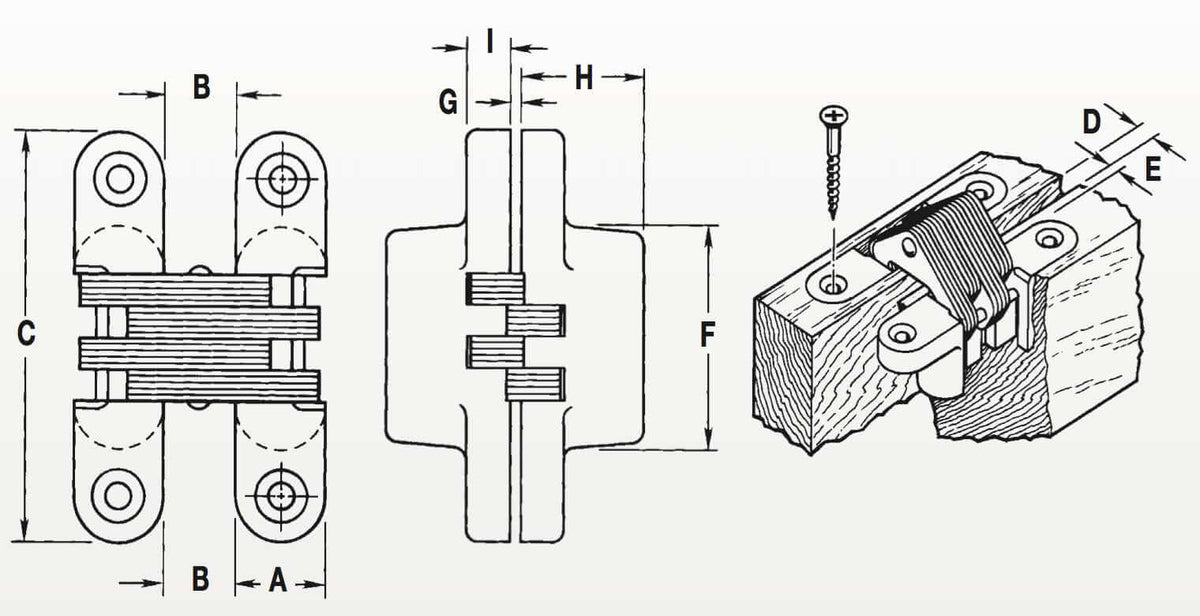

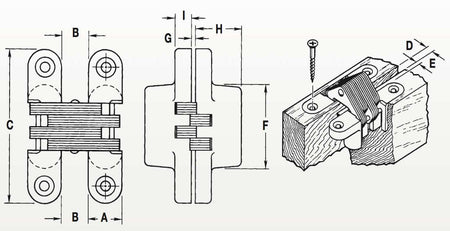

Dimensions
| A | 1/2″ (12.70mm) |
| B | 23/64″ (9.13mm) |
| C | 1-3/4″ (44.45mm) |
| D | 7/64″ (2.78mm) |
| E | 1/8″ (3.18mm) |
| F | 3/4″ (19.05mm) |
| G | 1/32″ (0.79mm) |
| H | 23/32″ (18.26mm) |
| I | 3/16″ (4.76mm) |
| Min. Matl. Thickness | 3/4″ (19.05mm) |
| Wood Screw Sizes | #6×1″ (3.5x25mm) |
| Soft Wood Pilot Hole | No. 52 |
| Hard Wood Pilot Hole | No. 44 |
| Machine Screw Sizes | #6-40×1/2″ |
| Hinge Weight | .11 lb. |
