Home » Taco TC4300 Heavy Duty Door Closer (4040XP Hole Pattern)
Taco

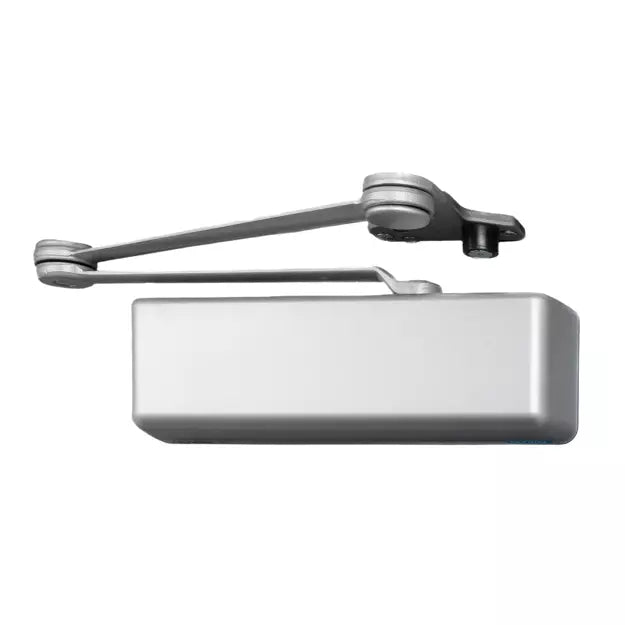

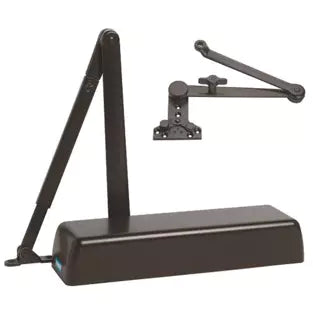

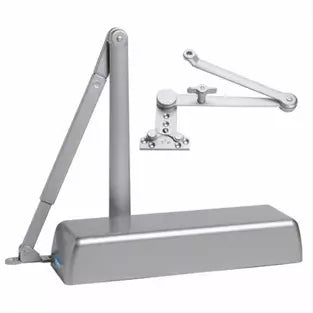

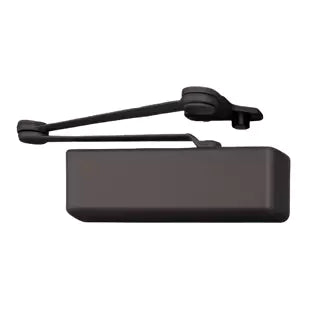

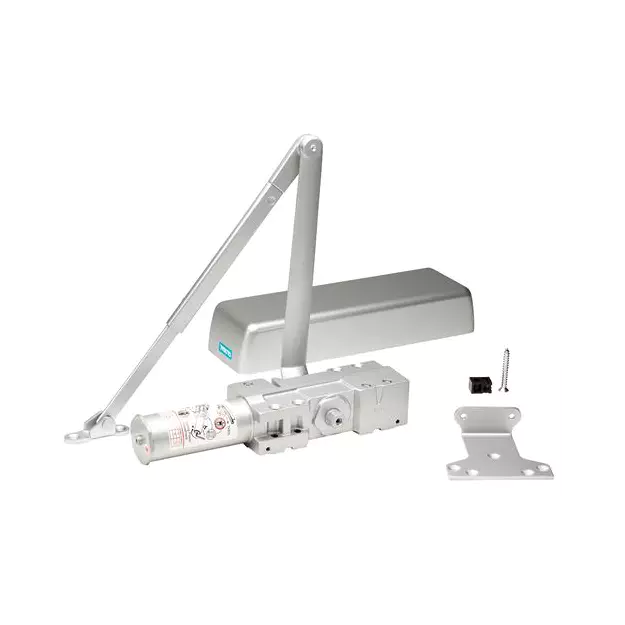

Taco TC4300 Heavy Duty Door Closer (4040XP Hole Pattern)

SKU: TC4300-AL
$105.00
Regular Arm Door Closer, PA Shoe

Inventory loading
The TC4300 has all the same design features and specifications as our TC4361 and is our heaviest duty closer for institutional and all other high traffic demanding applications. It has a wide choice of options and installation accessories to accommodate the requirements specified in any industrial or institutional environment. This model comes tri-packed standard and can be ordered with different arm styles for maximum versatility. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards. Meets ADA Requirements. Grade 1 Certified, ANSI/BHMA A156.4 Options: Specify when ordering Hold open cush – HOA Cush arm – CNS Heavy duty – HD Finish – AL, DU Specifications: Grade 1 certified, ANSI/BHMA A156.4 UL Listed #R7483 (mfg. 5300 series) complies with UL10C for positive pressure Aluminum alloy shell Non-handed – full cover Multi-size springs 1-6 adjustable power ADA compliant Three independent regulating valves – control sweep and latch closing speeds, also backcheck cushion Tri packed- regular, top jamb, parallel arm Supplied with both wood and machine screws Finish: AL- Aluminum, DU- Duronotic
APPLICATION: Regular Arm
ARM TYPE: Regular Arm
CLOSER SIZE: Non-Sized
COVER: Plastic
HAND: Non-Handed
HOLD OPEN: No
MOUNTING LOCATION: Push or Pull Side
SERIES: TC4300
TYPE: Surface
