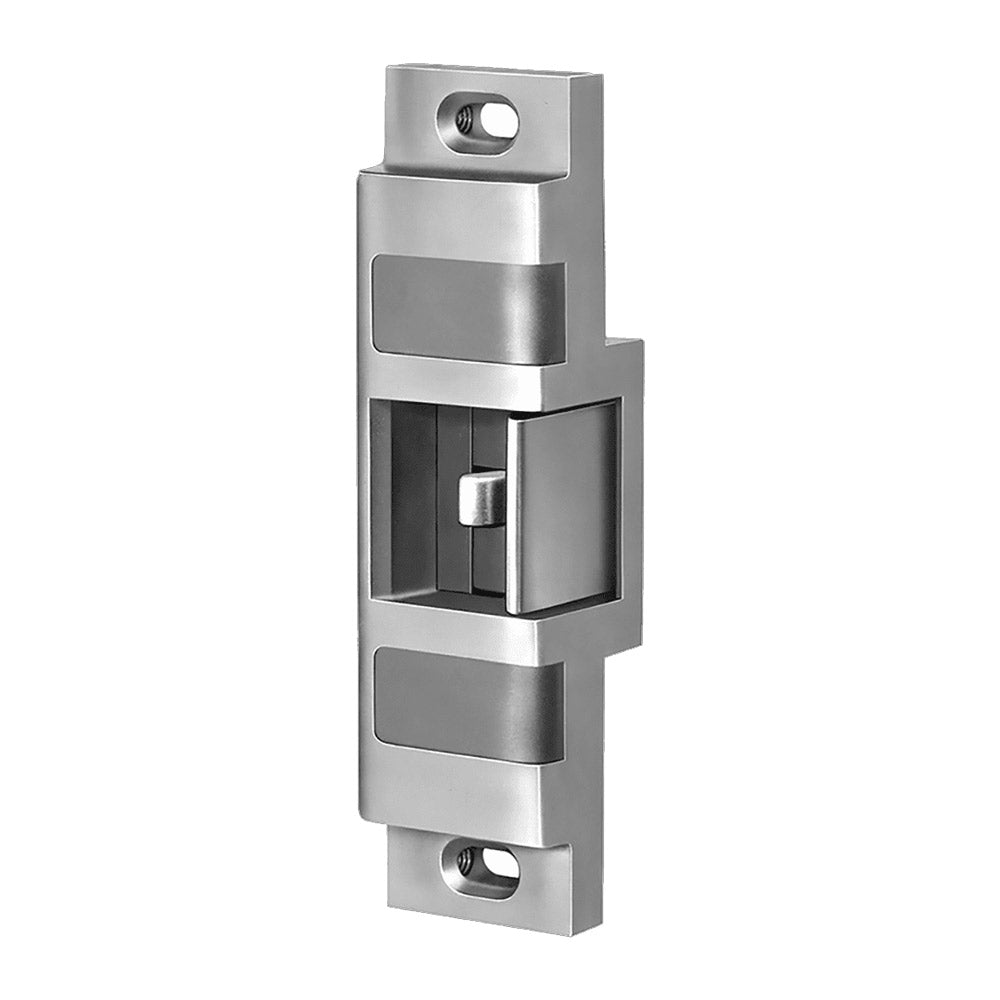

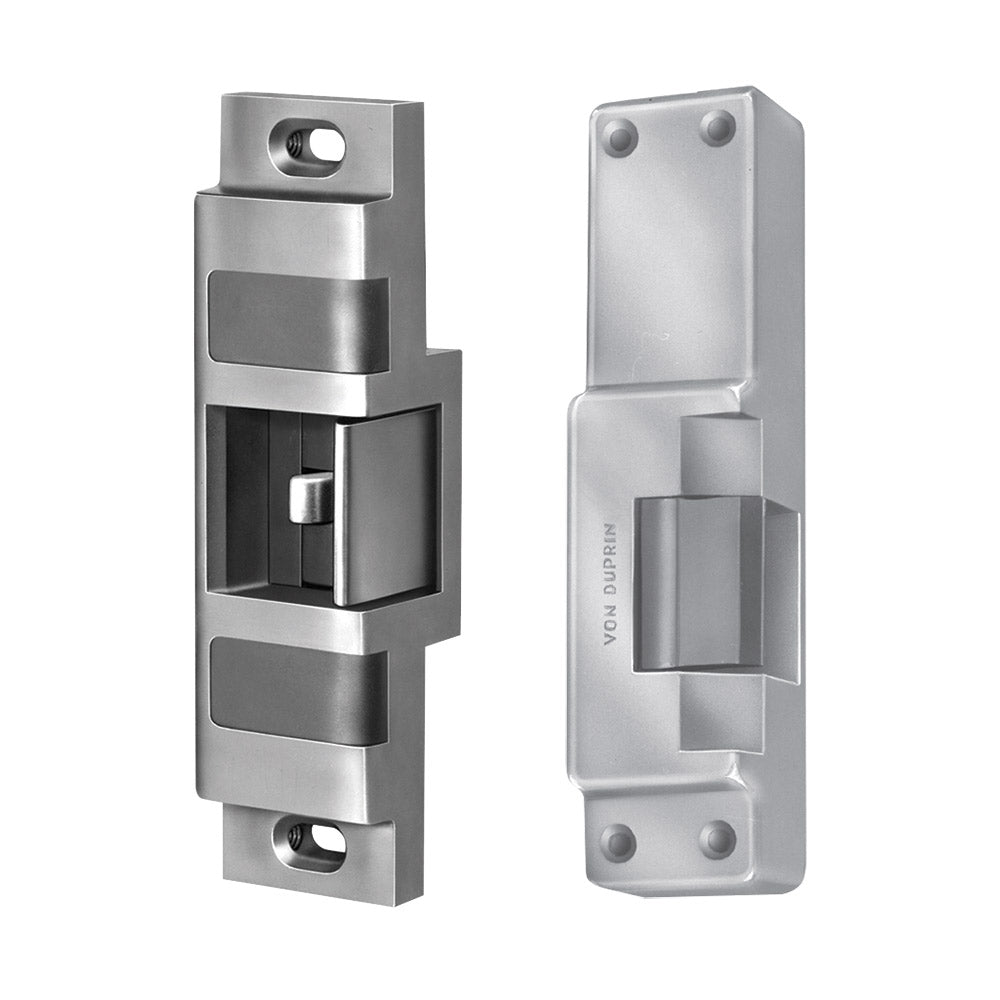

Von Duprin 6112 Electric Strike for Rim Exit Devices

SKU: 6112-24-US32D
$788.13

Overview

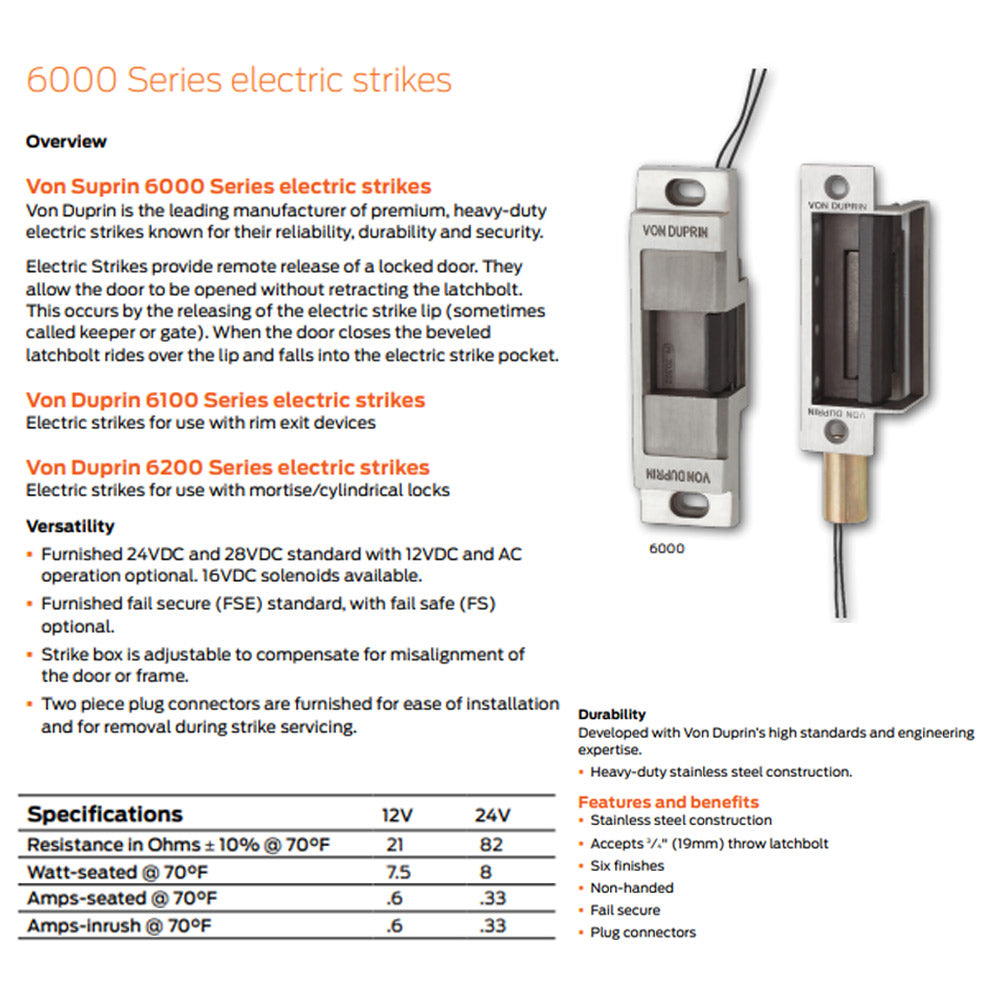

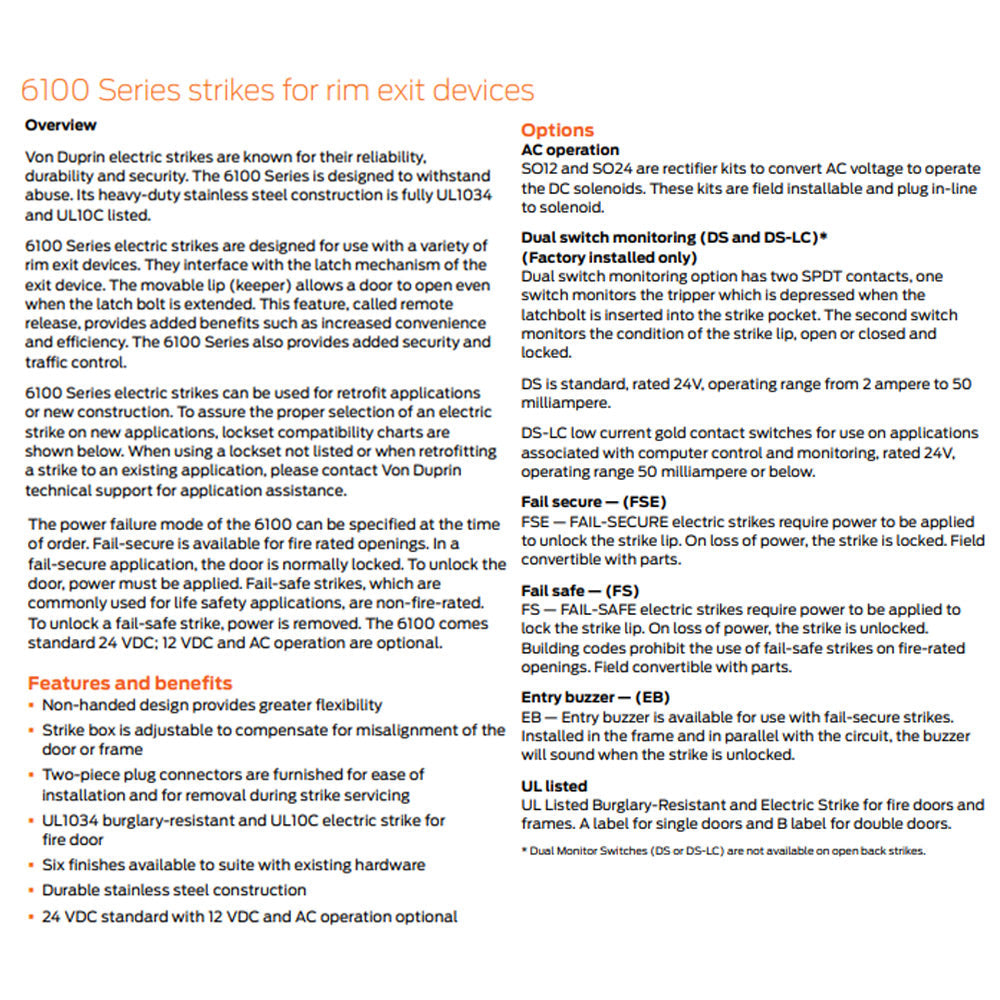

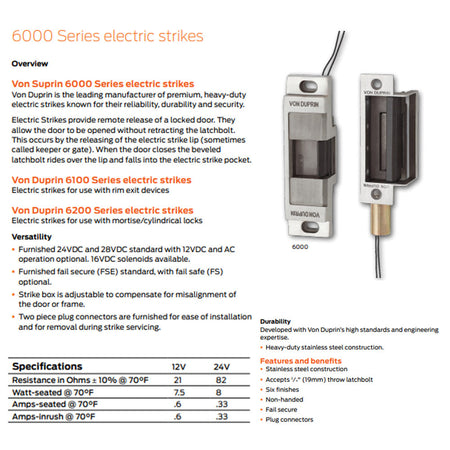

The 6100 Series electric door strikes are designed for use with a variety of rim exit devices and include rim night latch and fire-rated solutions. These strikes include fire rated models and are factory configurable for fail safe or fail secure applications. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability.

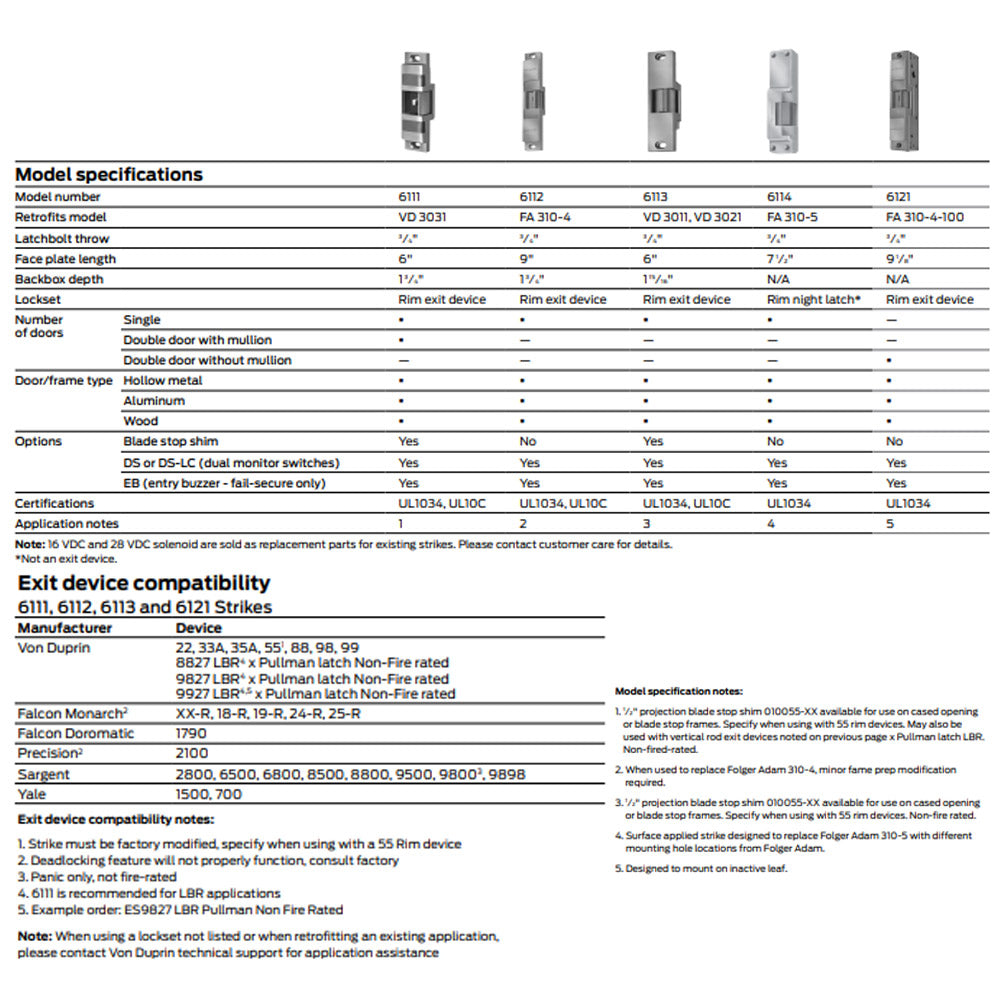

The 6100 Series is compatible with many Von Duprin, Falcon and other manufacturers' exit devices. In addition, they are suitable for retrofit with many Folger Adams models.

Heavy Duty

Rim

Application

  • 5 model configurations available for rim exit or night latch devices
  • For interior or exterior doors with hollow metal, aluminum, or wood frames

Simplicity

  • Factory orderable to exact specifications
  • 6 popular finishes available to suite with existing hardware
  • 2-piece plug connectors are included for easy installation and removal during strike servicing
  • Horizontal adjustability for tight door preps

Strength and durability

  • Heavy-duty stainless steel construction
  • 1500 lbs. static strength
  • 70 ft-lbs. dynamic strength

Opening

  • Single doors with wood, hollow metal or aluminum frames

Lockset

  • Rim exit devices (4 models)
  • Rim night latch (6114 only)

Throw

  • 3/4" latch

Power

  • 24 VDC standard with 12 VDC and rectifier kit conversion to VAC optional
  • 12 VDC continuous duty at 0.6 Amp
  • 24 VDC continuous duty at 0.33 Amp

Dimensions

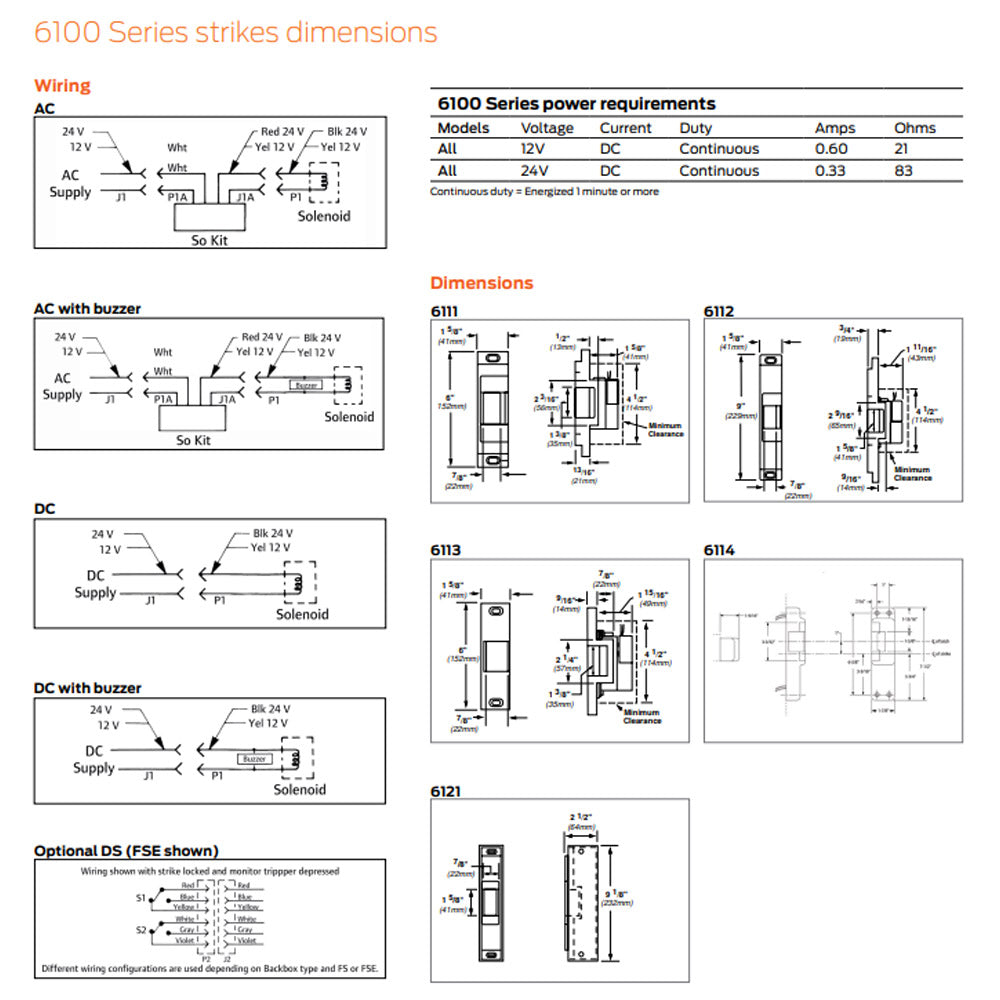

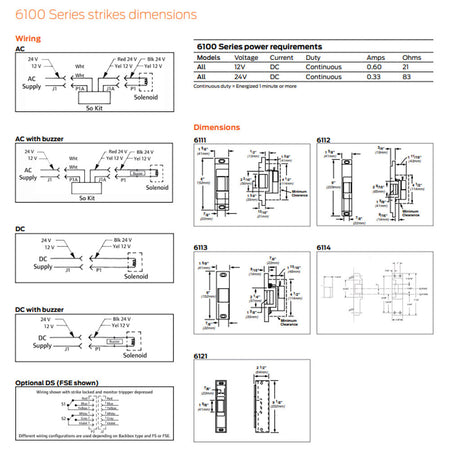

See the 6100 Series data sheet for dimension and wiring diagrams.

Available Finishes

  • BHMA 605 polished brass, clear coated
  • BHMA 606 satin brass, clear coated
  • BHMA 612 satin bronze, clear coated

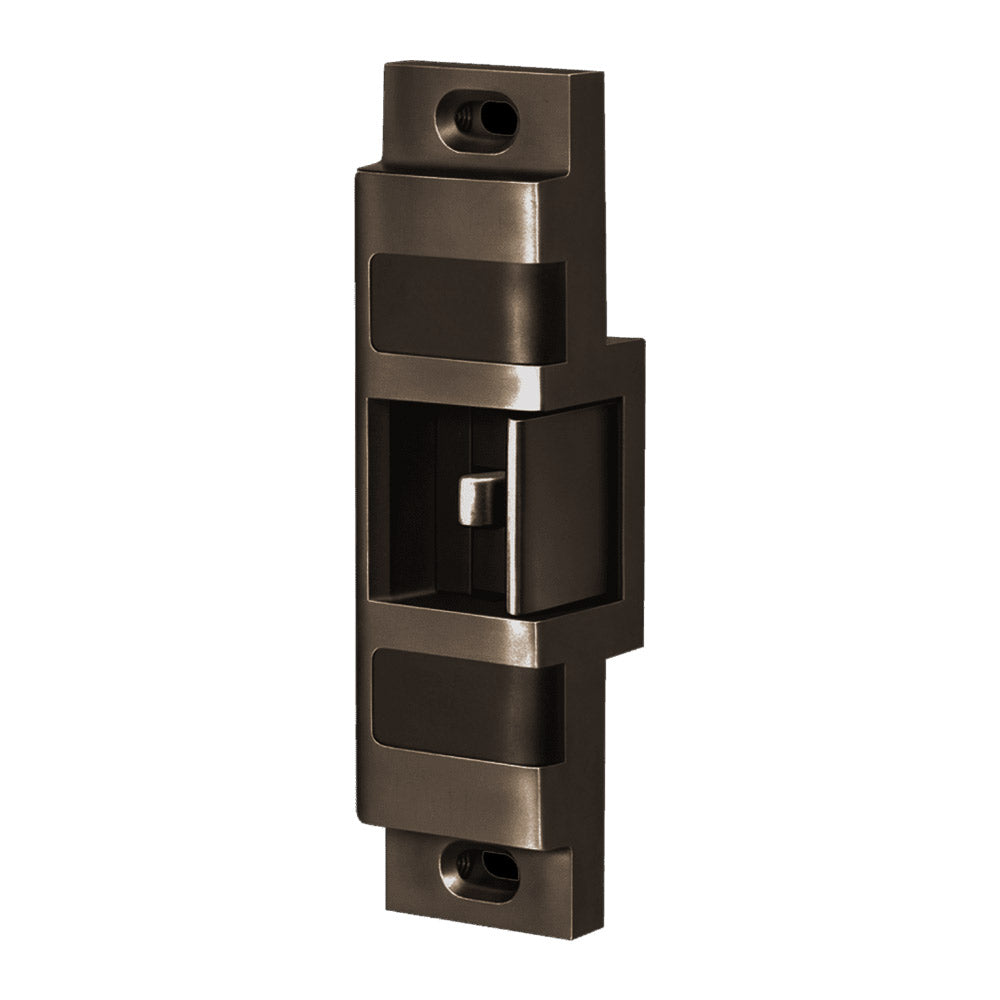

  • BHMA 613 dark bronze, oil rubbed
  • BHMA 629 bright stainless steel
  • BHMA 630 satin stainless steel

Options

  • 12 VAC to 12 VDC rectifier
  • 24 VAC to 24 VDC rectifier
  • Entry buzzer
  • Dual monitor switches
  • Allegion Connect wire extension
